LUX SERIES
REVERSE LUX 7X3
R-3700 · Reverse light
Color

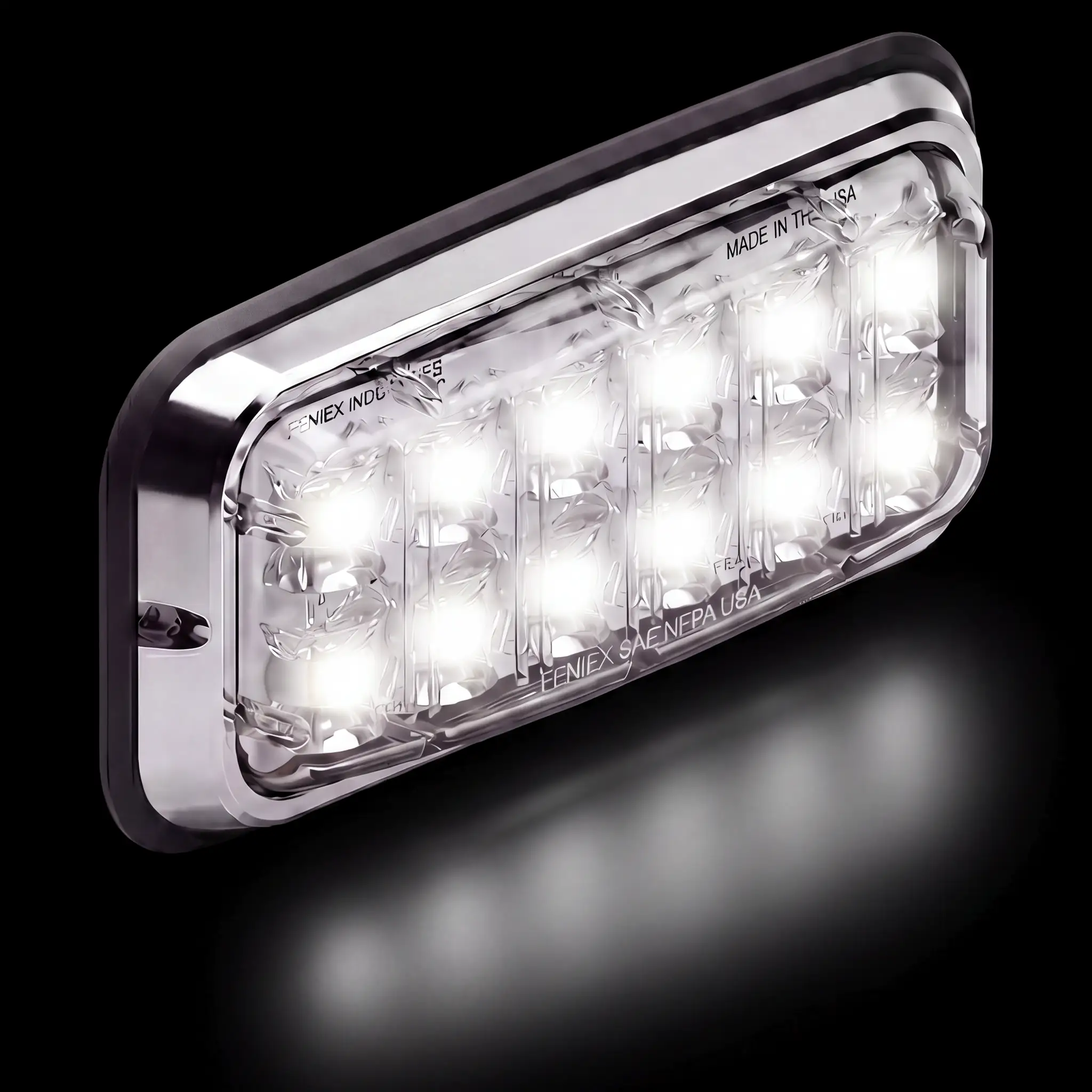

White illumination.
STEP 01Cable length1 ft included
1 ftIncluded11 ft+$1521 ft+$30

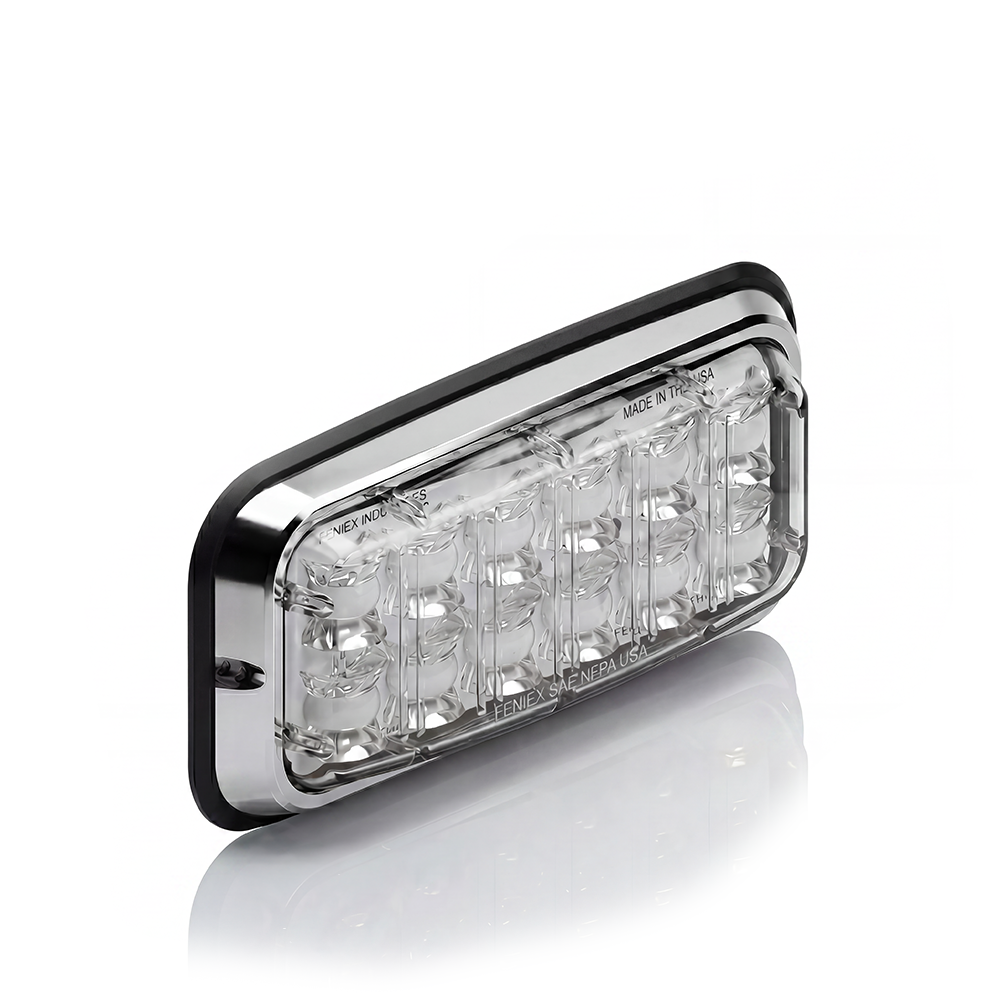

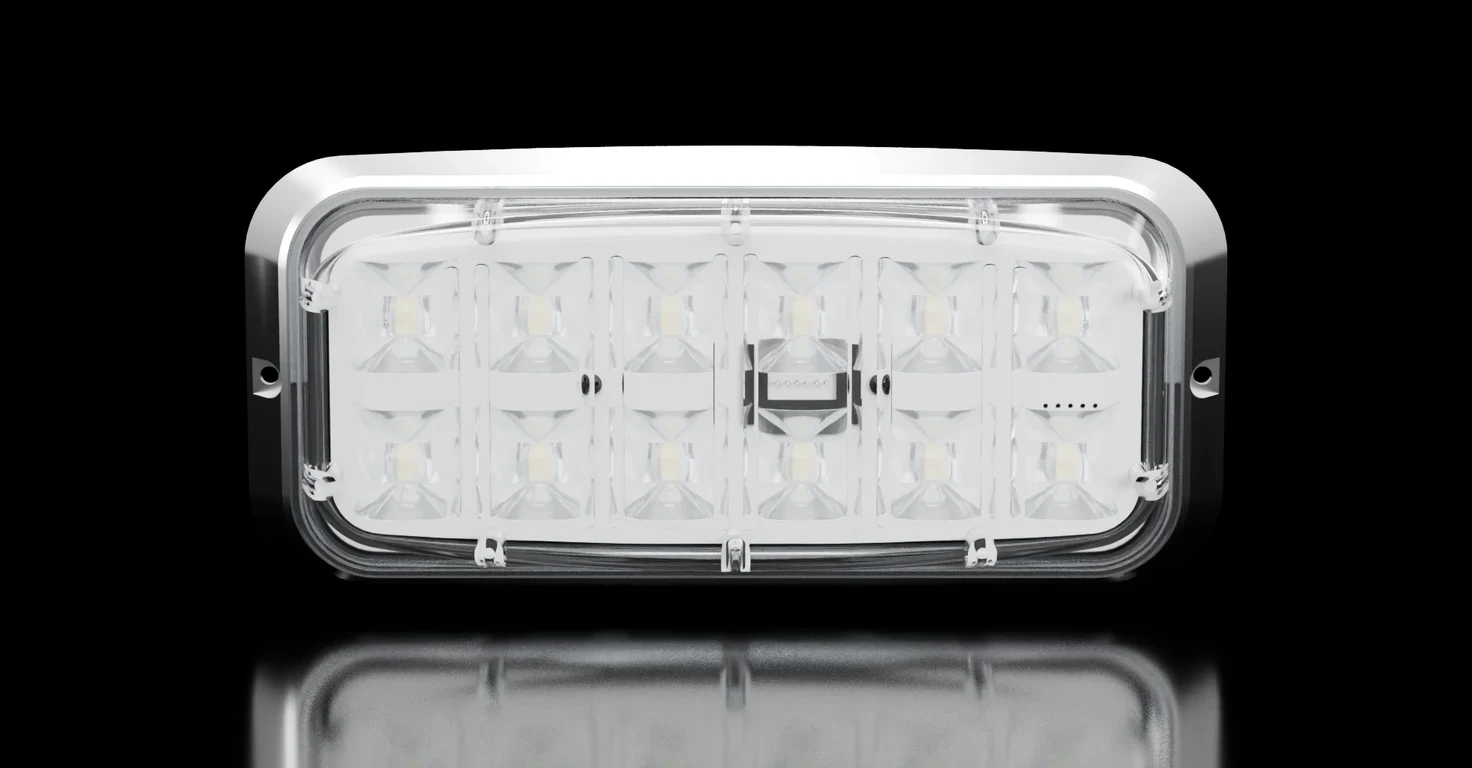

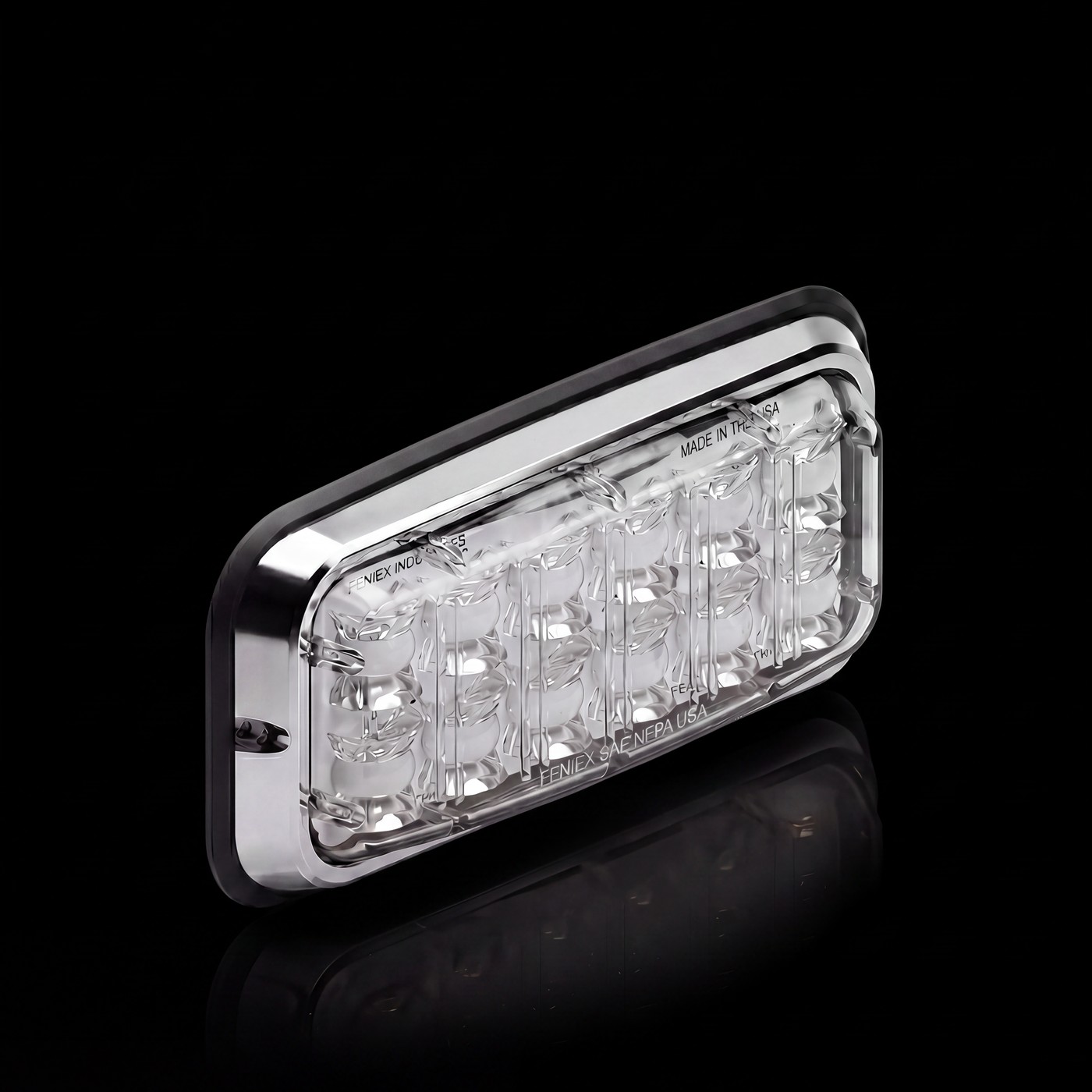

Reverse Lux 7x3
$109
1
Why Lux

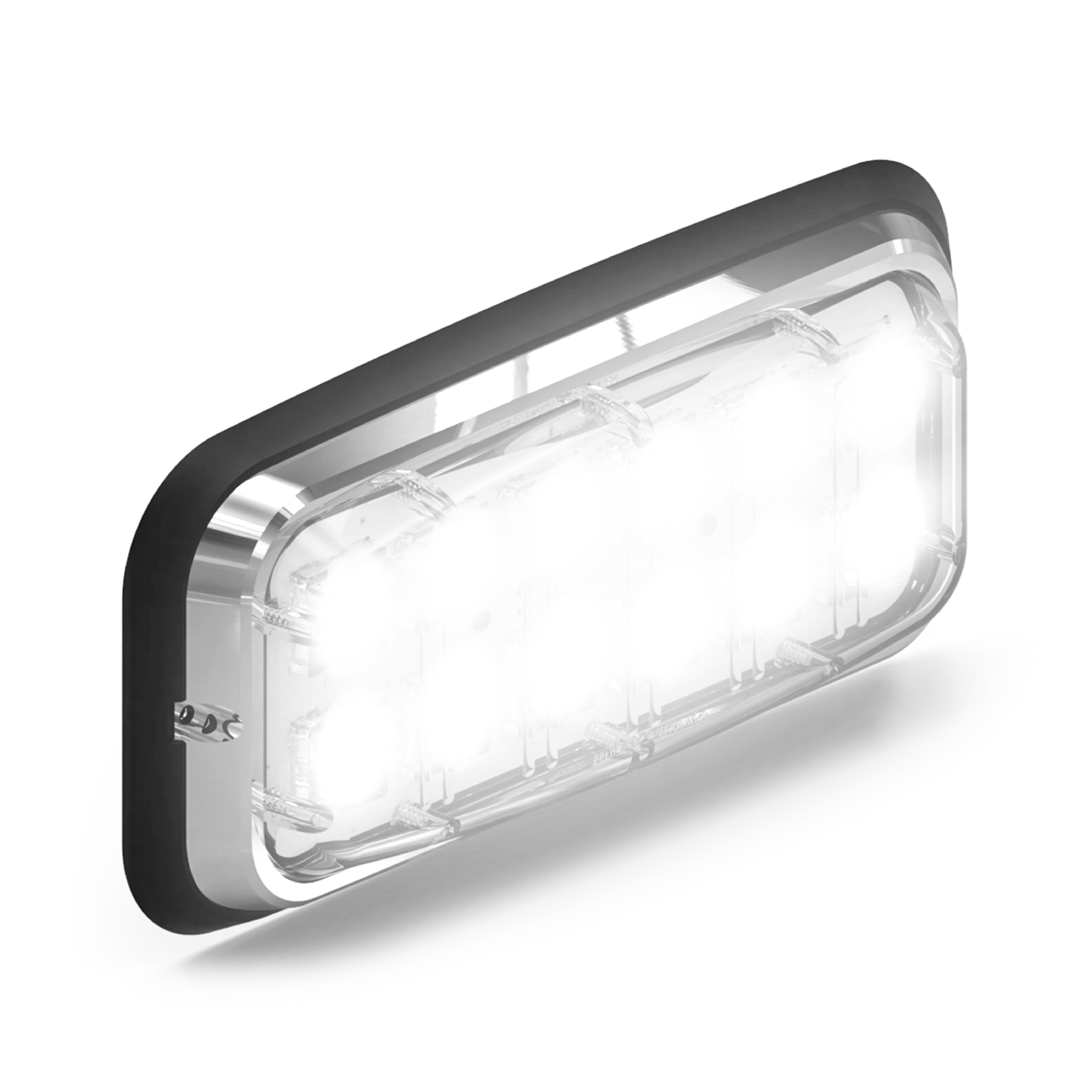

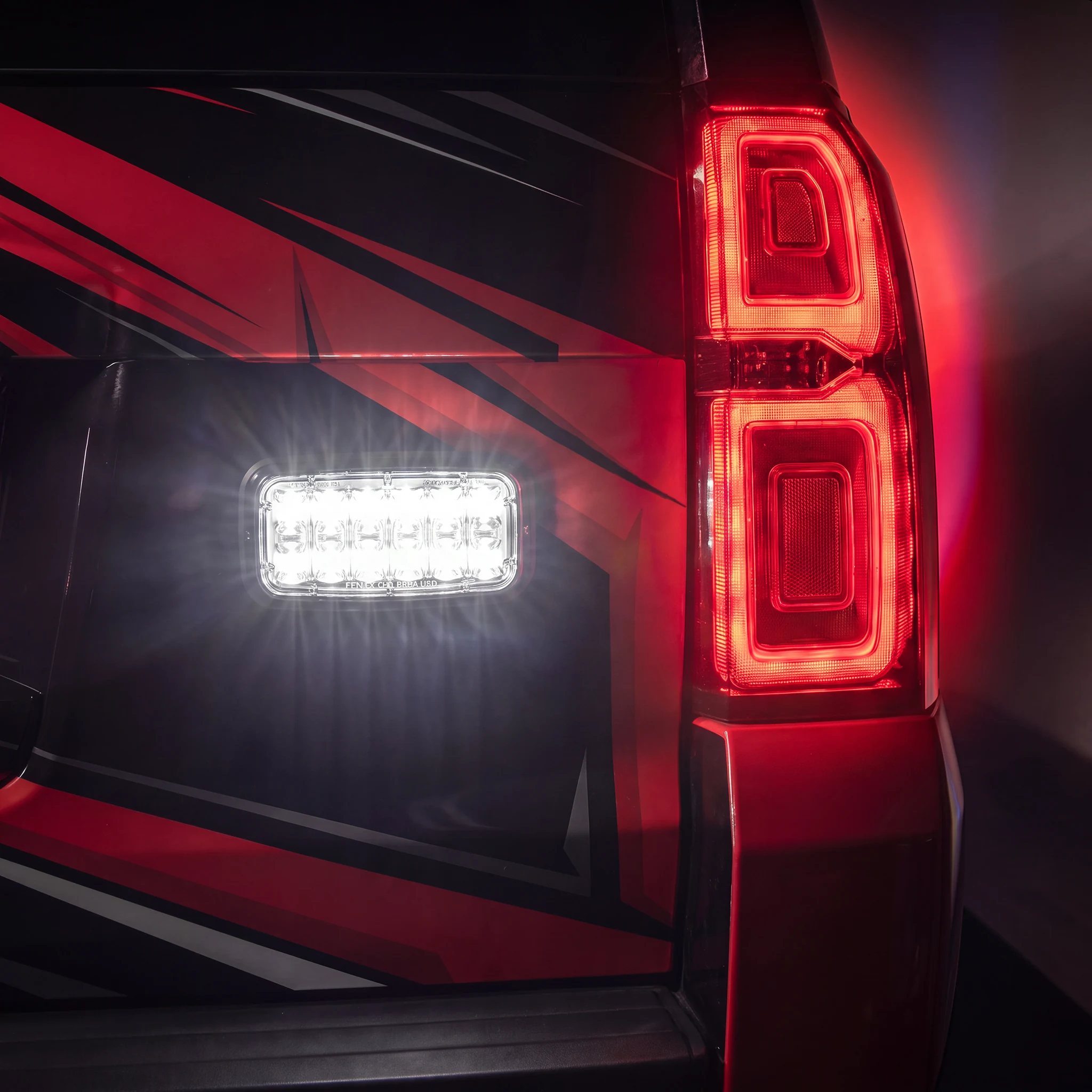

Reverse lightBright white back-up duty with 100% / 10% dim.
14 flash patternsDoubles as a warning panel.
Front and rear mountingSurface-mounts with or without the bezel.
SAE J1113 certifiedMade in the USA · 2-year warranty.
Specifications
| Current draw | 0.75 A |
| Input voltage | 10–18 V DC |

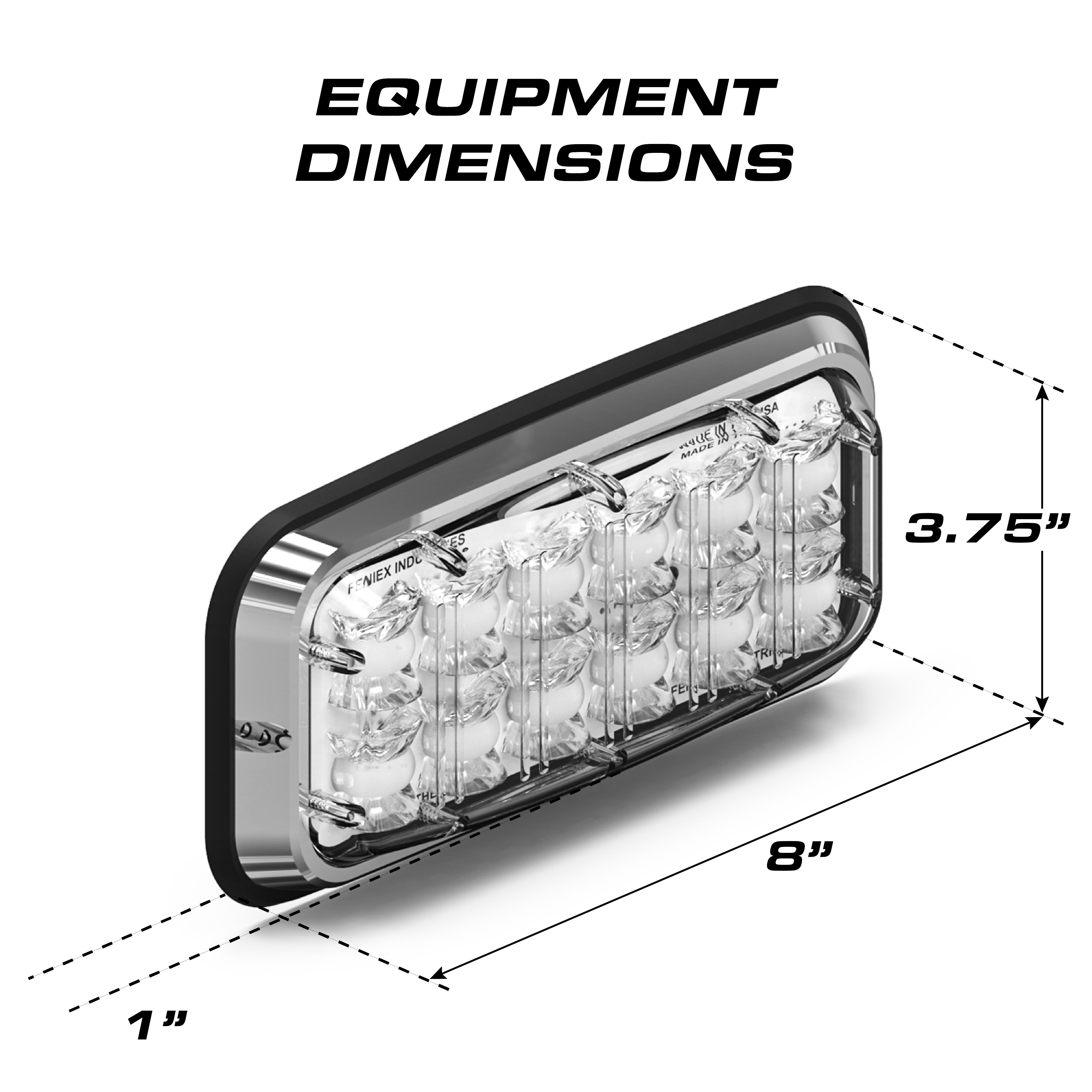

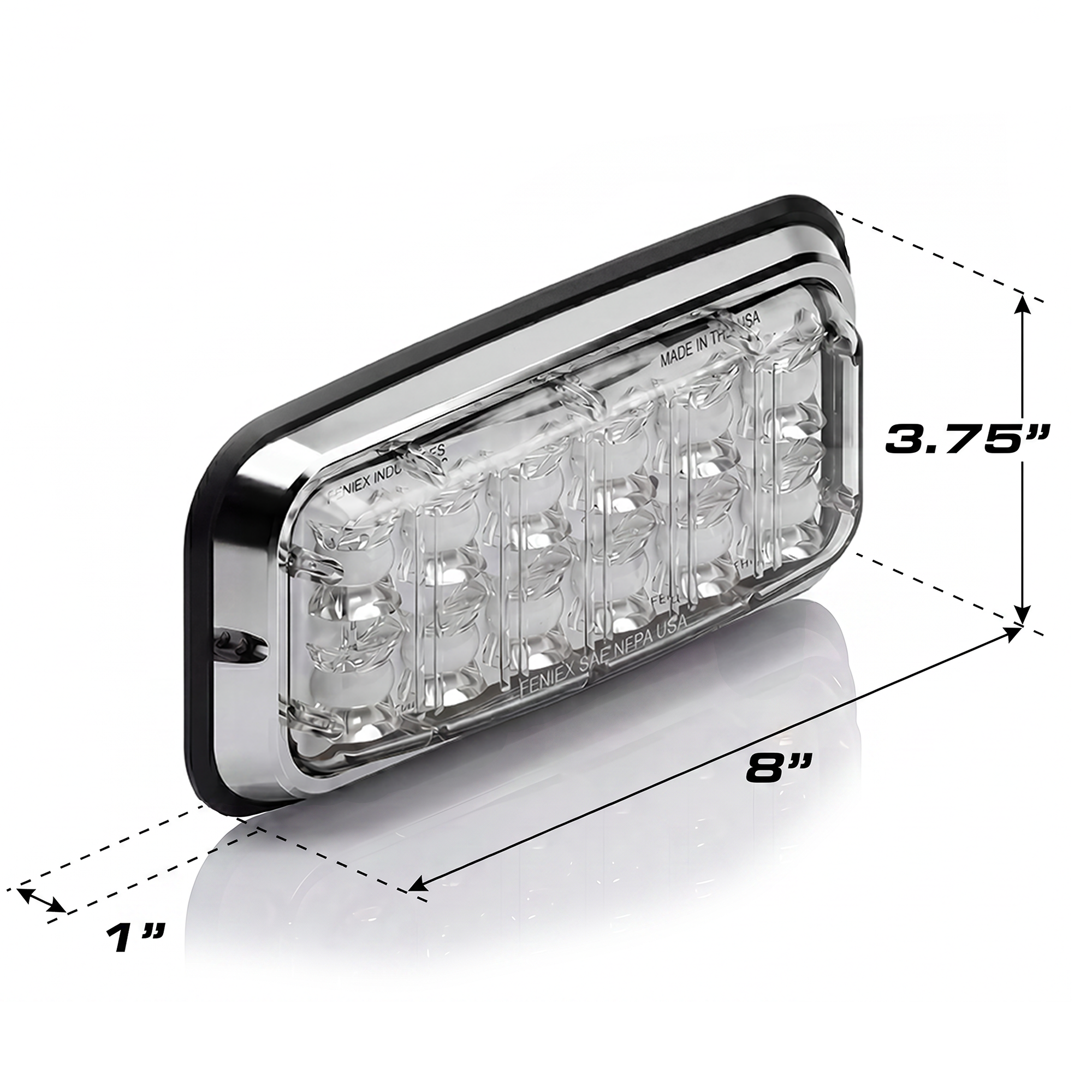

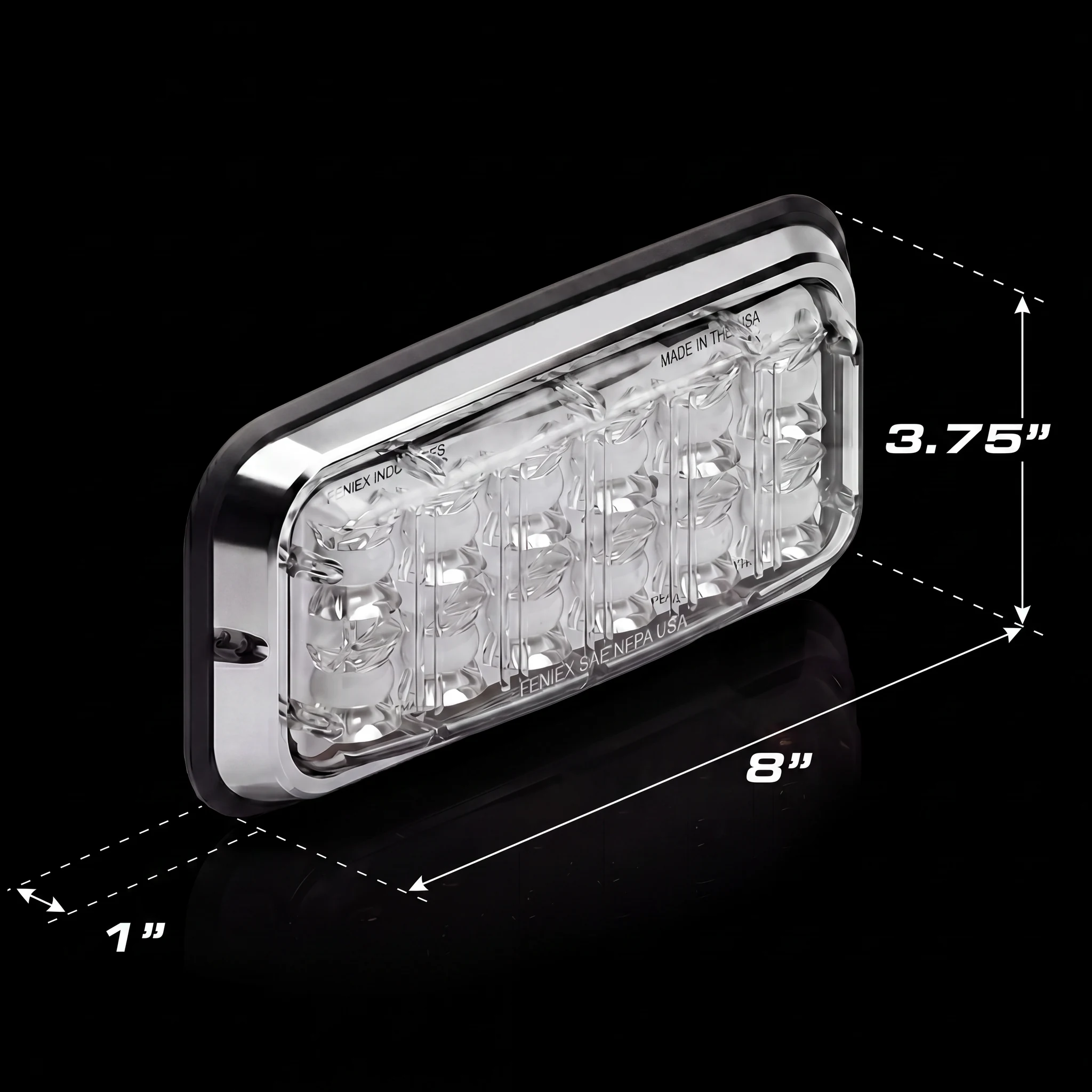

| Dimensions | 8″ × 3.75″ × 1″ (with bezel) |
| Cable | 1 ft standard · 10″ harness · 6-pin extensions |
| External fuse | 125% of product load |
| Warranty | 2-year manufacturer |
| Origin | Made in the USA |
SAE J1113
About the series
The Lux series is Feniex’s DOT-style surface-mount family — brake, tail, turn, reverse, spot and down lights in three panel sizes, with color and lens options for every job. SAE J1113 certified, made in the USA, and covered by the two-year warranty.
