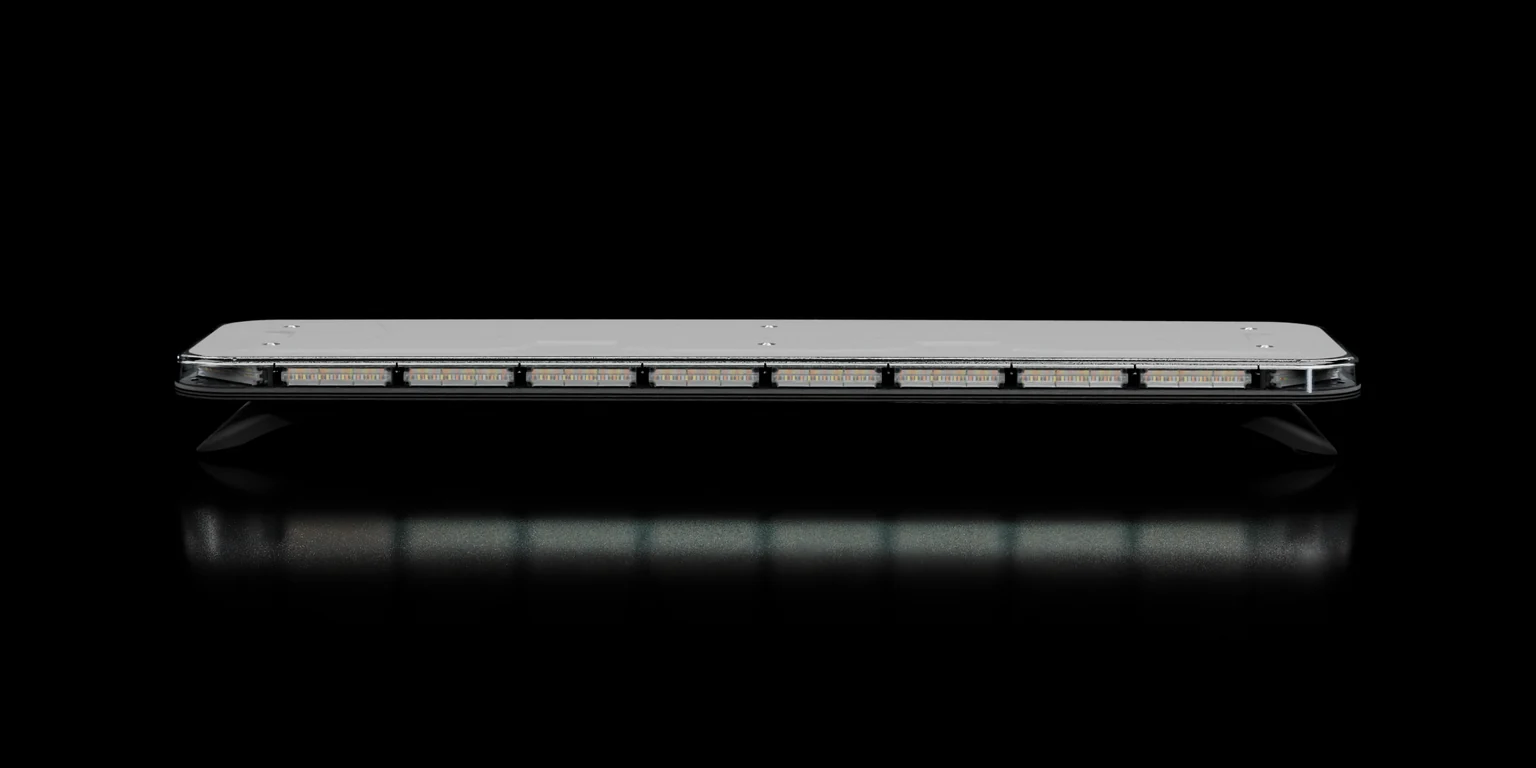

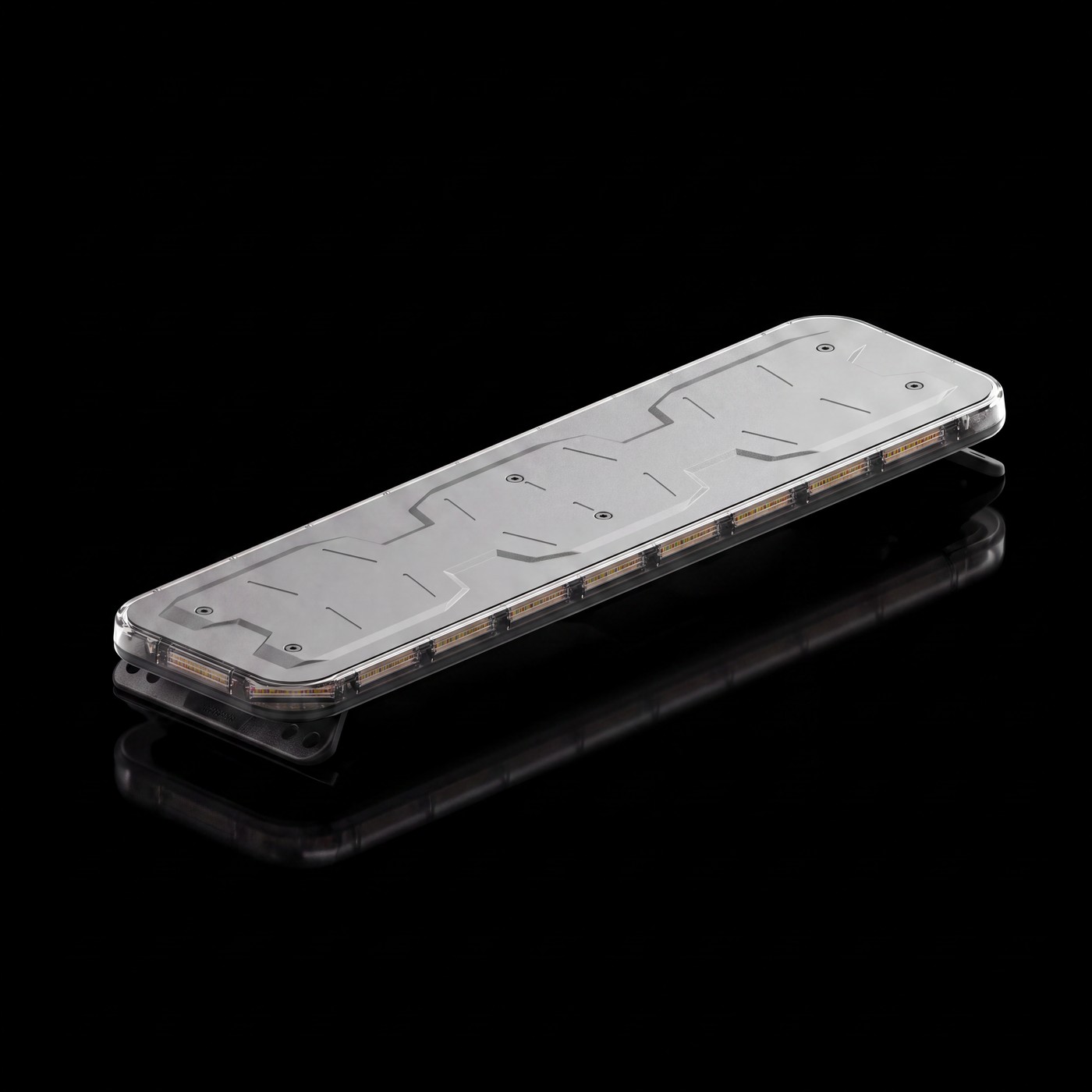

Feniex Quantum 44 lightbar on the black stage

FULL SIZE LIGHTBARS / QUANTUM SERIES

QUANTUM 44”

Name: Quantum 44” Lightbar
Brand: Feniex
SKU: QT4420S
Price: 1899.00 USD
Availability: InStock

QT-4420S-SD · Full-size lightbar · five colors in one bar · patented Unlock technology

STEP 01Color · Unlock Level

Your programming options10 combinations

Dual: five colors in every module — only two can be programmed per module.

Full unlock exclusive

10-YEAR WARRANTY

Every color in every module and 2× the warranty.

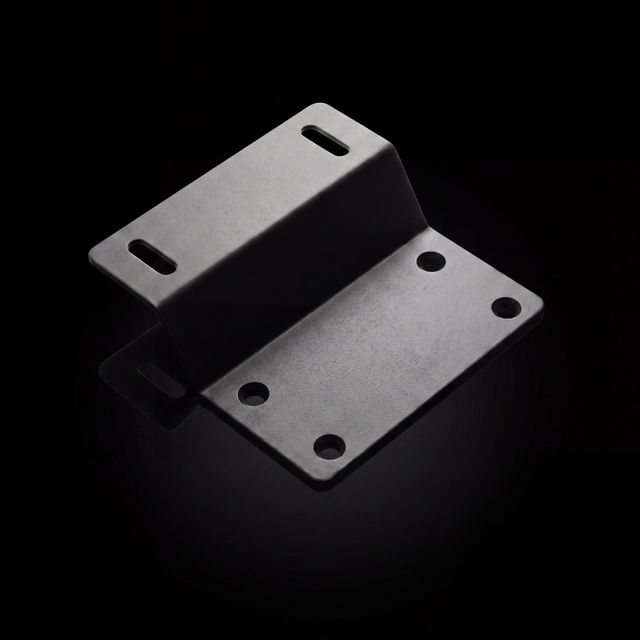

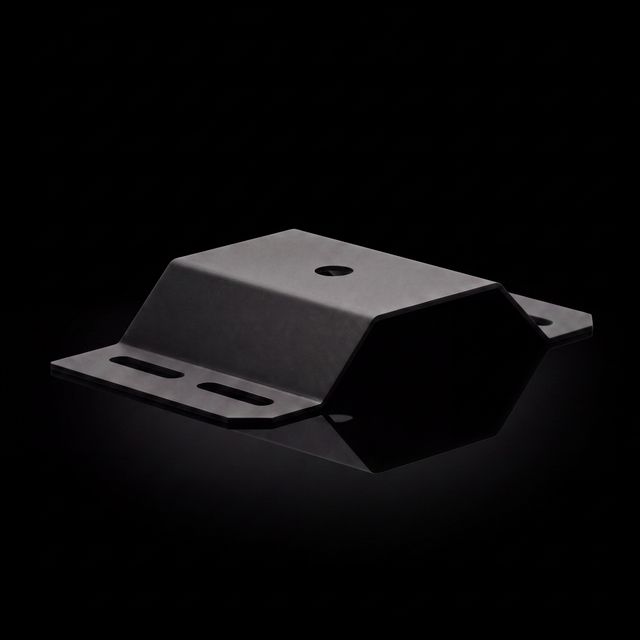

STEP 02Mounting

STEP 03Vehicle Type

STEP 04Cable length

$1,899 1

$19 Flat Rate
Shipping

Pattern Studio

QUANTUM 44

View

Unlock level

Colors

Select number of colors per level

Why Quantum

Computer programmableUnlock Quantum software — levels, patterns, module colors.

13 inputs standard28 programmable inputs with the optional Feniex Converter (Q-0020).

20+ flash patternsFront, rear, arrow, DOT stop-turn-tail — all integrated.

60° optical spreadWide-angle light head geometry across all 594 LEDs.

Takedown · alley · floodWork lighting built into the bar — no add-on heads.

Aluminum top coverStructural reinforcement · 5-year warranty.

Specifications

LED count	594 LEDs
Light modules	22 modules
Current draw	17 A @ 13 V
Input voltage	10–18 V DC
Optical spread	60°

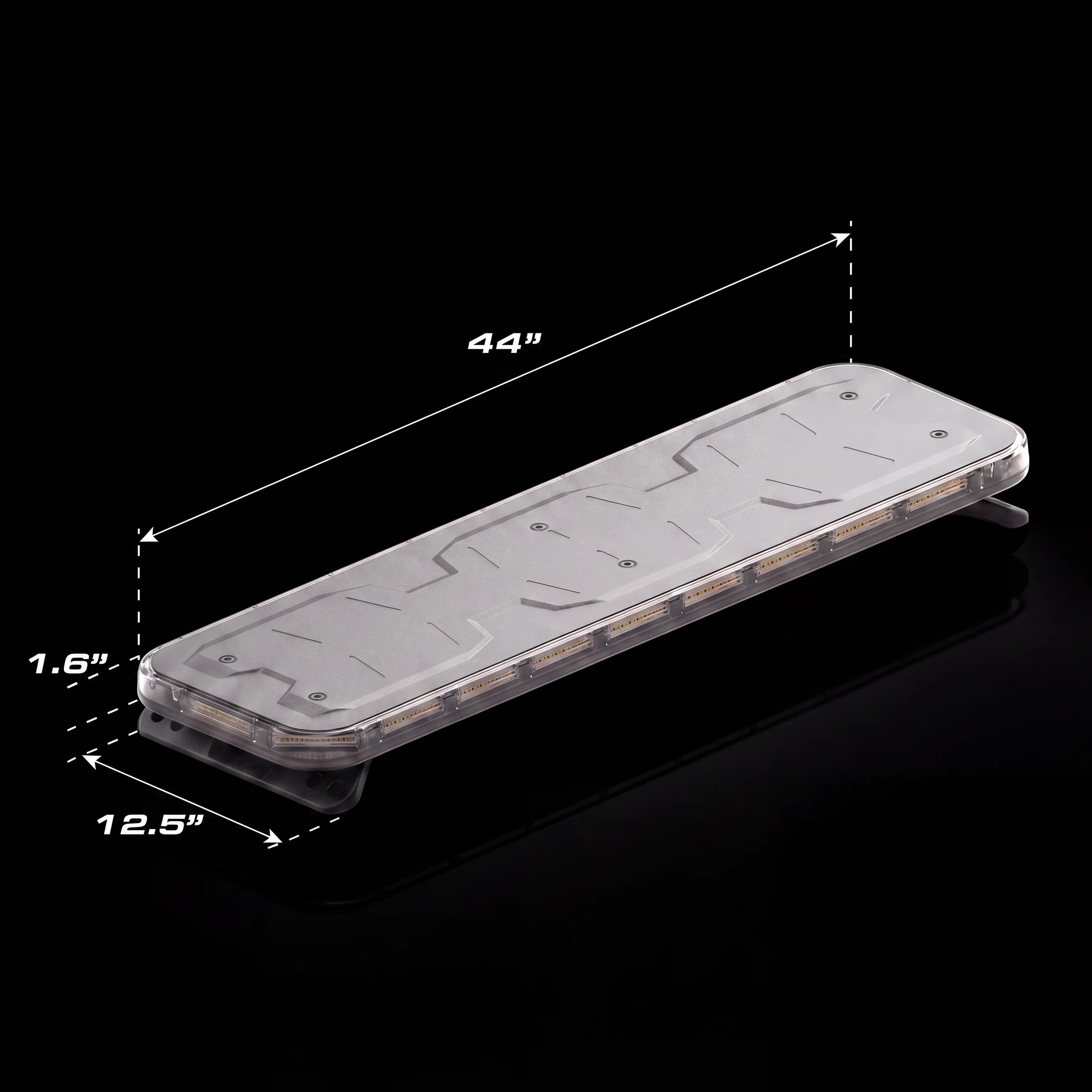

Dimensions	44″ L × 12.15″ W × 1.6″ H
Cable	10 ft standard · 15-pin 20 AWG + 2-pin 16 AWG

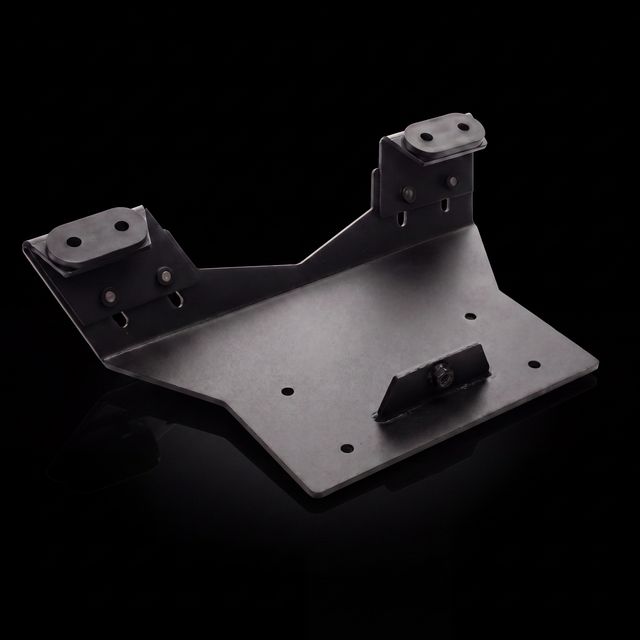

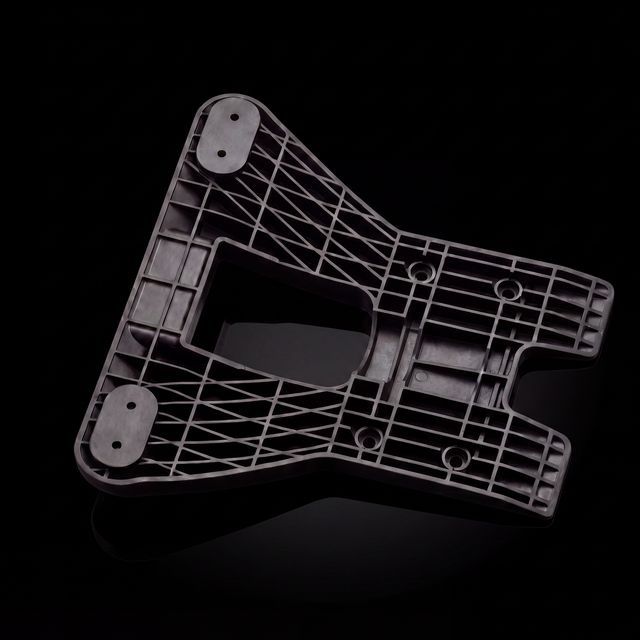

Vehicle hook kits	Available for Chevy Blazer EV (2024–2026), Chevy Silverado 1500 / 2500 / 3500 (2019–2026), Chevy Suburban (2015–2026), Chevy Tahoe (2015–2026), Dodge Charger (2011–2023), Dodge Durango (2015–2026), Dodge Ram 1500 / 2500 / 3500 (2015–2026), Dodge Ram Classic 1500 (2019–2024), Ford Expedition (2018–2024), Ford Explorer PIU and Civilian (2011–2019), Ford Explorer PIU and Civilian (2020–2026), Ford F-150 / F-250 / F-350 / F-450 (2015–2026), plus a universal kit. Used with the Standard and Adjustable foot mounts.
Warranty	5-year manufacturer — Dual & Tri Color 10-year manufacturer — Quantum Full Unlocked
Origin	Made in the USA

SAE J595SAE J1113-11CA TITLE 13ECE R65NFPAIP67

About the series

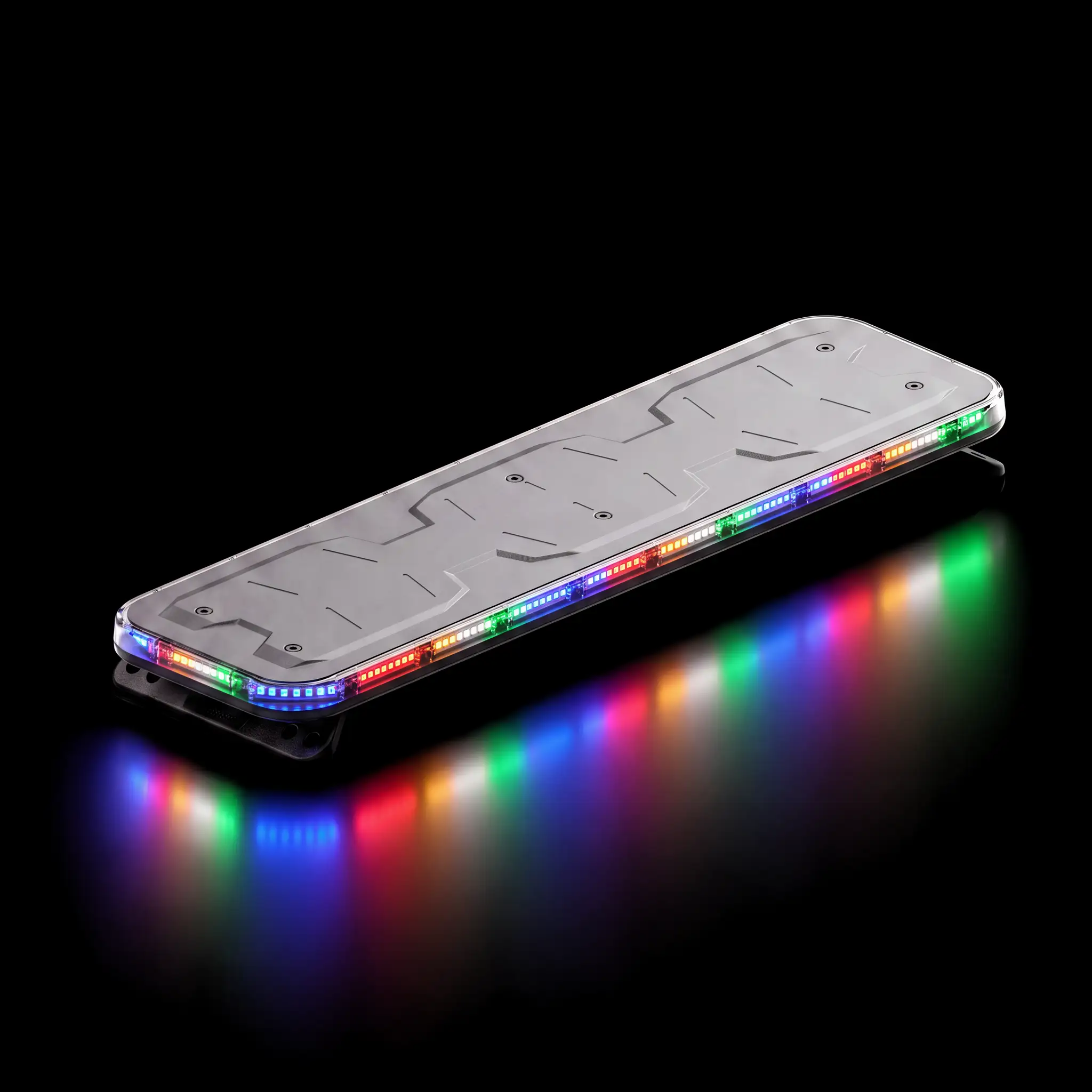

Feniex’s patented Quantum Series offers 5-color capable technology and is available in 3 progressive Unlock Levels: Dual, Tri, and Full. For a minimal unlock fee, all Feniex Quantum products can be unlocked to any desired Unlock Level — unrivaled customization to meet your exact needs without breaking the bank. The Quantum Series is capable of 5 vivid colors: Blue, Red, Amber, White, and Green.

Documents & training

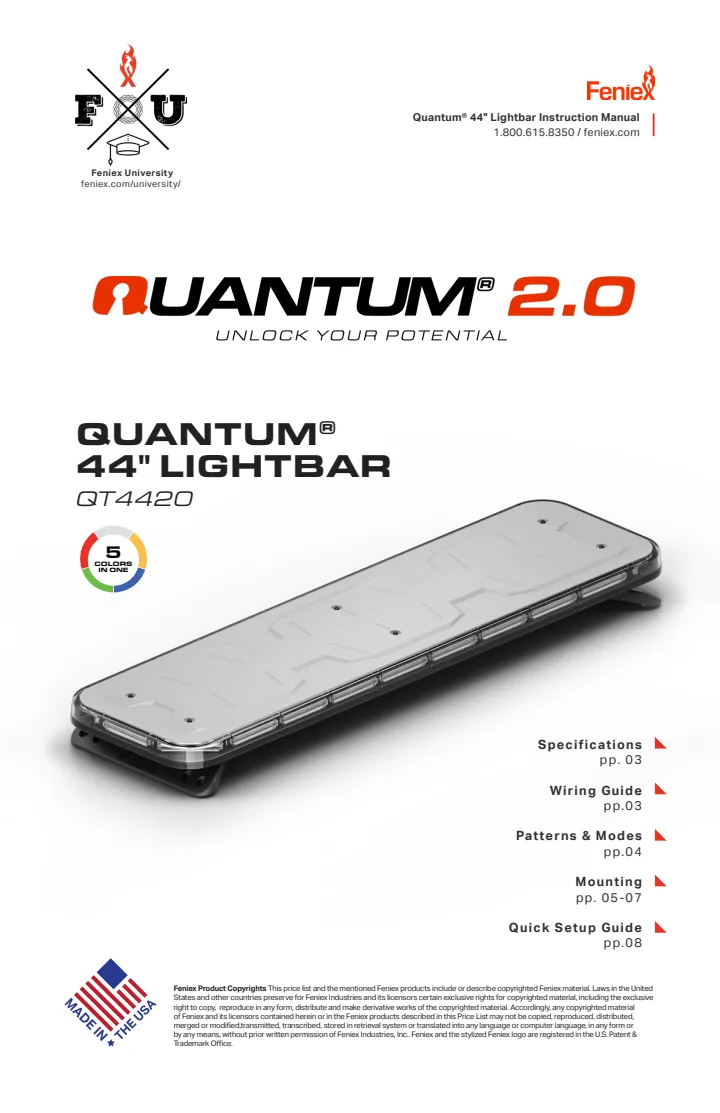

PDFInstruction Manualthe official manual, straight from the source PDFCut Sheetdimensions · draw · certifications 1. Choose your module(s): FRONT R B ALL ALL R R R R R TD TD B B B B B Click Lighthead To Deactivate STT R R R A WK WK A B B B STT 2. Function: Take Down Alley Stop Turn Tail Work Light 3. Assign Color: RED BLUE AMBER WHITE GREEN EXEUnlock Quantum Softwarelevel upgrades · patterns COURSEFeniex Universitythe Quantum 2.0 video course
