Fusion 1X Shroud Interior Window Light | Feniex

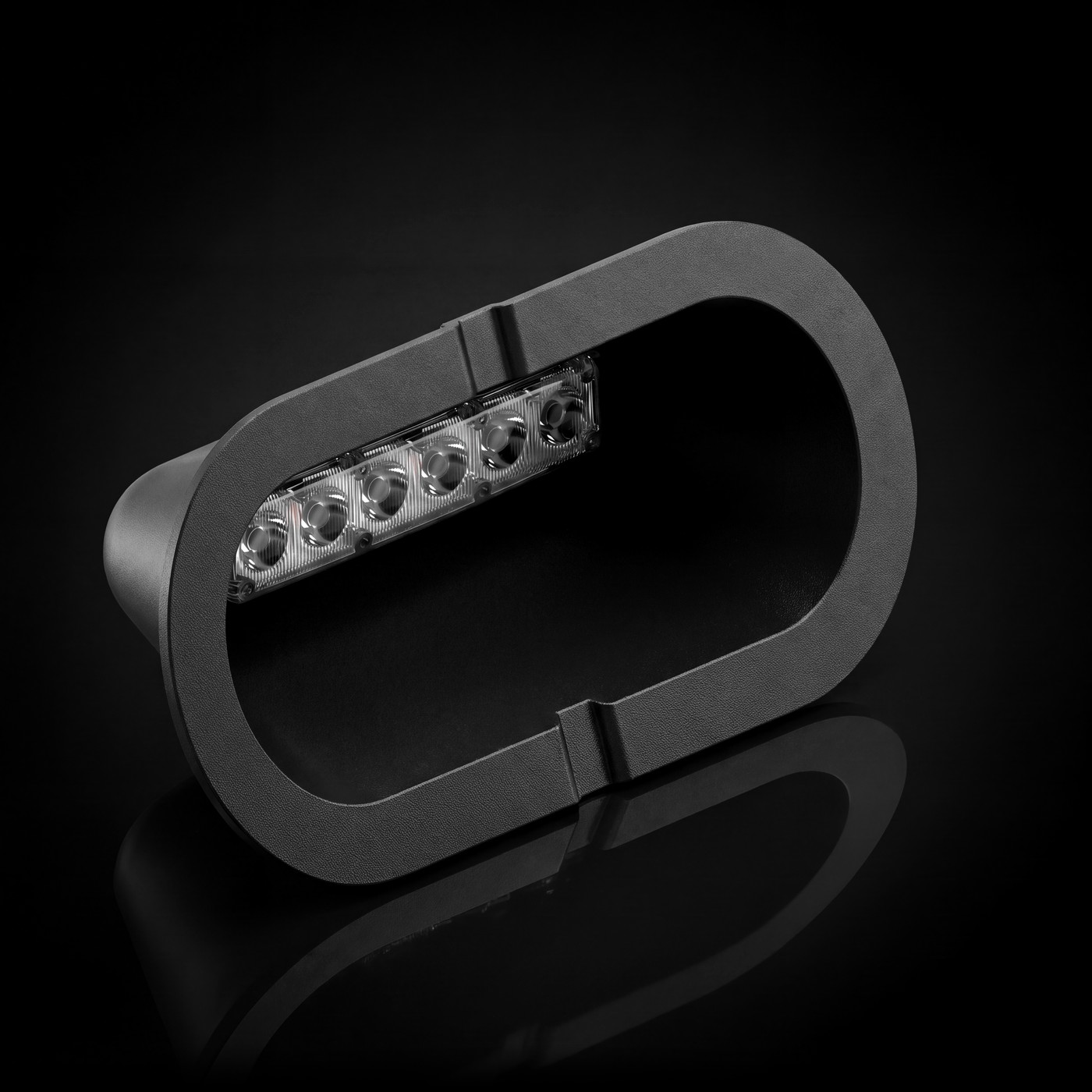

Feniex Fusion 1X Shroud on the black stage
PERIMETER / FUSION SERIES

FUSION 1X SHROUD

FSS-1116 · Interior window shroud light · 40° optic, 60% brighter

PRE-ORDER ONLY

STEP 01Color
Cable & hardware
Cabling and necessary hardware included
$119 1

Charged today. Full refund if you cancel before it ships.

$19 Flat Rate
Shipping
How pre-orders work
  1. Order today. We charge your card and reserve your unit.
  2. We'll ship once it's available.

To cancel, contact us for a full refund.

Pattern Studio

FUSION 1X SHROUD · PERIMETER INSTALL · IN THE COLORS YOU’D ORDER
Modules installed
Colors
one color per module

Why Fusion

Mounts inside the glassWindshield or rear glass, installed with the included window tape and gasket — no drilling.
40° optic, 60% brighterThe Fusion-S optic — long-range visibility over the previous Fusion family.
6 LEDs · single colorOne color per unit — red, blue, amber, white or green.
3 programmable modesFlood, cruise and stop/tail/turn pattern capabilities.
Syncs across the familyFusion-S, T3, Cannon, Under Mirror Puck and Q Series run in step on the same sync wire.
Shroud blocks the glareThe low-profile shroud keeps the light out of the cabin · IP67 · 5-year warranty.

Specifications

LED count6 LEDs
Current draw1 A @ 13 V
Input voltage10–18 V DC
Optical spread40°
Dimensions7.27″ × 3.06″ × 2.21″
In the boxShroud with one Fusion-S module · window tape and gasket
External fuse125% of product load
Warranty5-year manufacturer
OriginMade in the USA
SAE J595CA TITLE 13NFPA KKKECE R65 CLASS 1IP67
Fusion 1X Shroud

About the series

The Feniex Fusion-S is the next evolution of the Fusion series — the world’s brightest and most competitively priced emergency warning line. User configurable in red, blue, amber, white and green, the Fusion-S offers a new and improved optic that is 60% brighter than the previous Fusion family. Single-color modules, programmed in the field.

Documents & training

PDFInstruction Manualwiring · mounting · programming PDFCut Sheetdimensions · draw · certifications COURSEFeniex Universityinstall & programming video courses
