Fusion License Plate Mount LED Warning Light | Feniex

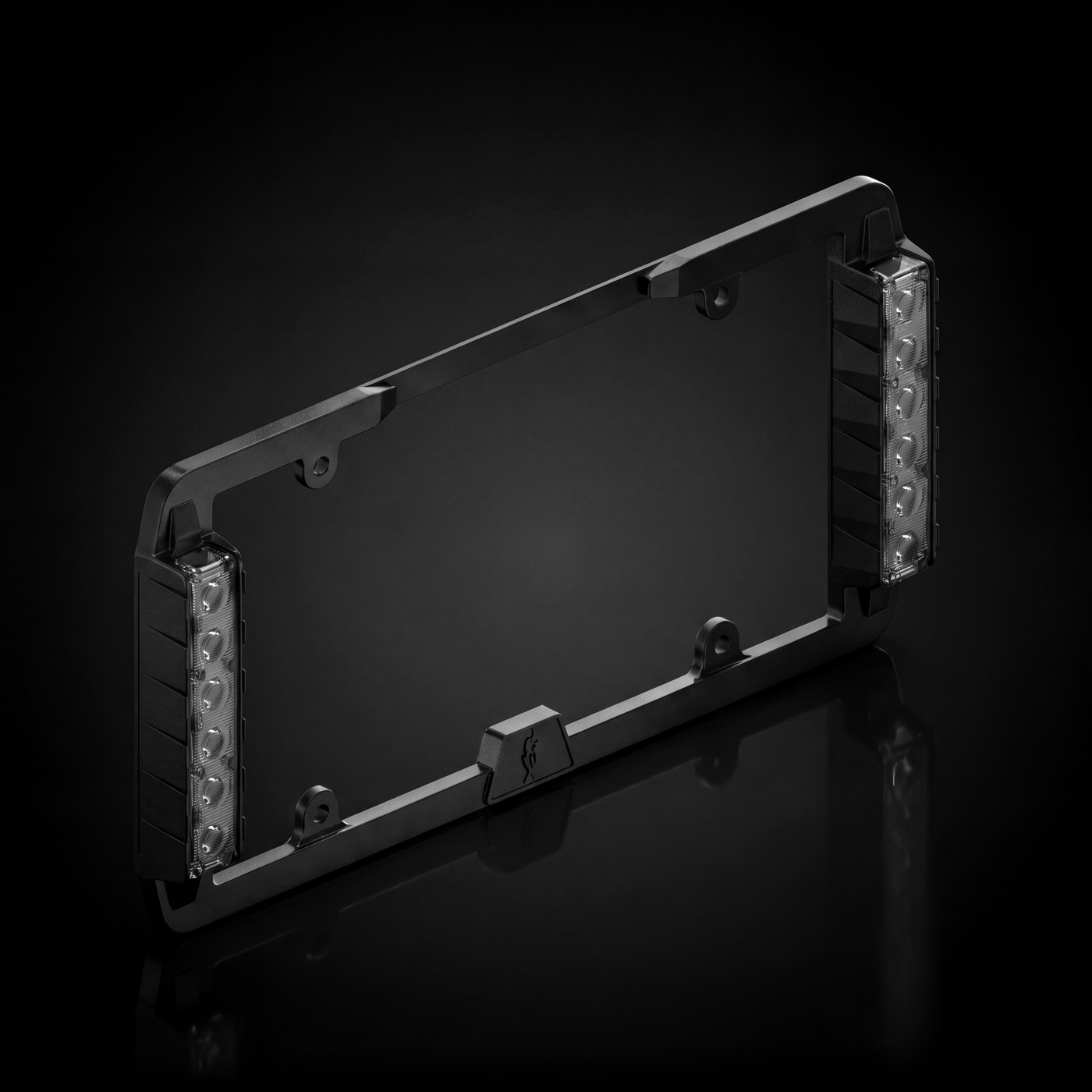

Feniex Fusion License Plate Mount on the black stage
PERIMETER / FUSION SERIES

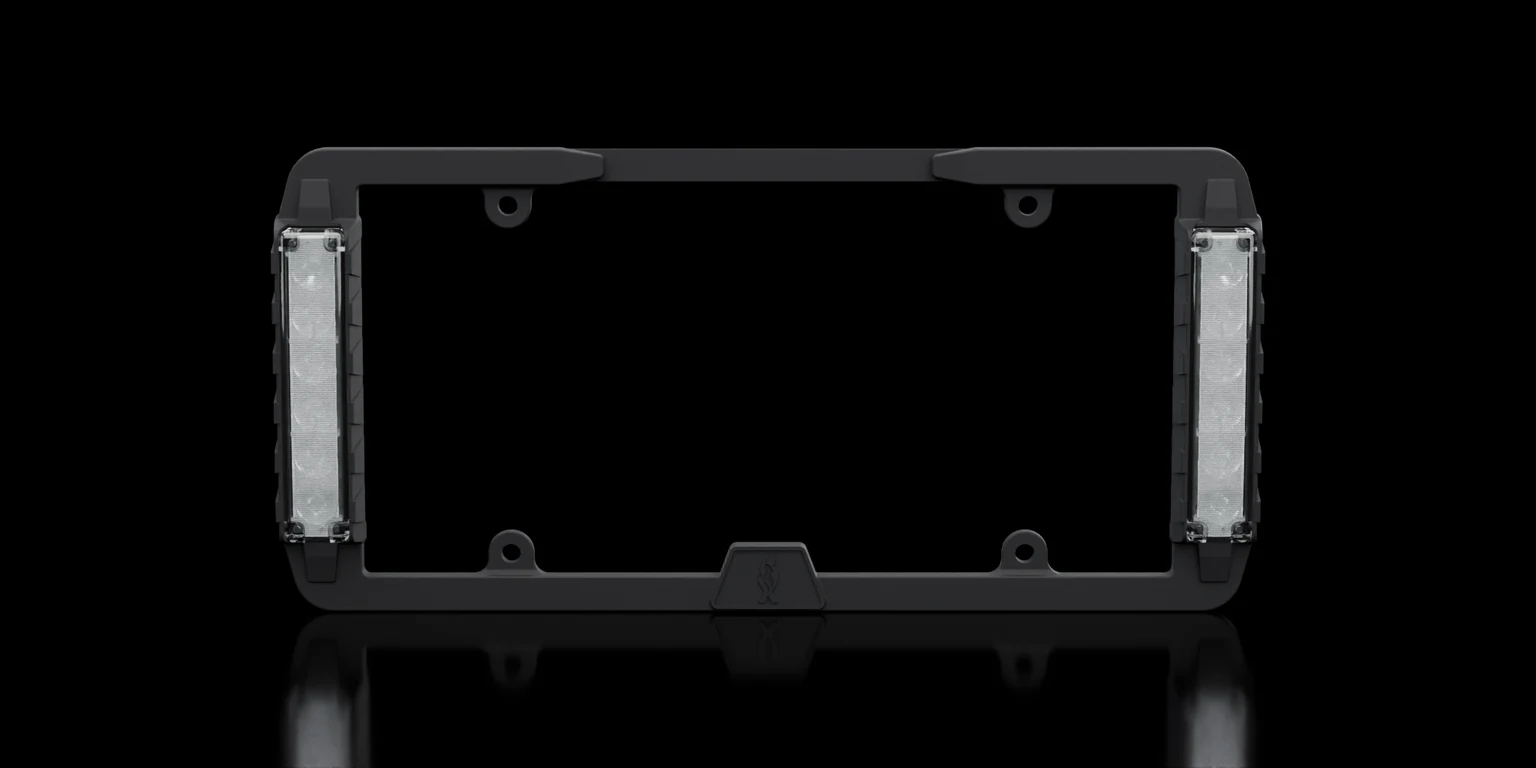

FUSION LICENSE PLATE MOUNT

FLP-26 · License plate perimeter light · 40° optic, 60% brighter

STEP 01Color
STEP 02Cable length
$129 1
$19 Flat Rate
Shipping

Pattern Studio

FUSION LICENSE PLATE MOUNT · PERIMETER INSTALL · IN THE COLORS YOU’D ORDER
Modules installed
Colors
one color per module

Why Fusion

On the plate bolt patternMounts to the standard 7″ × 4.75″ license plate pattern with no drilling — the tag stays visible through the cover window.
40° optic, 60% brighterThe Fusion-S optic — long-range visibility over the previous Fusion family.
Two heads · one colorTwo 6-LED Fusion-S modules behind one cover — red, blue, amber, white or green.
3 programmable modesFlood, cruise and stop/tail/turn pattern capabilities — cycled and synced on the wire.
Syncs across the familyFusion-S, T3, Cannon, Under Mirror Puck and Q Series run in step on the same sync wire.
Cast aluminum coverADC12 cover and 5052 aluminum bracket in textured black powder coat · 5-year warranty.

Specifications

LED count12 LEDs
Current draw2 A @ 13 V
Input voltage10–18 V DC
Optical spread40°
Dimensions13.30″ × 6.31″ × 0.98″
Cable1 ft standard · 6-pin · 20 AWG ×2
In the boxTwo-piece license plate bracket · two Fusion Surface Mounts · eight mounting screws
External fuse125% of product load
Warranty5-year manufacturer
OriginMade in the USA
SAE J595CA TITLE 13NFPA KKKECE R65 CLASS 1IP67
Fusion License Plate Mount

About the series

The Feniex Fusion-S is the next evolution of the Fusion series — the world’s brightest and most competitively priced emergency warning line. User configurable in red, blue, amber, white and green, the Fusion-S offers a new and improved optic that is 60% brighter than the previous Fusion family. Single-color modules, programmed in the field.
