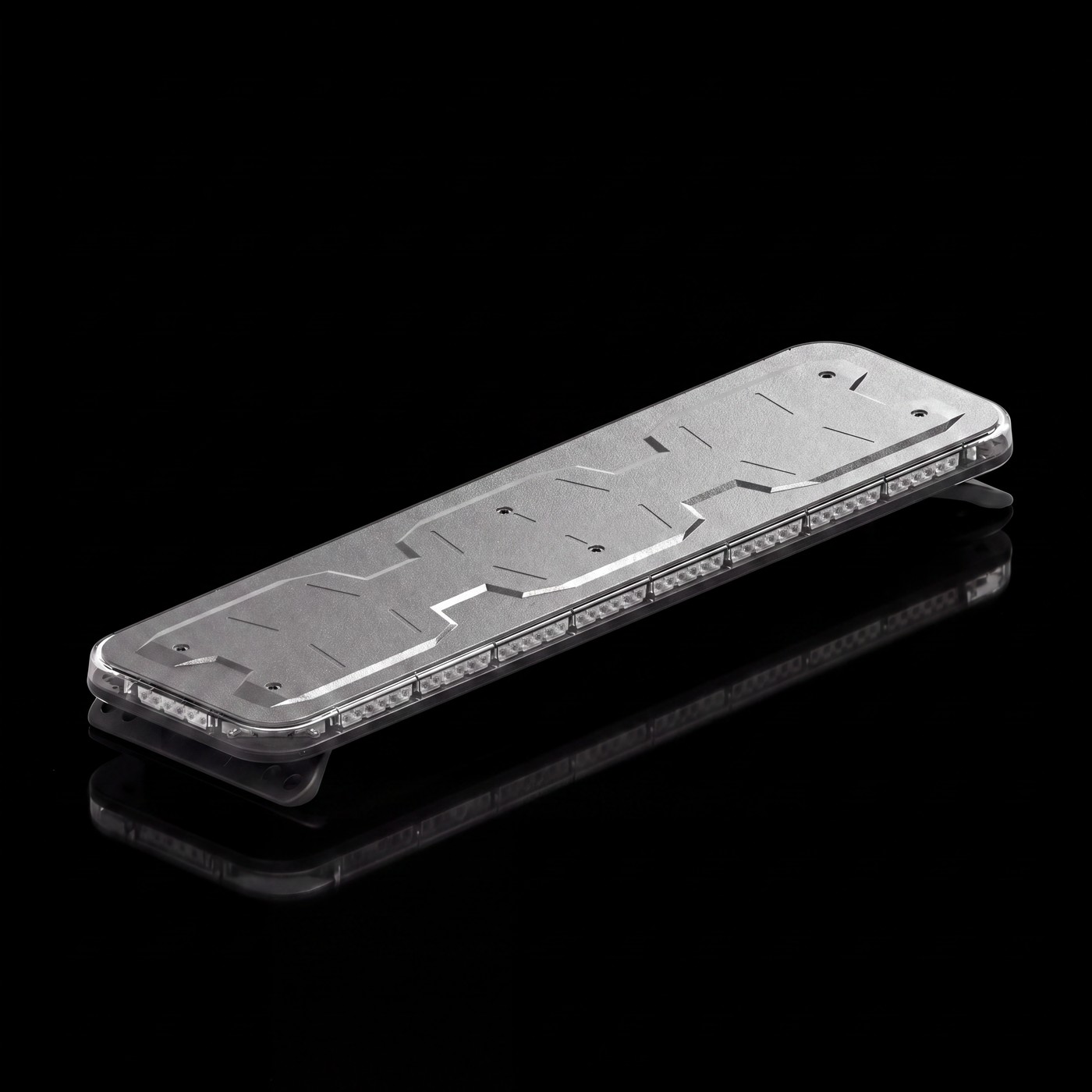

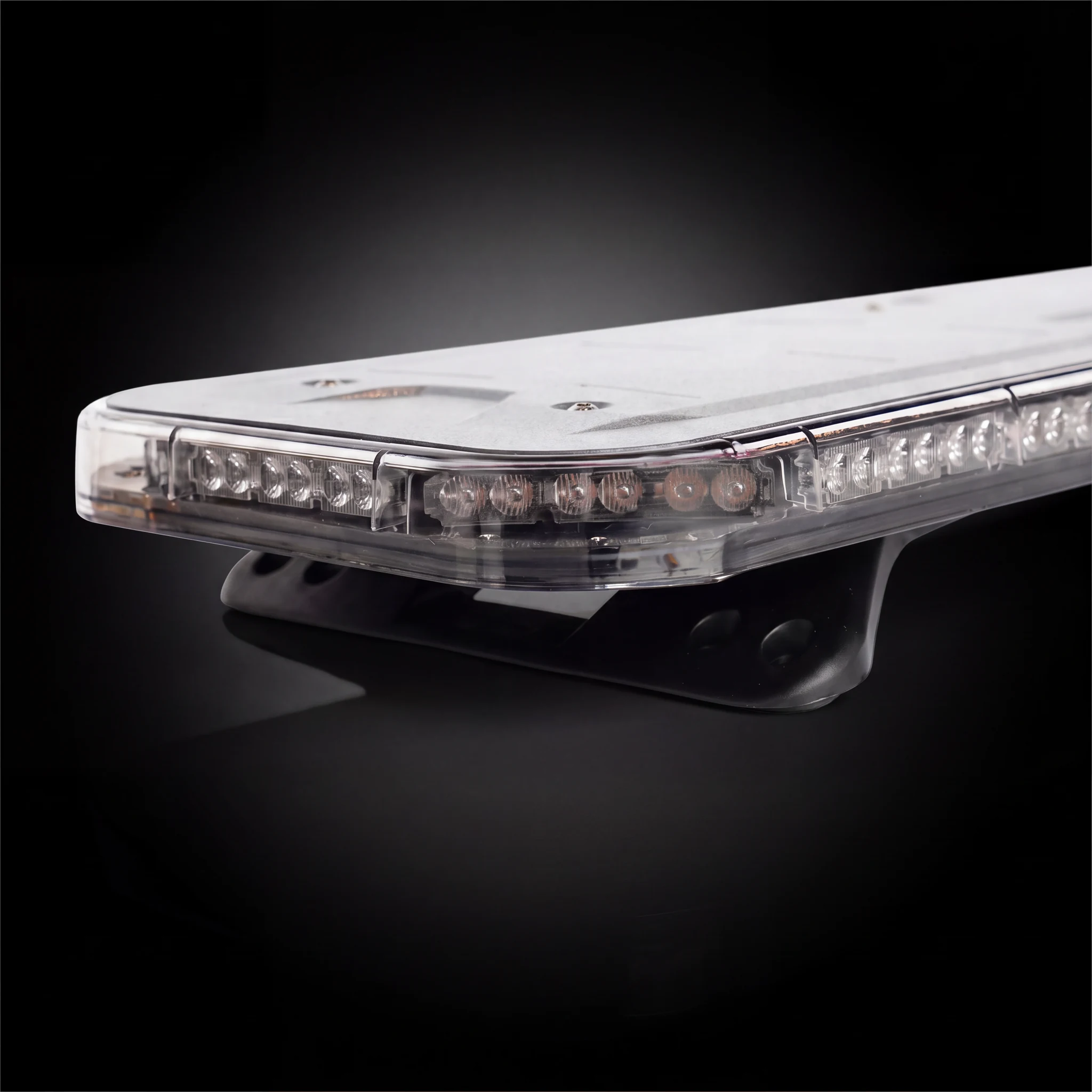

Feniex Fusion 44 on the black stage
FULL SIZE LIGHTBARS / FUSION SERIES

FUSION 44”

FS-4420 · Full-size lightbar · single-color modules, laid out your way · 40° optic, 60% brighter

STEP 01Color · By Moduleone color per module · 22 modules
No build yet — every module is waiting for a color.
STEP 02Mounting
STEP 03Vehicle Type
STEP 04Cable length
$1,299 1
$39 Flat Rate Shipping
Per Lightbar

Pattern Studio

FUSION 44 · IN THE COLORS YOU BUILD
View
Your build
No build yet — nothing to play.
build your bar and its colors play here

Why Fusion

40° optic, 60% brighterThe Fusion-S optic — long-range visibility over the previous Fusion family.
132 LEDs · 22 modulesSingle-color modules in any layout — configured by you in Build-A-Bar.
15 flash patternsAttack, Cluster, Combo, Half-Half, One-One, Two-Two, All-On — front and rear.
28 programmable inputsFeniex Converter included — DOT stop/turn/tail, traffic advisor, cruise, cut-off, dim.
Takedown · alley · floodWork lighting built in — assigned per module in your build.
Military-grade aluminumAnti-yellowing, anti-cracking clear-coated polycarbonate lens · 5-year warranty.

Specifications

LED count132 LEDs
Light modules22 modules · single-color, user configured
Current draw14 A @ 13 V
Input voltage10–18 V DC
Optical spread40°
Dimensions44.5″ L × 11.8″ W × 1.6″ H
Cable10 ft standard · 12V+, ground, data A, data B
In the boxLightbar · standard foot mount · Feniex Converter
External fuse125% of product load
Warranty5-year manufacturer
OriginMade in the USA
SAE J595SAE J1113SAE J578SAE J575SAE J845ECE R65 CLASS 1CA TITLE 13NFPA KKKIP66
Fusion 44

About the series

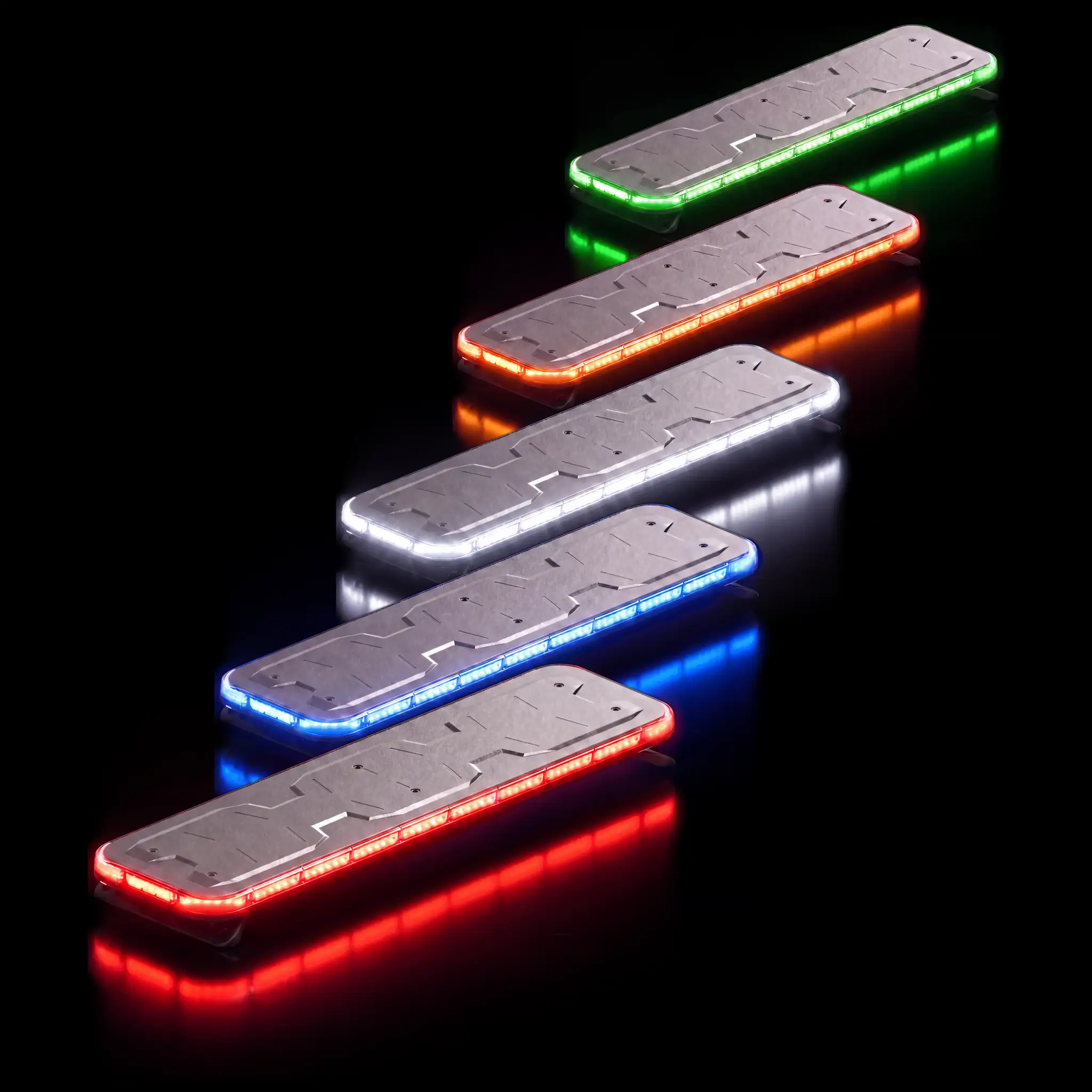

The Feniex Fusion-S is the next evolution of the Fusion series — the world’s brightest and most competitively priced emergency warning line. User configurable in red, blue, amber, white and green, the Fusion-S offers a new and improved optic that is 60% brighter than the previous Fusion family. Single-color modules, laid out module by module in Build-A-Bar, programmed in the field.

Documents & training

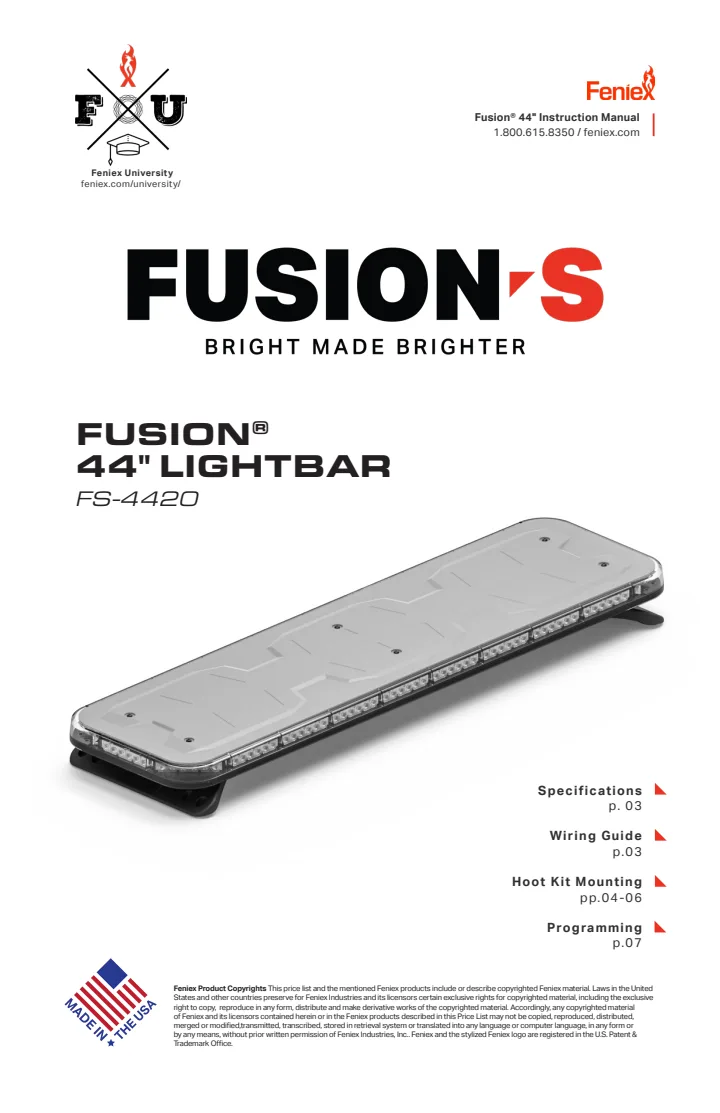

PDFInstruction Manualwiring · hook kit mounting · programming PDFCut Sheetdimensions · draw · certifications GUIDEConverter Input Guide28 inputs · 15 patterns · field programming COURSEFeniex Universityinstall & programming video courses
