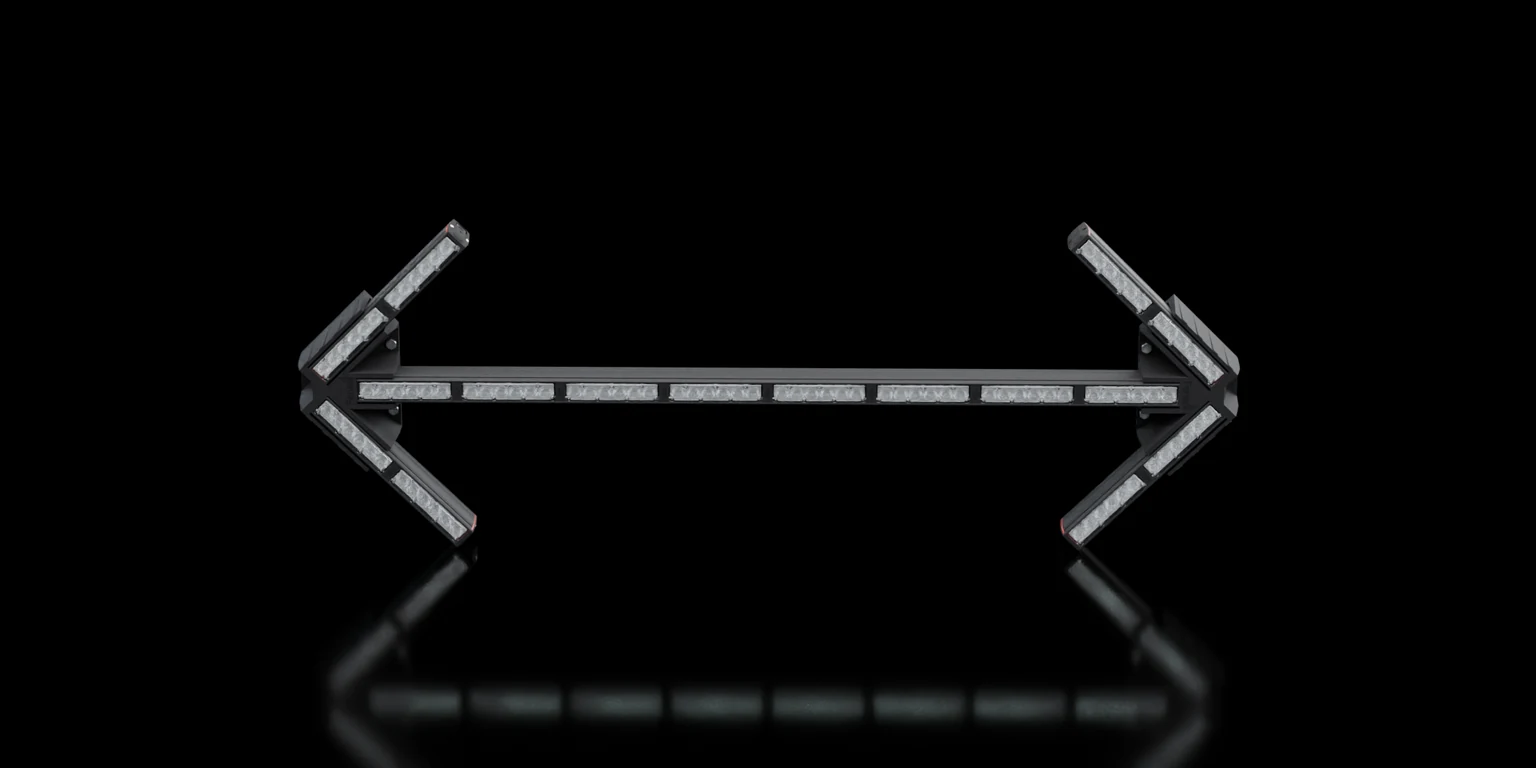

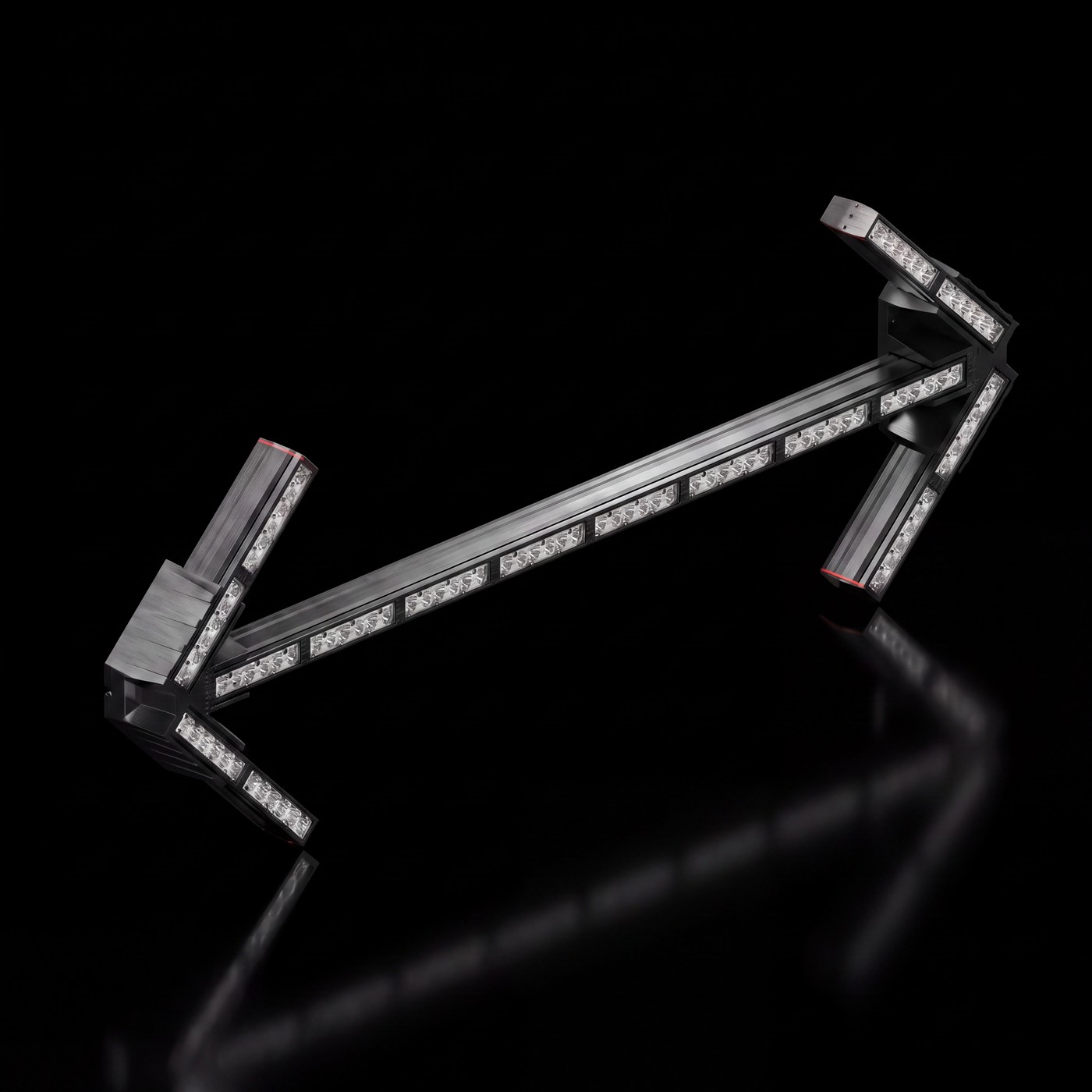

Feniex Fusion Arrow on the black stage
STICK LIGHTS / FUSION SERIES

FUSION ARROW

FS-1016 · Directional arrow stick · single-color modules, laid out your way · 60° optic, 60% brighter

STEP 01Color · By Moduleone color per module · 16 modules
No build yet — every module is waiting for a color.
STEP 02Cable length10 ft included
10 ftIncluded20 ft+$2530 ft+$50
$849 1

Pattern Studio

FUSION ARROW · IN THE COLORS YOU BUILD
Your build
No build yet — nothing to play.
build your bar and its colors play here

Why Fusion

60° optic, 60% brighterThe Fusion-S optic — long-range visibility over the previous Fusion family.
96 LEDsSingle-color modules in any layout — configured by you in Build-A-Bar.
15 flash patternsAttack, Cluster, Combo, Half-Half, One-One, Two-Two, All-On — front and rear.
28 programmable inputsFeniex Converter included — DOT stop/turn/tail, traffic advisor, cruise, cut-off, dim.
Takedown · alley · floodWork lighting built in — assigned per module in your build.

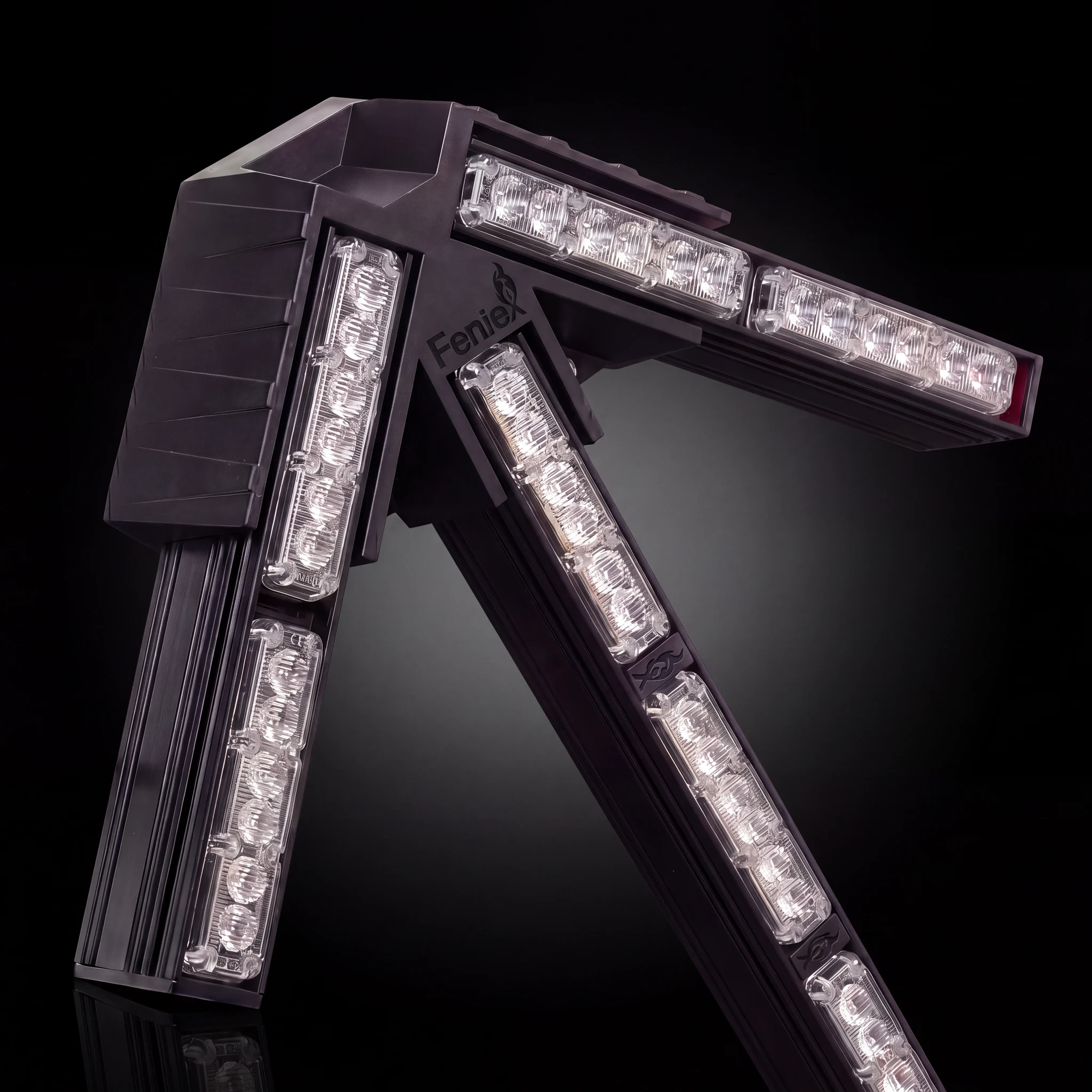

Military-grade aluminumAnti-yellowing, anti-cracking clear-coated polycarbonate lens · 5-year warranty.

Specifications

LED count96 LEDs
Current draw8 A
Input voltage10–18 V DC
Optical spread60°

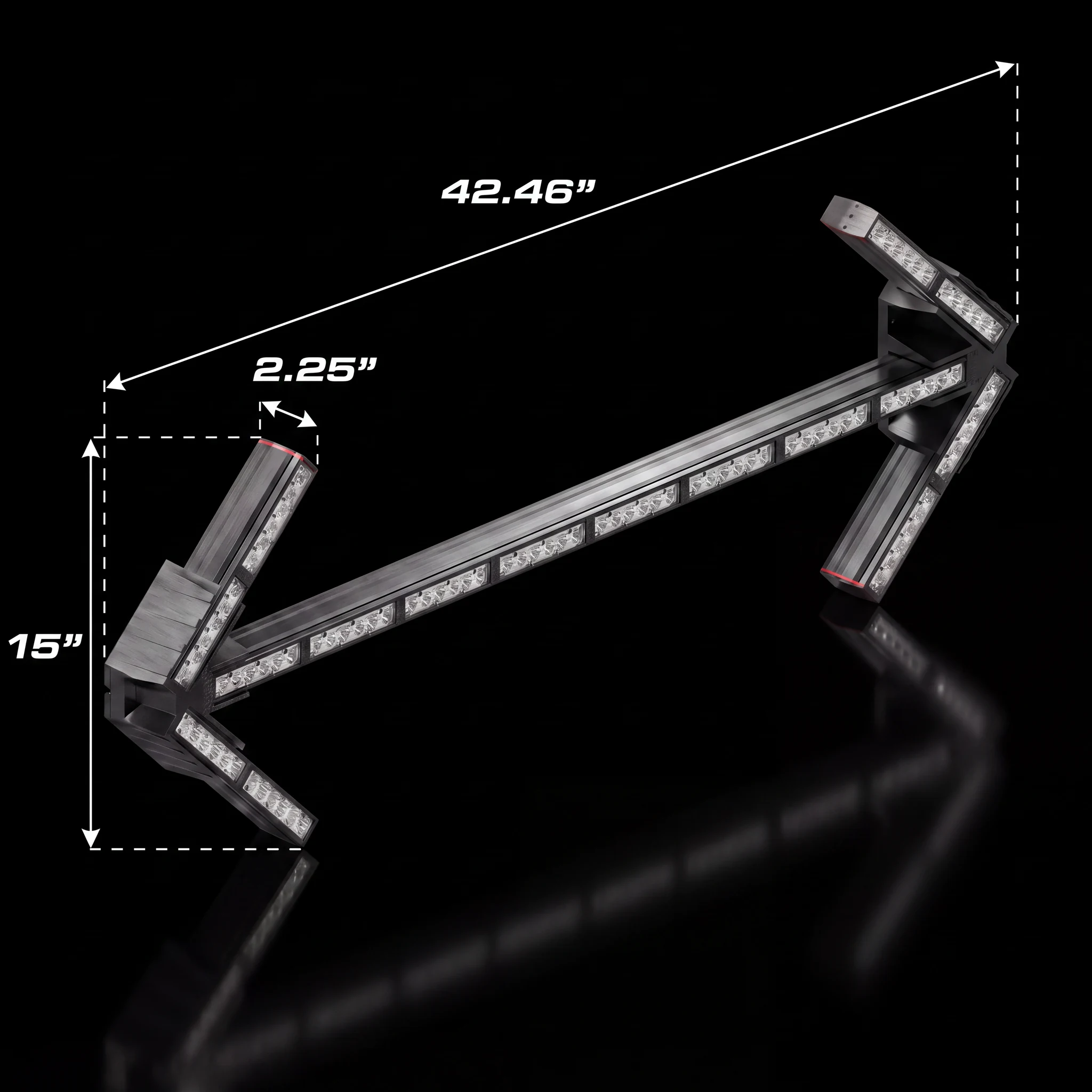

Dimensions42.46″ L × 2.63″ W × 15″ H
Cable10 ft standard · 14-pin · 20 AWG
External fuse125% of product load
Warranty5-year manufacturer
OriginMade in the USA
SAE J595SAE J1113SAE J578SAE J575SAE J845ECE R65 CLASS 1CA TITLE 13NFPA KKKIP66
Fusion Arrow

5 Star Reviews

2 reviews · from Feniex.com

  • Nothing better than Feniex I have plenty of their products but I think my favorite is the Fusion Arrow Board. There are so many flash patterns and it was extremely easy to install. If you have any doubts about buying this bar... dont.

    Allen Davidson via Feniex.com

  • I added the fusion arrow board to my volunteer fire truck and it has come in handy many times. I feel like I got my moneys worth. I am a Feniex fan without a doubt.

    John Jones via Feniex.com

Every Feniex review →

About the series

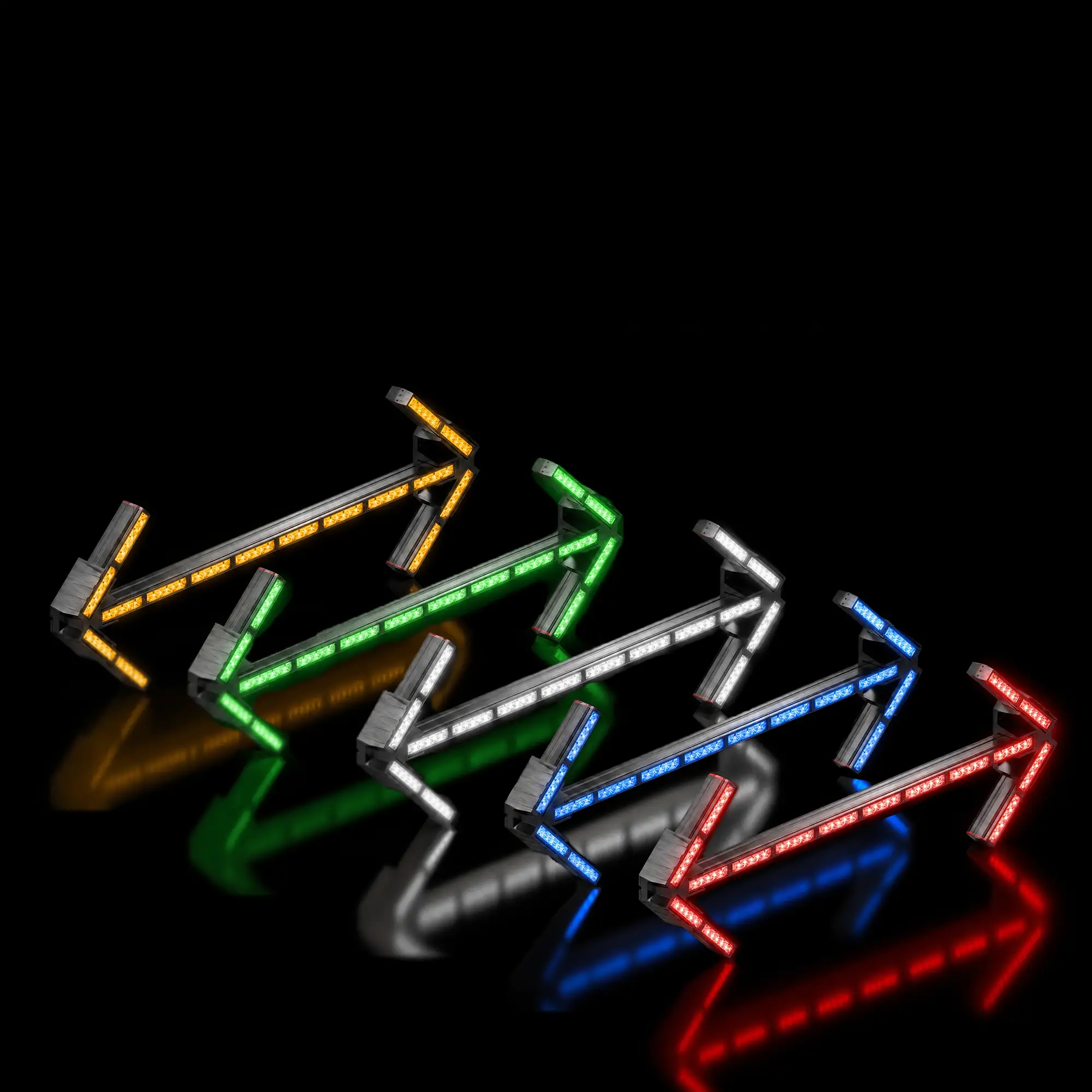

The Feniex Fusion-S is the next evolution of the Fusion series — the world’s brightest and most competitively priced emergency warning line. User configurable in red, blue, amber, white and green, the Fusion-S offers a new and improved optic that is 60% brighter than the previous Fusion family. Single-color modules, laid out module by module in Build-A-Bar, programmed in the field.

Documents & training

PDFInstruction Manualwiring · mounting · programming PDFCut Sheetdimensions · draw · certifications GUIDEConverter Input Guide28 inputs · 15 patterns · field programming COURSEFeniex Universityinstall & programming video courses
