Quantum Lightbar Cable Kit
Price: $50.00
About the Product/Series

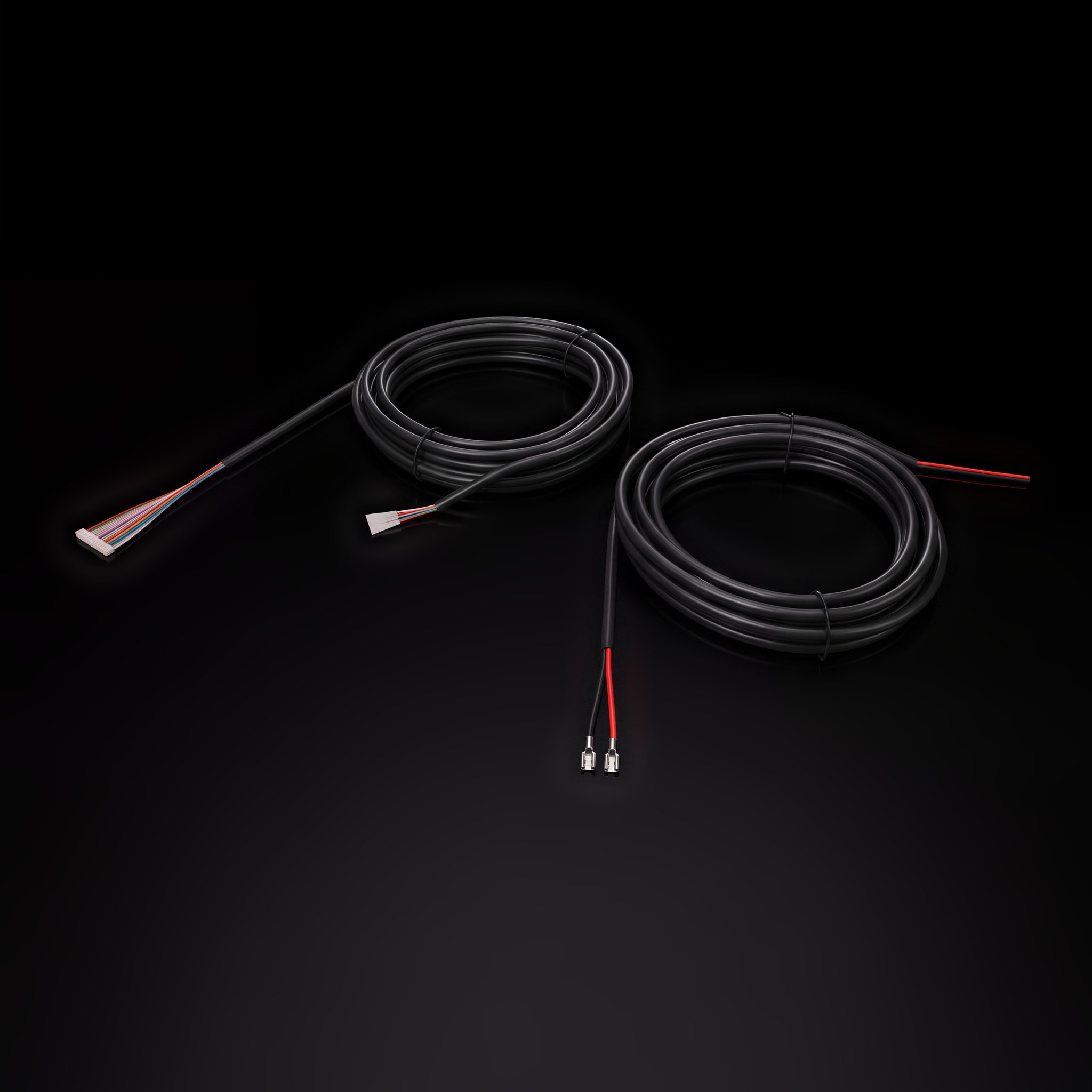

Introducing the Feniex Quantum Lightbar Cable Kit, the matched pair of cables that wires a Quantum 44", 49" or 60" lightbar into the vehicle: the 15-pin signal cable that carries every mode and function to the controller, and the 2-pin power cable that feeds the bar. Both come in the same length, so one part number covers the whole run.
The signal cable is a 15-conductor, 24 AWG shielded cable with a Molex Micro-Latch 15-pin connector on the lightbar end and stripped, color-coded leads on the free end. The power cable is a pair of 12 AWG conductors in a black PVC jacket with quick-disconnect terminals on the lightbar end and spliced leads on the free end, sized to carry a full-size Quantum lightbar at any length in the kit.
Specfications
- Available Lengths: 10 Feet (QTPMH-10), 20 Feet (QTPMH-20), 30 Feet (QTPMH-30), 40 Feet (QTPMH-40)
- Compatible With: Quantum 44" / 49" / 60"
- Kit Contents: 15-Pin Lightbar Cable (66-00007) and 2-Pin Power Cable (66-00033), one each
- Connectors: Molex Micro-Latch 15-pin to stripped leads (signal); 2 x quick-disconnect female terminals to spliced leads (power)
- Wire: 15 x 24 AWG shielded (signal); 2 x 12 AWG stranded (power)
- Jacket: Black
- Compliance: RoHS, lead-free
- 5 Year Manufacturer Warranty
Included
- 1 x 15-Pin Lightbar Cable (66-00007)
- 1 x 2-Pin Power Cable (66-00033)
Product Details
- Available in 10, 20, 30 and 40 foot lengths, both cables the same length
- Compatible with Quantum 44" / 49" / 60" lightbars
- 15-pin signal cable: Molex Micro-Latch 15-pin connector, 15 x 24 AWG shielded, color-coded leads
- 2-pin power cable: quick-disconnect terminals, 2 x 12 AWG, red and black
- Black jackets, coiled and tied for easy stocking
- Cables also sold separately as the 15-Pin Lightbar Cable and the 2-Pin Power Cable
- RoHS compliant and lead-free
