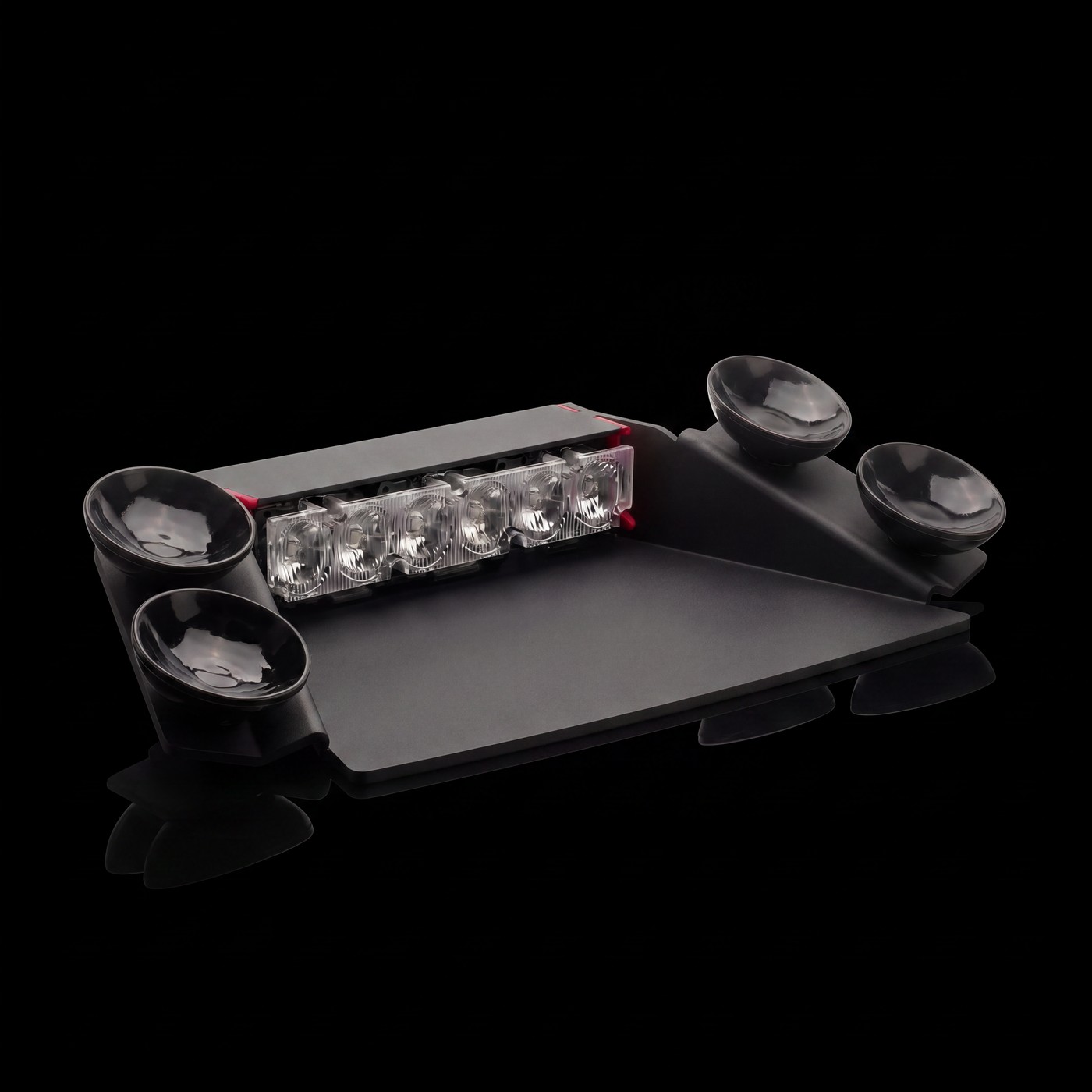

Feniex Fusion 1X on the black stage
DECK & DASH / FUSION SERIES

FUSION 1X

FS-1116 · Dash-mounted warning light · 40° optic, 60% brighter

STEP 01Color
STEP 02Cable length
$119 1
$19 Flat Rate
Shipping

Pattern Studio

FUSION 1X · PERIMETER INSTALL · IN THE COLORS YOU’D ORDER
Modules installed
Colors
one color per module

Why Fusion

40° optic, 60% brighterThe Fusion-S optic — long-range visibility over the previous Fusion family.

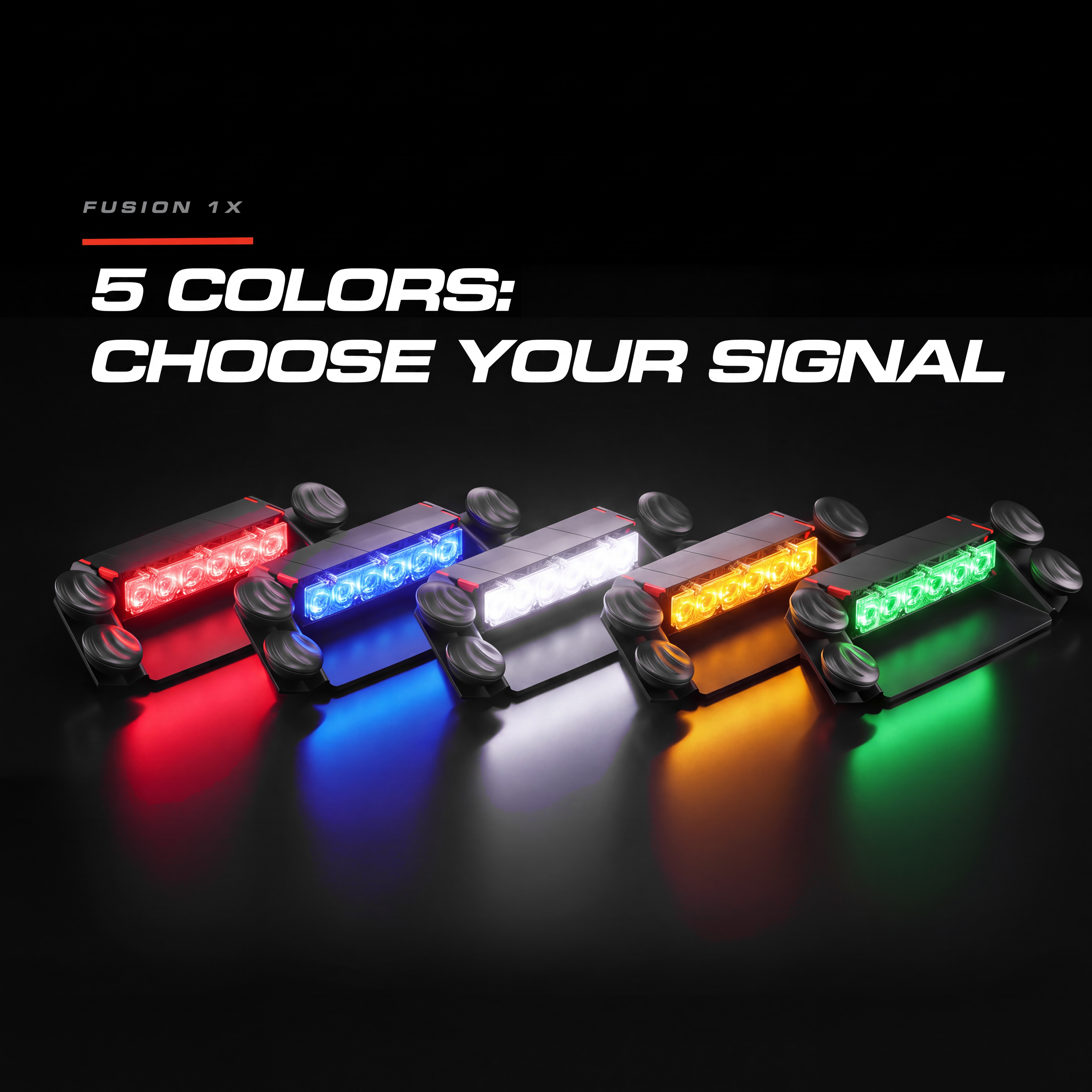

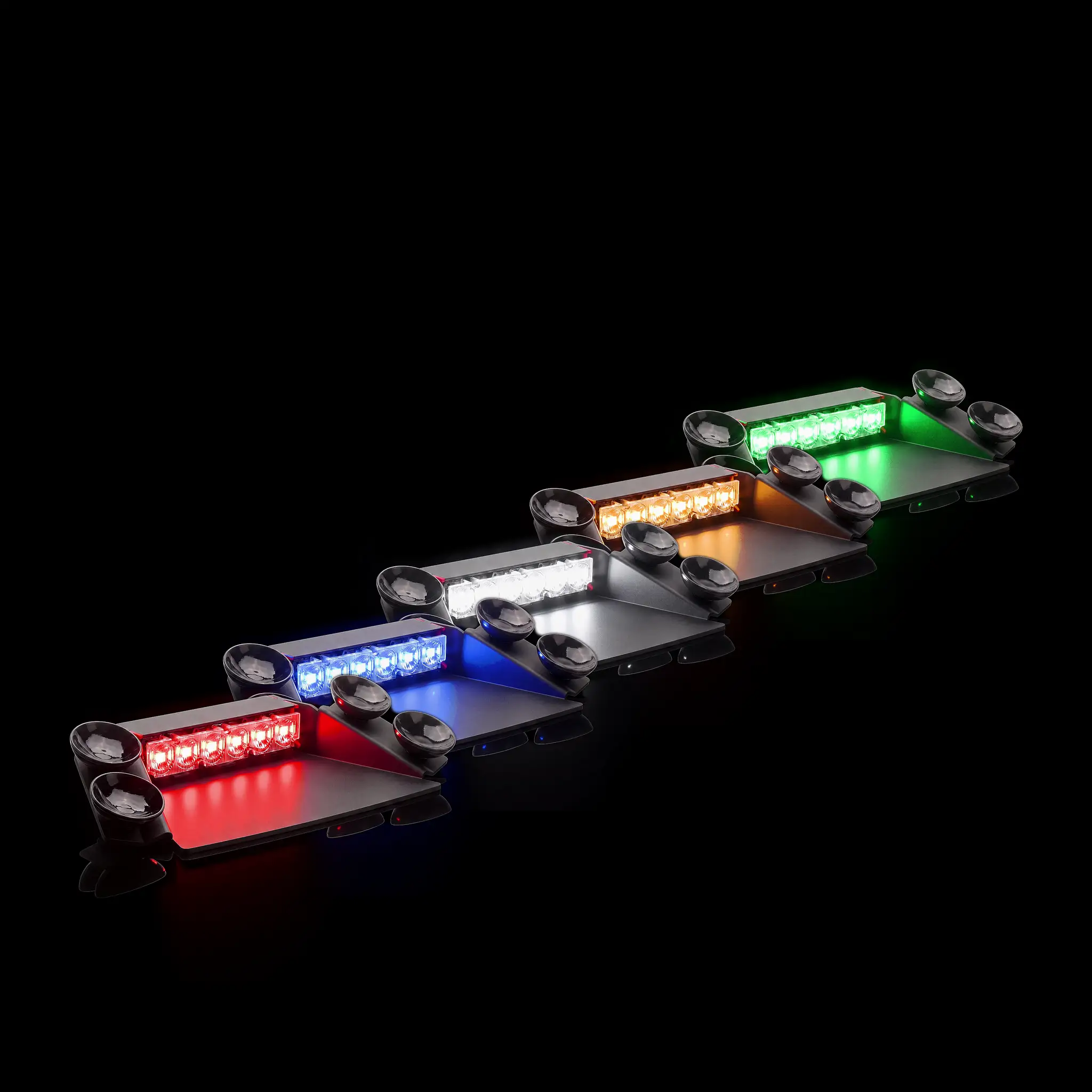

6 LEDs · single colorOne color per unit — red, blue, amber, white or green.
Plug in and goCigarette-plug adapter with switches for color, pattern and mode — no wiring needed.
2 programmable modesFlood, cruise and stop/tail/turn pattern capabilities.

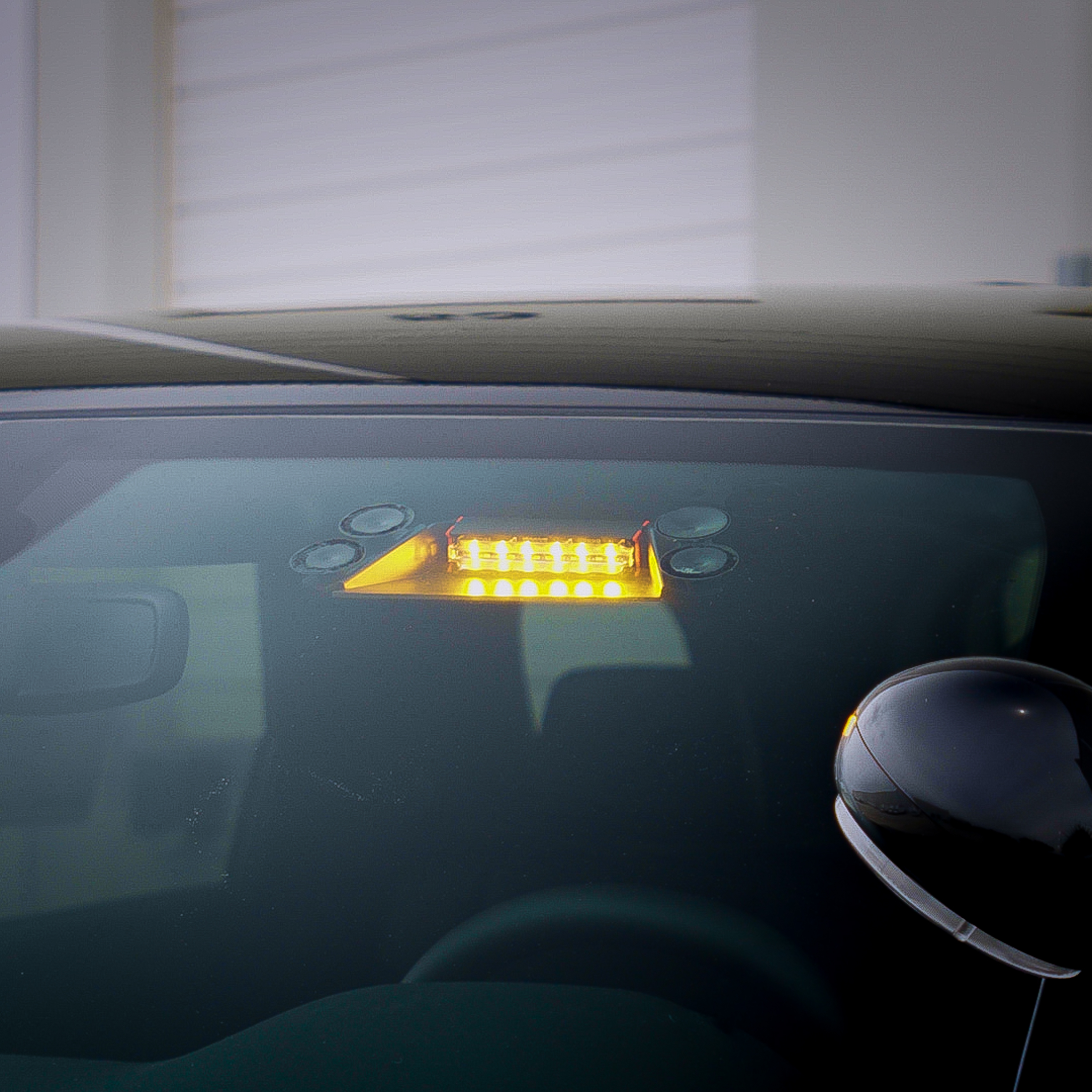

Two mounts includedSuction-cup and 3M permanent tape — with a built-in shield against back-flash.
Syncs across the familyT3, Cannon, Mirror Puck and QSM run in step · 5-year warranty.

Specifications

LED count6 LEDs
Current draw1 A
Input voltage10–18 V DC
Optical spread40°

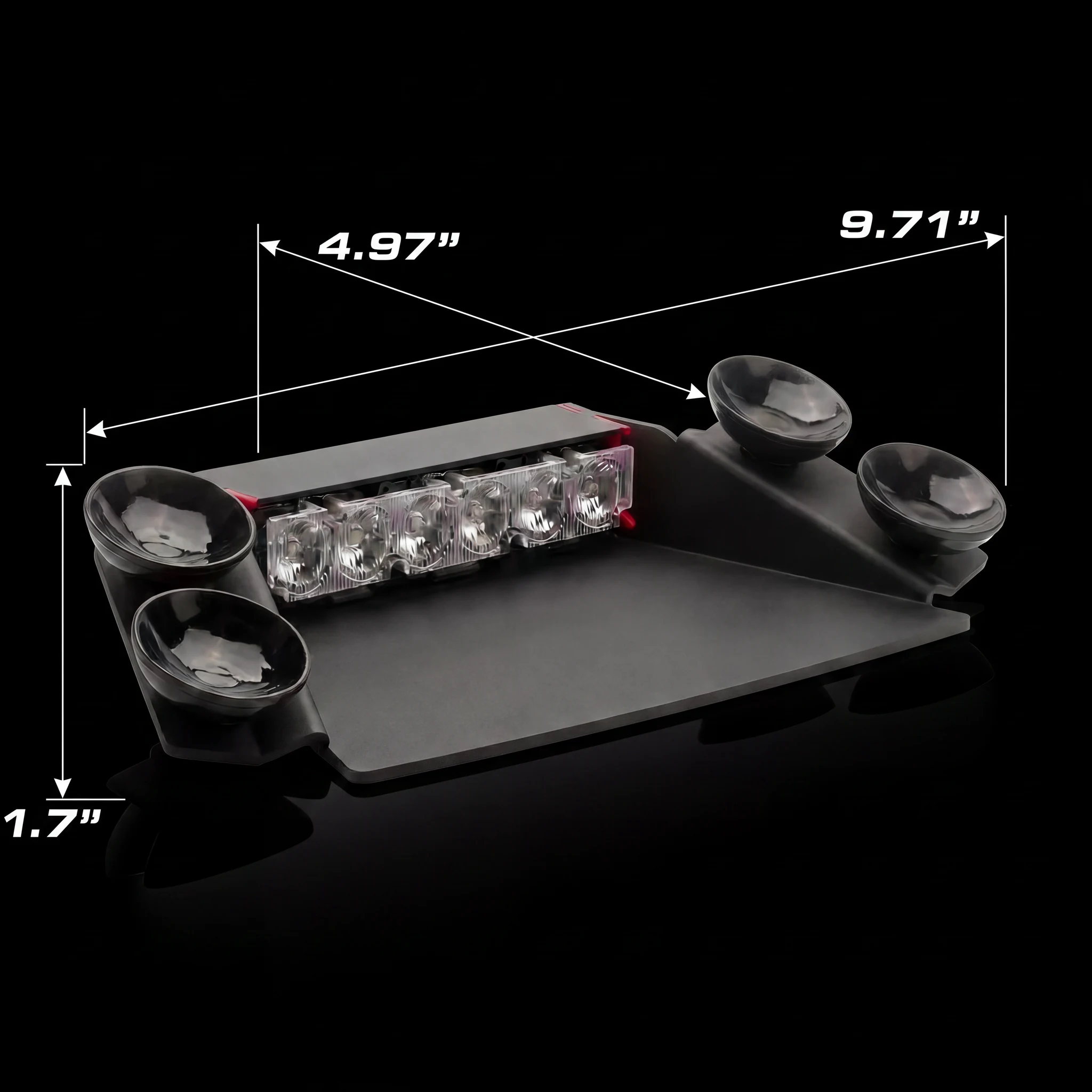

Dimensions9.71″ L × 4.97″ W × 1.72″ H
Cable10 ft standard · 6-pin · 20 AWG
In the boxSuction-cup and 3M tape mounts · cigarette plug adapter
External fuse125% of product load
Warranty5-year manufacturer
OriginMade in the USA
SAE J595 CLASS 1
Fusion 1X

About the series

The Feniex Fusion-S is the next evolution of the Fusion series — the world’s brightest and most competitively priced emergency warning line. User configurable in red, blue, amber, white and green, the Fusion-S offers a new and improved optic that is 60% brighter than the previous Fusion family. Single-color modules, programmed in the field.

Documents & training

PDFInstruction Manualwiring · mounting · programming PDFCut Sheetdimensions · draw · certifications COURSEFeniex Universityinstall & programming video courses

5 Star Reviews

thousands of 5-star reviews
  • Feniex fusion s 1x

    Such a great light I bought two of them for the front windshield they work awesome and moves traffic great and super bright little lights.

    Holden Brock Verified buyer

  • Nice, versatile, lights at a great price.

    These compact lights are very bright. Their multi-color, multi-mode makes them suitable for a variety of purposes such as warning, turn, brake, and reverse lamps.

    C. Novy Verified buyer

  • Great brake light upgrade

    Great lights. Mounted w a f150 third brake light mount. Setup for brake pop primary, amber secondary and red, blue, green, orange third mode.

    Verified buyer
