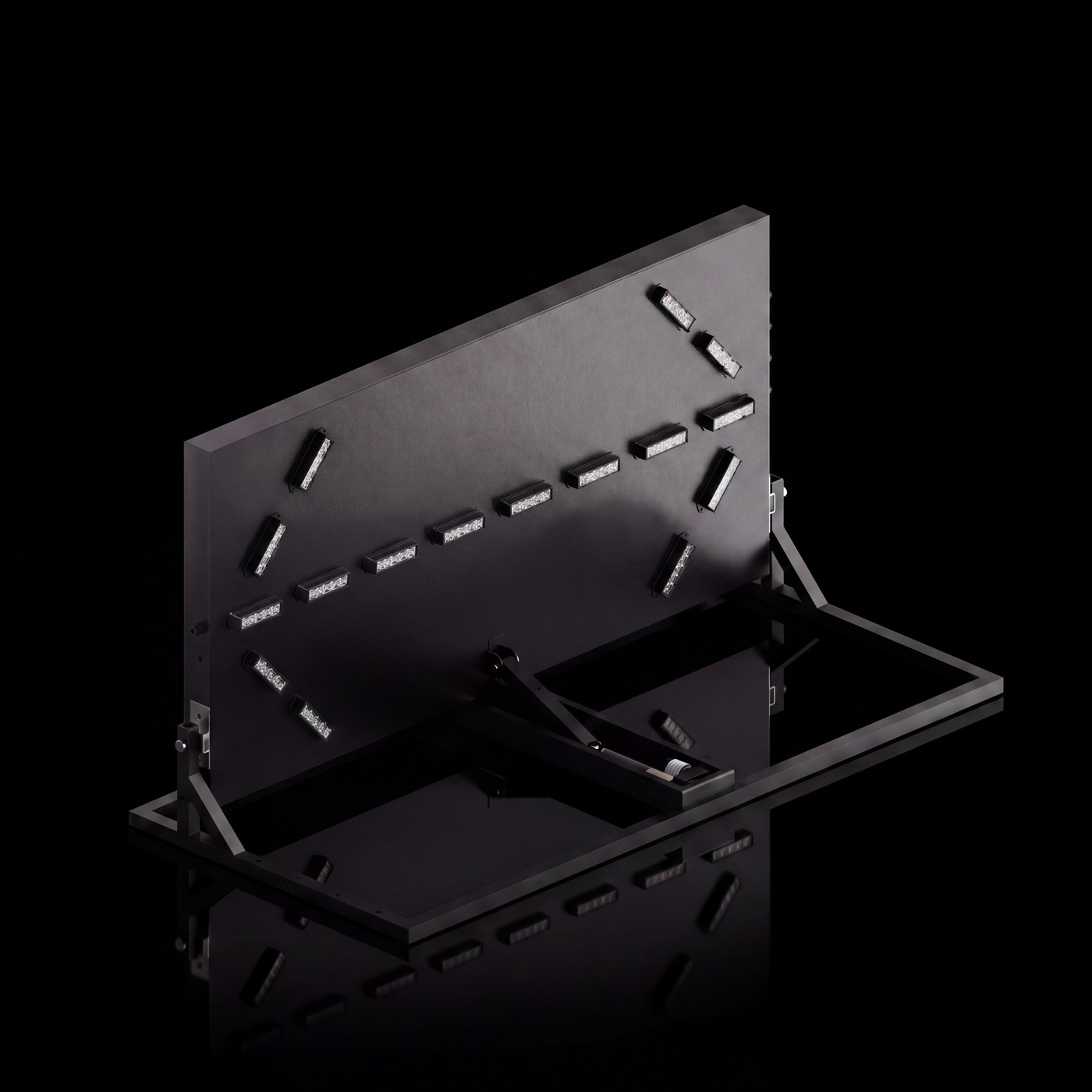

Feniex Fusion 90° Arrow on the black stage
STICK LIGHTS / FUSION SERIES

FUSION 90° ARROW

FS-1016-B · 90° directional arrow board · single-color modules, laid out your way · 60° optic, 60% brighter

STEP 01Color · By Moduleone color per module · 16 modules
No build yet — every module is waiting for a color.
STEP 02Cable length
$2,099 1
Ask Eve about this light Answers from the manual, the catalog and Feniex policy

Pattern Studio

FUSION 90° ARROW · IN THE COLORS YOU BUILD
Your build
No build yet — nothing to play.
build your bar and its colors play here

Why Fusion

60° optic, 60% brighterThe Fusion-S optic — long-range visibility over the previous Fusion family.
96 LEDsSingle-color modules in any layout — configured by you in Build-A-Bar.
21 flash patternsWarning, traffic advisor and takedown modes, programmable in the field.
10 programmable inputsDOT stop/turn/tail, traffic advisor, cruise, cut-off, dim.
Takedown · alley · floodWork lighting built in — assigned per module in your build.
Military-grade aluminumAnti-yellowing, anti-cracking clear-coated polycarbonate lens · 5-year warranty.

Specifications

LED count96 LEDs
Current draw12 A @ 13 V
Input voltage10–18 V DC
Optical spread60°

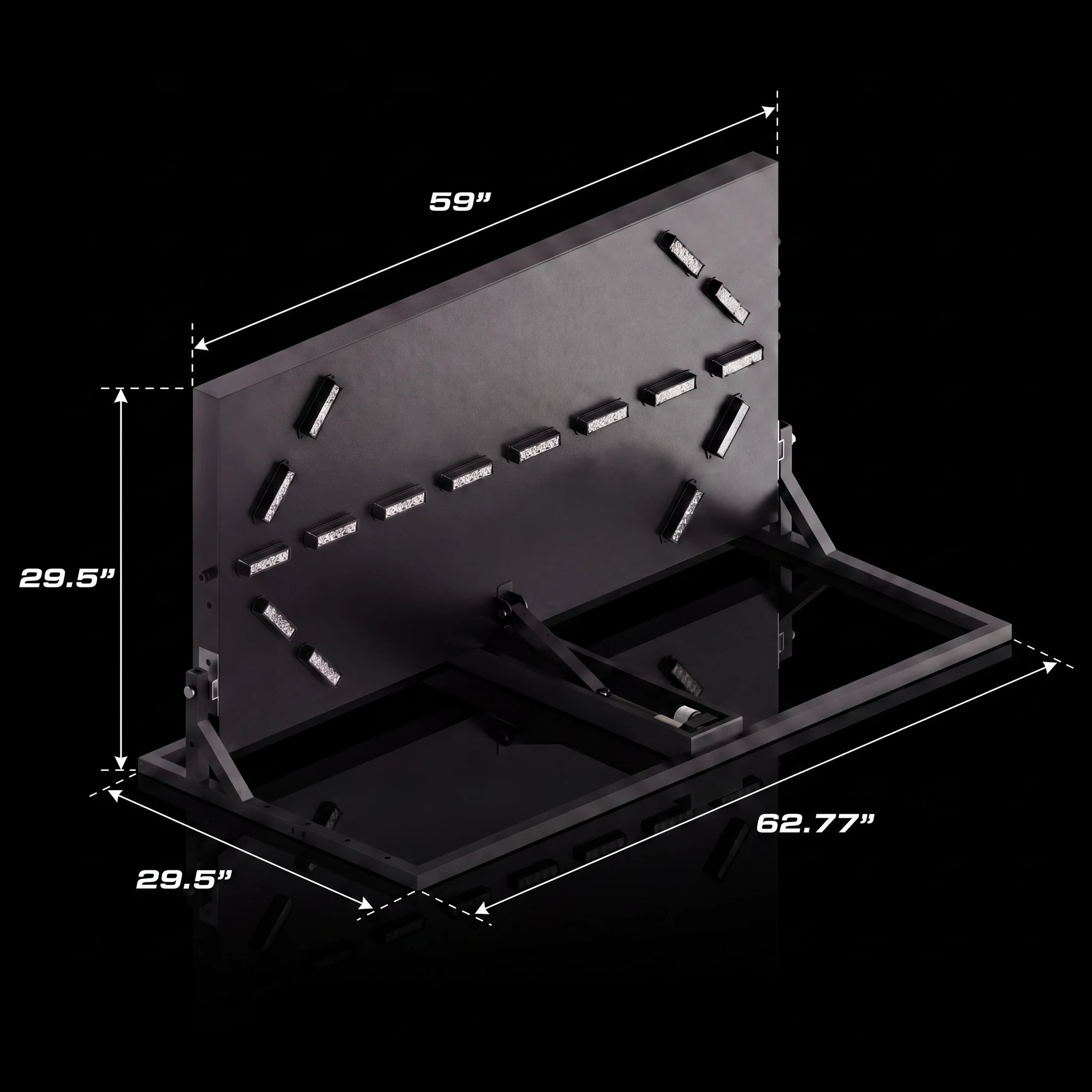

Dimensions62.77″ L × 32.2″ W × 29.5″ H
Cable10 ft standard · 14-pin · 20 AWG
External fuse125% of product load
Warranty5-year manufacturer
OriginMade in the USA
SAE J595SAE J1113SAE J578SAE J575SAE J845ECE R65 CLASS 1CA TITLE 13NFPA KKKIP66
Fusion 90° Arrow

About the series

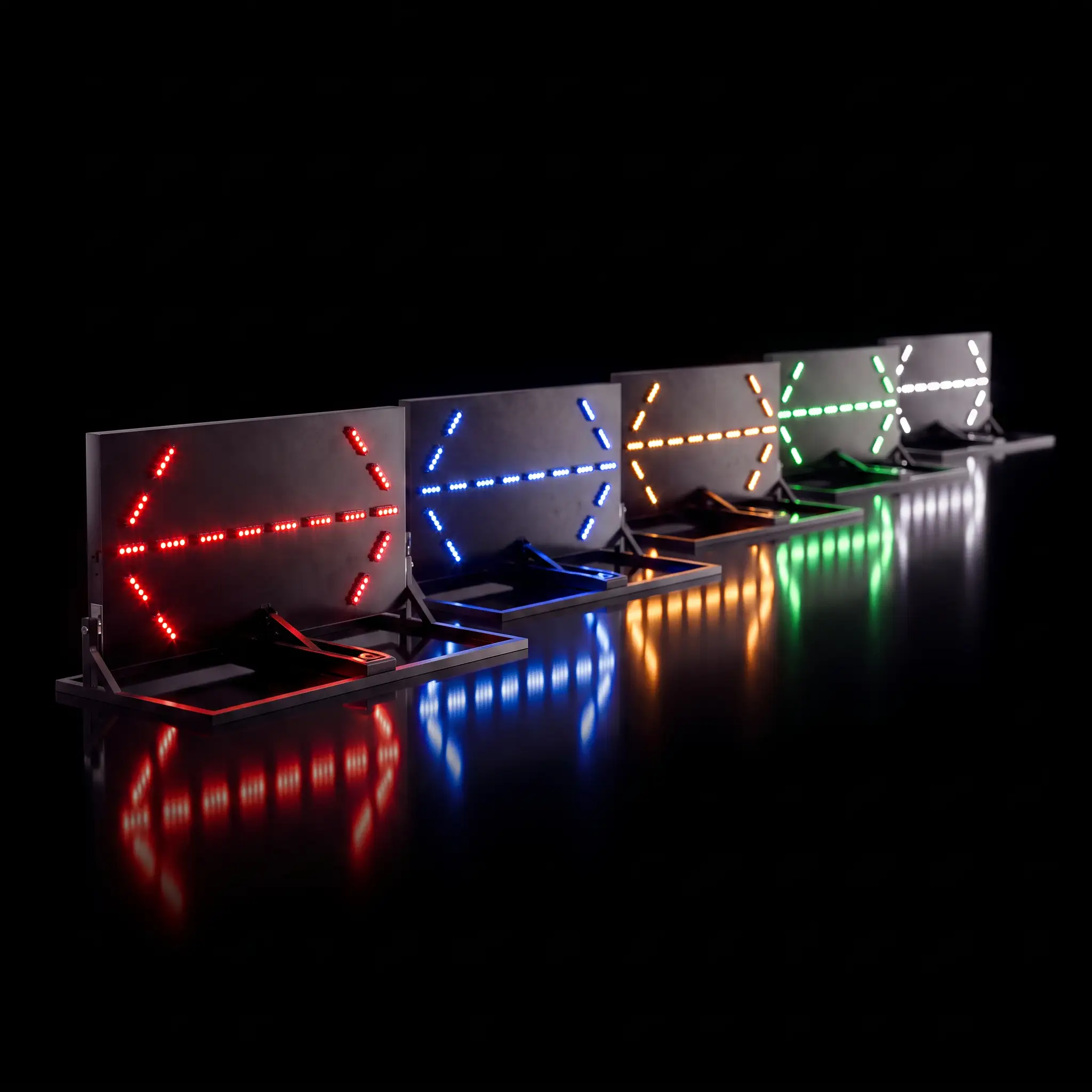

The Feniex Fusion-S is the next evolution of the Fusion series — the world’s brightest and most competitively priced emergency warning line. User configurable in red, blue, amber, white and green, the Fusion-S offers a new and improved optic that is 60% brighter than the previous Fusion family. Single-color modules, laid out module by module in Build-A-Bar, programmed in the field.
