PERIMETER
CANNON-S
H-2225-R · Hideaway cannon light
STEP 01Color
STEP 02Bracket
STEP 03Cable length
Cannon-S
$69
1
$19
Flat Rate
Shipping
Shipping
BUILD-A-BAR
Pattern Studio
View
Modules installed
Colors
one color per unit — pick the pair you’d order
Why the Cannon-S
120° wide spreadThe widest optic on the page — a hideaway that fills the whole lens it lives behind.

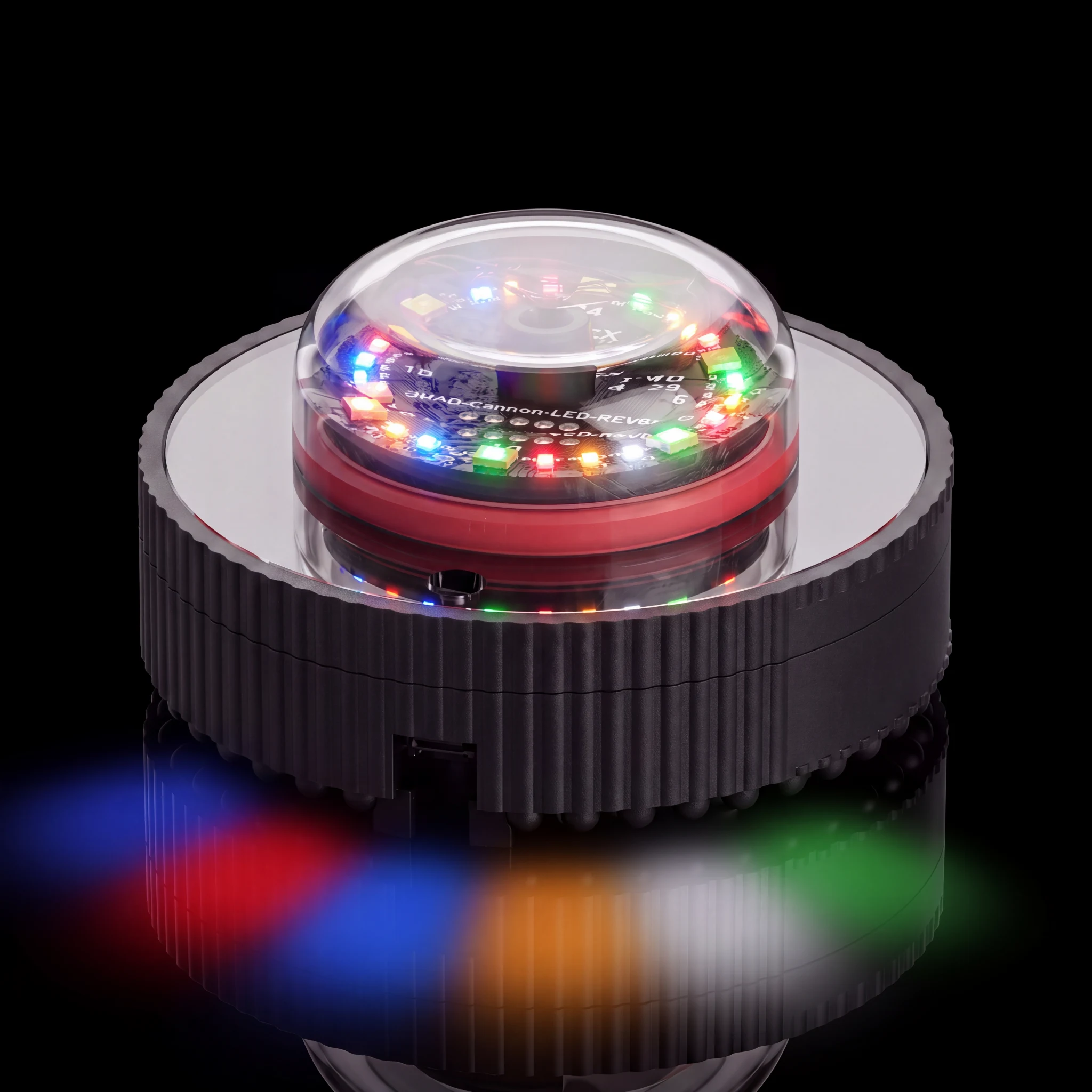

Five colors to pick fromBlue, red, amber, white or green — one color per unit.
14 flash patternsPlus one programmable priority flashing mode.
Three jobs in oneReverse/turn/tail light, fog light, or warning light.
All-in-one designNo inline driver — the whole light lives in a 1.6-inch cube.
Made in the USA5-year warranty.
Specifications
| Current draw | 1 A |
| Input voltage | 10–18 V DC |
| Optical spread | 120° |

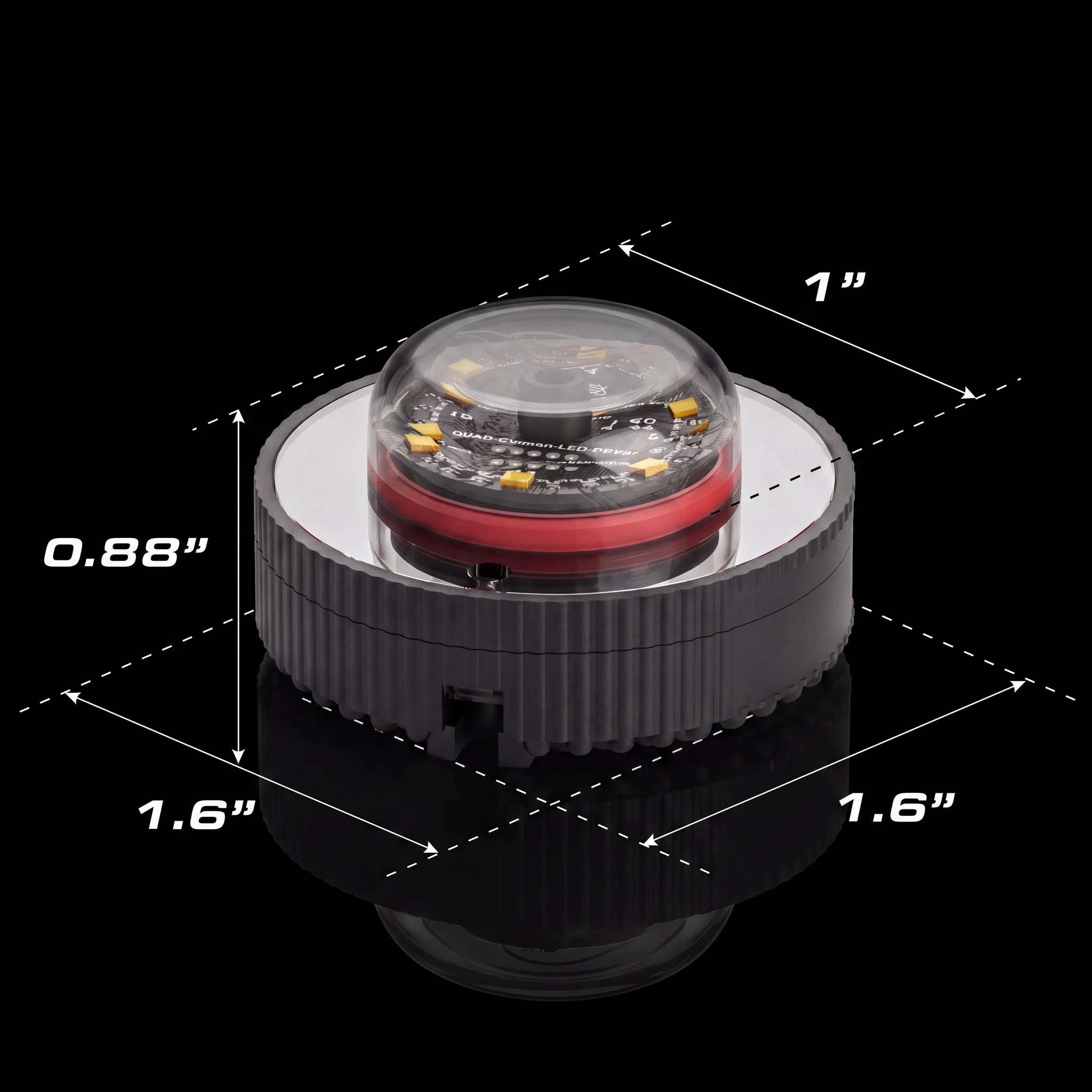

| Dimensions | 1.6″ L × 1.6″ W × 0.88″ H |
| Cable | 1 ft standard · 6-pin · 20 AWG |
| External fuse | 125% of product load |
| Warranty | 5-year manufacturer |
| Origin | Made in the USA |
Documents & training
5 Star Reviews
thousands of 5-star reviews-
Really bright for the size

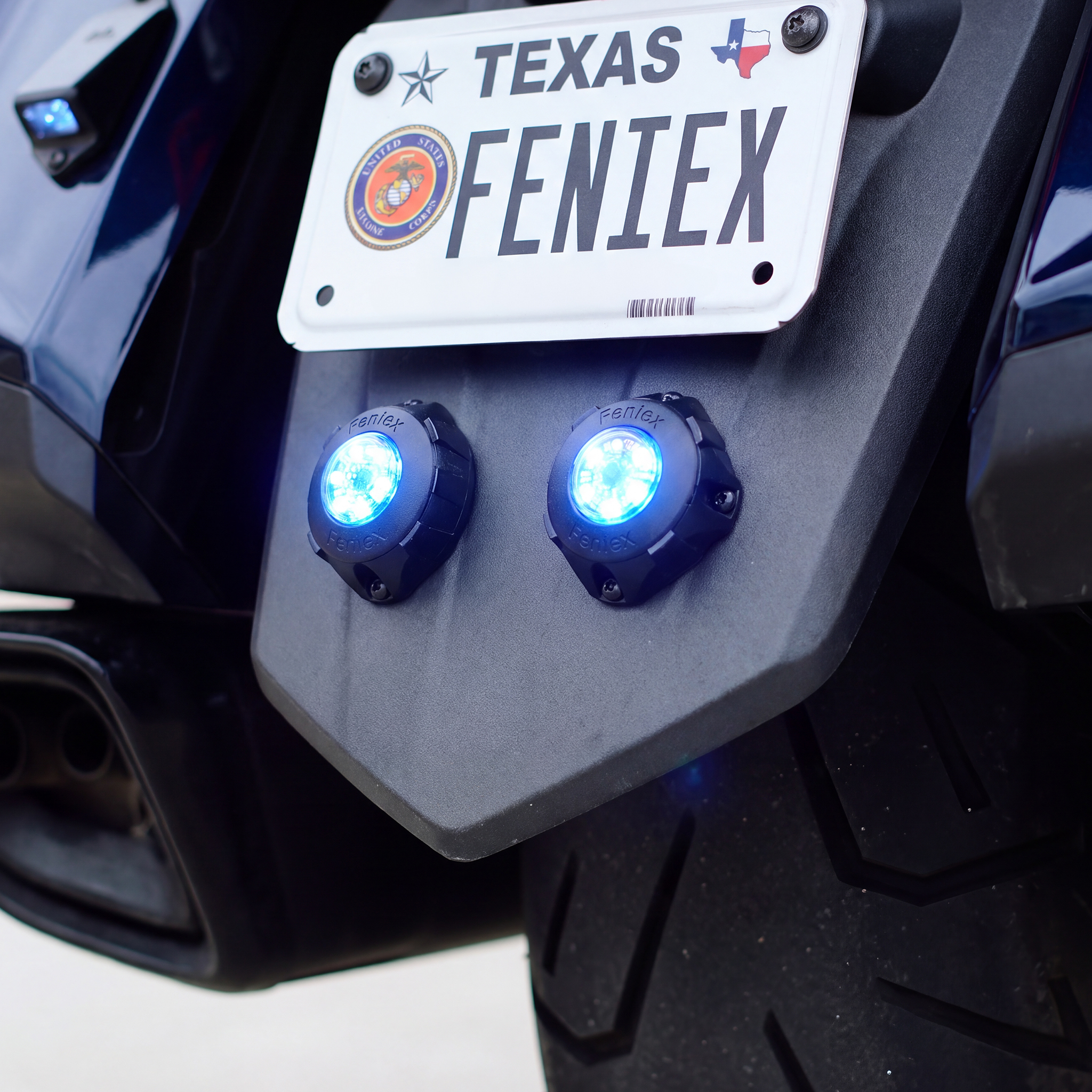

Even at full price, these are American-made and very bright for their size. Use as a hideaway or surface mount, regardless they will be great auxiliary lights.
-
Covert
These hide aways are great for a powerful punch Covertly hidden or surface mounted. I synced them with Feniex T3s for a very effective warning package that's Super discreet to the rear.
-
Great light.
Great product, quick shipping, one of the best hideaways on the market. [...] Easy to install [...] Five minute fix. Highly recommended.
