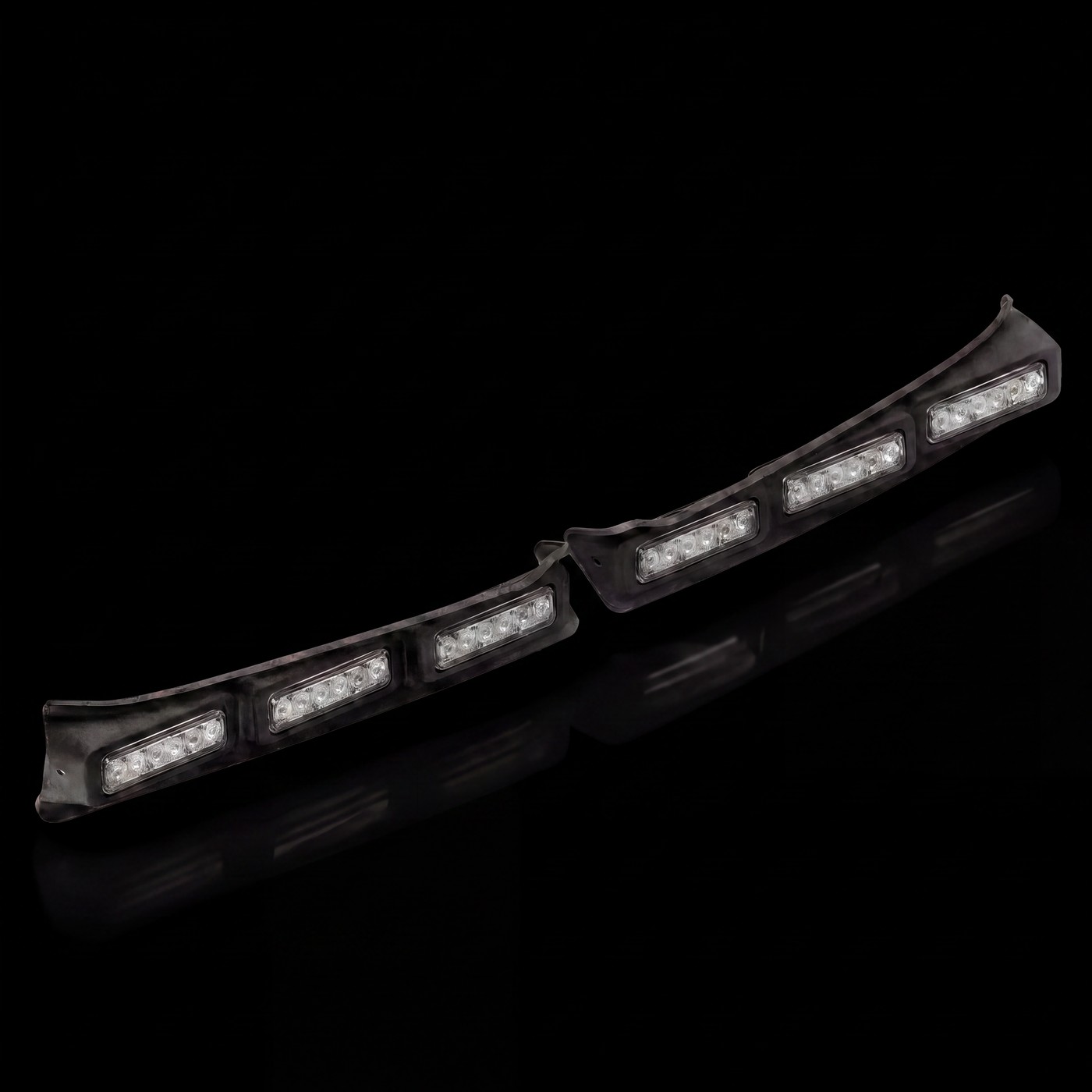

Feniex Fusion Spoiler on the black stage

STICK LIGHTS / FUSION SERIES

FUSION SPOILER

Name: Fusion Spoiler
Brand: Feniex
Price: 529.00 USD
Availability: InStock

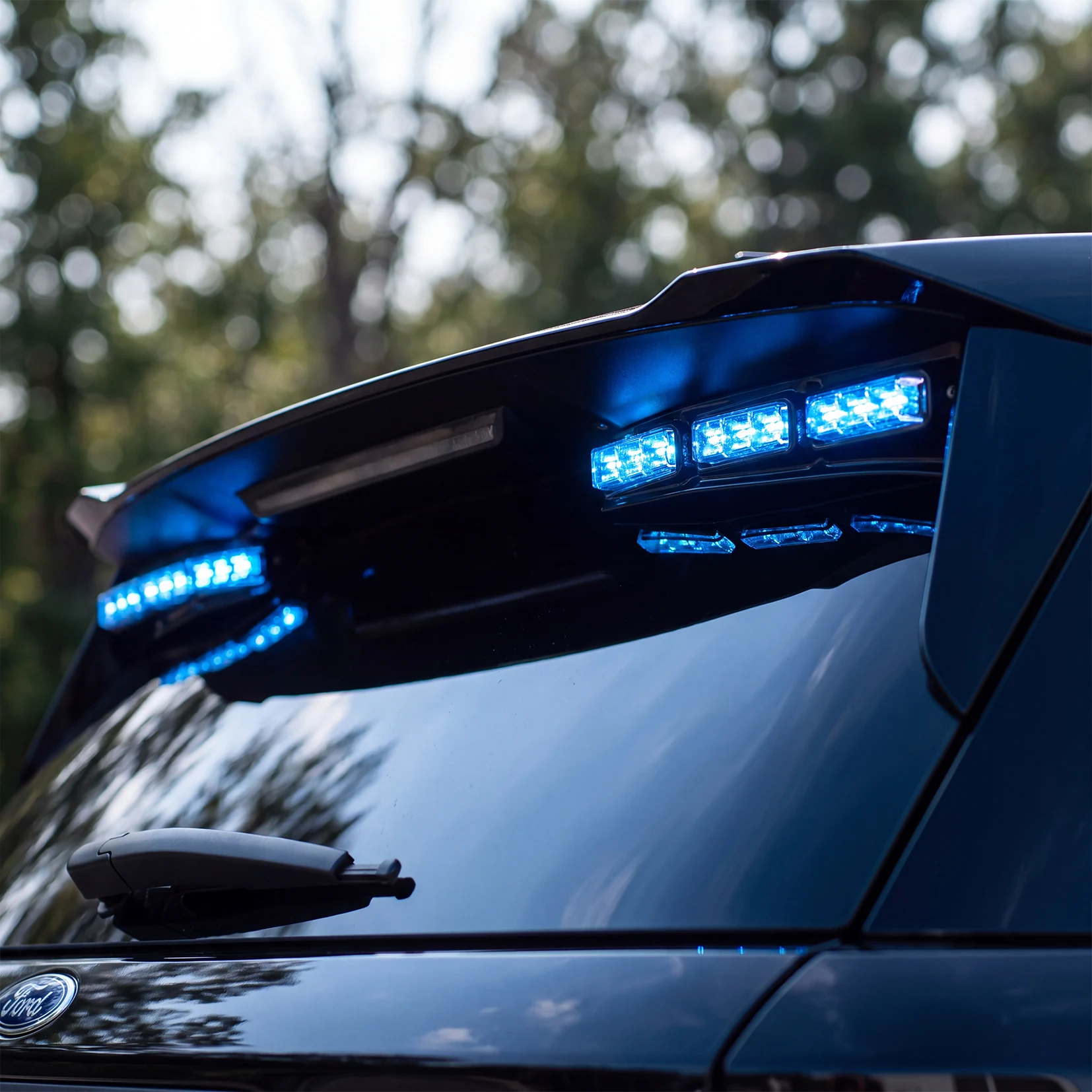

FS-1520FE · Spoiler-mount perimeter light · single-color modules, laid out your way · 40° optic, 60% brighter

STEP 01Color · By Moduleone color per module · 6 modules

No build yet — every module is waiting for a color.

STEP 02Vehicle

Select Vehicle

STEP 03Cable length

$529 1

$19 Flat Rate
Shipping

Pattern Studio

FUSION SPOILER · IN THE COLORS YOU BUILD

Your build

No build yet — nothing to play.

build your bar and its colors play here

Why Fusion

40° optic, 60% brighterThe Fusion-S optic — long-range visibility over the previous Fusion family.

36 LEDs · 6 modulesSingle-color modules in any layout — configured by you in Build-A-Bar.

21 flash patternsWarning, traffic advisor and takedown modes, programmable in the field.

10 programmable inputsDOT stop/turn/tail, traffic advisor, cruise, cut-off, dim.

Takedown · alley · floodWork lighting built in — assigned per module in your build.

Military-grade aluminumAnti-yellowing, anti-cracking clear-coated polycarbonate lens · 5-year warranty.

Specifications

LED count	36 LEDs
Light modules	6 modules · single-color, user configured
Current draw	5 A @ 13 V
Input voltage	10–18 V DC
Optical spread	40°

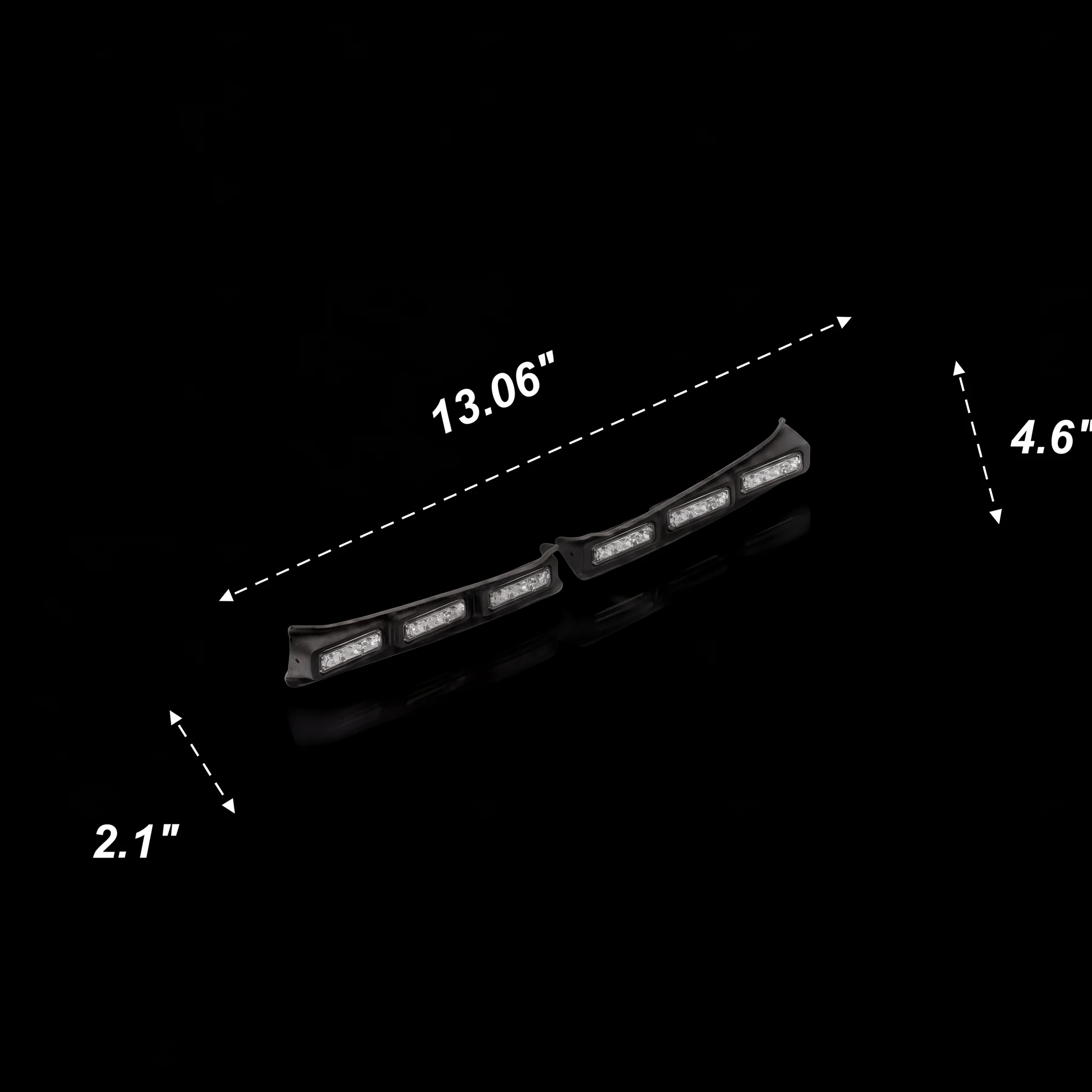

Dimensions	Vehicle-specific housing
Cable	10 ft standard · 14-pin · 20 AWG
In the box	Spoiler light · mounting hardware kit
External fuse	125% of product load
Warranty	5-year manufacturer
Origin	Made in the USA

SAE J595 CLASS 1CA TITLE 13

About the series

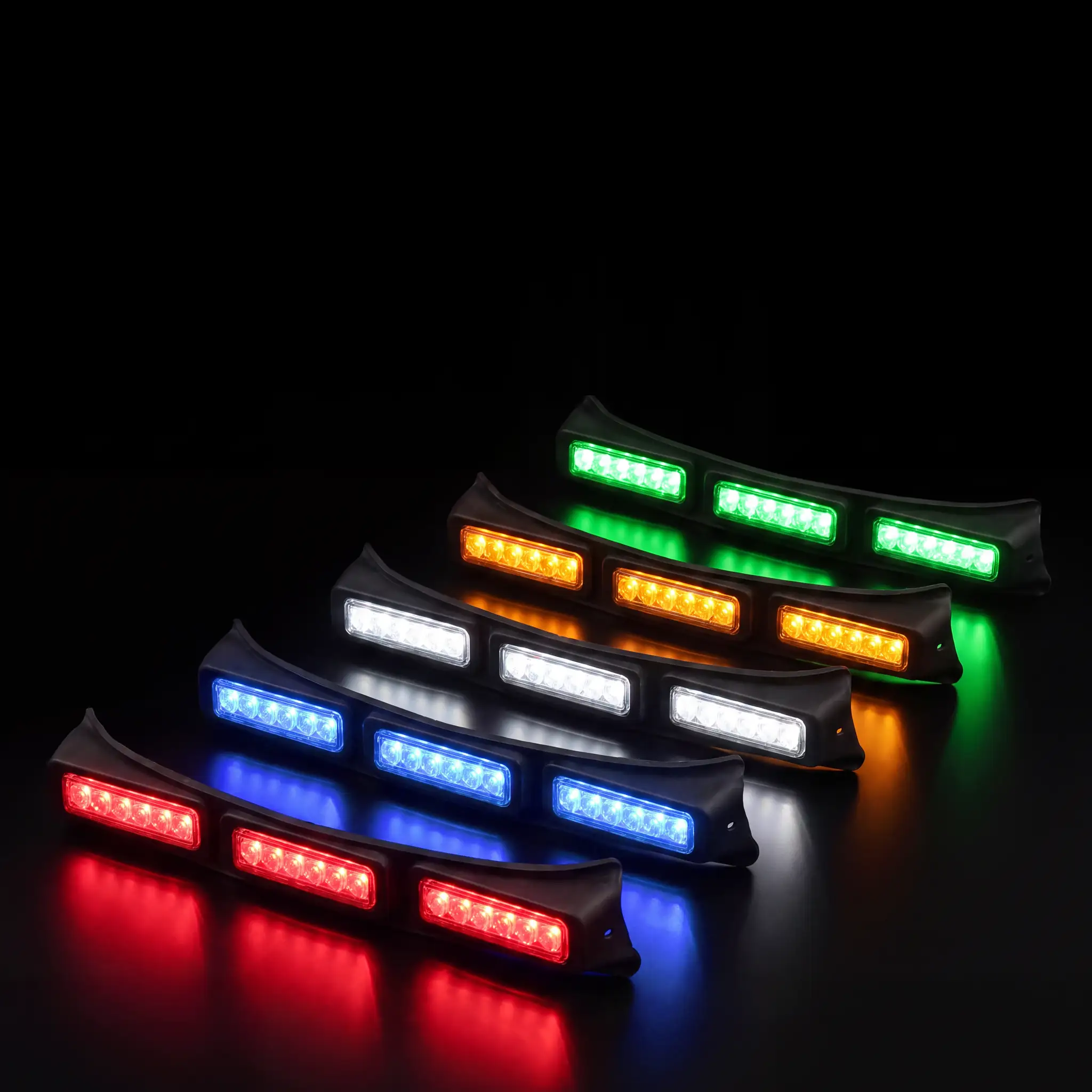

The Feniex Fusion-S is the next evolution of the Fusion series — the world’s brightest and most competitively priced emergency warning line. User configurable in red, blue, amber, white and green, the Fusion-S offers a new and improved optic that is 60% brighter than the previous Fusion family. Single-color modules, laid out module by module in Build-A-Bar, programmed in the field.

Documents & training

PDFInstruction Manualwiring · mounting · programming PDFCut Sheetdimensions · draw · certifications COURSEFeniex Universityinstall & programming video courses
