STICK LIGHTS / FUSION SERIES

FUSION 800

Name: Fusion 800
Brand: Feniex
SKU: FS-0816
Price: 459.00 USD
Availability: InStock

FS-0816 · Stick light · single-color modules, laid out your way · 40° optic, 60% brighter

STEP 01Color · By Moduleone color per module · 8 modules

No build yet — every module is waiting for a color.

STEP 02Bracket

Select Bracket

STEP 03Cable length

$459 1

Ask Eve about this light Answers from the manual, the catalog and Feniex policy

Pattern Studio

FUSION 800 · IN THE COLORS YOU BUILD

Your build

No build yet — nothing to play.

build your bar and its colors play here

Why Fusion

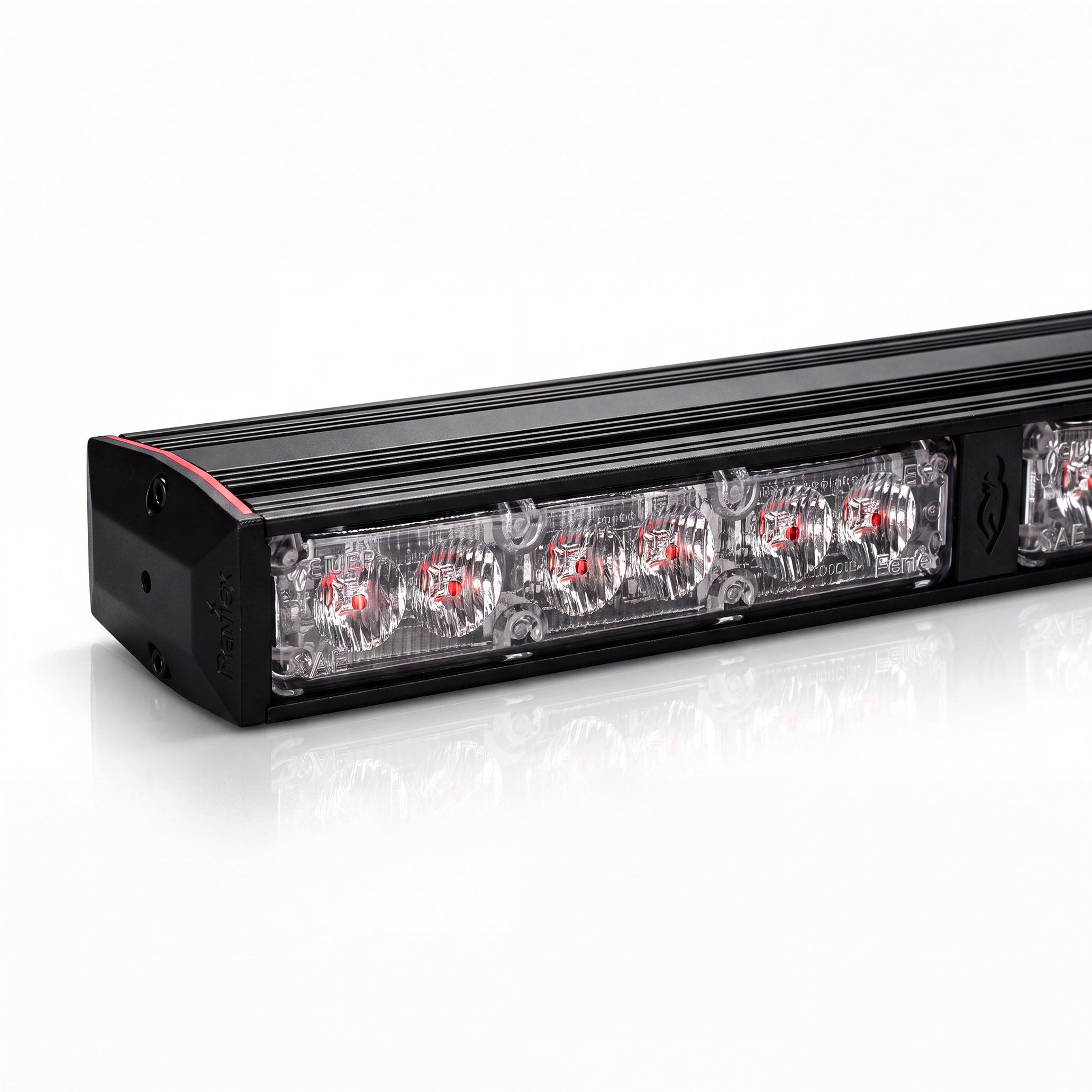

40° optic, 60% brighterThe Fusion-S optic — long-range visibility over the previous Fusion family.

48 LEDs · 8 modulesSingle-color modules in any layout — configured by you in Build-A-Bar.

15 flash patternsAttack, Cluster, Combo, Half-Half, One-One, Two-Two, All-On — front and rear.

28 programmable inputsFeniex Converter included — DOT stop/turn/tail, traffic advisor, cruise, cut-off, dim.

Takedown · alley · floodWork lighting built in — assigned per module in your build.

Military-grade aluminumAnti-yellowing, anti-cracking clear-coated polycarbonate lens · 5-year warranty.

Specifications

LED count	48 LEDs
Light modules	8 modules · single-color, user configured
Current draw	6 A
Input voltage	10–18 V DC
Optical spread	40°

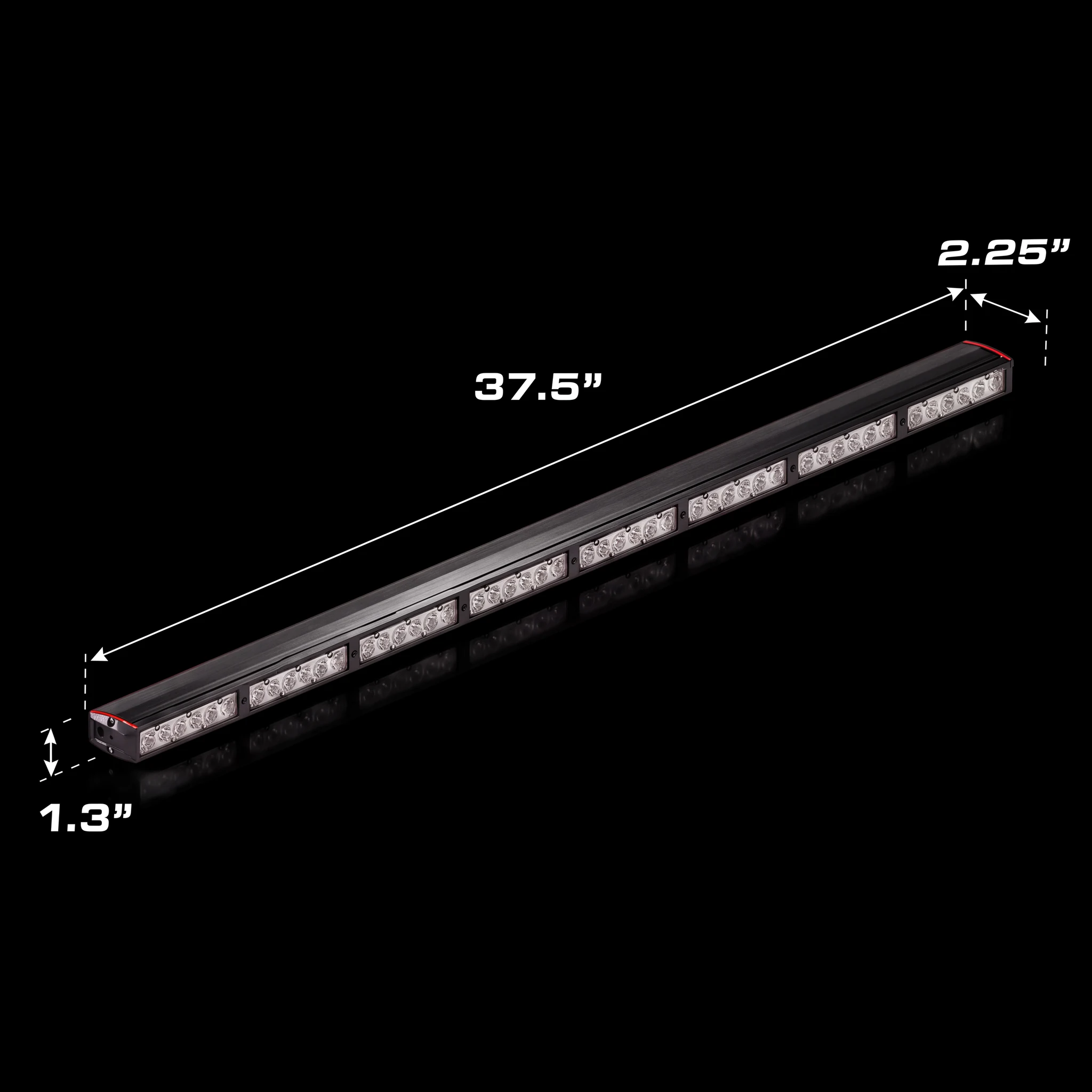

Dimensions	37.46″ L × 2.25″ W × 1.3″ H
Cable	10 ft standard · 14-pin · 20 AWG
External fuse	125% of product load
Warranty	5-year manufacturer
Origin	Made in the USA

SAE J595SAE J1113SAE J578SAE J575SAE J845ECE R65 CLASS 1CA TITLE 13NFPA KKKIP66

About the series

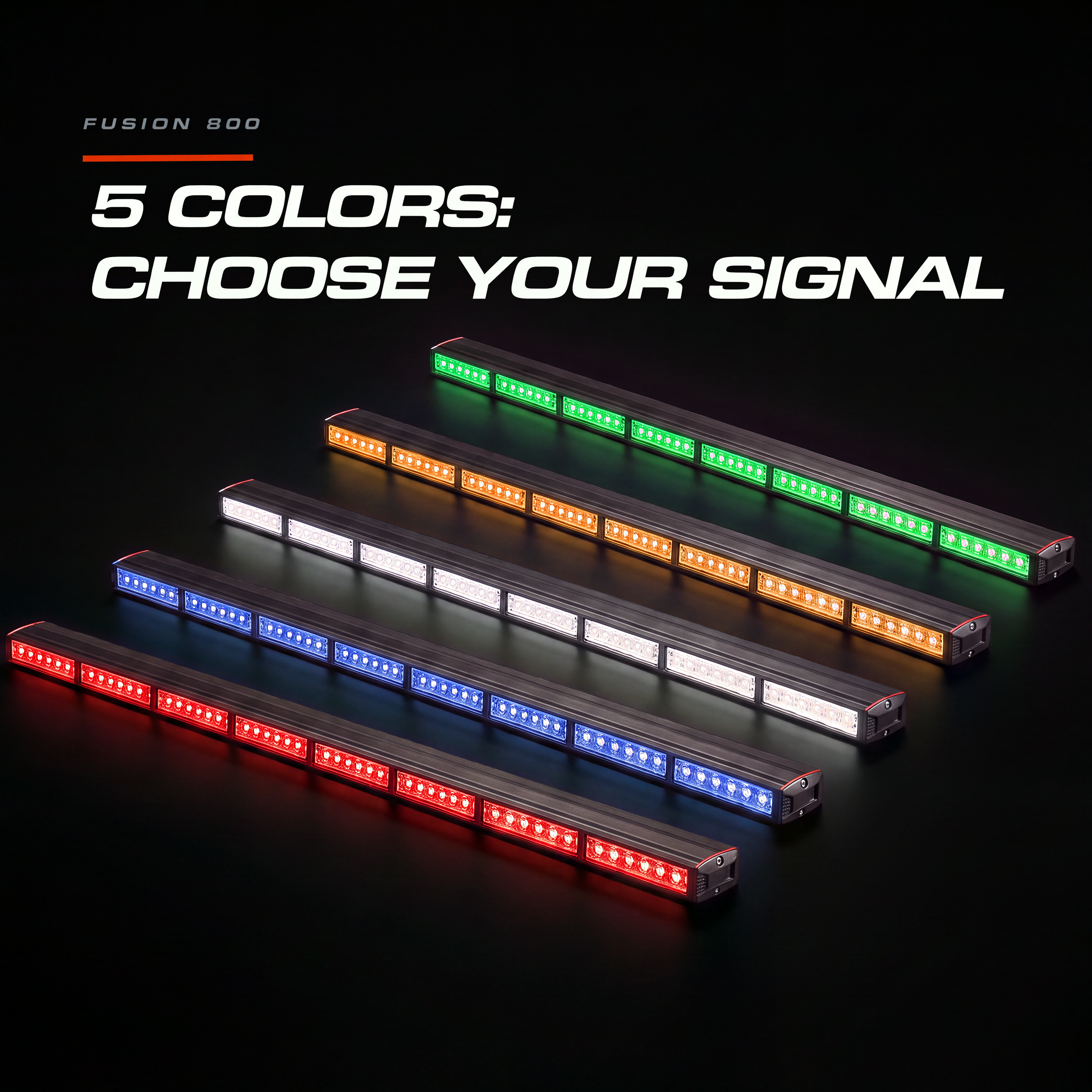

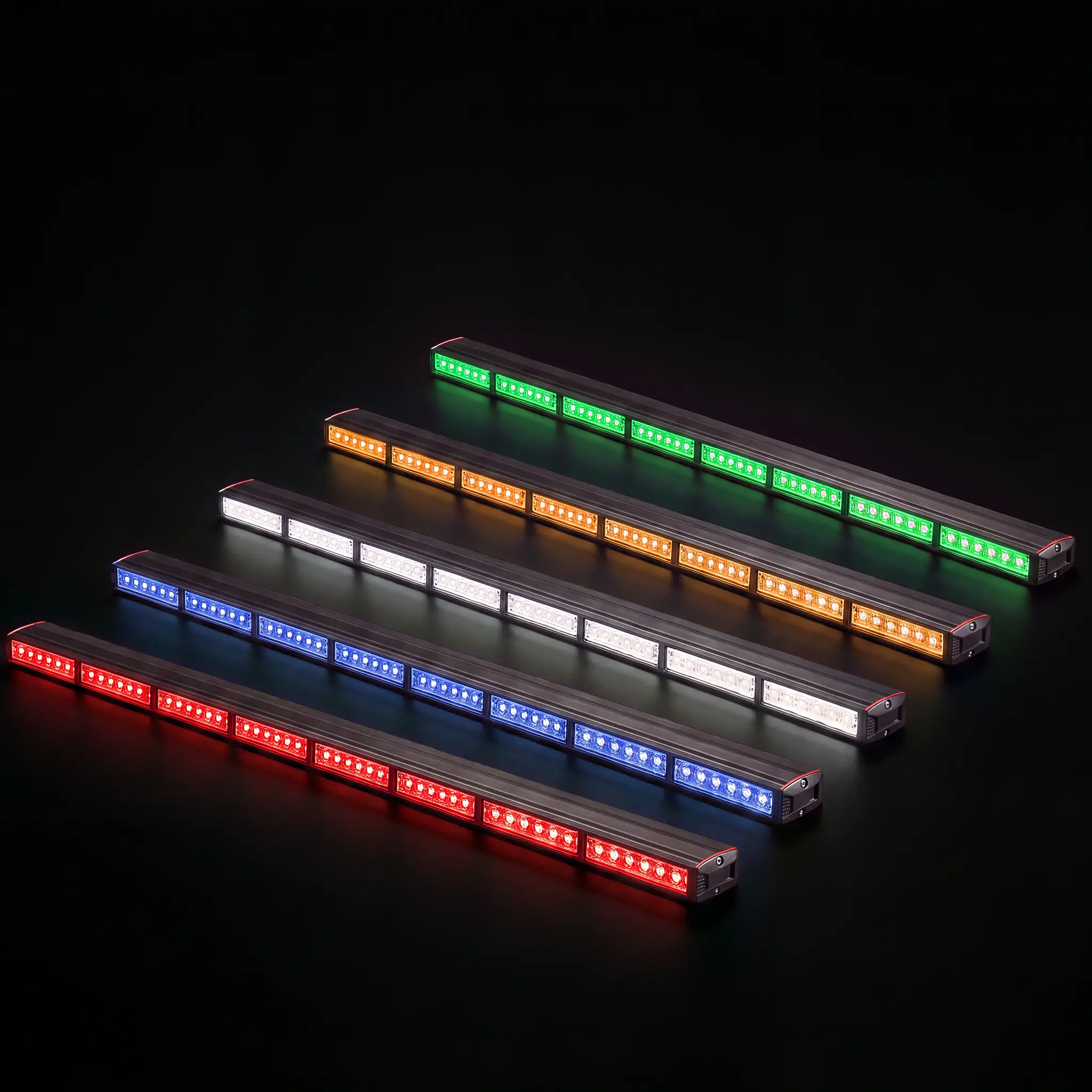

The Feniex Fusion-S is the next evolution of the Fusion series — the world’s brightest and most competitively priced emergency warning line. User configurable in red, blue, amber, white and green, the Fusion-S offers a new and improved optic that is 60% brighter than the previous Fusion family. Single-color modules, laid out module by module in Build-A-Bar, programmed in the field.

Documents & training

PDFInstruction Manualwiring · mounting · programming PDFCut Sheetdimensions · draw · certifications GUIDEConverter Input Guide28 inputs · 15 patterns · field programming COURSEFeniex Universityinstall & programming video courses
