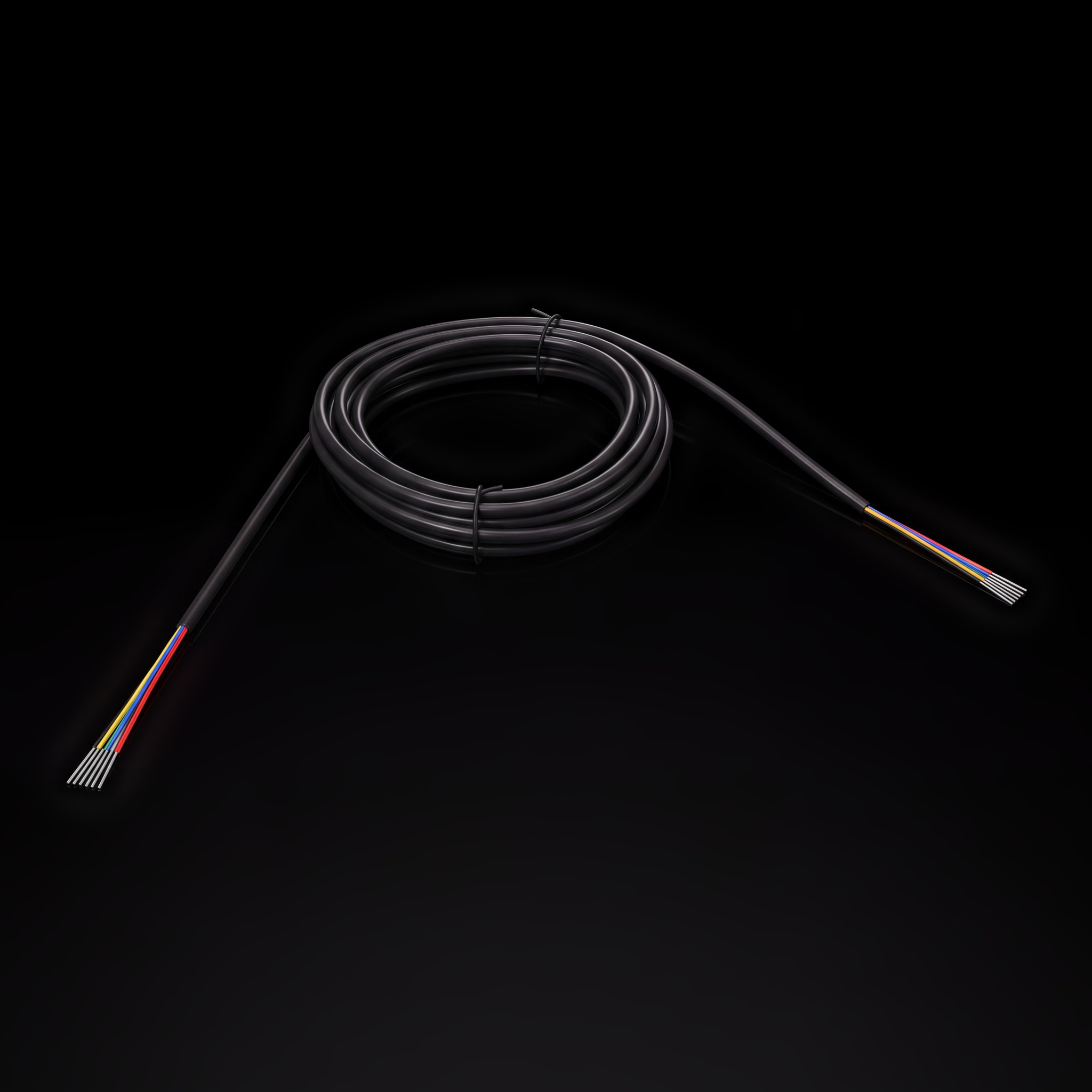

6-Wire Lighthead Cable
Price: $15.00
About the Product/Series
Introducing the Feniex 6-Wire Lighthead Cable, a six-conductor extension cable for running Feniex lightheads back to the controller: Fusion and Q-Series surface mounts in both 3-Mode and Serial, Cannons, T3 and Q3, the Cube 4", the Lux Series, the 8" Dome, Perimeter Flood and Beacon. Order it in the length the vehicle needs and skip the splice.
Each cable carries six 22 AWG stranded conductors (UL1007) in a black PVC jacket, with the wires stripped and tinned on both ends and color-coded red, blue, yellow, black, green and white, pin for pin end to end. No connectors to match: it splices straight onto the lighthead pigtail and terminates at the controller or switch.
Specfications
- Available Lengths: 10 Feet (66-00109-10), 20 Feet (66-00109-20), 30 Feet (66-00109-30), 40 Feet (66-00109-40)
- Compatible With: Fusion and Q-Series (3-Mode and Serial), Cannons, T3 and Q3, Cube 4", Lux Series, 8" Dome, Perimeter Flood, Beacon
- Connectors: None, stripped and tinned leads on both ends
- Wire: 6 x 22 AWG stranded (UL1007), red / blue / yellow / black / green / white
- Jacket: Black PVC, 0.21" O.D.
- Compliance: RoHS, lead-free
- 5 Year Manufacturer Warranty
Product Details
- Available in 10, 20, 30 and 40 foot lengths
- Compatible with Fusion and Q-Series lightheads (3-Mode and Serial), Cannons, T3 and Q3, Cube 4", Lux Series, 8" Dome, Perimeter Flood and Beacon
- 6 x 22 AWG stranded conductors (UL1007) in a black PVC jacket
- Stripped and tinned on both ends, no connectors to match
- Color-coded red, blue, yellow, black, green and white, pin for pin end to end
- Coiled and tied for easy stocking
- RoHS compliant and lead-free
