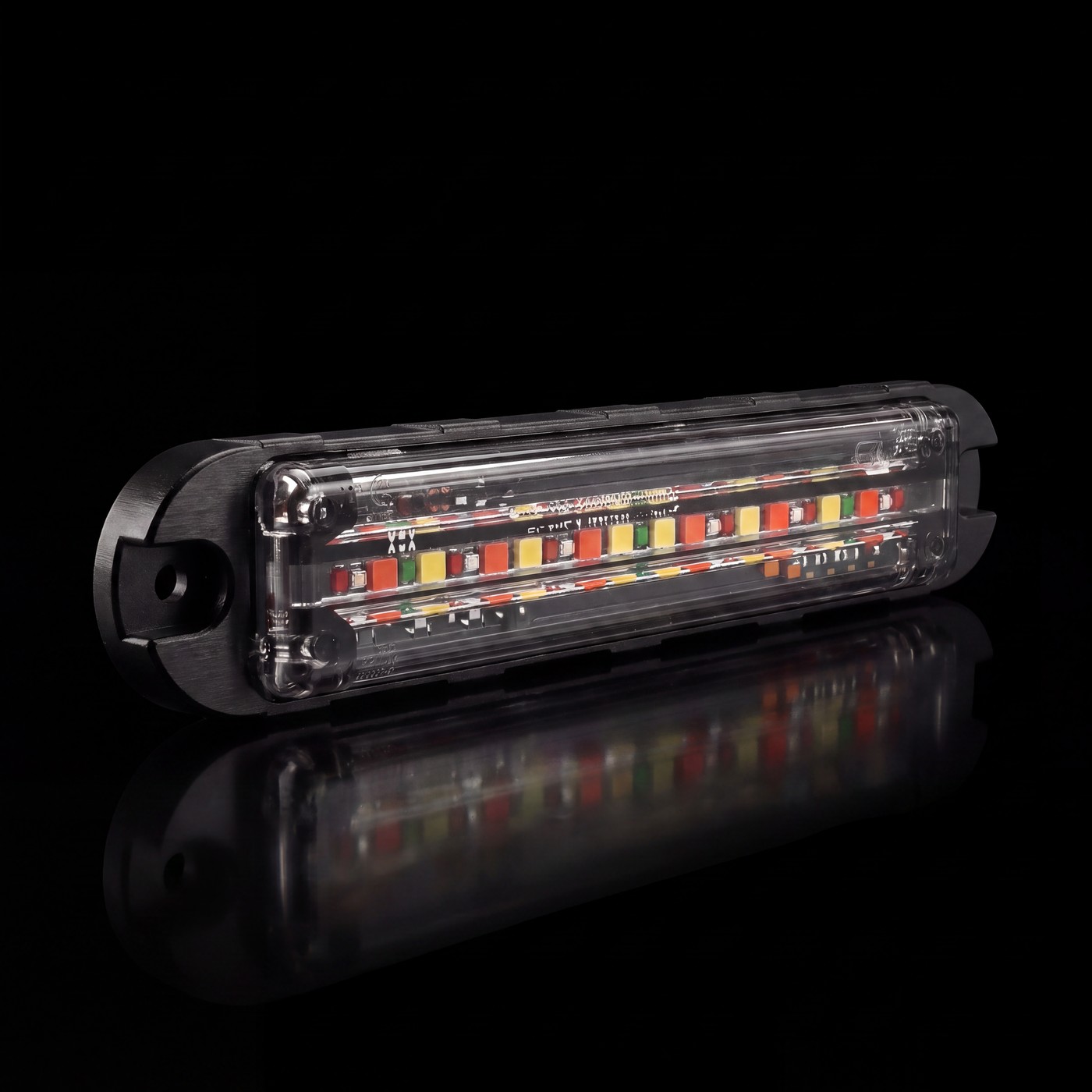

Feniex Q Flat Surface Mount on the black stage

PERIMETER / Q SERIES

Q FLAT SURFACE MOUNT

Name: Q Flat Surface Mount
Brand: Feniex
Price: 119.00 USD
Availability: InStock

QFM-8101 · Low-profile flat surface mount · five colors in every module · 60° optic

Color

All five colors in every module.

STEP 01Technology Type

STEP 02Bracket

Select Bracket

STEP 03Cable length

$119 1

$19 Flat Rate
Shipping

Pattern Studio

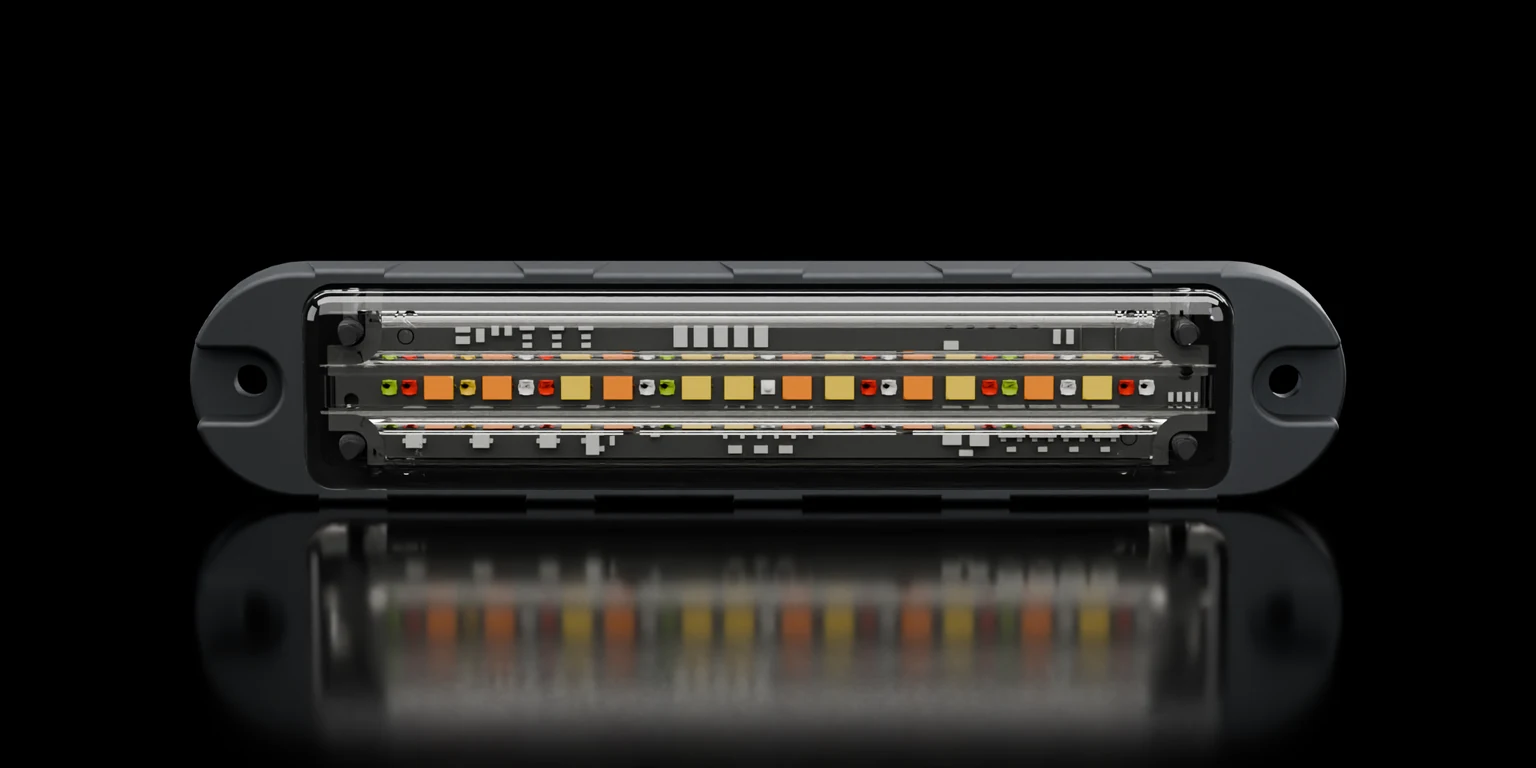

Q FLAT SURFACE MOUNT · FIVE COLORS IN ONE MODULE

View

Colors

all five live in every module — they swap in time

Pick your control

3-Mode hardwire · or Serial with Q Link

1 · 3-Modeany 12V switch · 3 modes · 14 patternsHardwire it like any light: three user-programmable modes on three input wires, 14 flash patterns, color-lock during installation. Syncs with all Quad, Lux and Q Series products.

2 · Serial2 serial wires · 21 patterns · Q Link requiredTwo serial wires carry everything. The lighthead joins a Q Link network — 21 flash patterns, tail, cruise, turn and brake signals, takedown, work light, and three brightness levels.

3 · Q Link27 inputs · 16 zones · up to 48 lightheadsThe serial brain, sold separately: program function, pattern, brightness, color and zones per input with the free Q Link software — one device runs the whole perimeter.

Why Q Series

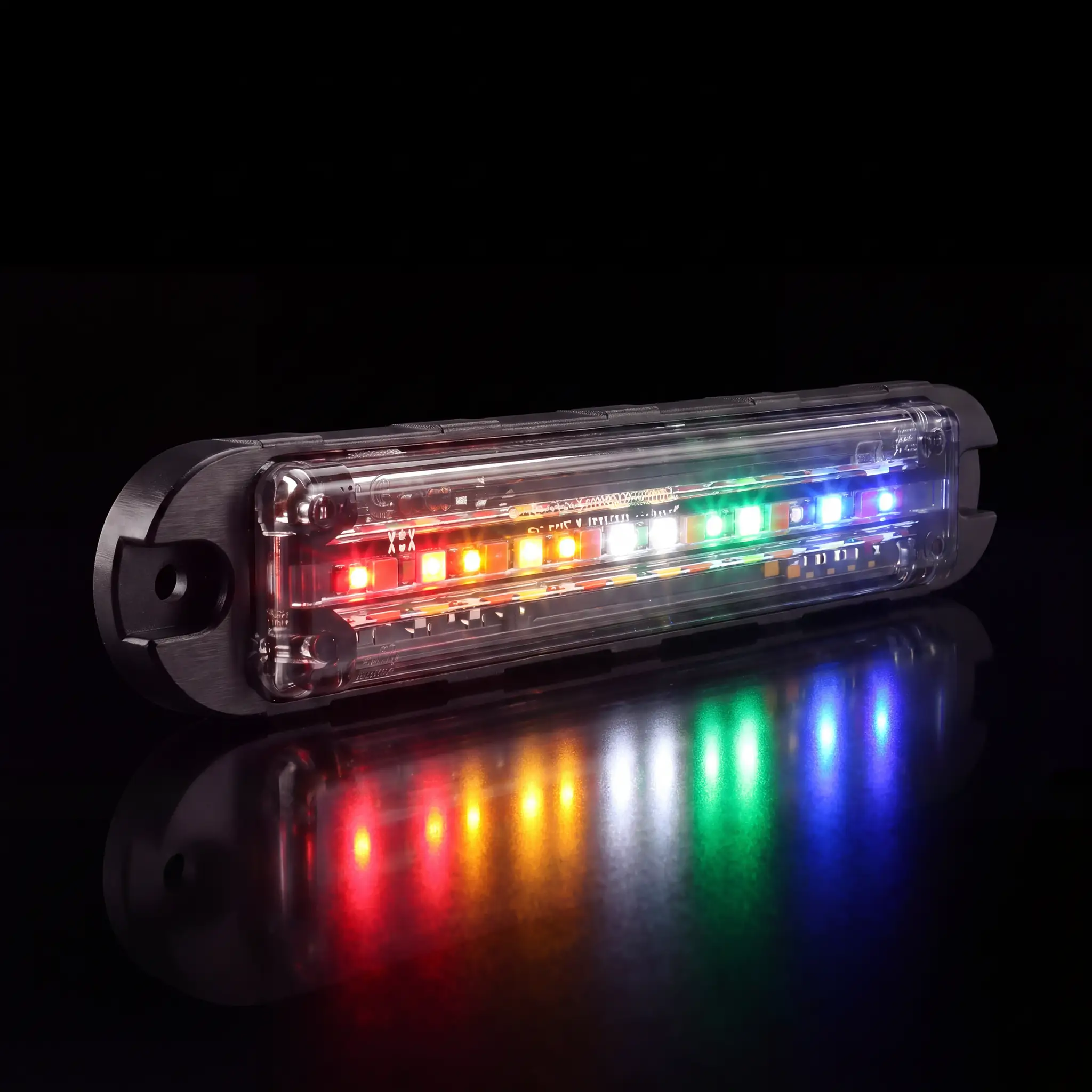

5 colors in every moduleBlue, red, amber, white and green — 31 color settings: single, dual, tri, quad and quint.

60° wide spreadBright wide-angle optics for off-axis visibility.

3-Mode or SerialHardwired with 3 modes and 14 patterns, or serial control with 21 patterns via Q Link.

Q Link programmable27 programmable inputs and 16 zones — one Q Link runs up to 48 lightheads.

Flood · cruise · stop-tail-turnIntegrated functions — takedown, work light, brake and turn signals on the serial platform.

IP67 · military-grade aluminumWaterproof, anti-yellowing clear-coated polycarbonate lens · 5-year warranty.

Specifications

LED count	27 LEDs
Current draw	1 A @ 13 V
Input voltage	10–18 V DC
Optical spread	60°

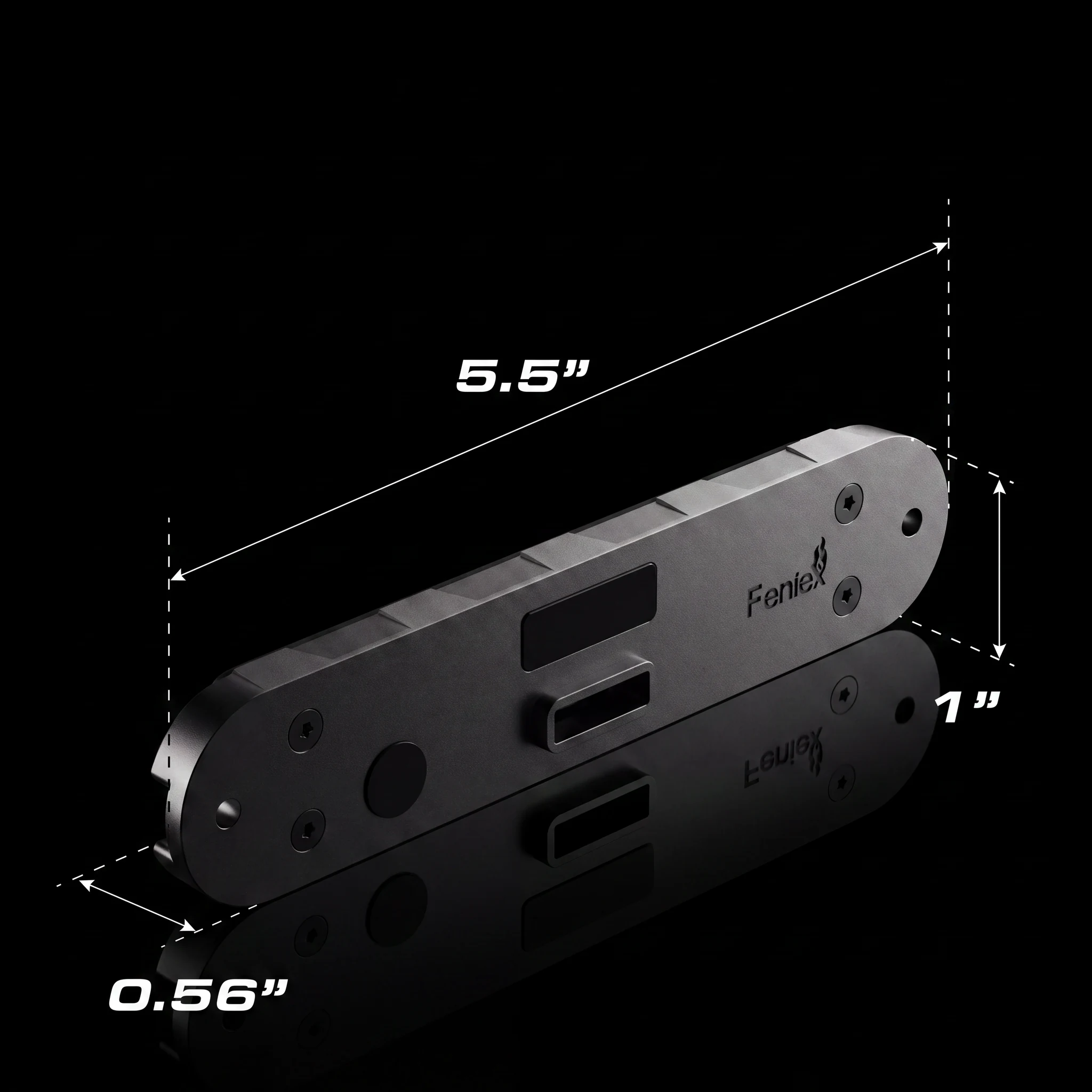

Dimensions	5.5″ L × 0.56″ W × 1″ H
Cable	15 ft standard · waterproof disconnect harness
In the box	Q Series module · 15 ft harness · mounting bezel · foam gasket · screws
Warranty	5-year manufacturer
Origin	Made in the USA

SAE J595ECE R65 CLASS 1CA TITLE 13IP67

About the series

The Feniex Q Series is the first five-color perimeter lighting family — blue, red, amber, white and green in every module, 31 color settings from one part number. Its smart modules hardwire to any 12V switch or controller in 3-Mode, or join a Q Link serial network for computer-programmed functions, patterns, brightness, colors and zones. Covered by the Feniex 5-year warranty.

Documents & training

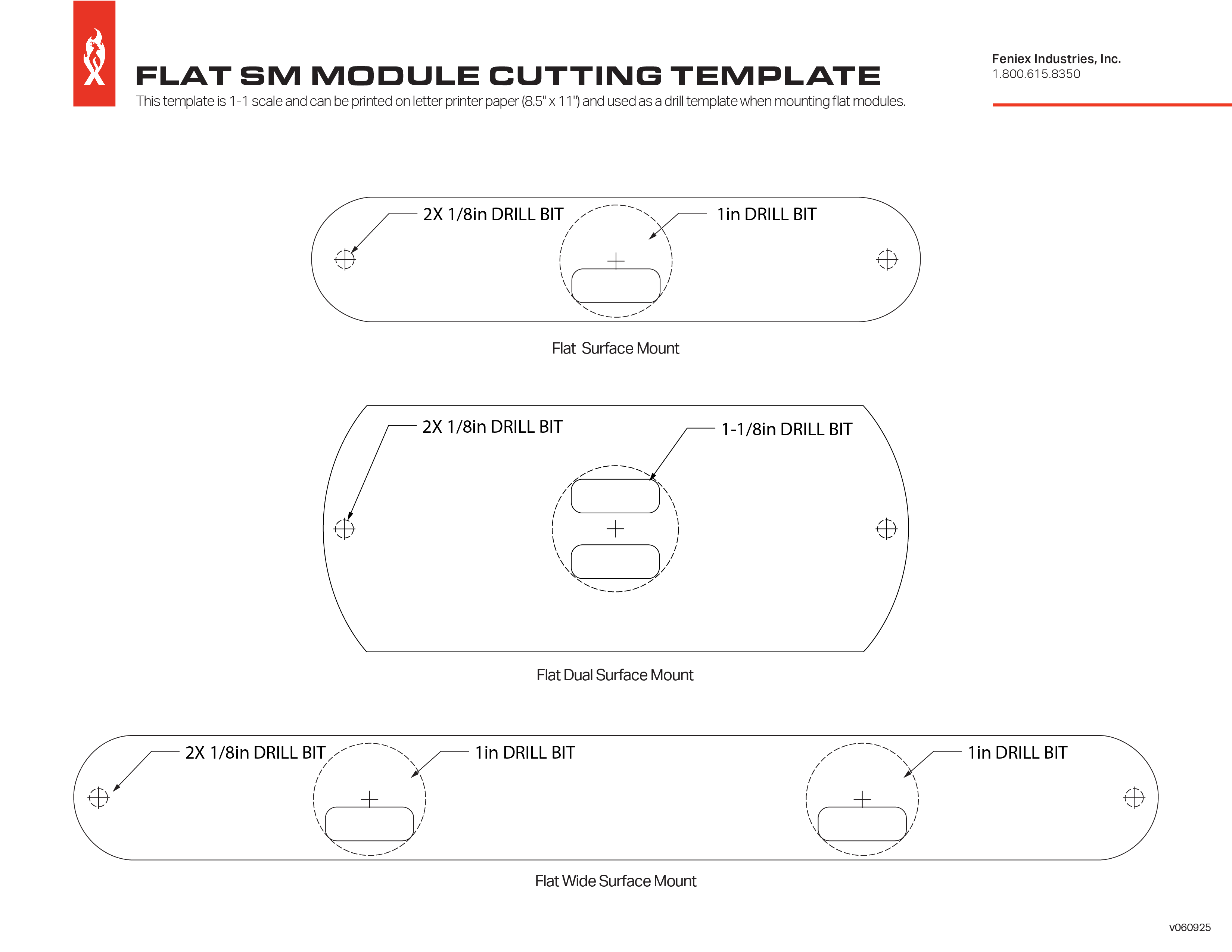

PDFManual · 3-Modewiring · patterns · programming PDFManual · Serialwiring · patterns · programming PDFCut Sheet · 3-Modedimensions · draw · certifications PDFCut Sheet · Serialdimensions · draw · certifications PNGCutting Templatetrue-size mounting template EXEQ Link Software · Windowsv0.0.33 · free download DMGQ Link Software · Macv0.0.33 · free download COURSEFeniex Universityinstall & programming video courses

5 Star Reviews

thousands of 5-star reviews

Great brake light upgrade

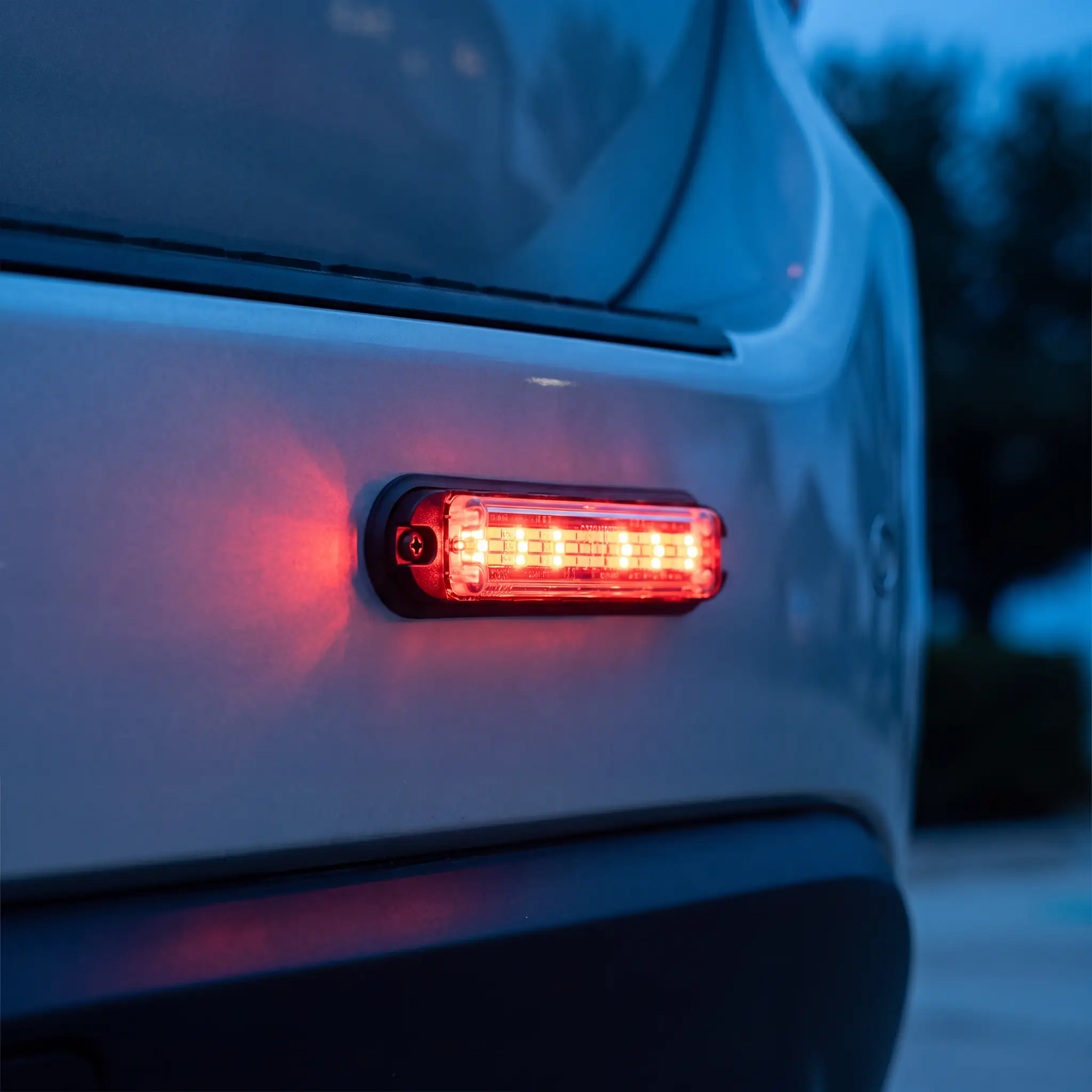

Great lights. Mounted w a f150 third brake light mount. Setup for brake pop primary, amber secondary and red, blue, green, orange third mode.

Verified buyer
Quality product.

These lights are top of the line! They are compact, easy to program, and the quality is the best. Over the years most all of the large name brand companies have moved from making solid quality to producing cheaper made products. Feniex has done the opposite and over the past several years I have started to really like their products!

Brion K. Verified buyer
Weatherproof

Love it. [...] Was scared it would get ruined in bad weather. But so far no issues in Snow Rain Etc.

Verified buyer
