PERIMETER / Q SERIES
Q 100 STICK
QQ-0120 · Compact stick light · five colors in every module · 60° optic
Color
All five colors in every module.
STEP 01Technology Type
STEP 02Q Link
STEP 03bracket
STEP 04Cable length1 ft included
1 ftIncluded11 ft+$1521 ft+$30
Q 100 Stick
$139
1
Pattern Studio
View
Modules installed
Colors
all five live in every module — they swap in time
Pick your control
3-Mode hardwire · or Serial with Q Link1 · 3-Modeany 12V switch · 3 modes · 14 patternsHardwire it like any light: three user-programmable modes on three input wires, 14 flash patterns, color-lock during installation. Syncs with all Quad, Lux and Q Series products.
2 · Serial2 serial wires · 21 patterns · Q Link requiredTwo serial wires carry everything. The lighthead joins a Q Link network — 21 flash patterns, tail, cruise, turn and brake signals, takedown, work light, and three brightness levels.
3 · Q Link27 inputs · 16 zones · up to 48 lightheadsThe serial brain, sold separately: program function, pattern, brightness, color and zones per input with the free Q Link software — one device runs the whole perimeter.
Why Q Series
5 colors in every moduleBlue, red, amber, white and green — 31 color settings: single, dual, tri, quad and quint.
60° wide spreadBright wide-angle optics for off-axis visibility.
3-Mode or SerialHardwired with 3 modes and 14 patterns, or serial control with 21 patterns via Q Link.
Q Link programmable27 programmable inputs and 16 zones — one Q Link runs up to 48 lightheads.
Flood · cruise · stop-tail-turnIntegrated functions — takedown, work light, brake and turn signals on the serial platform.
IP67 · military-grade aluminumWaterproof, anti-yellowing clear-coated polycarbonate lens · 5-year warranty.
Specifications
| LED count | 27 LEDs |
| Current draw | 1 A @ 13 V |
| Input voltage | 10–18 V DC |
| Optical spread | 60° |

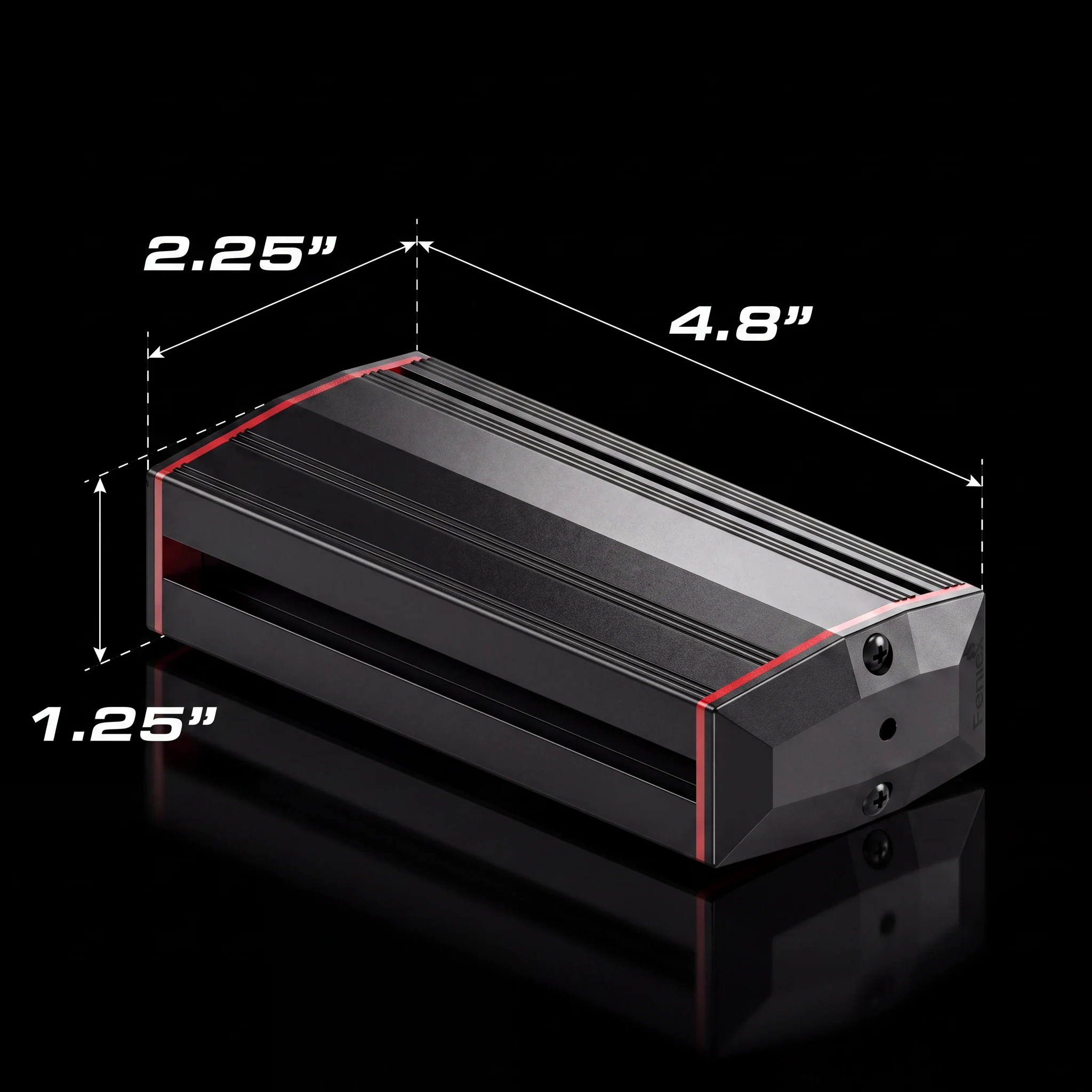

| Dimensions | 4.8″ L × 2.25″ W × 1.25″ H |
| Cable | 1 ft standard · 6-pin · 20 AWG |
| In the box | Q Series module · mounting bezel · foam gasket · screws |
| Warranty | 5-year manufacturer |
| Origin | Made in the USA |
SAE J595ECE R65 CLASS 1CA TITLE 13IP67
About the series
The Feniex Q Series is the first five-color perimeter lighting family — blue, red, amber, white and green in every module, 31 color settings from one part number. Its smart modules hardwire to any 12V switch or controller in 3-Mode, or join a Q Link serial network for computer-programmed functions, patterns, brightness, colors and zones. Covered by the Feniex 5-year warranty.
