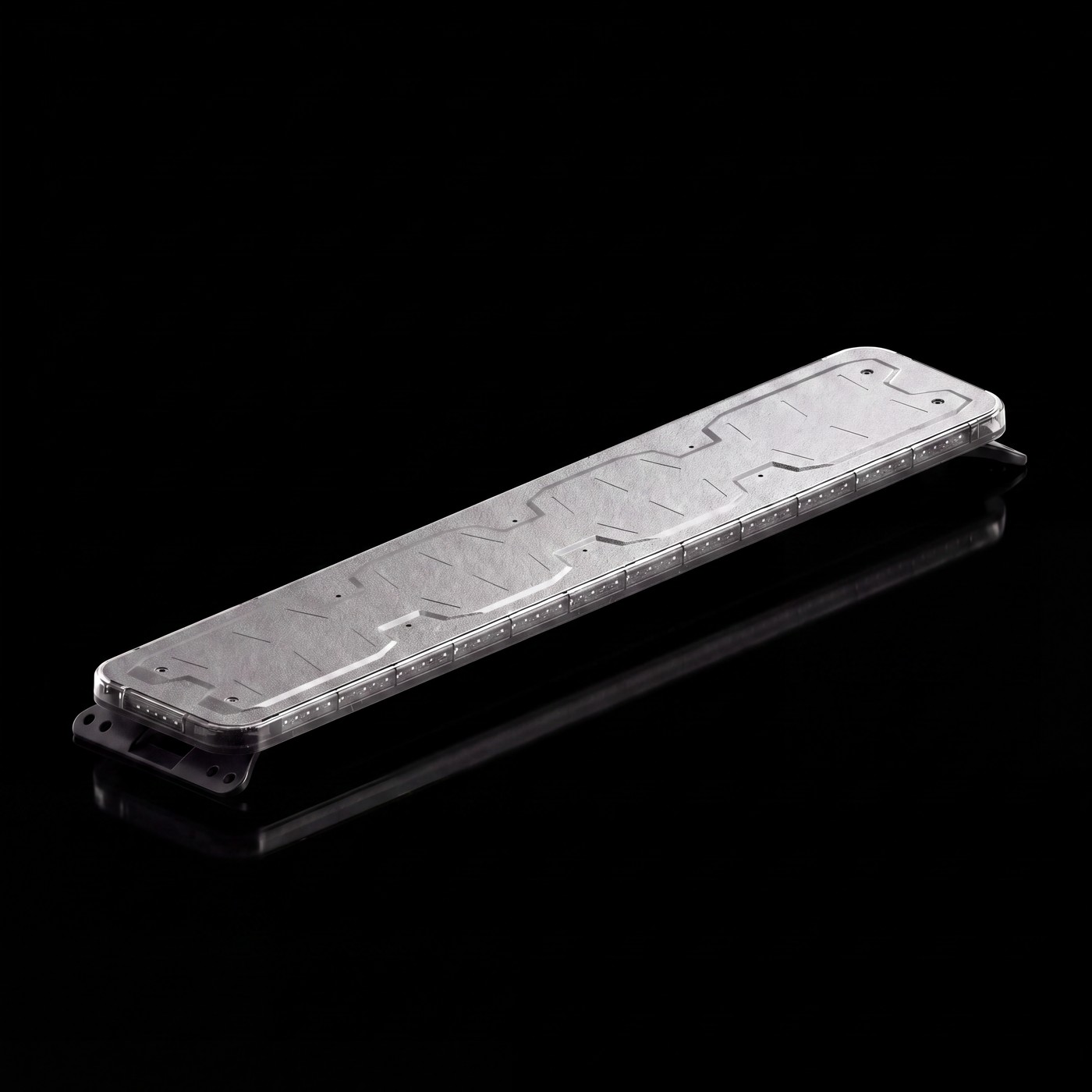

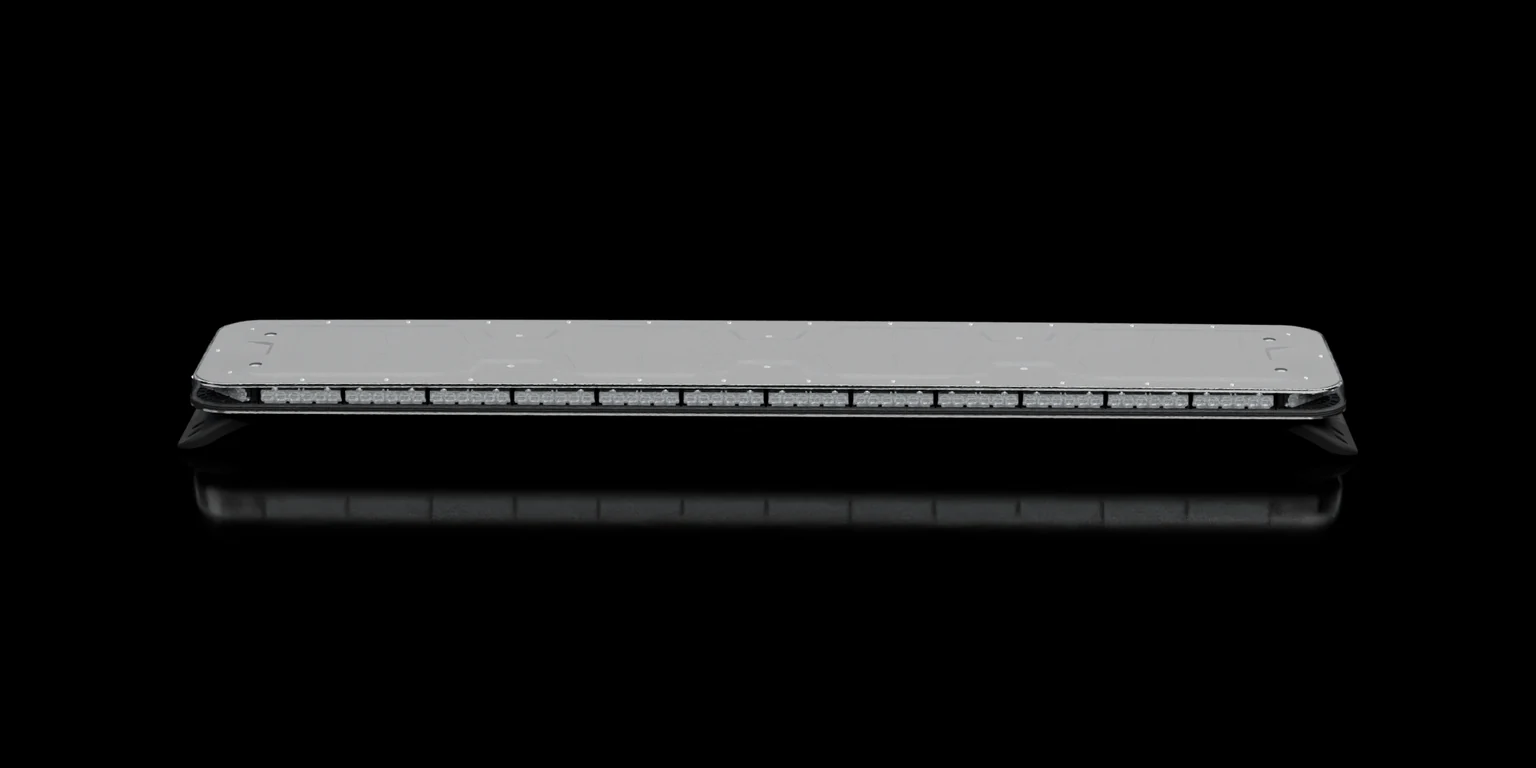

Feniex Fusion 60 on the black stage
FULL SIZE LIGHTBARS / FUSION SERIES

FUSION 60”

FS-6019 · Full-size lightbar · single-color modules, laid out your way · 40° optic, 60% brighter

STEP 01Color · By Moduleone color per module · 30 modules
No build yet — every module is waiting for a color.
STEP 02Mounting
STEP 03Vehicle Type
STEP 04Cable length
$1,499 1
Ask Eve about this light Answers from the manual, the catalog and Feniex policy

Pattern Studio

FUSION 60 · IN THE COLORS YOU BUILD
View
Your build
No build yet — nothing to play.
build your bar and its colors play here

Why Fusion

40° optic, 60% brighterThe Fusion-S optic — long-range visibility over the previous Fusion family.
180 LEDs · 30 modulesSingle-color modules in any layout — configured by you in Build-A-Bar.
15 flash patternsAttack, Cluster, Combo, Half-Half, One-One, Two-Two, All-On — front and rear.
28 programmable inputsFeniex Converter included — DOT stop/turn/tail, traffic advisor, cruise, cut-off, dim.
Takedown · alley · floodWork lighting built in — assigned per module in your build.
Military-grade aluminumAnti-yellowing, anti-cracking clear-coated polycarbonate lens · 5-year warranty.

Specifications

LED count180 LEDs
Light modules30 modules · single-color, user configured
Current draw16 A @ 13 V
Input voltage10–18 V DC
Optical spread40°
Dimensions59.8″ L × 11.8″ W × 1.6″ H
Cable10 ft standard · 12V+, ground, data A, data B
In the boxLightbar · standard foot mount · Feniex Converter
External fuse125% of product load
Warranty5-year manufacturer
OriginMade in the USA
SAE J595SAE J1113SAE J578SAE J575SAE J845ECE R65 CLASS 1CA TITLE 13NFPA KKKIP66
Fusion 60

About the series

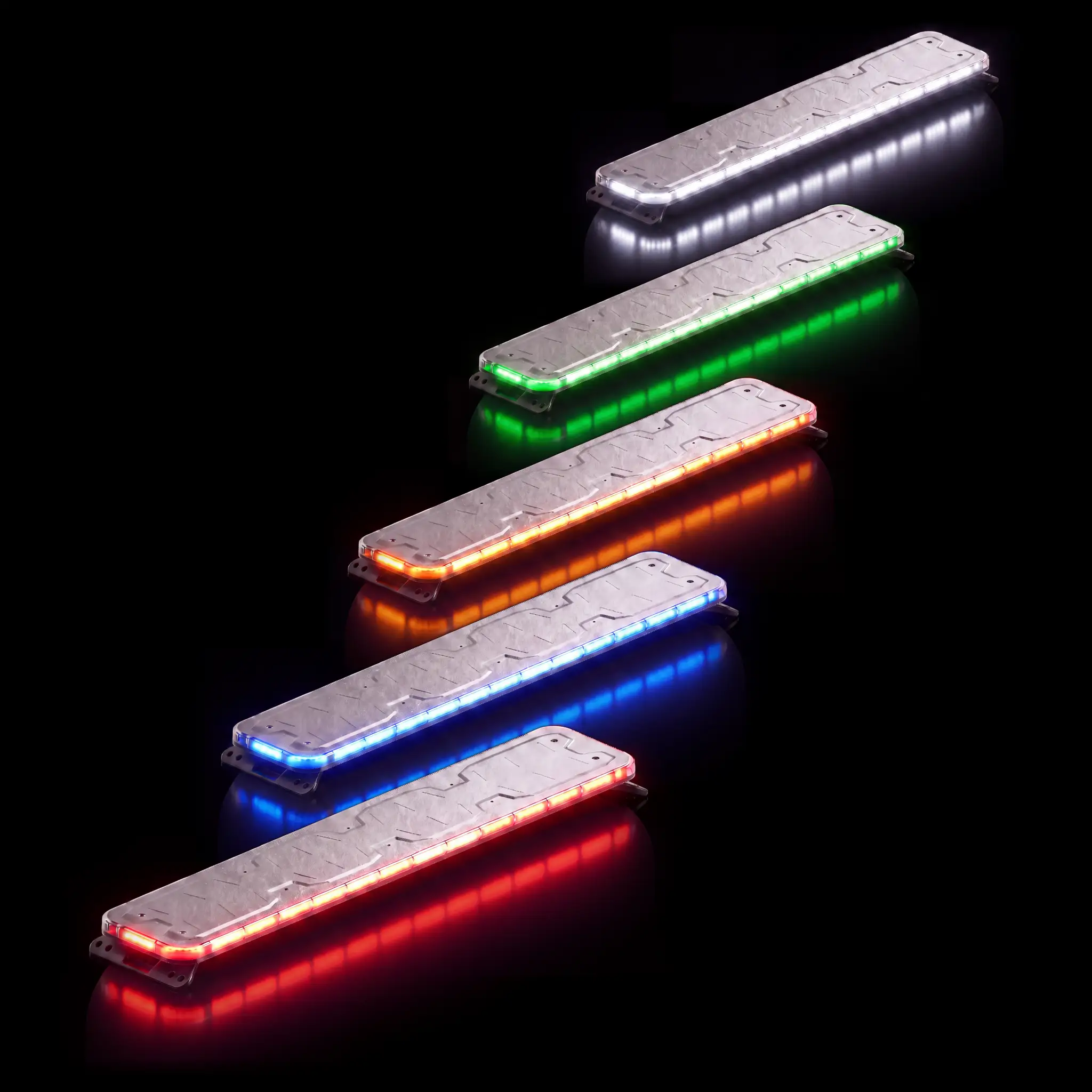

The Feniex Fusion-S is the next evolution of the Fusion series — the world’s brightest and most competitively priced emergency warning line. User configurable in red, blue, amber, white and green, the Fusion-S offers a new and improved optic that is 60% brighter than the previous Fusion family. Single-color modules, laid out module by module in Build-A-Bar, programmed in the field.

Documents & training

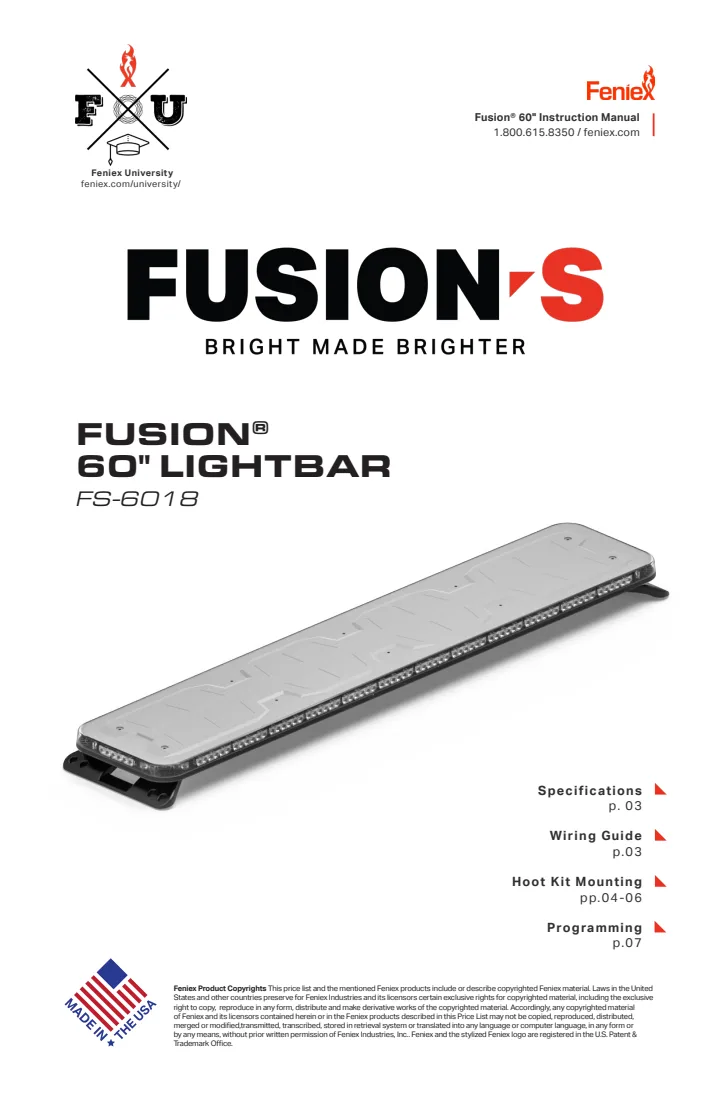

PDFInstruction Manualwiring · hook kit mounting · programming PDFCut Sheetdimensions · draw · certifications GUIDEConverter Input Guide28 inputs · 15 patterns · field programming COURSEFeniex Universityinstall & programming video courses

5 Star Reviews

thousands of 5-star reviews
  • Excellent product by Feniex!

    All I need it and more. Plenty of possibilities with this, looks great and above all it can be programmed via USB with a computer.

    Jorge Pontes Verified buyer

  • Great addition to my trailer.

    I have added several lights to my gooseneck trailer and use this control panel for those lights. Weatherproof plus easy to use and mount. Keeps everything nice and neat. Quality product and has held up great, I highly recommend it!

    Verified buyer

  • Great patterns, clever design

    This is a great little light. The ability to rotate the led in relation to the shielding is great, especially when you have a windshield that is steeper than most. Bright lights ans great patterns

    Robert M. Verified buyer
