Fusion Mini 18" | Mini Lightbars | Feniex Industries

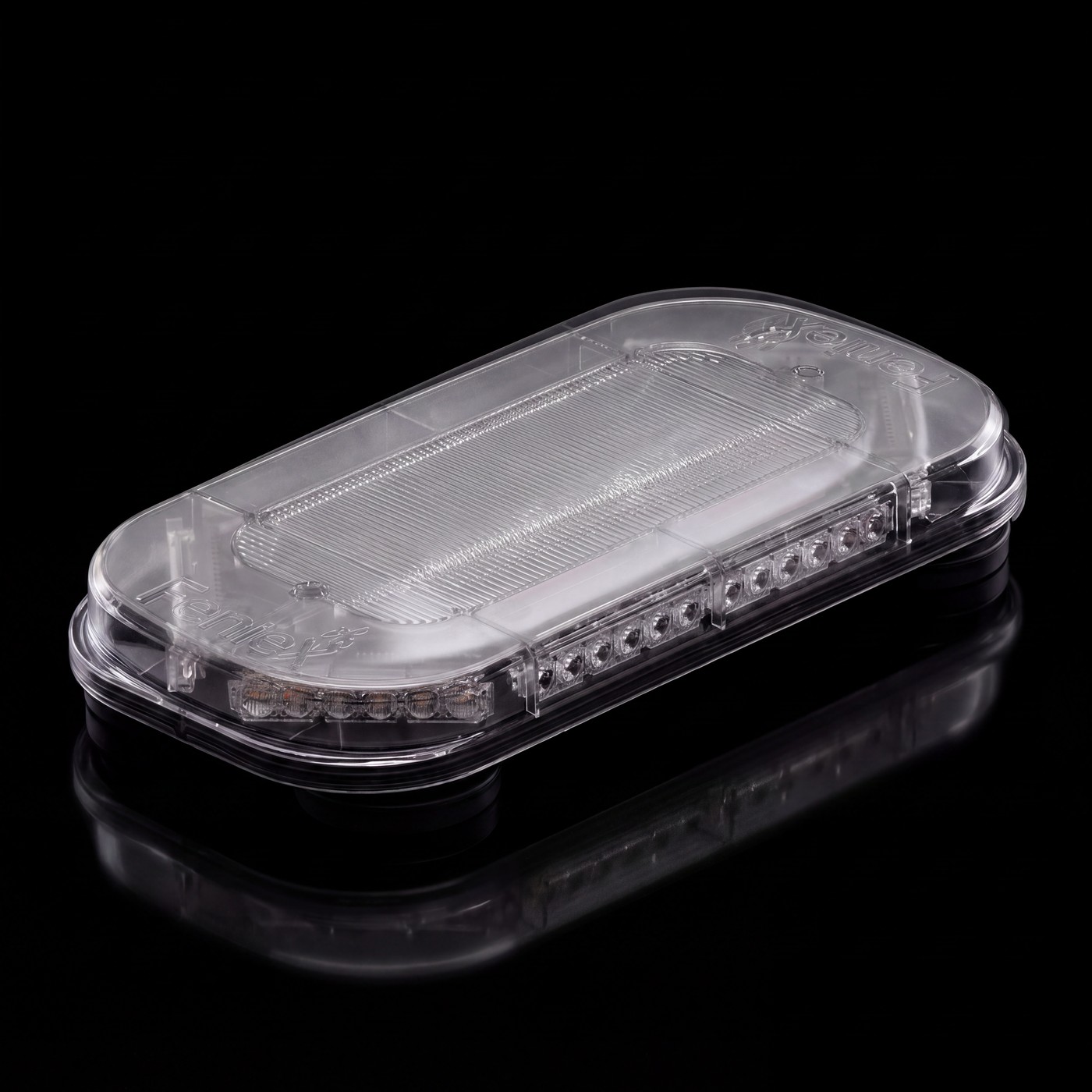

Feniex Fusion Mini 18 on the black stage
MINI LIGHTBARS / FUSION SERIES

FUSION MINI 18”

FS-1823 · Mini lightbar · single-color modules, laid out your way · 40° optic, 60% brighter

STEP 01Color · By Moduleone color per module · 8 modules
No build yet — every module is waiting for a color.

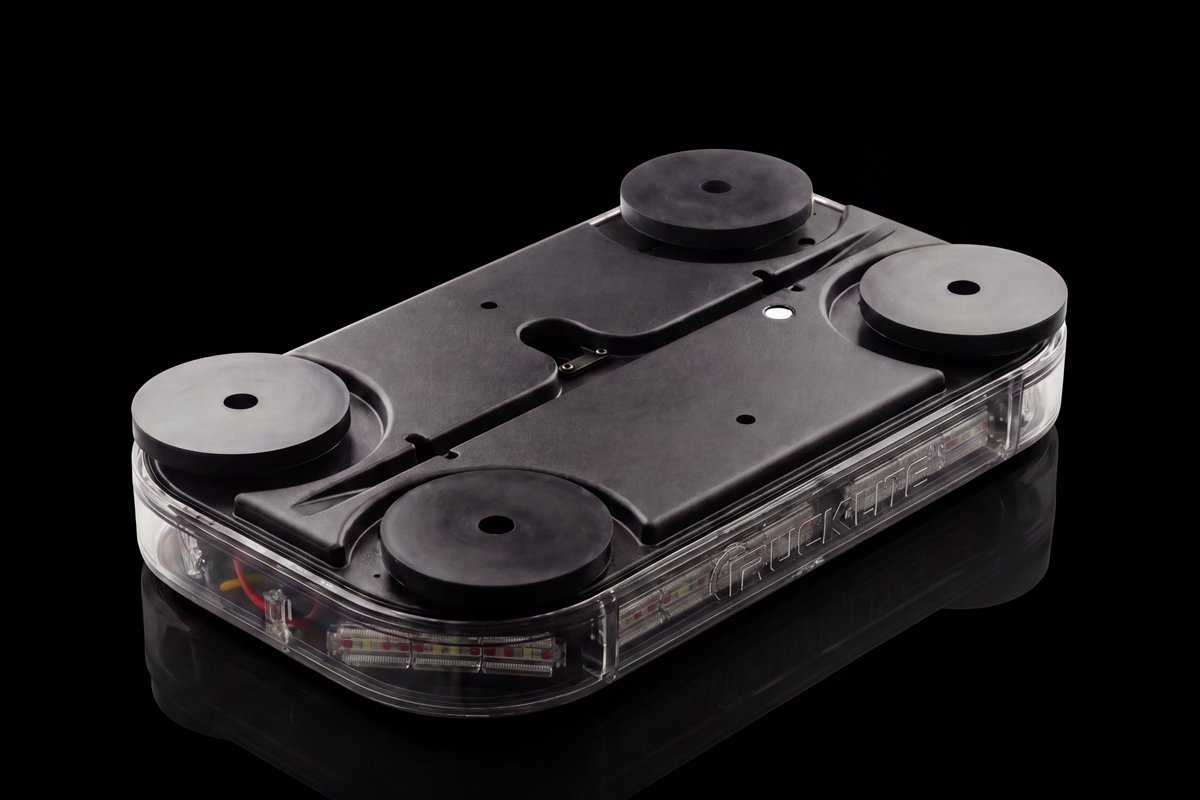

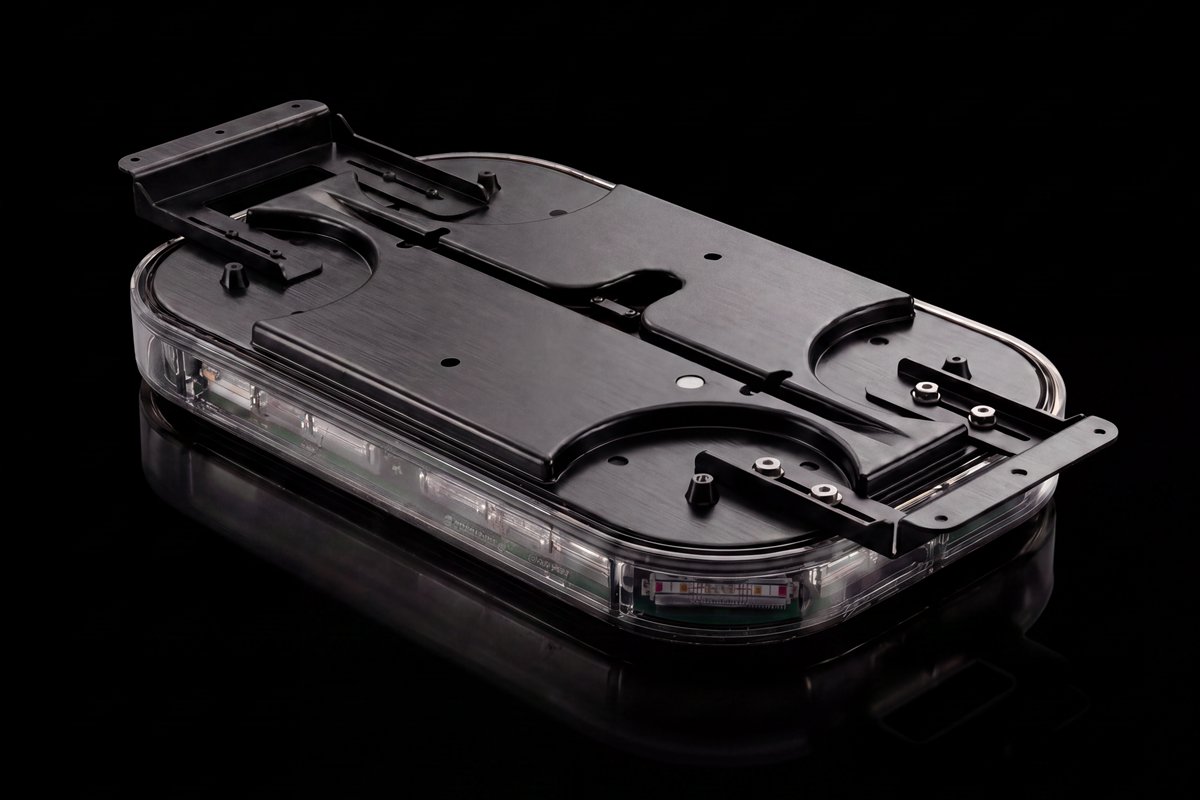

STEP 02Mount
STEP 03Cable length
$479 1
Ask Eve about this light Answers from the manual, the catalog and Feniex policy

Pattern Studio

FUSION MINI 18 · IN THE COLORS YOU BUILD
Your build
No build yet — nothing to play.
build your bar and its colors play here

Why Fusion

40° optic, 60% brighterThe Fusion-S optic — long-range visibility over the previous Fusion family.
48 LEDs · 8 modulesSingle-color modules in any layout — configured by you in Build-A-Bar.
15 flash patternsAttack, Cluster, Combo, Half-Half, One-One, Two-Two, All-On — front and rear.
28 programmable inputsFeniex Converter included — DOT stop/turn/tail, traffic advisor, cruise, cut-off, dim.
Takedown · alley · floodWork lighting built in — assigned per module in your build.
Military-grade aluminumAnti-yellowing, anti-cracking clear-coated polycarbonate lens · 5-year warranty.

Specifications

LED count48 LEDs
Light modules8 modules · single-color, user configured
Current draw6 A
Input voltage10–18 V DC
Optical spread40°

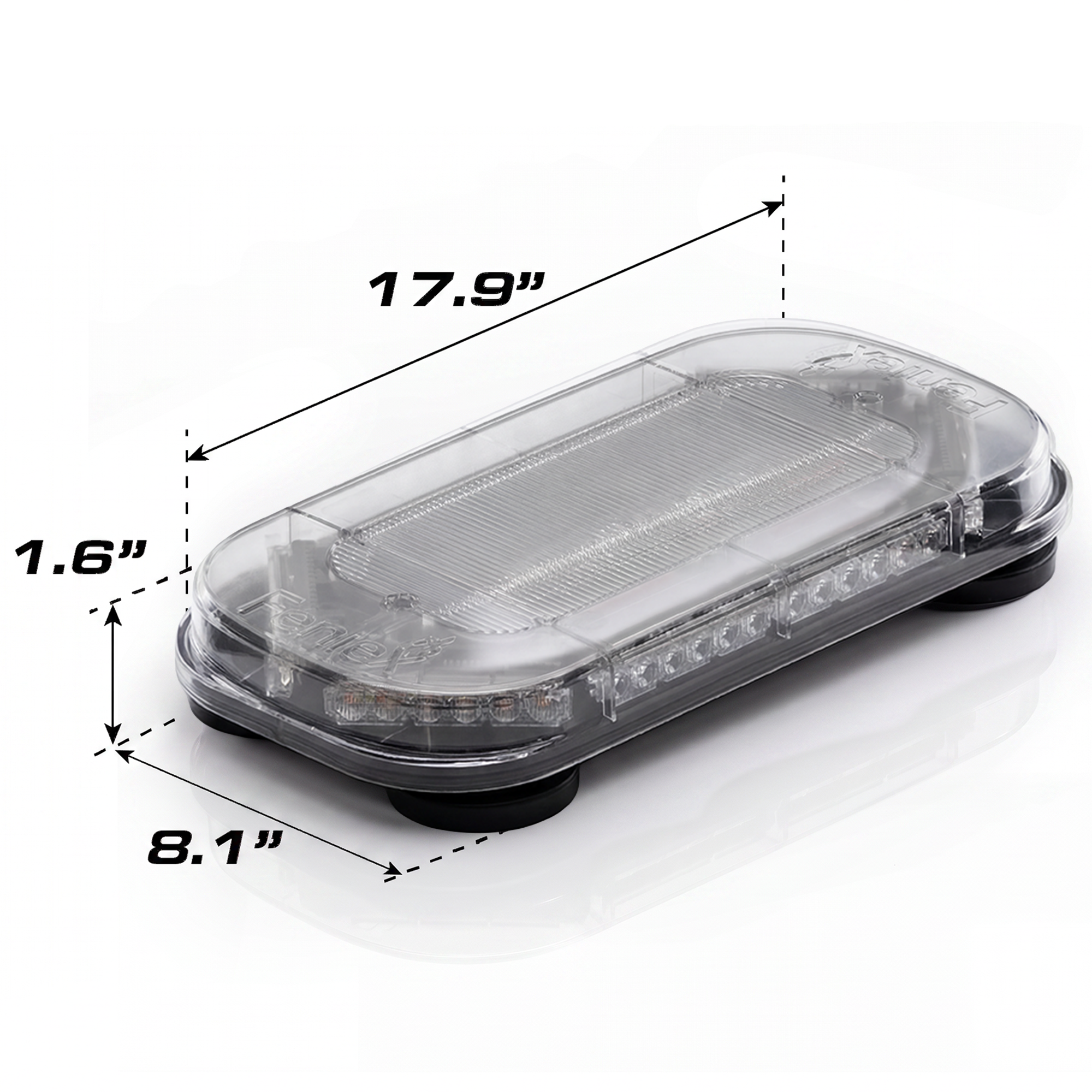

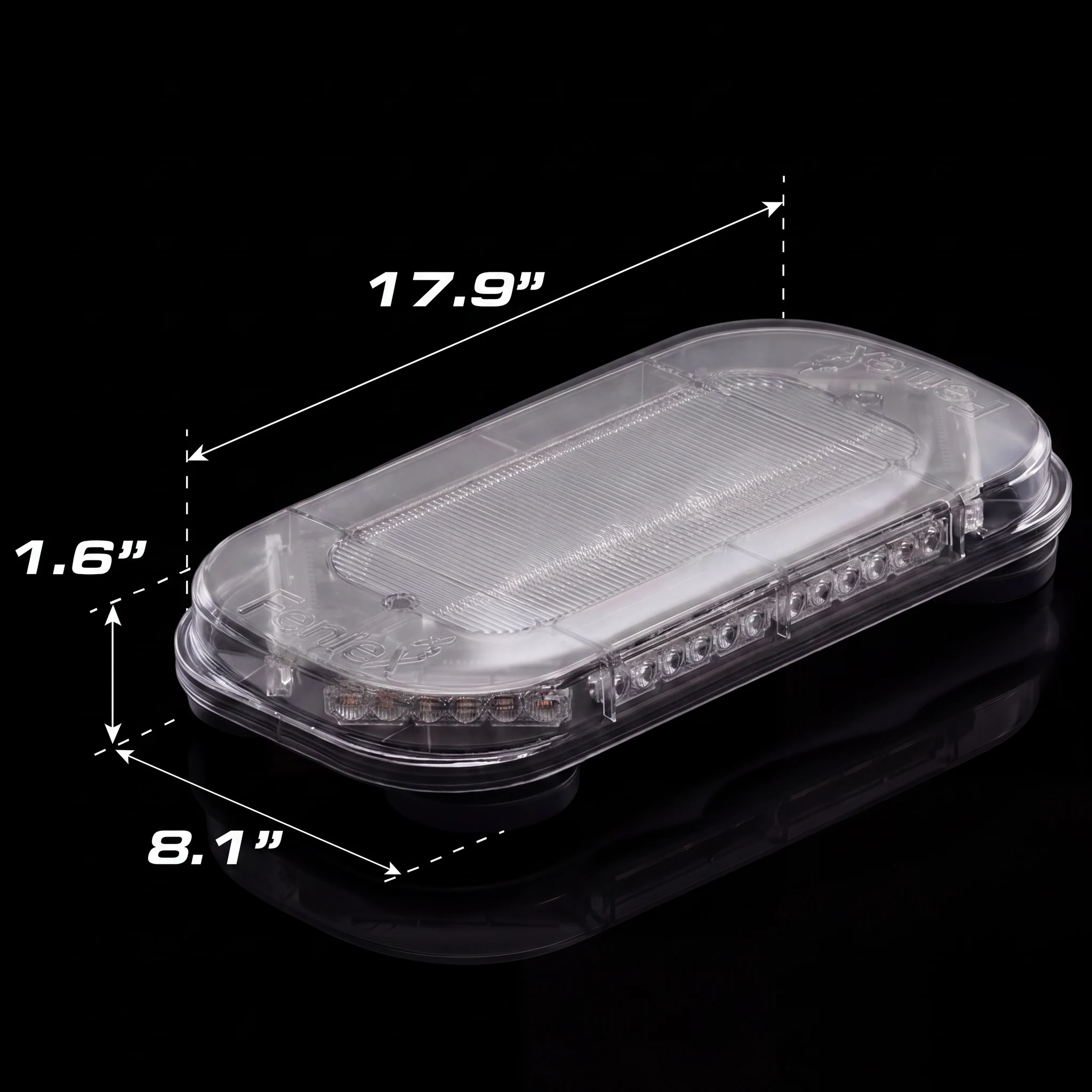

Dimensions17.8″ L × 8.1″ W × 1.6″ H
Cable10 ft standard · 14-pin · 20 AWG
External fuse125% of product load
Warranty5-year manufacturer
OriginMade in the USA
SAE J595SAE J1113SAE J578SAE J575SAE J845ECE R65 CLASS 1CA TITLE 13NFPA KKKIP66
Fusion Mini 18

About the series

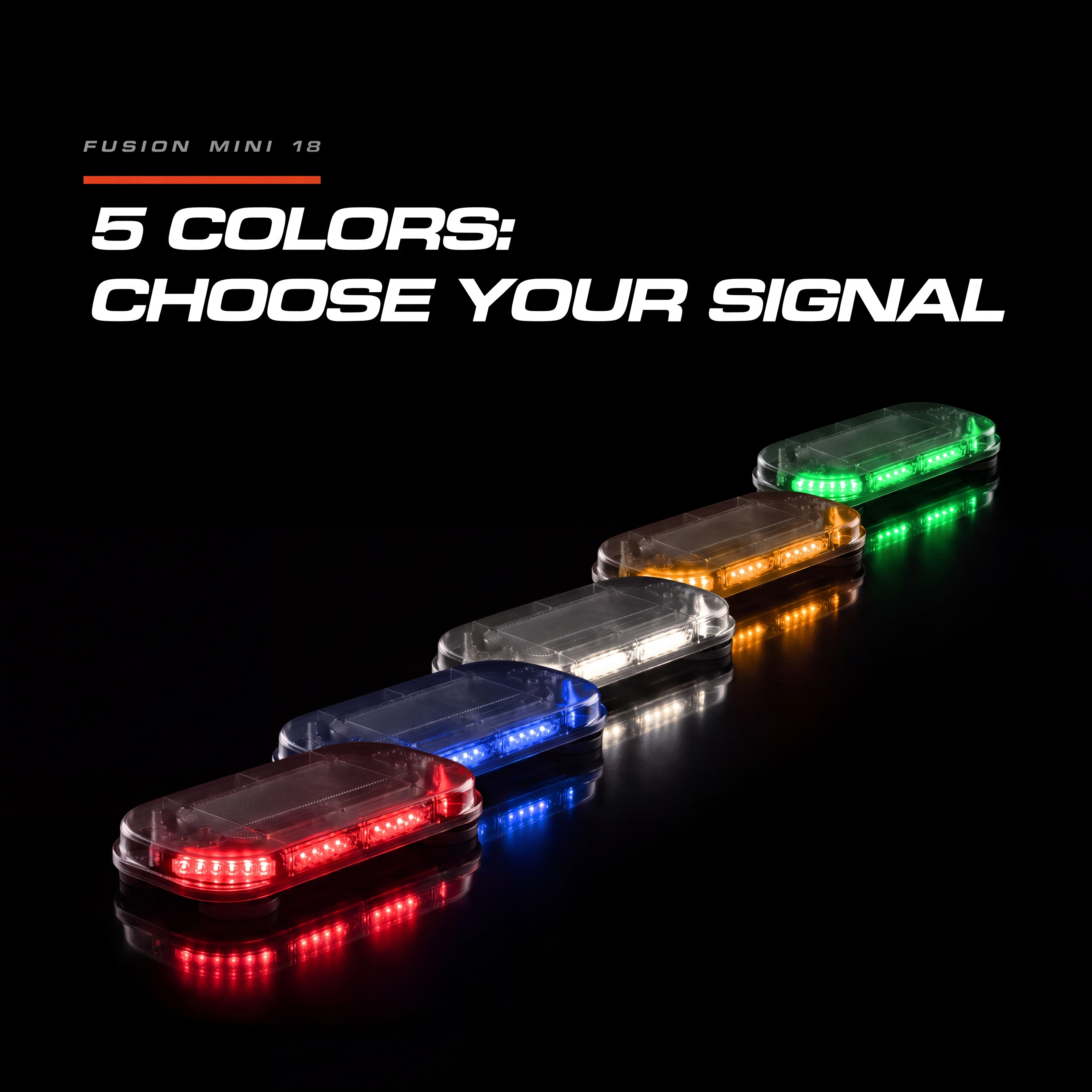

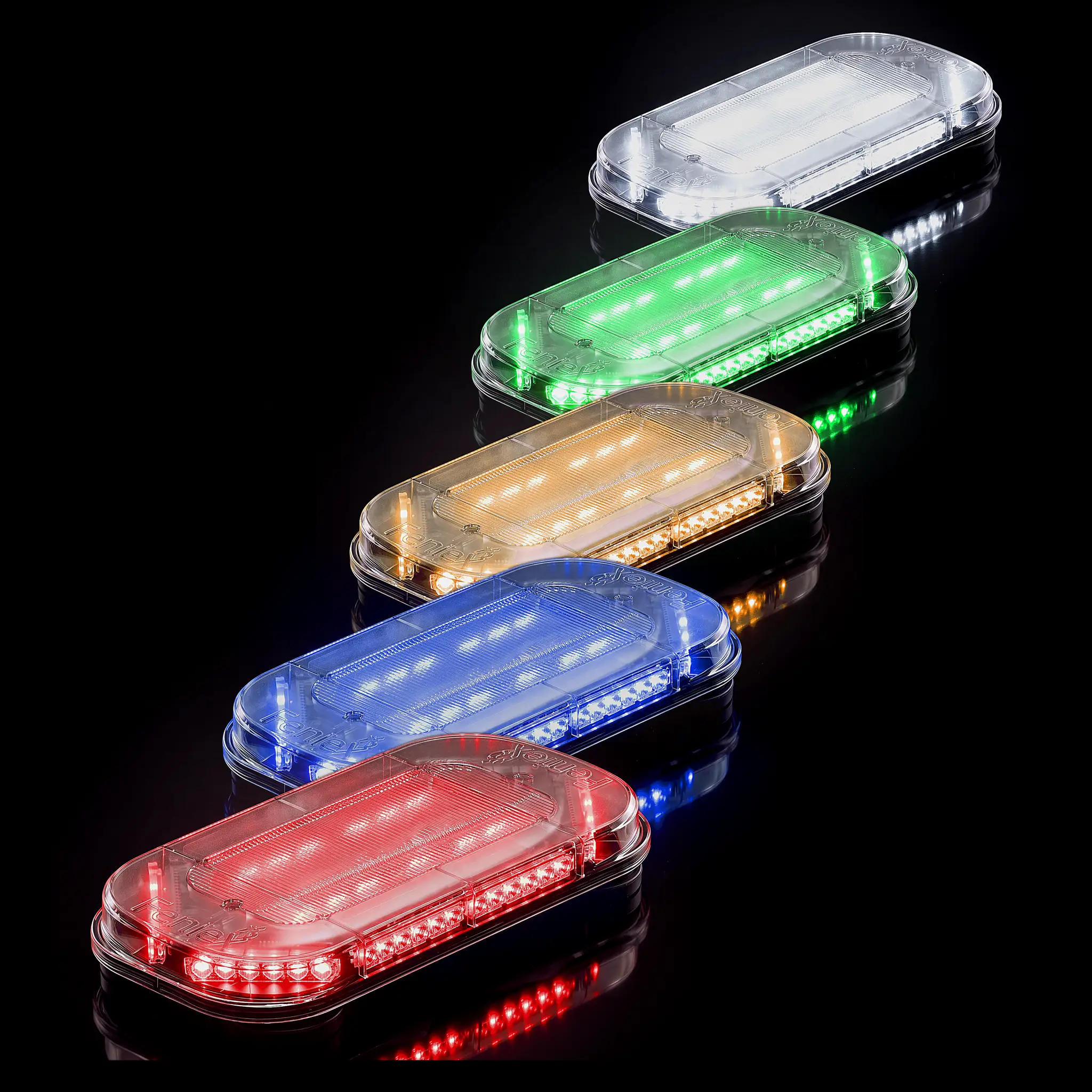

The Feniex Fusion-S is the next evolution of the Fusion series — the world’s brightest and most competitively priced emergency warning line. User configurable in red, blue, amber, white and green, the Fusion-S offers a new and improved optic that is 60% brighter than the previous Fusion family. Single-color modules, laid out module by module in Build-A-Bar, programmed in the field.

Documents & training

PDFInstruction Manualwiring · mounting · programming GUIDEConverter Input Guide28 inputs · 15 patterns · field programming COURSEFeniex Universityinstall & programming video courses

5 Star Reviews

thousands of 5-star reviews
  • Made in the USA, full featured strobe flasher

    The Feniex flasher is a 4 channel flasher or strobe module with 20 positive trigger and 20 negative trigger flashing patterns. Each channel of the module is capable of 5A output and the unit is rated at 20A maximum. 3 flashing modes allows up to 3 different patterns that can be wired with a switch to toggle between patterns. [...] There are an unbelievable number of combinations that can be achieved by the consumer. The module has multiple LEDs built in to monitor pattern and polarity. It appears that the unit is fully waterproof

    Verified buyer

  • Mount the keypad anywhere

    Would definitely recommend buying this little guy to make installation of key pad easier. Makes it so you can literally mount the 4200 anywhere. Was super happy to see all metal construction.

    Kenneth L.P. Verified buyer

  • Small lights, big output

    I have several of these light on my work truck, they are small and very bright. Extremely satisfied with the purchase.

    Nick C. Verified buyer

Read more reviews →
