LUX SERIES
DOWN LUX 6X4
D-4600W · Down-facing scene light
Color
White illumination.
STEP 01Cable length1 ft included
1 ftIncluded11 ft+$1521 ft+$30

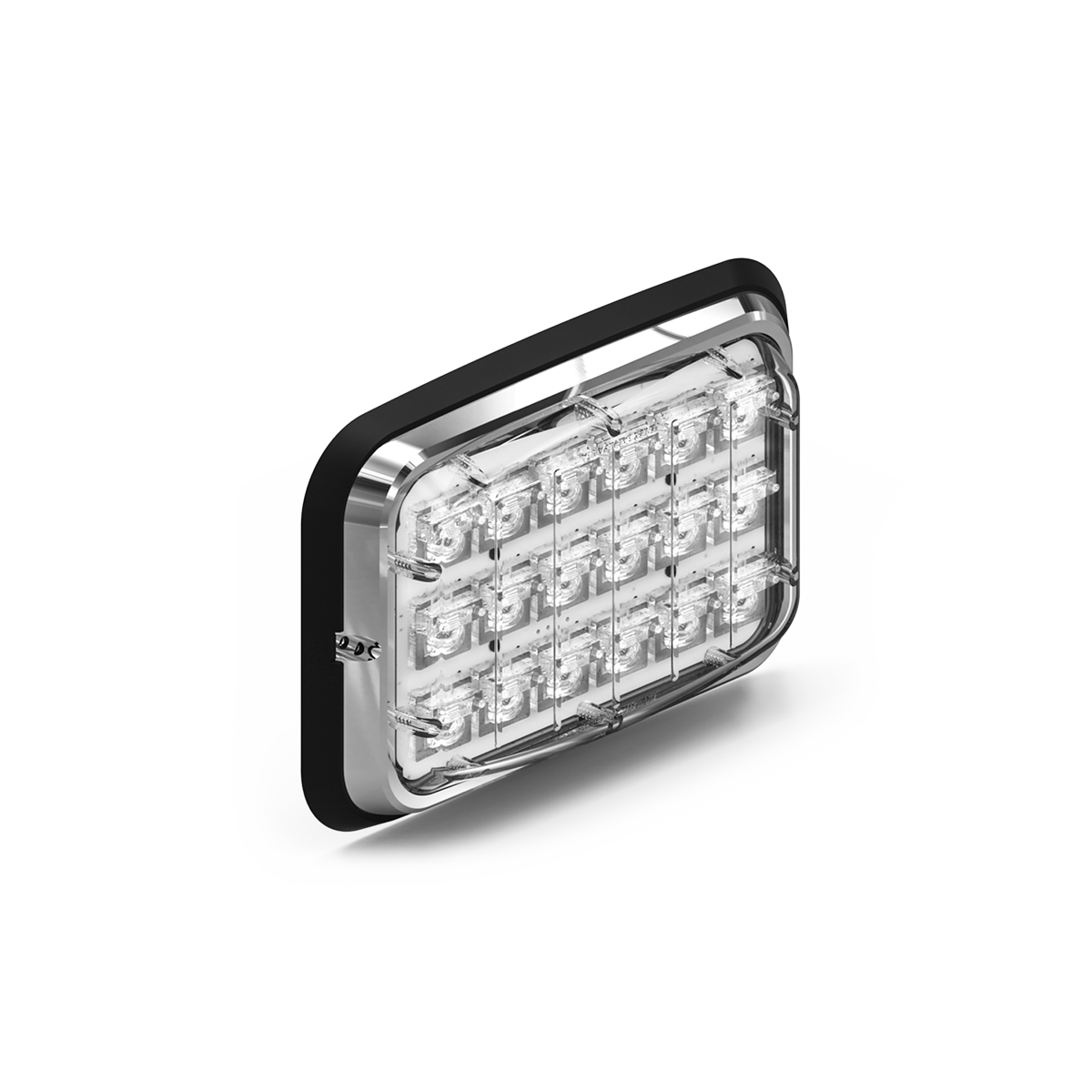

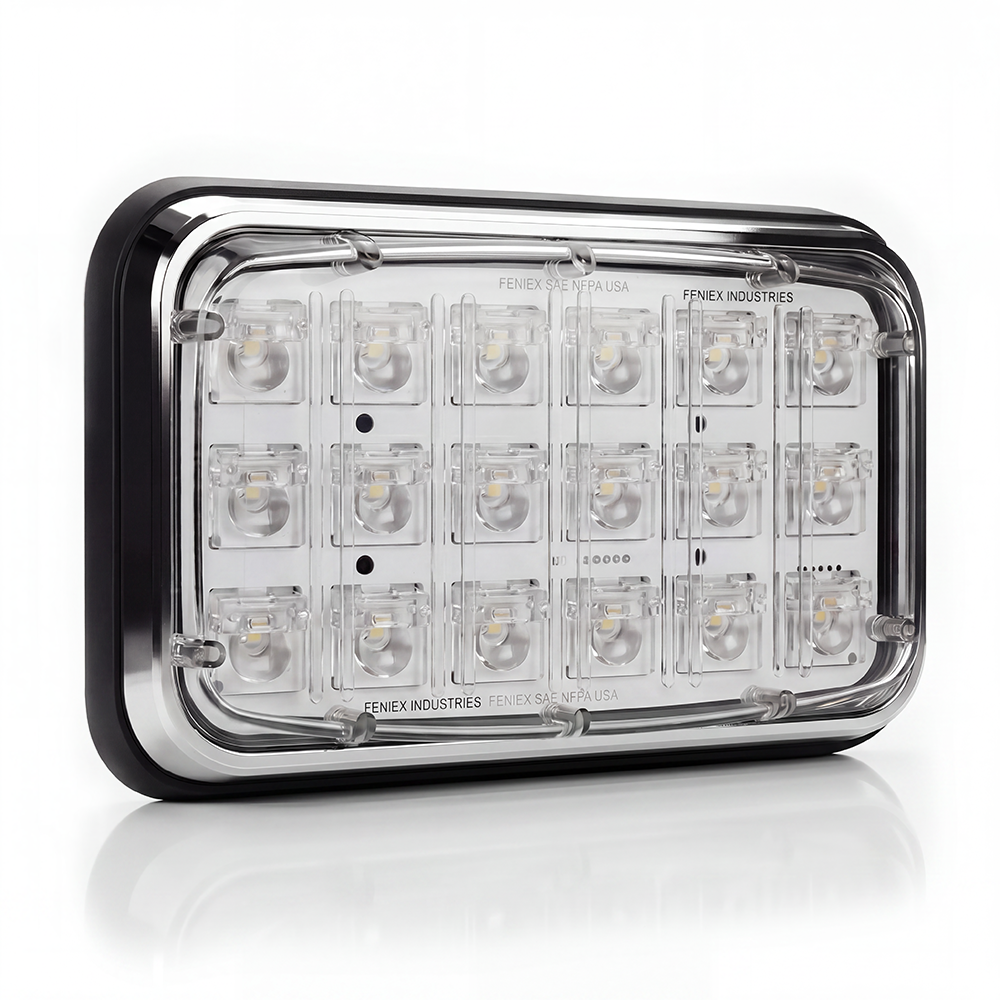

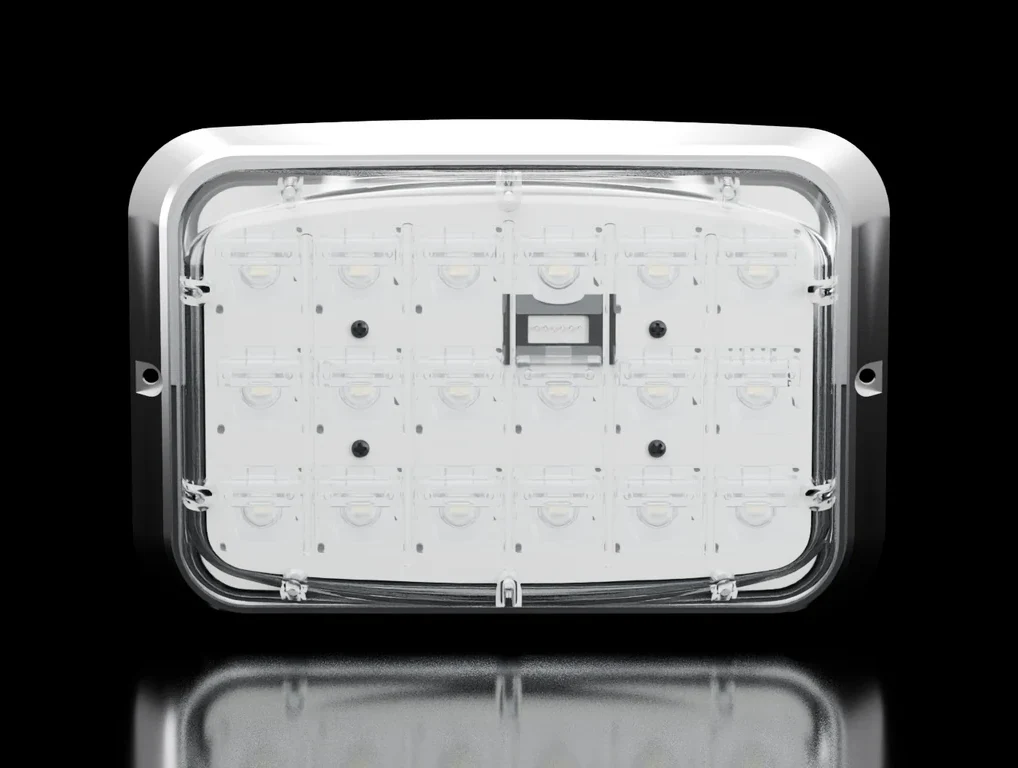

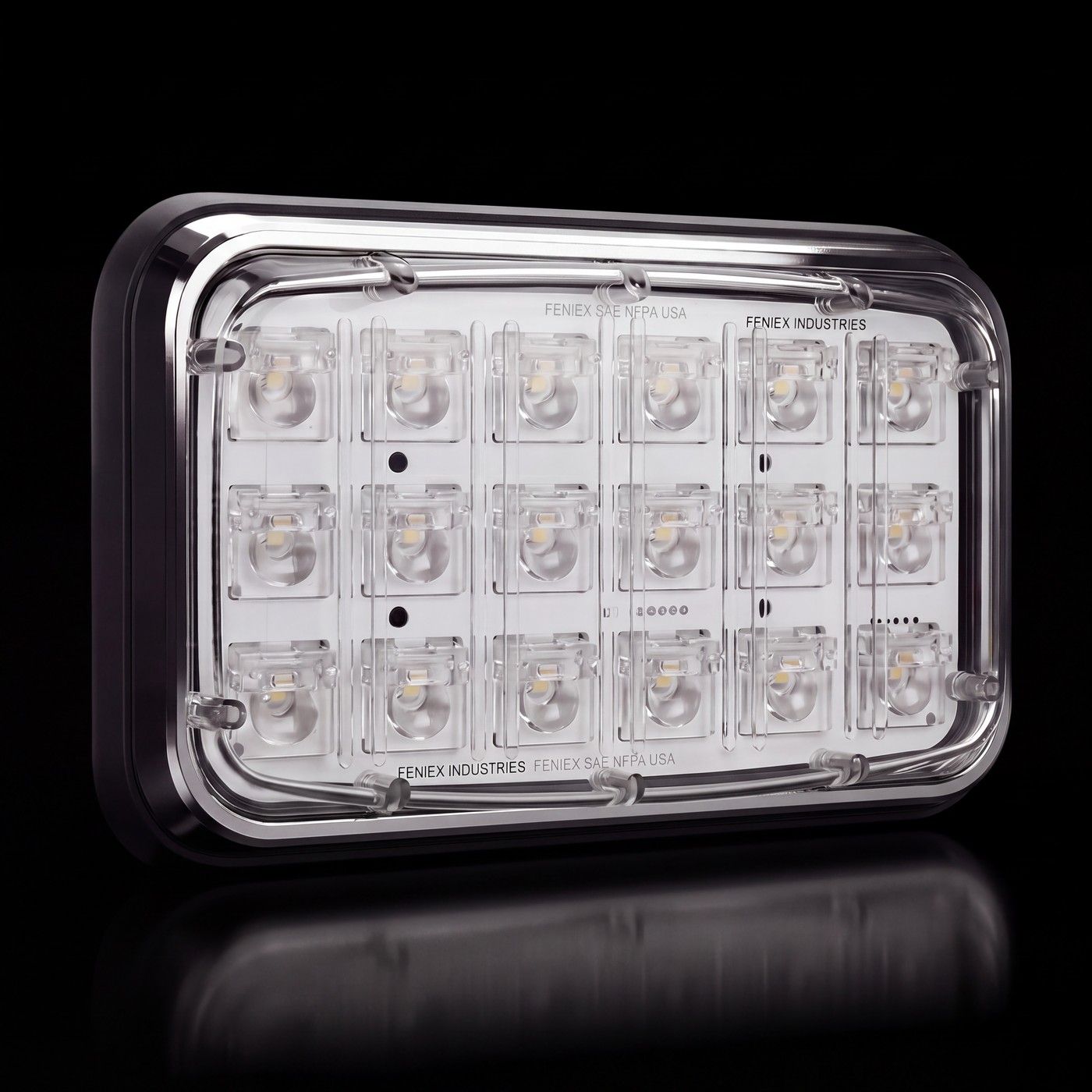

Down Lux 6x4
$119
1
Why Lux

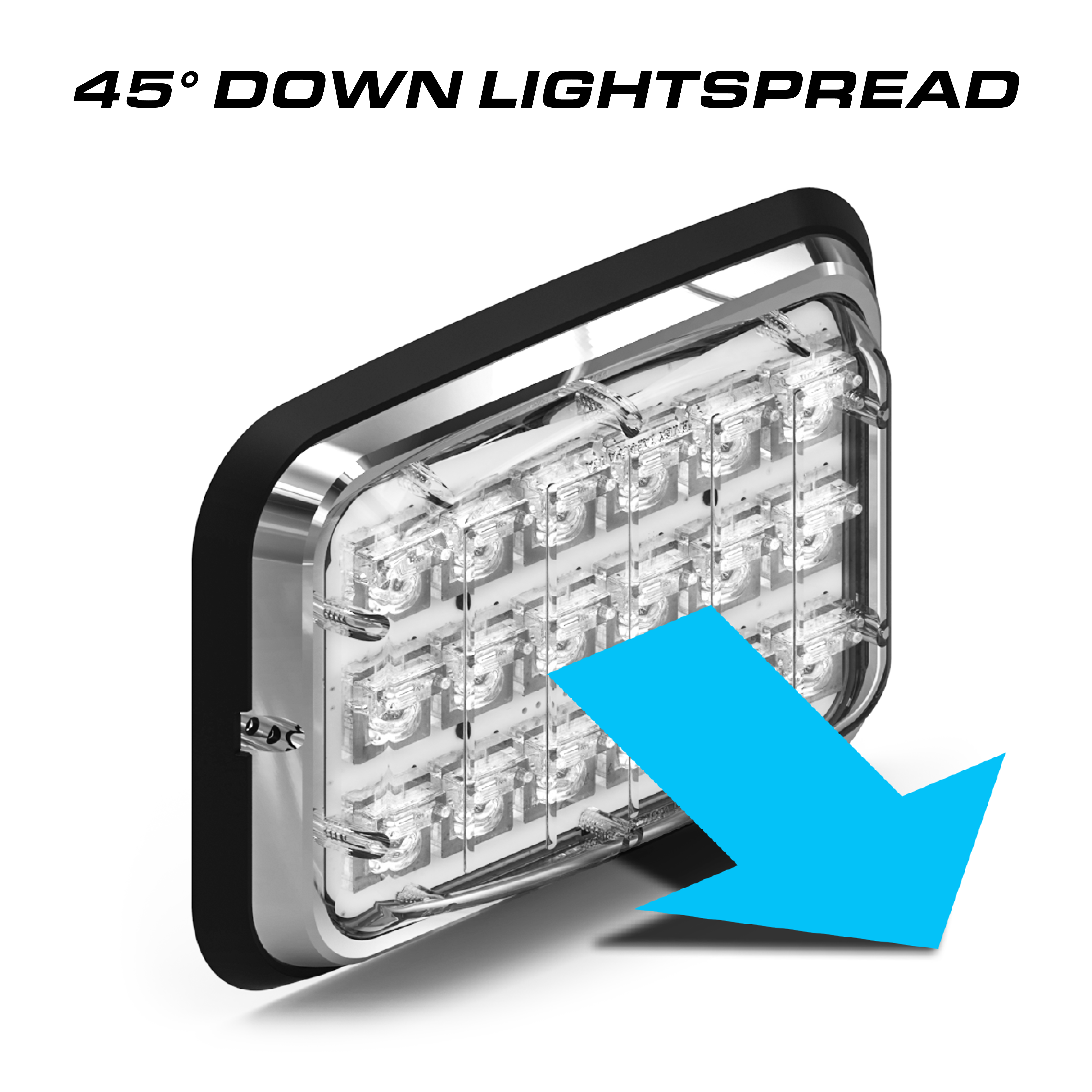

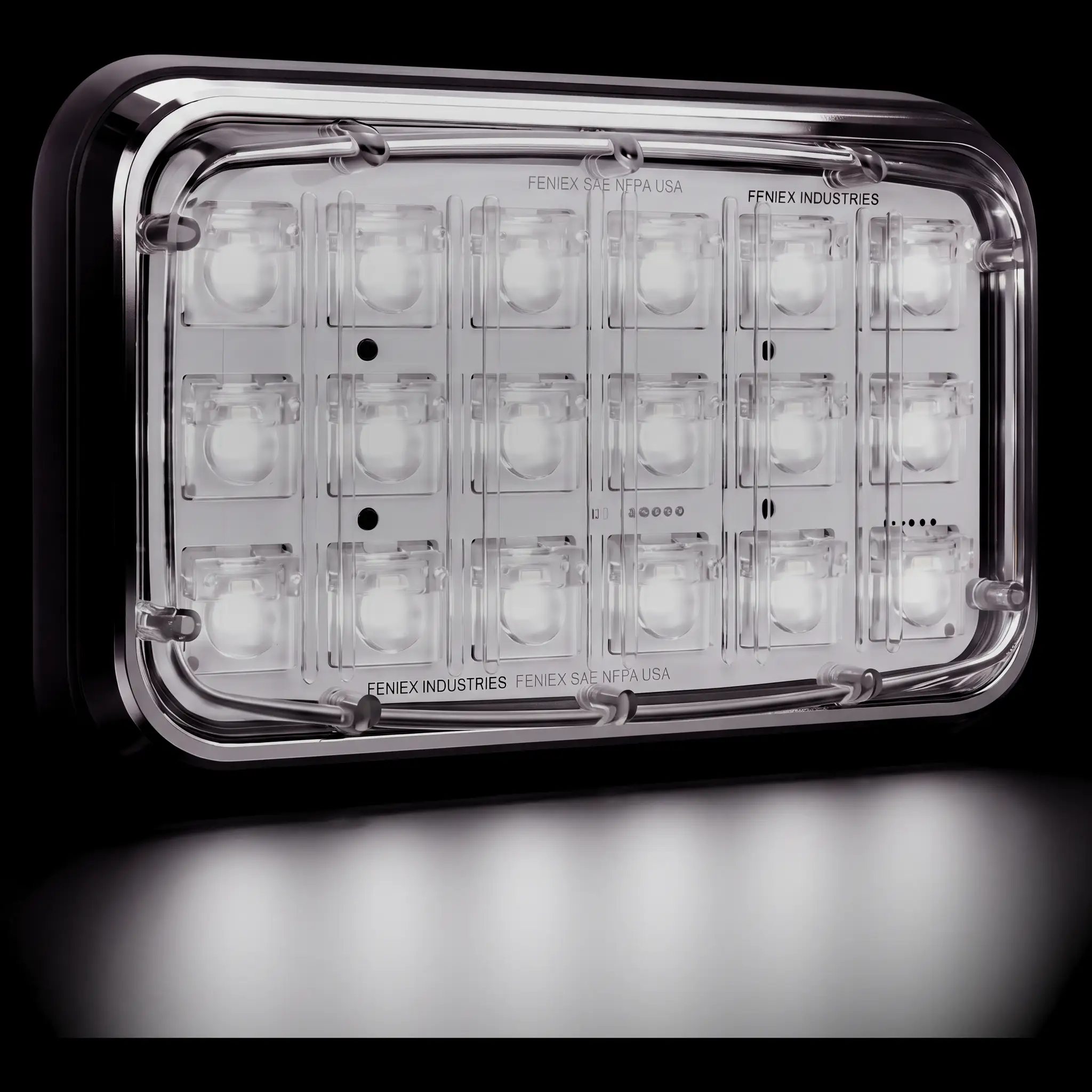

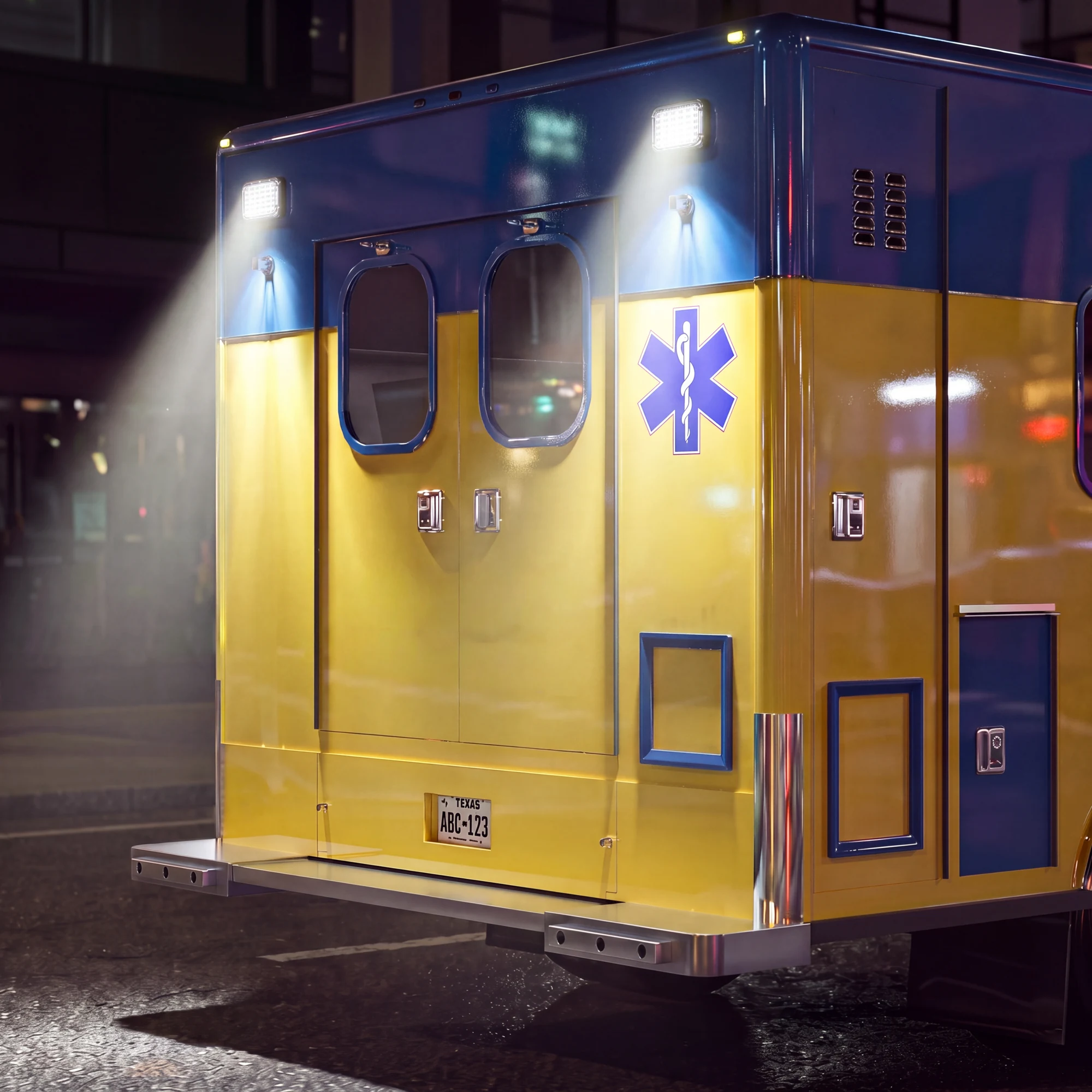

Steady white scene lightA down-facing flood panel — pure work light, no flash modes claimed.
Three panel sizes7x3, 6x4 and 9x7 — same one-inch-deep housing.
Front and rear mountingSurface-mounts with or without the bezel.
SAE J1113 certifiedMade in the USA · 2-year warranty.
Specifications
| Current draw | 1 A |
| Input voltage | 12 V DC |

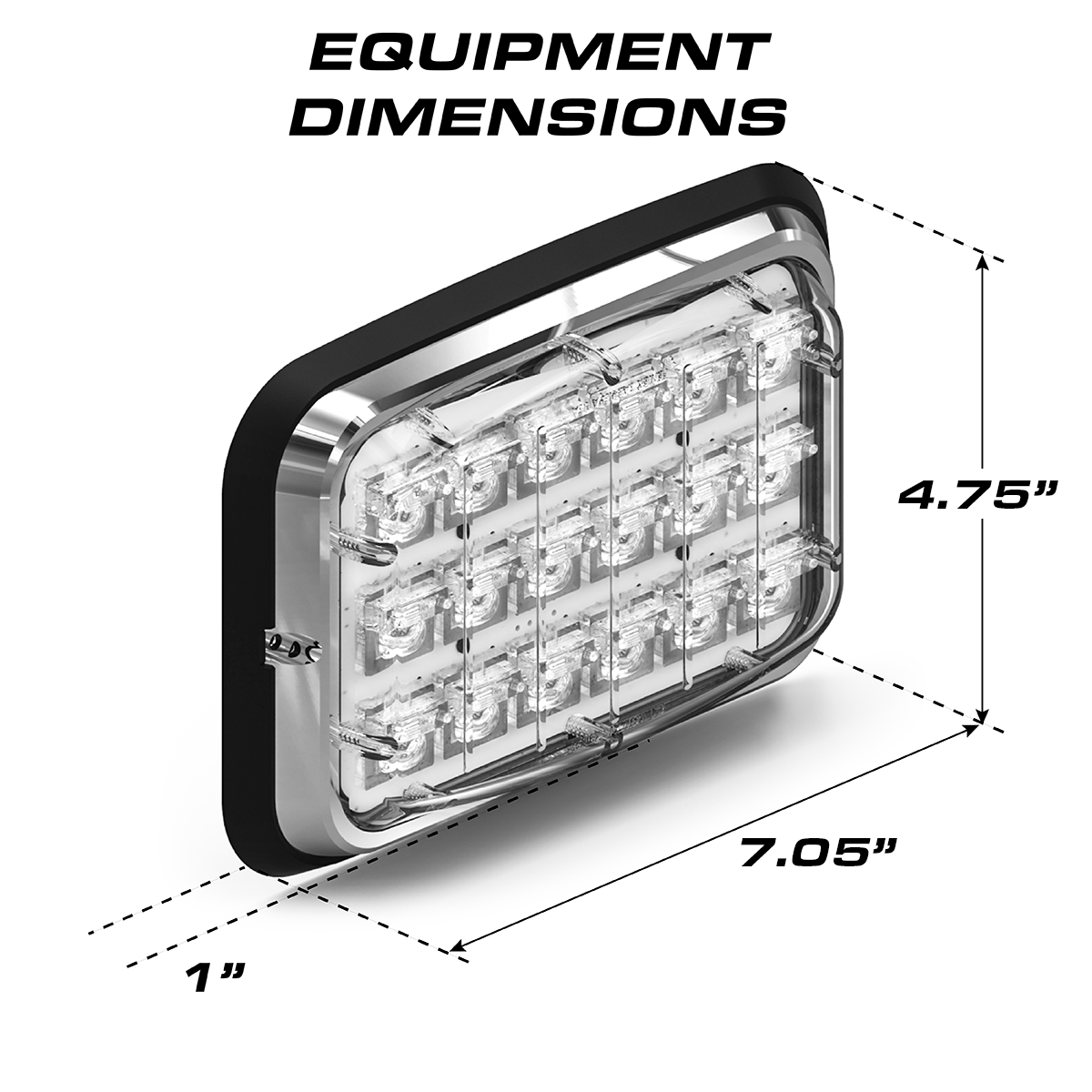

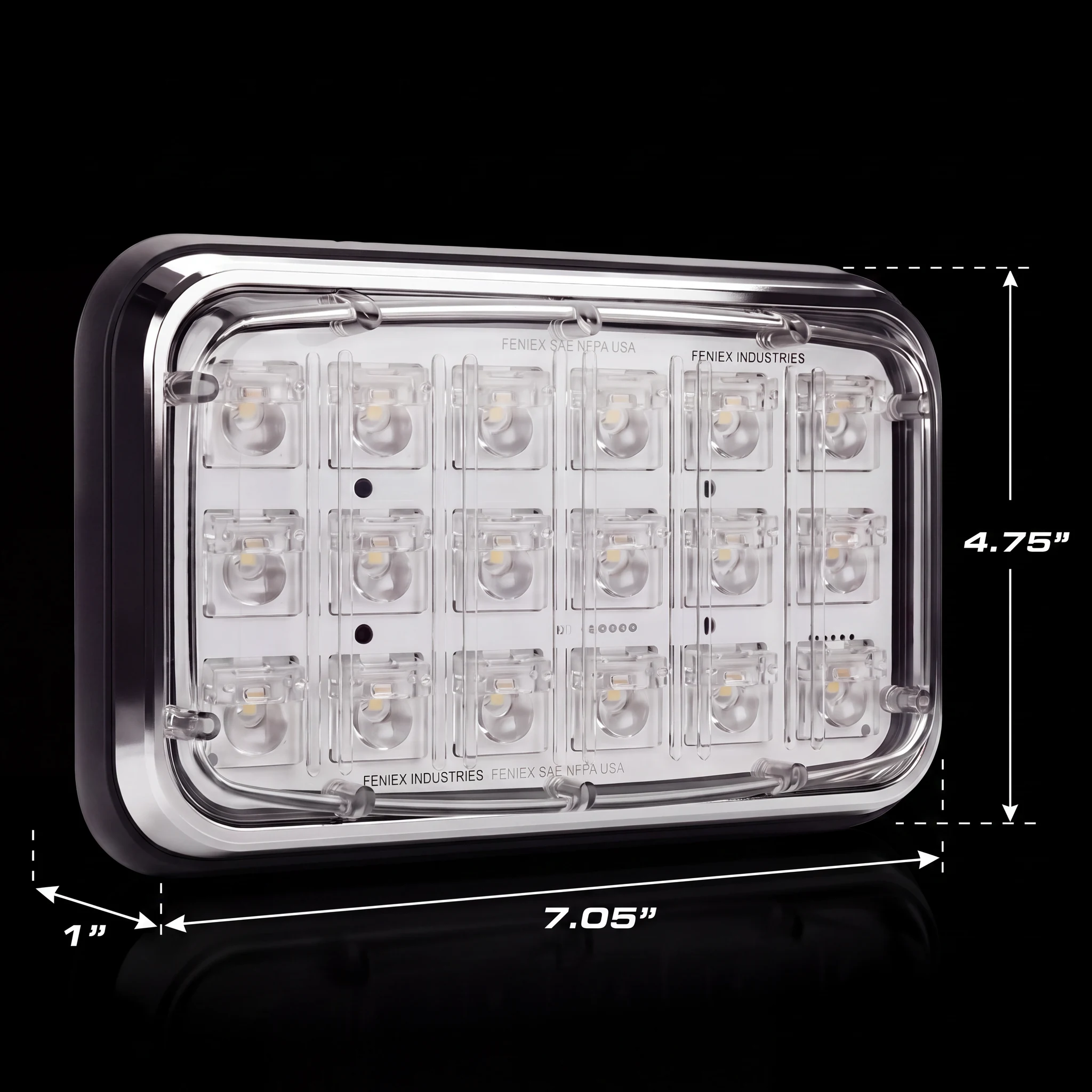

| Dimensions | 7.05″ × 4.75″ × 1″ (with bezel) |

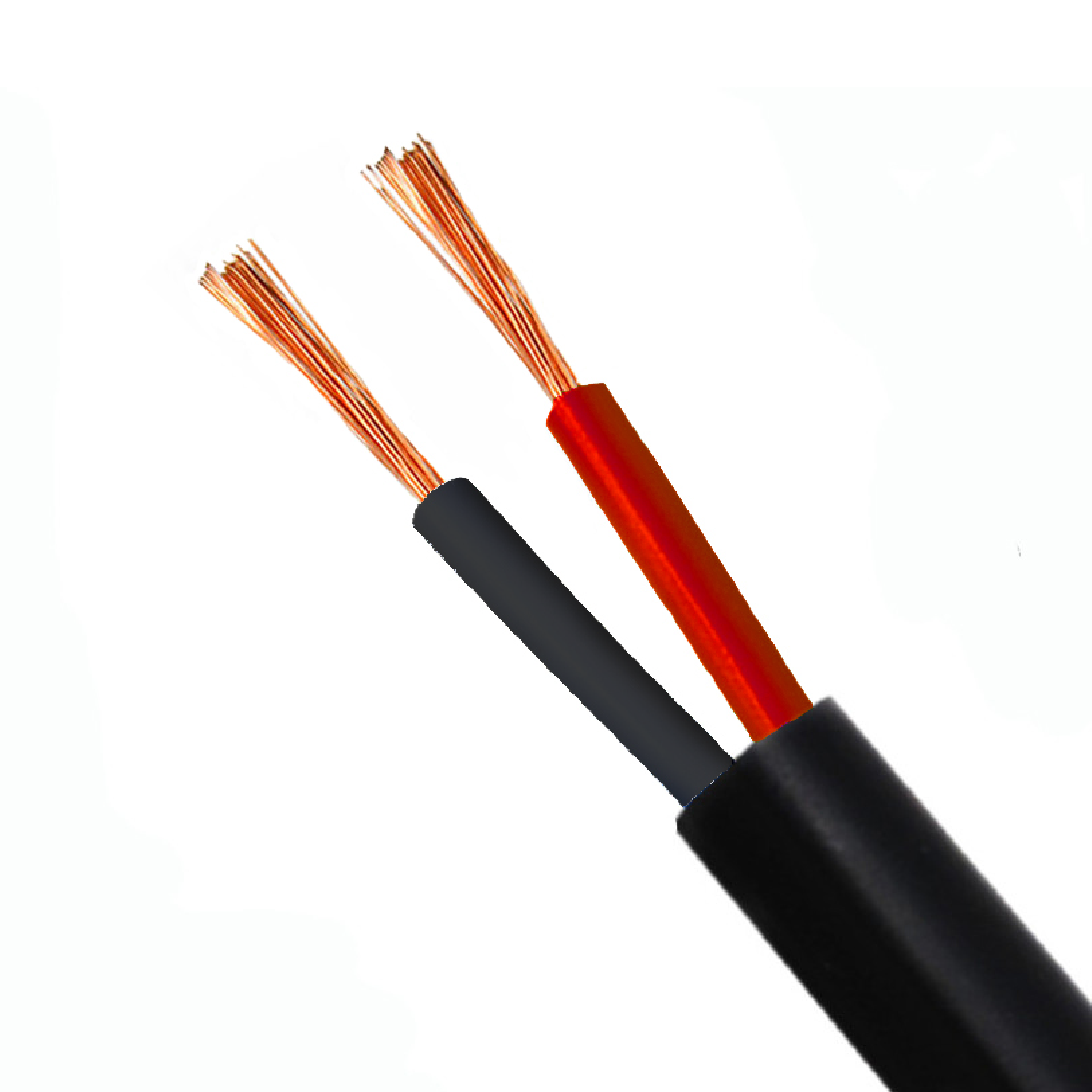

| Cable | 1 ft standard · 10″ harness · 6-pin extensions |
| External fuse | 125% of product load |
| Warranty | 2-year manufacturer |
| Origin | Made in the USA |
SAE J1113
About the series
The Lux series is Feniex’s DOT-style surface-mount family — brake, tail, turn, reverse, spot and down lights in three panel sizes, with color and lens options for every job. SAE J1113 certified, made in the USA, and covered by the two-year warranty.
