FUSION 400

FS-0416 · Stick light · single-color modules, laid out your way · 40° optic, 60% brighter

STEP 01Color · By Moduleone color per module · 4 modules
No build yet — every module is waiting for a color.
STEP 02Bracket
STEP 03Cable length10 ft included
10 ftIncluded20 ft+$2530 ft+$50
$269 1

Pattern Studio

FUSION 400 · IN THE COLORS YOU BUILD
Your build
No build yet — nothing to play.
build your bar and its colors play here

Why Fusion

40° optic, 60% brighterThe Fusion-S optic — long-range visibility over the previous Fusion family.
24 LEDs · 4 modulesSingle-color modules in any layout — configured by you in Build-A-Bar.
15 flash patternsAttack, Cluster, Combo, Half-Half, One-One, Two-Two, All-On — front and rear.
28 programmable inputsFeniex Converter included — DOT stop/turn/tail, traffic advisor, cruise, cut-off, dim.
Takedown · alley · floodWork lighting built in — assigned per module in your build.
Military-grade aluminumAnti-yellowing, anti-cracking clear-coated polycarbonate lens · 5-year warranty.

Specifications

LED count24 LEDs
Light modules4 modules · single-color, user configured
Current draw4 A
Input voltage10–18 V DC
Optical spread40°

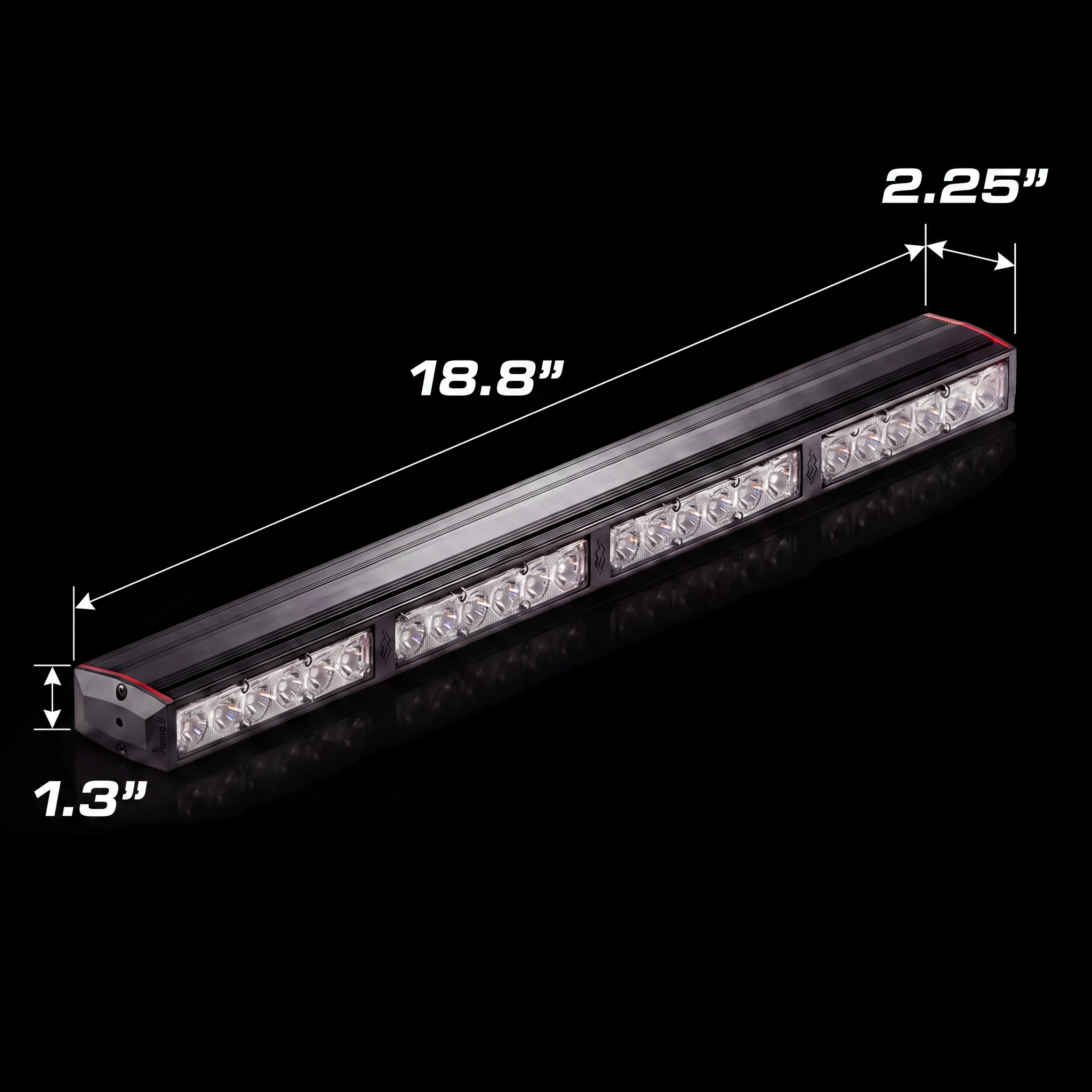

Dimensions18.8″ L × 2.25″ W × 1.3″ H
Cable10 ft standard · 14-pin · 20 AWG
External fuse125% of product load
Warranty5-year manufacturer
OriginMade in the USA
SAE J595SAE J1113SAE J578SAE J575SAE J845ECE R65 CLASS 1CA TITLE 13NFPA KKKIP66
Fusion 400

5 Star Reviews

2 reviews · from Feniex.com and Ultra Bright Lightz

  • I ordered two Fusion 400s dual color. One for the dash and one for a brush guard. I was hesitant to mount on the exterior, but after a year, still zero issues. I love these lights and get constant compliments from other officers. I’ll be ordering Feniex for life!

    Scott Klinger, Lebanon, IN via Feniex.com

  • Great light stick. challenged it through all types of bad weather. Extreme heat extreme cold and It even got frozen and covered in about 2in of ice from an ice storm. Still shines bright and no water inside

    Zach C. Verified buyer via Ultra Bright Lightz

Every Feniex review →

About the series

The Feniex Fusion-S is the next evolution of the Fusion series — the world’s brightest and most competitively priced emergency warning line. User configurable in red, blue, amber, white and green, the Fusion-S offers a new and improved optic that is 60% brighter than the previous Fusion family. Single-color modules, laid out module by module in Build-A-Bar, programmed in the field.

Documents & training

PDFInstruction Manualwiring · mounting · programming PDFCut Sheetdimensions · draw · certifications GUIDEConverter Input Guide28 inputs · 15 patterns · field programming COURSEFeniex Universityinstall & programming video courses
