Feniex Fusion Double Surface Mount | Perimeter | Feniex Industries

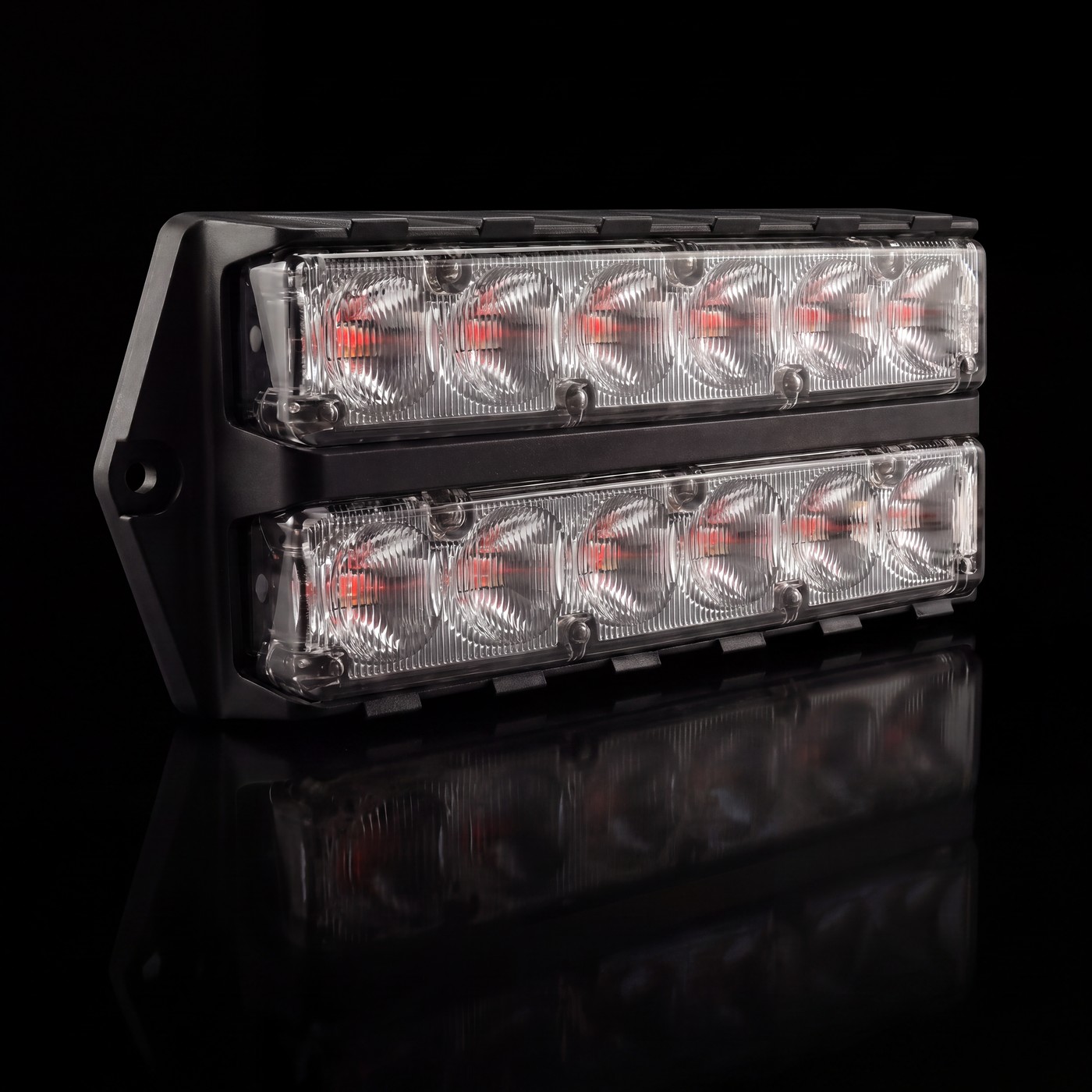

Feniex Fusion Double Surface Mount on the black stage
PERIMETER / FUSION SERIES

FUSION DOUBLE SURFACE MOUNT

Double-stack surface mount · 40° optic, 60% brighter

STEP 01Color
STEP 02Cable length
$129 1
$19 Flat Rate
Shipping

Pattern Studio

FUSION DOUBLE SURFACE MOUNT · PERIMETER INSTALL · IN THE COLORS YOU’D ORDER
Modules installed
Colors
one color per module

Why Fusion

40° optic, 60% brighterThe Fusion-S optic — long-range visibility over the previous Fusion family.

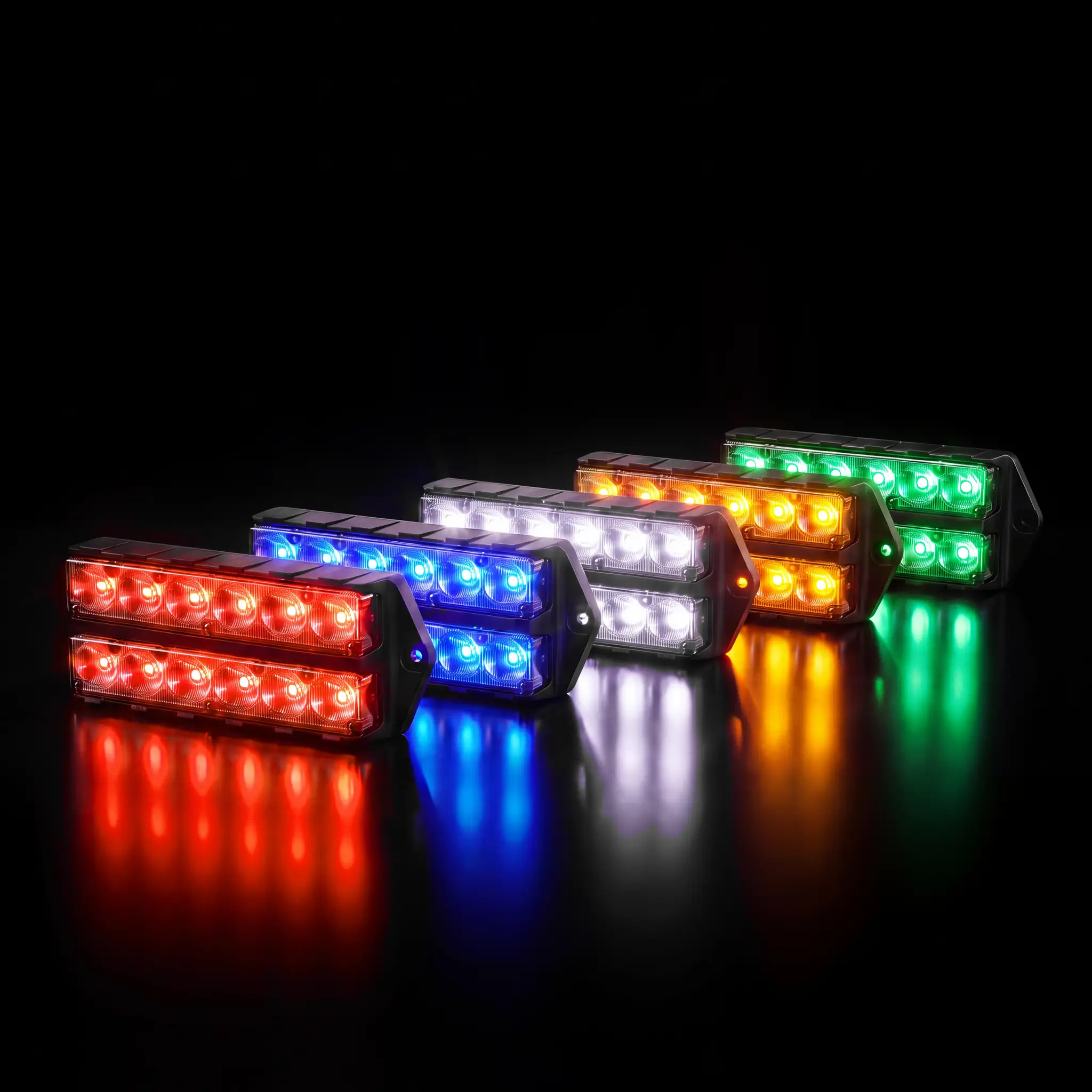

Double stack · single colorTwo heads on one mount — red, blue, amber, white or green.
3 programmable modesFlood, cruise and stop/tail/turn pattern capabilities — cycled and synced on the wire.
Syncs across the familyT3, Cannon, Under Mirror Puck and QSM run in step on the same sync wire.
Leader / follower syncPair stacks and run alternating patterns on the blue sync wire.
Military-grade aluminumAnti-yellowing, anti-cracking clear-coated polycarbonate lens · 5-year warranty.

Specifications

Current draw2 A
Input voltage10–18 V DC
Optical spread40°

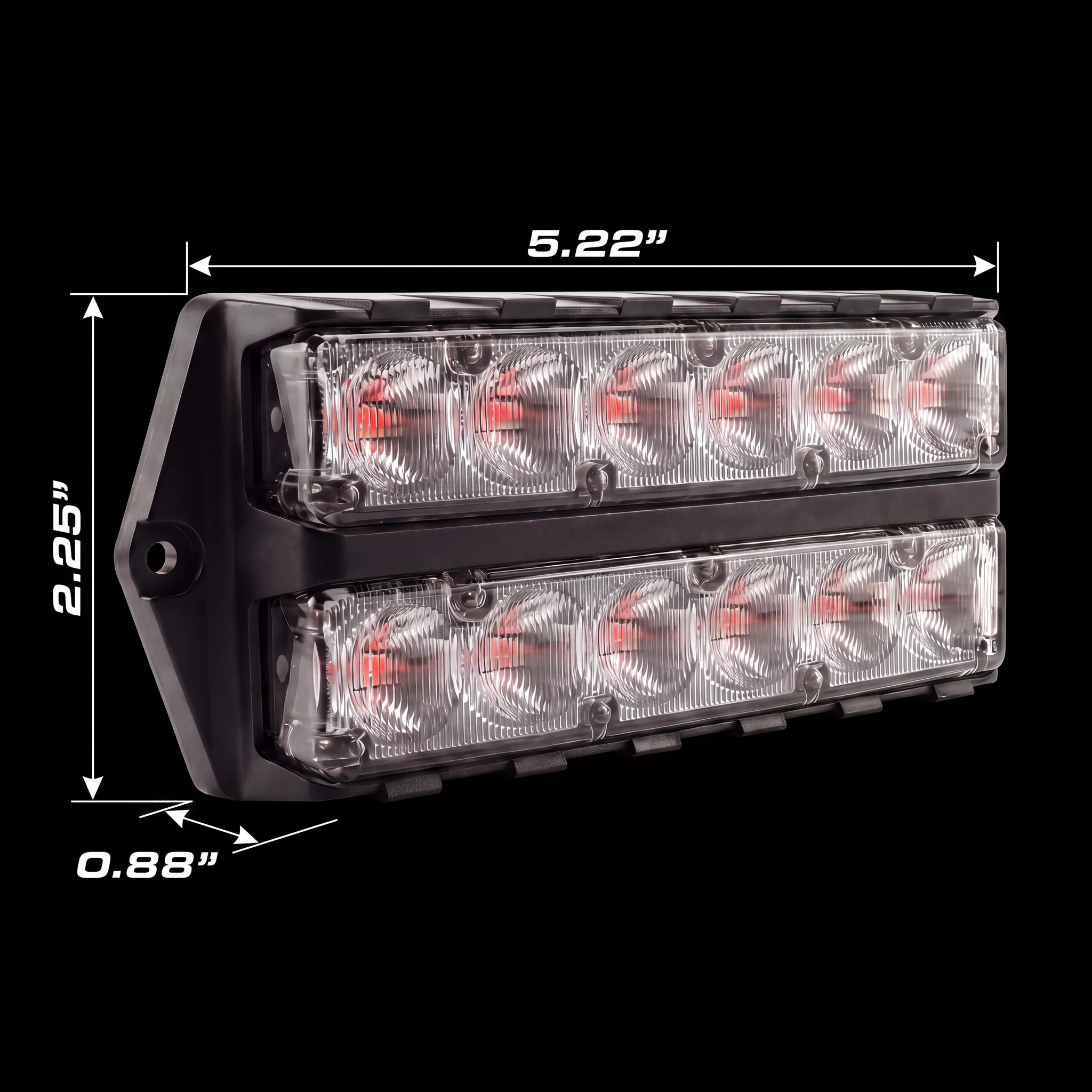

Dimensions5.22″ L × 0.88″ W × 2.25″ H
Cable1 ft standard · 6-pin · 20 AWG ×2
External fuse125% of product load
Warranty5-year manufacturer
OriginMade in the USA
SAE J595 CLASS 1CA TITLE 13
Fusion Double Surface Mount

About the series

The Feniex Fusion-S is the next evolution of the Fusion series — the world’s brightest and most competitively priced emergency warning line. User configurable in red, blue, amber, white and green, the Fusion-S offers a new and improved optic that is 60% brighter than the previous Fusion family. Single-color modules, programmed in the field.

Documents & training

PDFInstruction Manualwiring · mounting · programming COURSEFeniex Universityinstall & programming video courses

5 Star Reviews

thousands of 5-star reviews
  • Unbelievably bright

    Unbelievably bright. If you want lights that can be seen from far away these are the way to go. Probably the brightest 6/12 LED light on the market and easy to wire and sync together.

    Cody C. Verified buyer

  • Great little light.

    Very bright light! Easy to install, lots of flash patterns. Great option for multiple colors for emergency use, construction use, or for fun on an ORV. Directions are simple and lights are simple to install. Lights are very bright for 3 leds. Quality competes with big brands like Code3 or Whelen.

    Verified buyer

  • Great so far

    Bright and 1/3 price of GoLight and marine options. Nice plug and play feature. Strong magnet which doesn't require permanent holes in vehicle.

    Verified buyer

Read more reviews →
