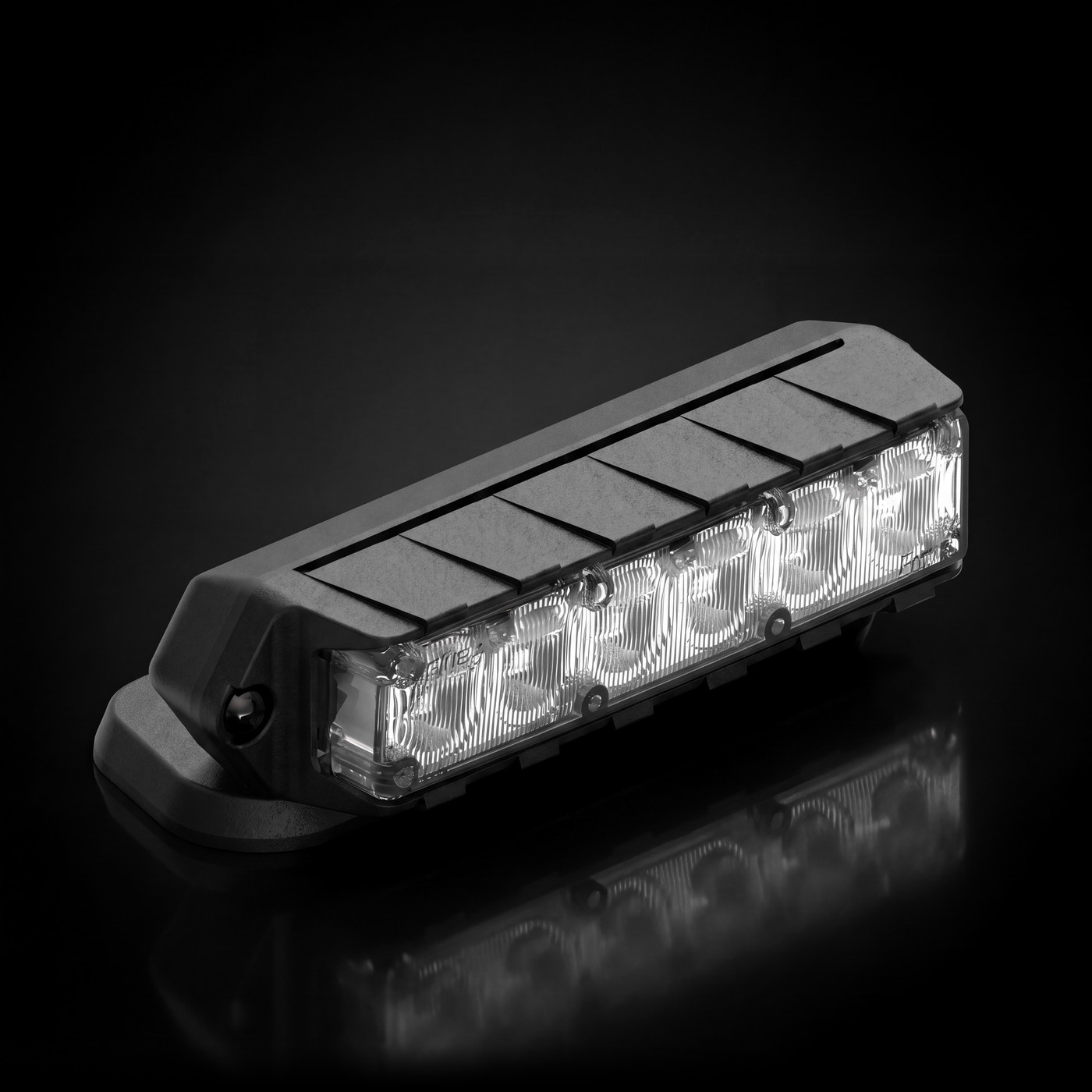

Feniex Fusion 90° Rotating Mount on the black stage
PERIMETER / FUSION SERIES

FUSION 90° ROTATING MOUNT

FSM-90 · Adjustable-aim surface mount · 40° optic, 60% brighter

STEP 01Color
STEP 02Cable length
$89 1
$19 Flat Rate
Shipping

Pattern Studio

FUSION 90° ROTATING MOUNT · PERIMETER INSTALL · IN THE COLORS YOU’D ORDER
Modules installed
Colors
one color per module

Why Fusion

90° of adjustable aimA cast-aluminum swivel on a surface-mount base — straight out, straight down or anywhere between, locked by two button-head screws.
40° optic, 60% brighterThe Fusion-S optic — long-range visibility over the previous Fusion family.
6 LEDs · single colorOne color per unit — red, blue, amber, white or green.
3 programmable modesFlood, cruise and stop/tail/turn pattern capabilities — cycled and synced on the wire.
Syncs across the familyFusion-S, T3, Cannon, Under Mirror Puck and Q Series run in step on the same sync wire.
Cast aluminum swivelADC12 base and swivel in textured black powder coat · sealed bezel · 5-year warranty.

Specifications

LED count6 LEDs
Current draw1 A @ 13 V
Input voltage10–18 V DC
Optical spread40°
DimensionsBase 4.41″ × 1.75″ × 0.83″ · swivel 5.22″ × 1.17″ × 0.65″
Cable1 ft standard · 6-pin · 20 AWG
In the boxFusion-S module in its 90° swivel · surface mount hardware kit · foam pad
External fuse125% of product load
Warranty5-year manufacturer
OriginMade in the USA
SAE J595CA TITLE 13NFPA KKKECE R65 CLASS 1IP67

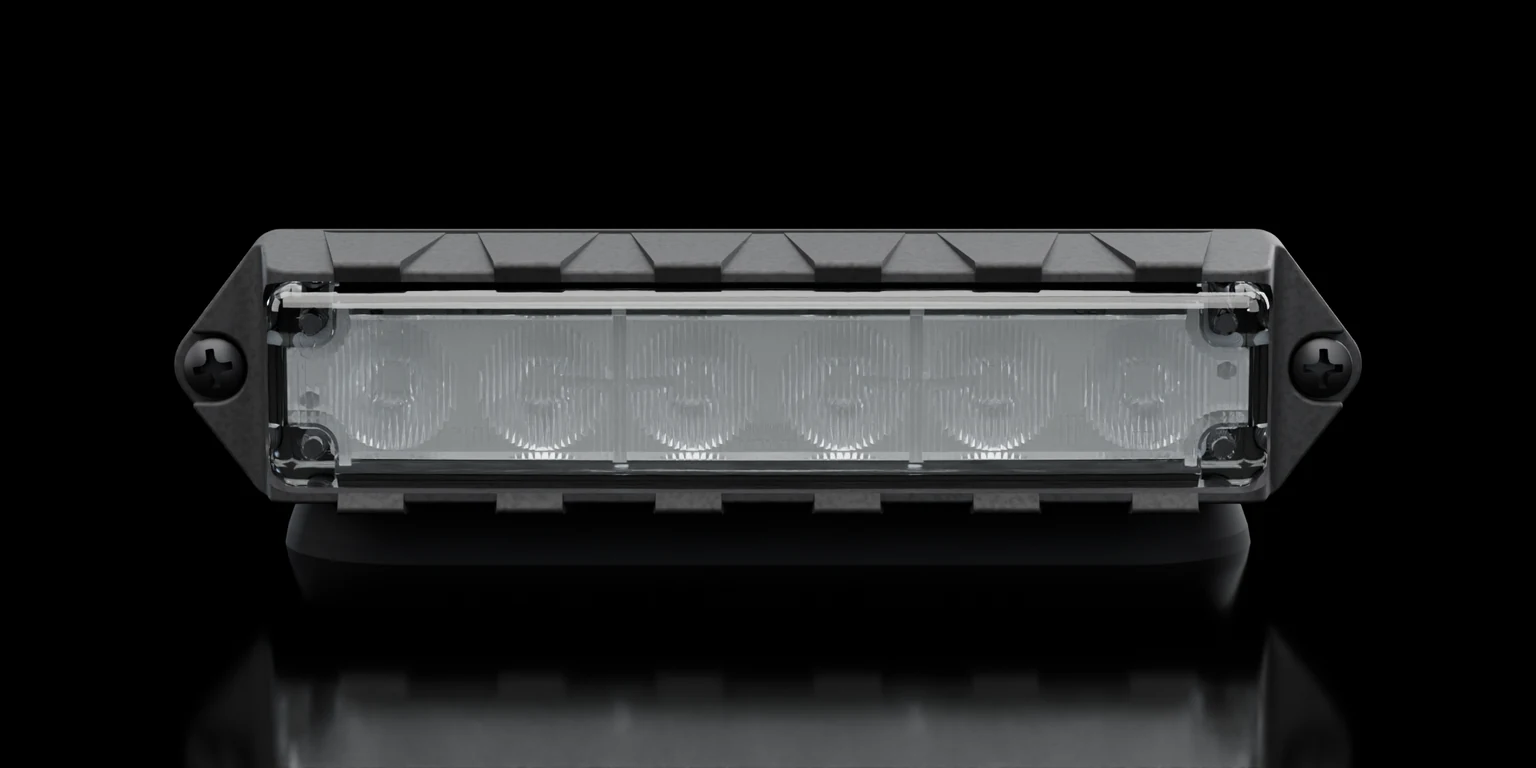

Fusion 90° Rotating Mount

About the series

The Feniex Fusion-S is the next evolution of the Fusion series — the world’s brightest and most competitively priced emergency warning line. User configurable in red, blue, amber, white and green, the Fusion-S offers a new and improved optic that is 60% brighter than the previous Fusion family. Single-color modules, programmed in the field.
