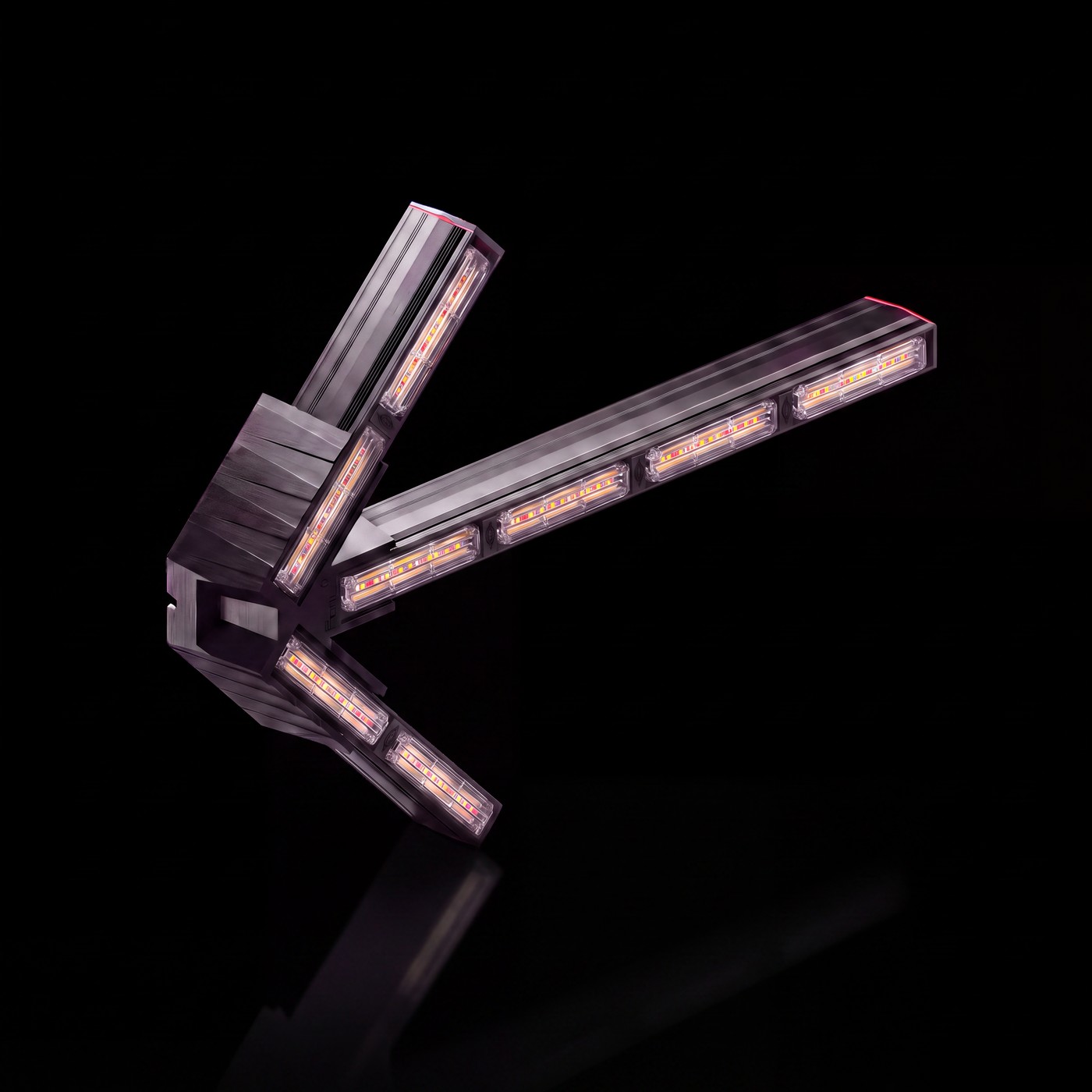

Feniex Quantum Split Arrow lightbar on the black stage

STICK LIGHTS / QUANTUM SERIES

QUANTUM SPLIT ARROW

Name: Quantum Split Arrow
Brand: Feniex
SKU: QT1020-H
Price: 579.00 USD
Availability: InStock

QT-1020-H-SD · Split arrow stick · five colors in one bar · patented Unlock technology

STEP 01Color · Unlock Level

Your programming options10 combinations

Dual: five colors in every module — only two can be programmed per module.

Full unlock exclusive

10-YEAR WARRANTY

Every color in every module and 2× the warranty.

STEP 02Cable length

$579 1

$19 Flat Rate
Shipping

Pattern Studio

QUANTUM SPLIT ARROW

Unlock level

Colors

Select number of colors per level

Why Quantum

Computer programmableUnlock Quantum software — levels, patterns, module colors.

13 inputs standard28 programmable inputs with the optional converter.

20+ flash patternsFront, rear, arrow, DOT stop-turn-tail — all integrated.

60° optical spreadWide-angle light head geometry across all 216 LEDs.

Takedown · alley · floodWork lighting built into the bar — no add-on heads.

Aluminum top coverStructural reinforcement · 5-year warranty — 10-year with Full.

Specifications

LED count	216 LEDs
Current draw	6 A @ 13 V
Input voltage	10–18 V DC
Optical spread	60°

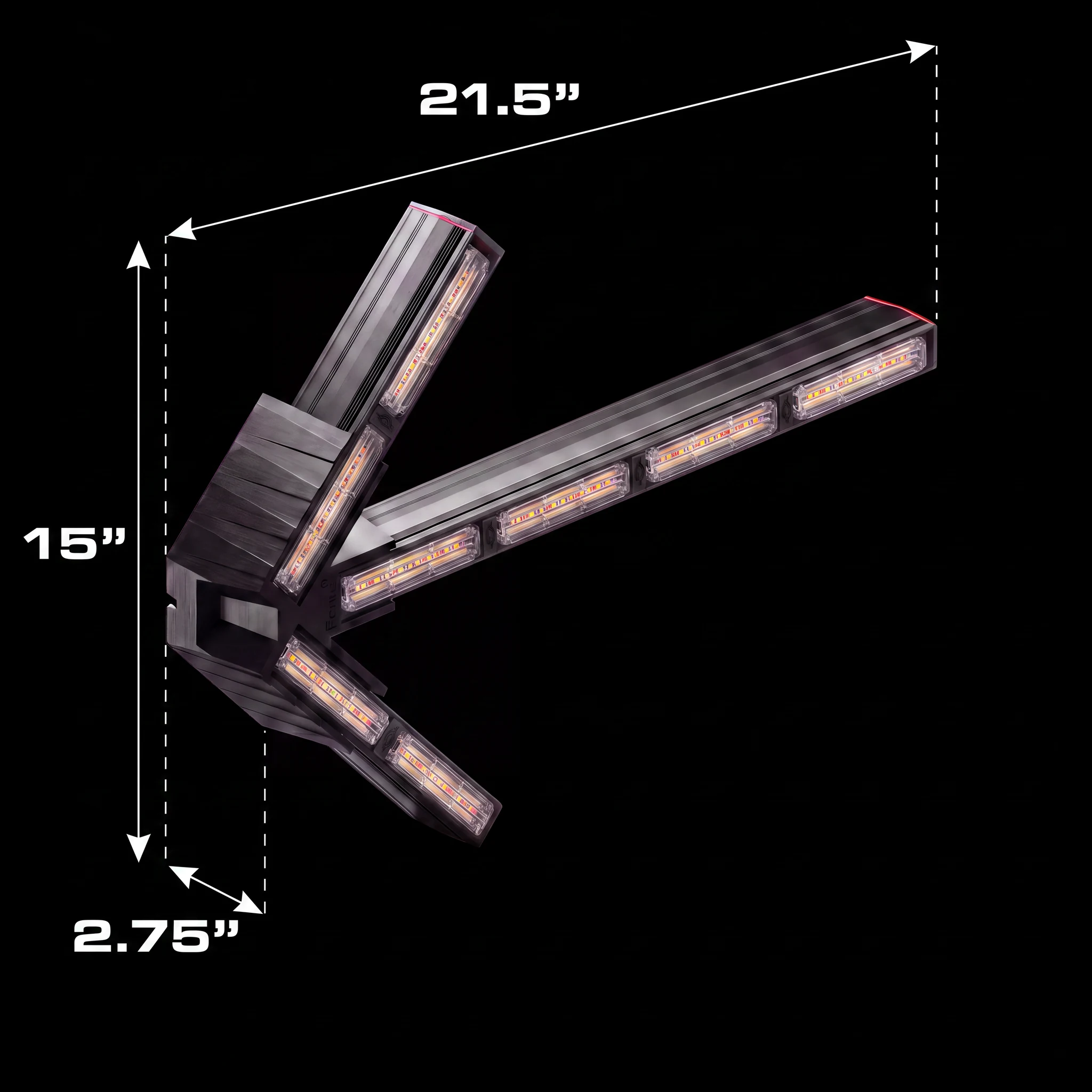

Dimensions	21.5″ L × 2.75″ W × 15″ H
Cable	10 ft · 14-pin 20 AWG
Warranty	5-year manufacturer — Dual & Tri Color 10-year manufacturer — Quantum Full Unlocked
Origin	Made in the USA

SAE J595SAE J1113-11CA TITLE 13ECE R65NFPAIP67

About the series

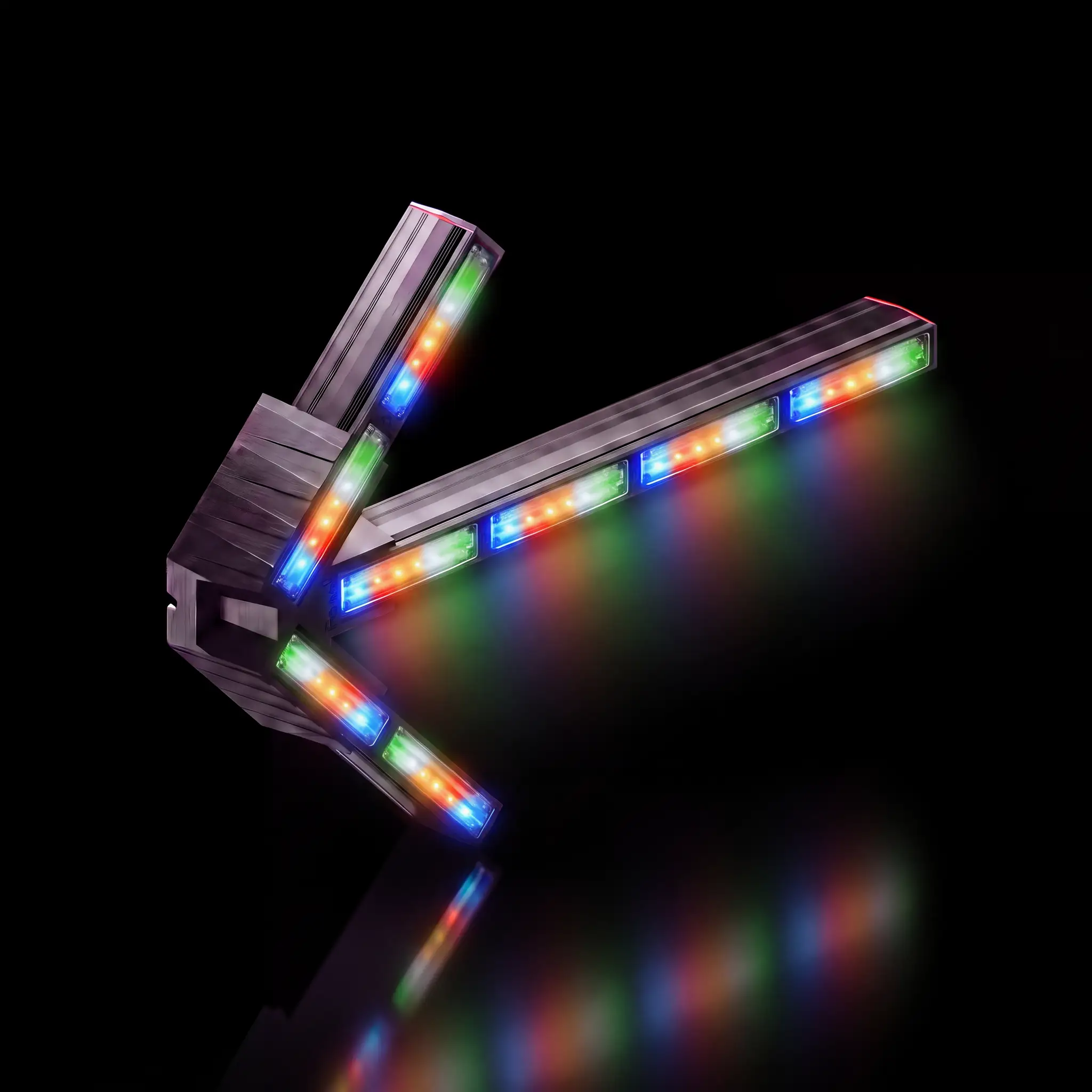

Feniex’s patented Quantum Series offers 5-color capable technology and is available in 3 progressive Unlock Levels: Dual, Tri, and Full. For a minimal unlock fee, all Feniex Quantum products can be unlocked to any desired Unlock Level — unrivaled customization to meet your exact needs without breaking the bank. The Quantum Series is capable of 5 vivid colors: Blue, Red, Amber, White, and Green.

Documents & training

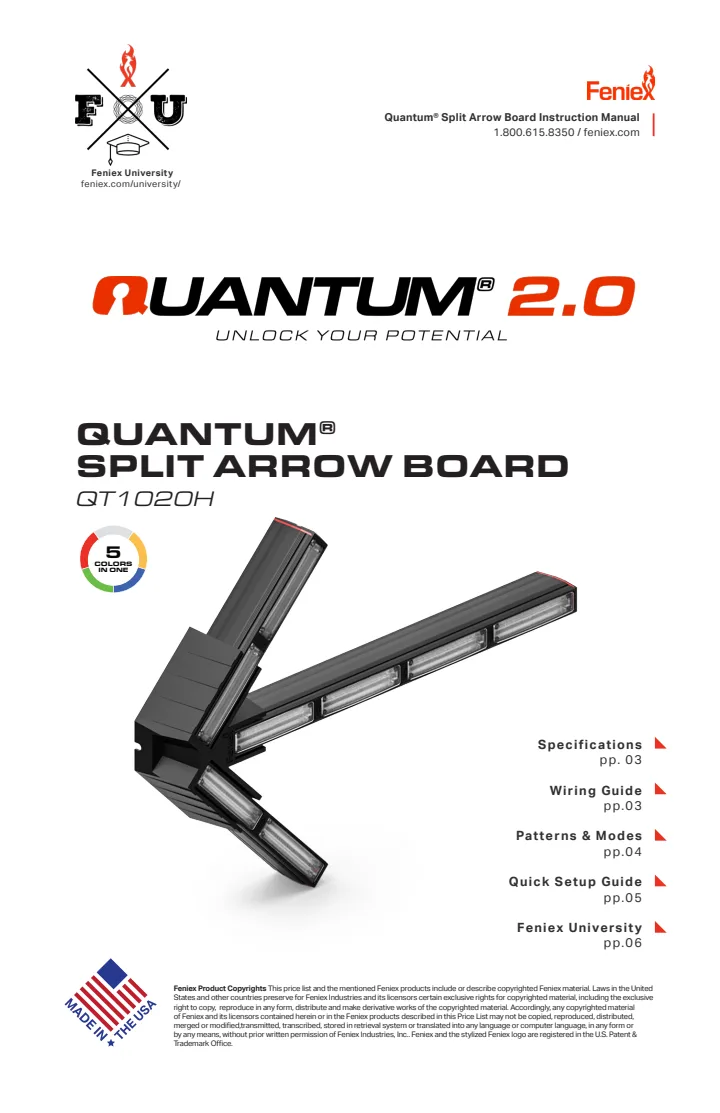

PDFInstruction Manualthe official manual, straight from the source PDFCut Sheetdimensions · draw · certifications 1. Choose your module(s): FRONT R B ALL ALL R R R R R TD TD B B B B B Click Lighthead To Deactivate STT R R R A WK WK A B B B STT 2. Function: Take Down Alley Stop Turn Tail Work Light 3. Assign Color: RED BLUE AMBER WHITE GREEN EXEUnlock Quantum Softwarelevel upgrades · patterns COURSEFeniex Universitythe Quantum 2.0 video course
