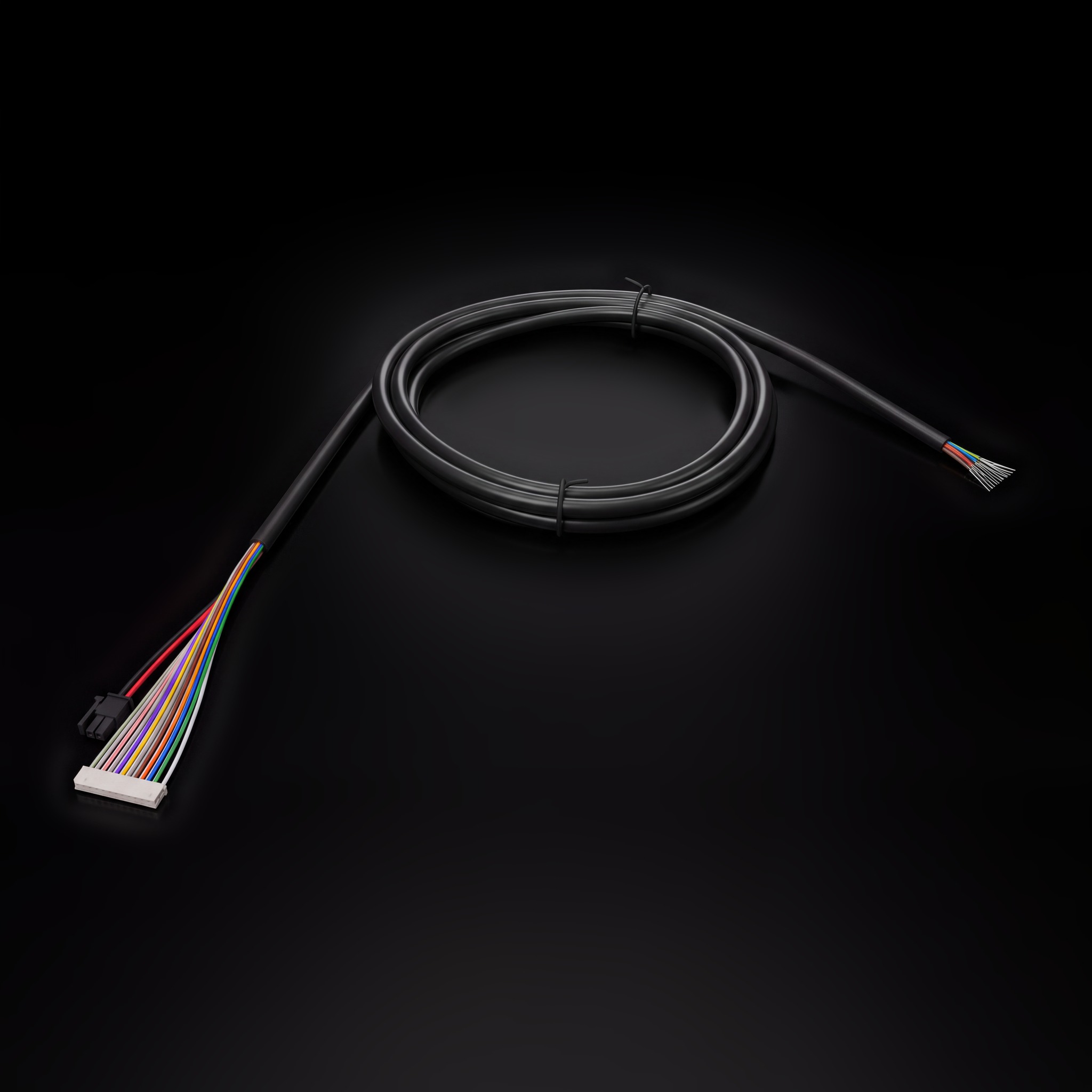

14-Pin Accessory Cable
Price: $25.00
About the Product/Series
Introducing the Feniex 14-Pin Accessory Cable, the 14-wire harness that connects a Feniex controller to the Quantum and Fusion accessory line: Sticks, Arrows, Inner Bars, Spoilers, Pillars, Mini Bars, the 4200 Mini, Flasher, 6X Switch, Hammer, Titan and the Tow 49" and 60". Order it in the length the vehicle needs and skip the splice.
Each cable carries twelve 24 AWG signal conductors and two 20 AWG power conductors under a black PVC UL2464 jacket, terminated with a Molex Micro-Latch 12-pin connector and a Molex Micro-Fit 2-pin power connector on the product end and color-coded leads on the free end, so every mode and power line lands on the right terminal at the controller.
Specfications
- Available Lengths: 10 Feet (66-00130-10), 20 Feet (66-00130-20), 30 Feet (66-00130-30), 40 Feet (66-00130-40)
- Compatible With: Quantum and Fusion Stick, Arrows, Inner Bars, Spoiler, Pillar, Mini Bars, 4200 Mini, Flasher, 6X Switch, Hammer, Titan, Tow 49" / 60"
- Connectors: Molex Micro-Latch 12-pin and Molex Micro-Fit 2-pin to color-coded leads
- Wire: 12 x 24 AWG signal and 2 x 20 AWG power, stranded (UL2464)
- Jacket: Black PVC
- Compliance: RoHS, lead-free
- 5 Year Manufacturer Warranty
Product Details
- Available in 10, 20, 30 and 40 foot lengths
- Compatible with Quantum and Fusion Stick, Arrows, Inner Bars, Spoiler, Pillar, Mini Bars, 4200 Mini, Flasher, 6X Switch, Hammer, Titan and Tow 49" / 60"
- Molex Micro-Latch 12-pin signal connector and Micro-Fit 2-pin power connector on the product end
- Color-coded leads on the free end for direct controller wiring
- 12 x 24 AWG signal conductors plus 2 x 20 AWG power conductors (UL2464)
- Black PVC jacket, coiled and tied for easy stocking
- RoHS compliant and lead-free
