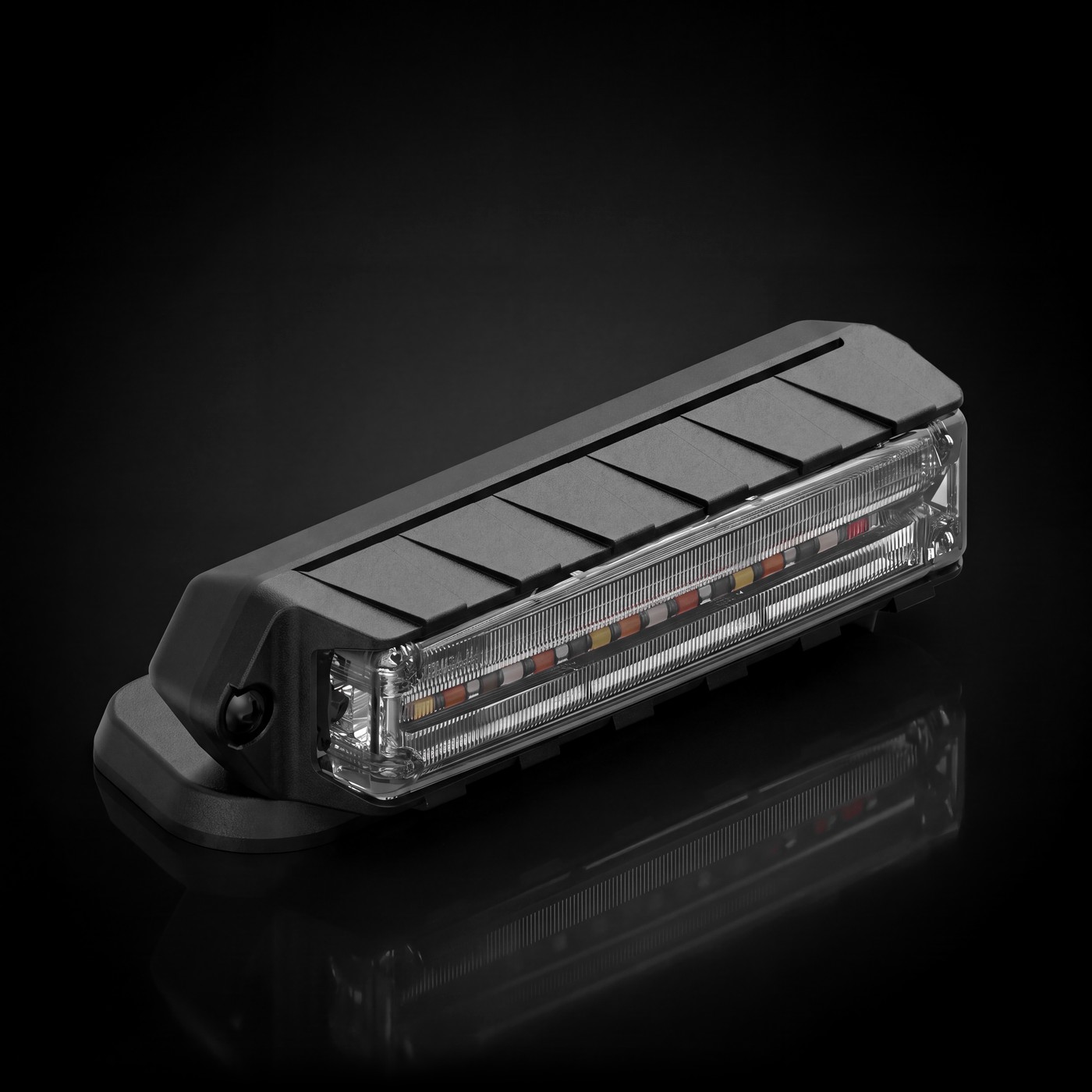

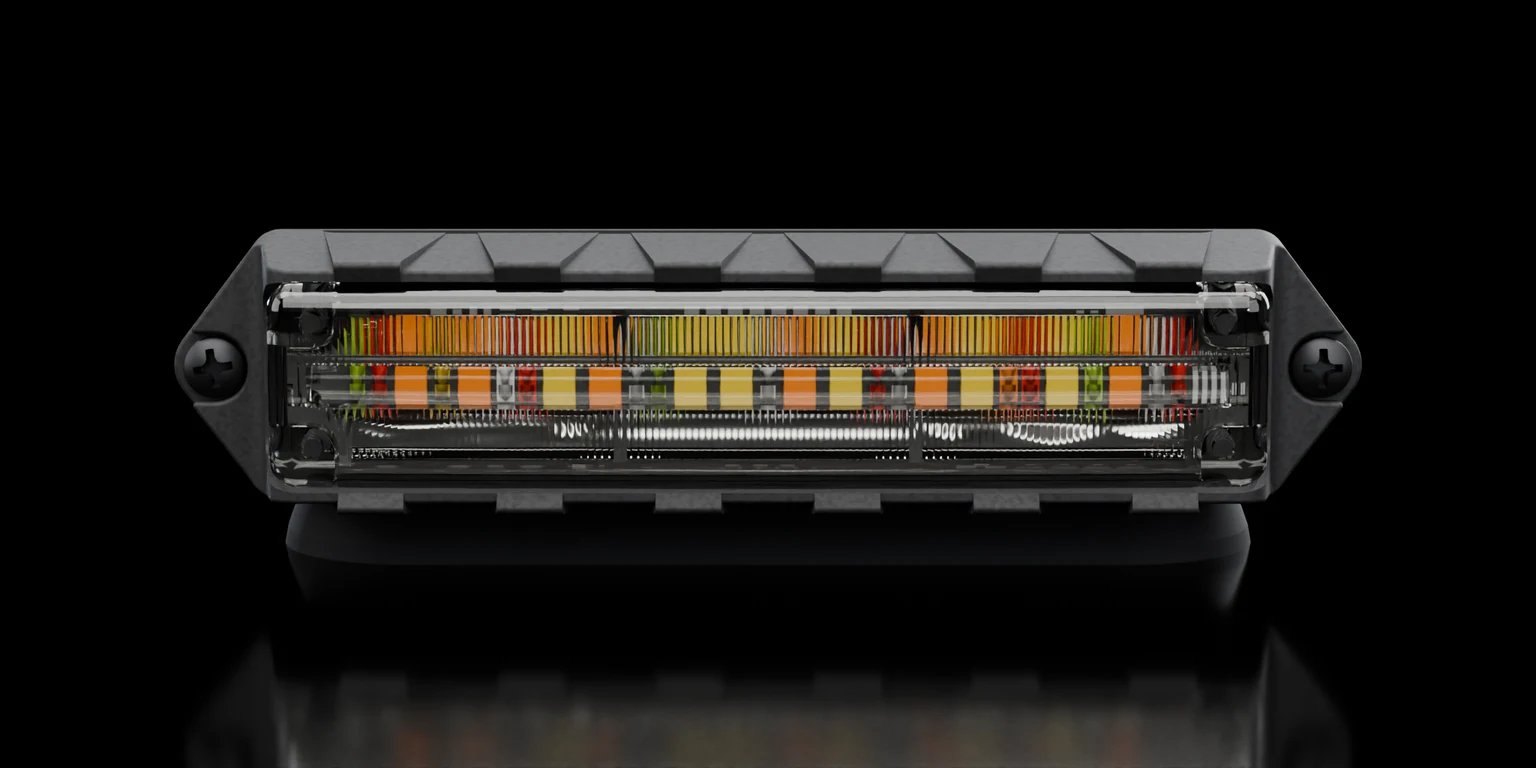

Feniex Q 90° Rotating Mount on the black stage

PERIMETER / Q SERIES

Q 90° ROTATING MOUNT

Name: Q 90° Rotating Mount
Brand: Feniex
SKU: QM-90
Price: 139.00 USD
Availability: InStock

QM-90 · Adjustable-aim surface mount · five colors in every module · 60° optic

Color

All five colors in every module.

STEP 01Technology Type

STEP 02Cable length

$139 1

$19 Flat Rate
Shipping

Pattern Studio

Q 90° ROTATING MOUNT · PERIMETER INSTALL · FIVE COLORS IN ONE MODULE

Modules installed

Colors

5 colors in one module

Pick your control

3-Mode hardwire · or Serial with Q Link

1 · 3-Modeany 12V switch · 3 modes · 14 patternsHardwire it like any light: three user-programmable modes on three input wires, 14 flash patterns, color-lock during installation. Syncs with all Quad, Lux and Q Series products.

2 · Serial2 serial wires · 21 patterns · Q Link requiredTwo serial wires carry everything. The lighthead joins a Q Link network — 21 flash patterns, tail, cruise, turn and brake signals, takedown, work light, and three brightness levels.

3 · Q Link27 inputs · 16 zones · up to 16 lightheadsThe serial brain, sold separately: program function, pattern, brightness, color and zones per input with the free Q Link software — one device runs the whole perimeter.

Why Q Series

90° of adjustable aimA cast-aluminum swivel on a surface-mount base — straight out, straight down or anywhere between, locked by two button-head screws.

5 colors in every moduleBlue, red, amber, white and green — 31 color settings: single, dual, tri, quad and quint.

60° wide spreadBright wide-angle optics for off-axis visibility.

3-Mode or SerialHardwired with 3 modes and 14 patterns, or serial control with 21 patterns via Q Link.

Q Link programmable27 programmable inputs and 16 zones — one Q Link runs up to 16 lightheads.

Cast aluminum swivelADC12 base and swivel in textured black powder coat · sealed bezel · IP67 · 5-year warranty.

Specifications

LED count	27 LEDs
Current draw	1 A @ 13 V
Input voltage	10–18 V DC
Optical spread	60°
Dimensions	5.22″ × 2.47″ × 1.47″ overall (base 4.41″ × 1.75″ × 0.83″ · swivel 5.22″ × 1.17″ × 0.65″)
Cable	1 ft (3-Mode) / 15 ft (Serial) standard · 6-pin · 20 AWG (3-Mode) · waterproof disconnect harness (Serial)
In the box	Q module in its 90° swivel · 1 ft cable (3-Mode) or 15 ft harness (Serial) · surface mount hardware kit · foam pad
Warranty	5-year manufacturer
Origin	Made in the USA

SAE J595CA TITLE 13NFPA KKKECE R65 CLASS 1IP67

About the series

The Feniex Q Series is the first five-color perimeter lighting family — blue, red, amber, white and green in every module, 31 color settings from one part number. Its smart modules hardwire to any 12V switch or controller in 3-Mode, or join a Q Link serial network for computer-programmed functions, patterns, brightness, colors and zones. Covered by the Feniex 5-year warranty.

Documents & training

PDFManual · 3-Modewiring · patterns · programming PDFManual · Serialwiring · patterns · programming PDFCut Sheet · 3-Modedimensions · draw · certifications PDFCut Sheet · Serialdimensions · draw · certifications EXEQ Link Software · Windowsv0.0.33 · free download DMGQ Link Software · Macv0.0.33 · free download COURSEFeniex Universityinstall & programming video courses
