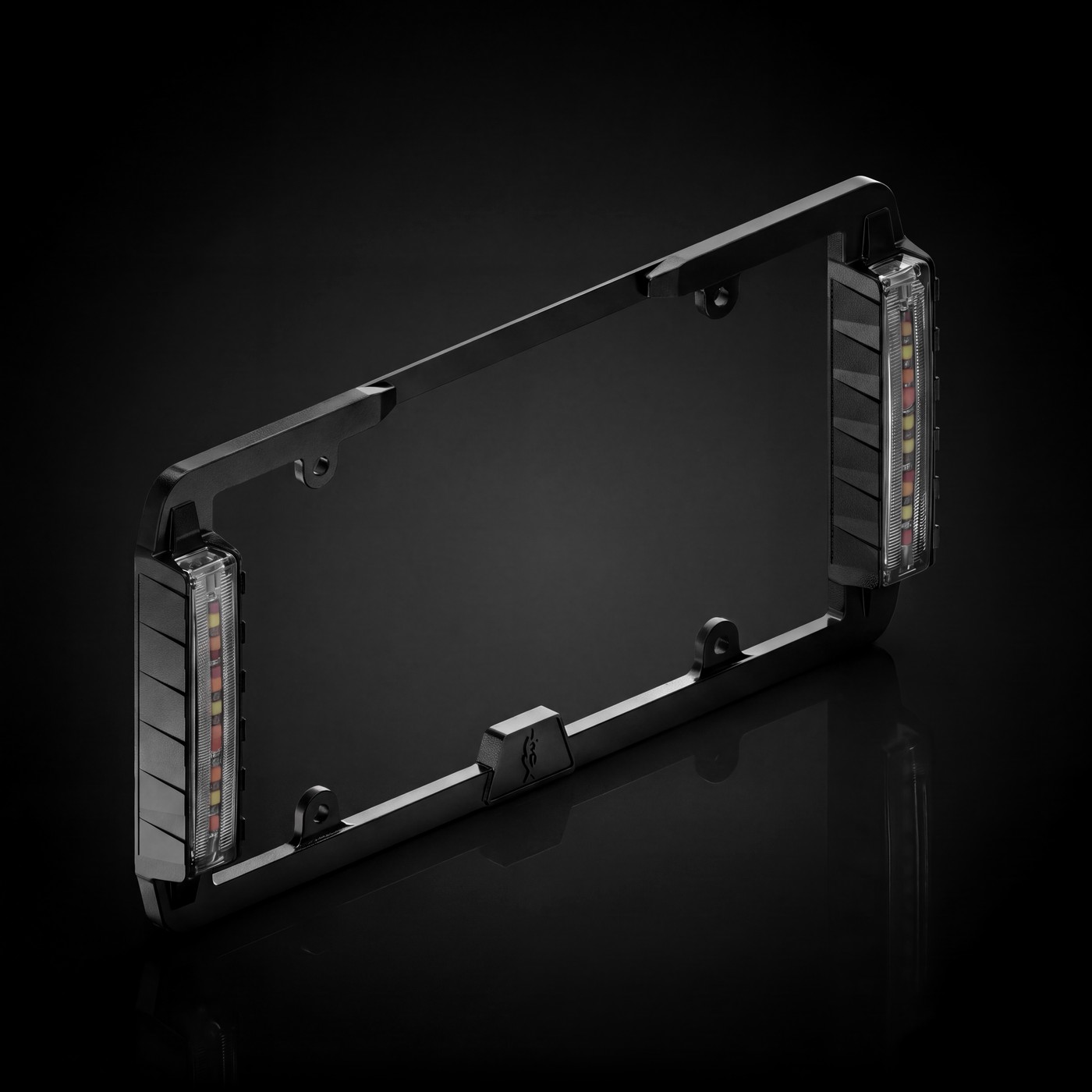

Feniex Q License Plate Mount on the black stage
PERIMETER / Q SERIES

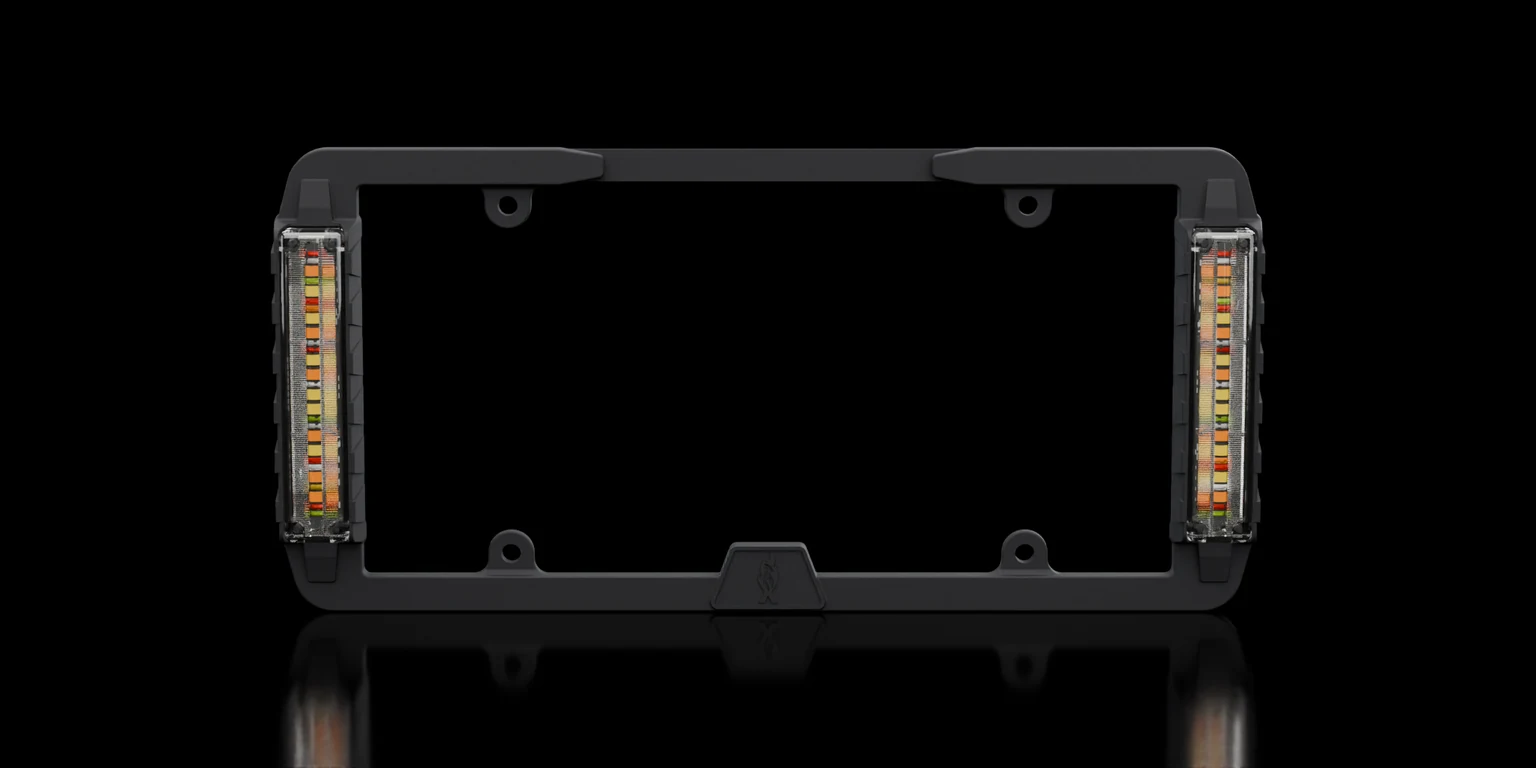

Q LICENSE PLATE MOUNT

QLP-26 · License plate perimeter light · five colors in every module · 60° optic

Color
All five colors in every module.
STEP 01Options
Technology Type
STEP 02Cable length
$239 1
$19 Flat Rate
Shipping

Pattern Studio

Q LICENSE PLATE MOUNT · PERIMETER INSTALL · FIVE COLORS IN ONE MODULE
Modules installed
Colors
5 colors in one module

Pick your control

3-Mode hardwire · or Serial with Q Link
1 · 3-Modeany 12V switch · 3 modes · 14 patternsHardwire it like any light: three user-programmable modes on three input wires, 14 flash patterns, color-lock during installation. Syncs with all Quad, Lux and Q Series products.
2 · Serial2 serial wires · 21 patterns · Q Link requiredTwo serial wires carry everything. The lighthead joins a Q Link network — 21 flash patterns, tail, cruise, turn and brake signals, takedown, work light, and three brightness levels.
3 · Q Link27 inputs · 16 zones · up to 48 lightheadsThe serial brain, sold separately: program function, pattern, brightness, color and zones per input with the free Q Link software — one device runs the whole perimeter.

Why Q Series

On the plate bolt patternMounts to the standard 7″ × 4.75″ license plate pattern with no drilling — the tag stays visible through the cover window.
5 colors in every moduleBlue, red, amber, white and green — two 27-LED Q modules behind one cover.
60° wide spreadBright wide-angle optics for off-axis visibility.
3-Mode or SerialHardwired with 3 modes and 14 patterns, or serial control with 21 patterns via Q Link.
Q Link programmable27 programmable inputs and 16 zones — one Q Link runs up to 48 lightheads.
Cast aluminum coverADC12 cover and 5052 aluminum bracket in textured black powder coat · IP67 · 5-year warranty.

Specifications

LED count54 LEDs
Current draw2 A @ 13 V
Input voltage10–18 V DC
Optical spread60°
Dimensions13.30″ × 6.31″ × 0.98″
Cable15 ft standard · waterproof disconnect harness ×2
In the boxTwo-piece license plate bracket · two Q Surface Mounts (3-Mode or Serial, to match) · two 15 ft harnesses · eight mounting screws
Warranty5-year manufacturer
OriginMade in the USA
SAE J595CA TITLE 13NFPA KKKECE R65 CLASS 1IP67
Q License Plate Mount

About the series

The Feniex Q Series is the first five-color perimeter lighting family — blue, red, amber, white and green in every module, 31 color settings from one part number. Its smart modules hardwire to any 12V switch or controller in 3-Mode, or join a Q Link serial network for computer-programmed functions, patterns, brightness, colors and zones. Covered by the Feniex 5-year warranty.

Documents & training

PDFManual · 3-Modewiring · patterns · programming PDFManual · Serialwiring · patterns · programming PDFCut Sheet · 3-Modedimensions · draw · certifications PDFCut Sheet · Serialdimensions · draw · certifications EXEQ Link Software · Windowsv0.0.33 · free download DMGQ Link Software · Macv0.0.33 · free download COURSEFeniex Universityinstall & programming video courses
