ILLUMINATION / FUSION SERIES
FUSION 20 WORK LIGHT
WL-2024 · Steady-on work light
Color
White illumination.
STEP 01Cable length10 ft included
10 ftIncluded20 ft+$2530 ft+$50
Fusion 20 Work Light
$159
1
Why Fusion
Steady-on white lightPure work lighting — one mode, on the wire.
24 LEDsAcross a rugged aluminum extrusion.
Four sizes, one family20, 30, 40 and 50 — pick the length the job needs.
Universal mountAll vehicle makes and models.
IP67 waterproof5-year warranty.
Specifications
| LED count | 24 LEDs |
| Current draw | 3 A |
| Input voltage | 10–18 V DC |

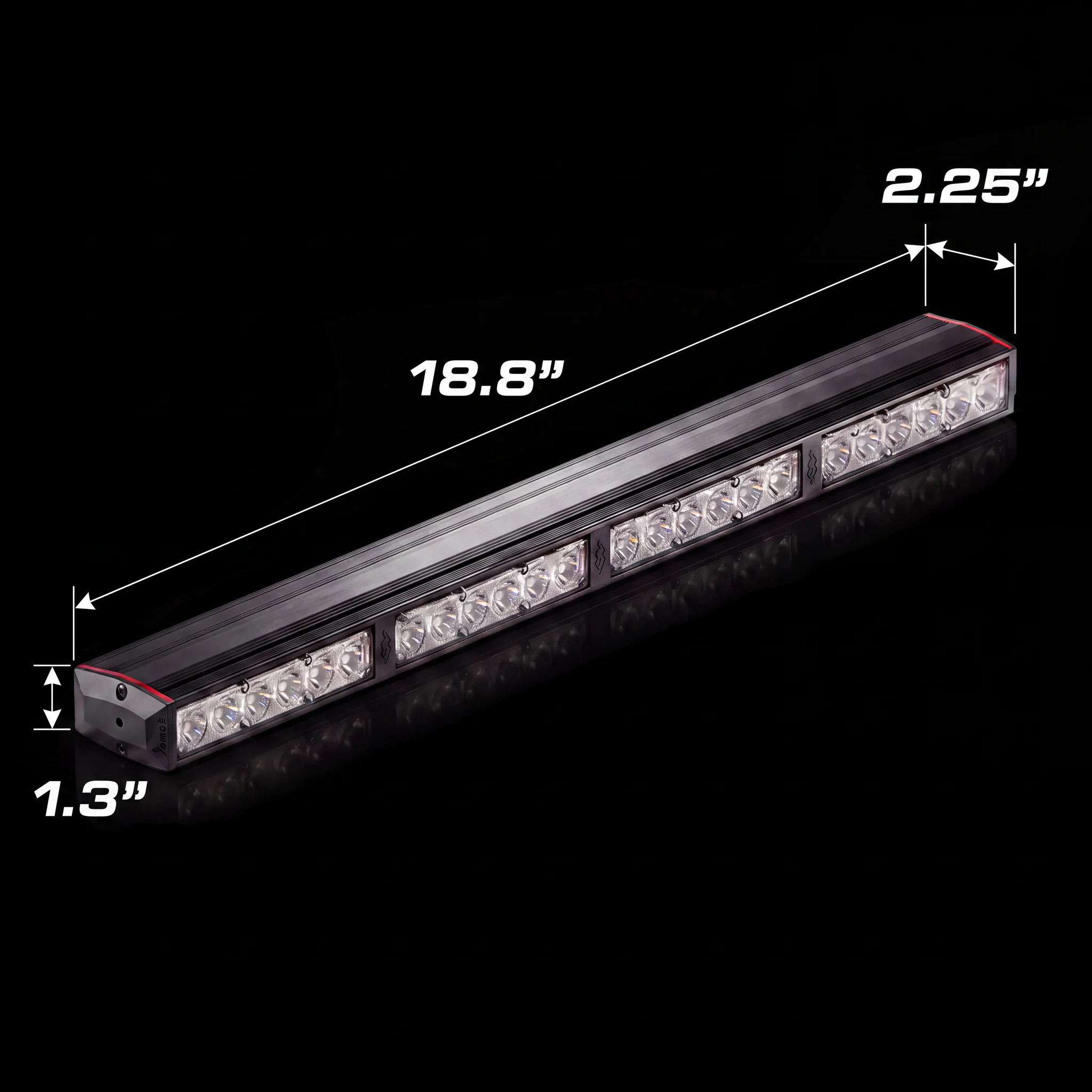

| Dimensions | 18.8″ L × 2.25″ W × 1.25″ H |
| Cable | 10 ft standard · 14-pin · 20 AWG |
| External fuse | 125% of product load |
| Warranty | 5-year manufacturer |
IP67
About the series
The Fusion work lights are pure scene lighting — a single steady-on white output across a rugged aluminum extrusion, wired straight to the vehicle with no patterns to program and no modes to select. Four lengths share one optic and one mount pattern, so the 20, 30, 40 and 50 differ only in how much of the scene they cover. IP67 sealed and built in Austin, TX.
