FULL SIZE LIGHTBARS / QUANTUM SERIES
QUANTUM 49”
QT-4918S-SD · Full-size lightbar · five colors in one bar · patented Unlock technology
STEP 01Color · Unlock Level
Your programming options10 combinations
Dual: five colors in every module — only two can be programmed per module.
Full unlock exclusive
10-YEAR WARRANTY
Every color in every module and 2× the warranty.
STEP 02Mounting
STEP 03Vehicle Type
STEP 04Cable length10 ft included
10 ftIncluded20 ft+$5030 ft+$100
Full · Standard foot · 10 ft
$1,999
1
Pattern Studio
View
Unlock level
Colors
Select number of colors per level
Unlock, explained
one bar · three levels · upgrade any time with softwareWhy Quantum
Computer programmableUnlock Quantum software — levels, patterns, module colors.
13 inputs standard28 programmable inputs with the optional converter.
20+ flash patternsFront, rear, arrow, DOT stop-turn-tail — all integrated.
60° optical spreadWide-angle light head geometry across all 702 LEDs.
Takedown · alley · floodWork lighting built into the bar — no add-on heads.
Aluminum top coverStructural reinforcement · 5-year warranty — 10-year with Full.
Specifications
| LED count | 702 LEDs |
| Light modules | 26 modules |
| Current draw | 20 A @ 13 V |
| Input voltage | 10–18 V DC |
| Optical spread | 60° |

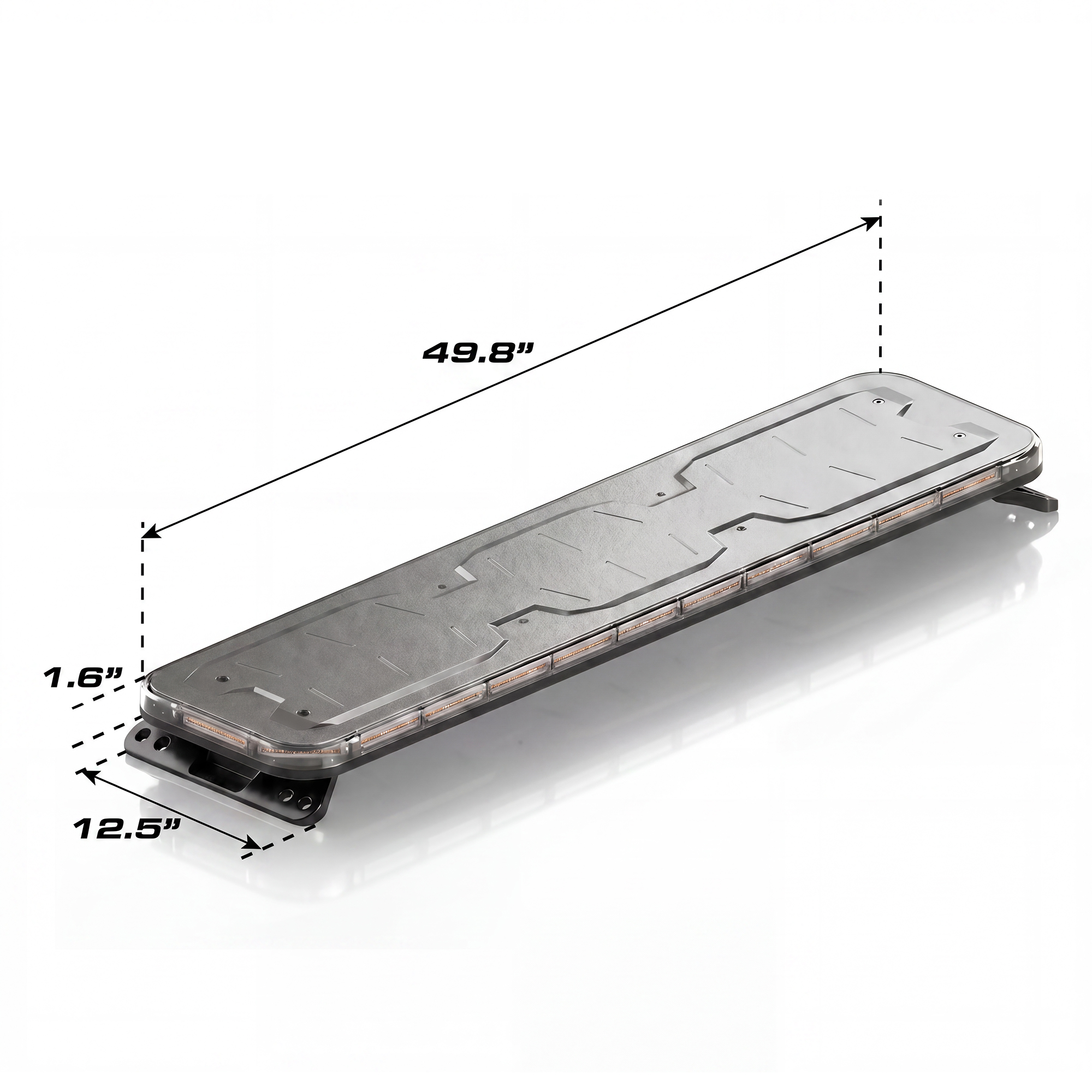

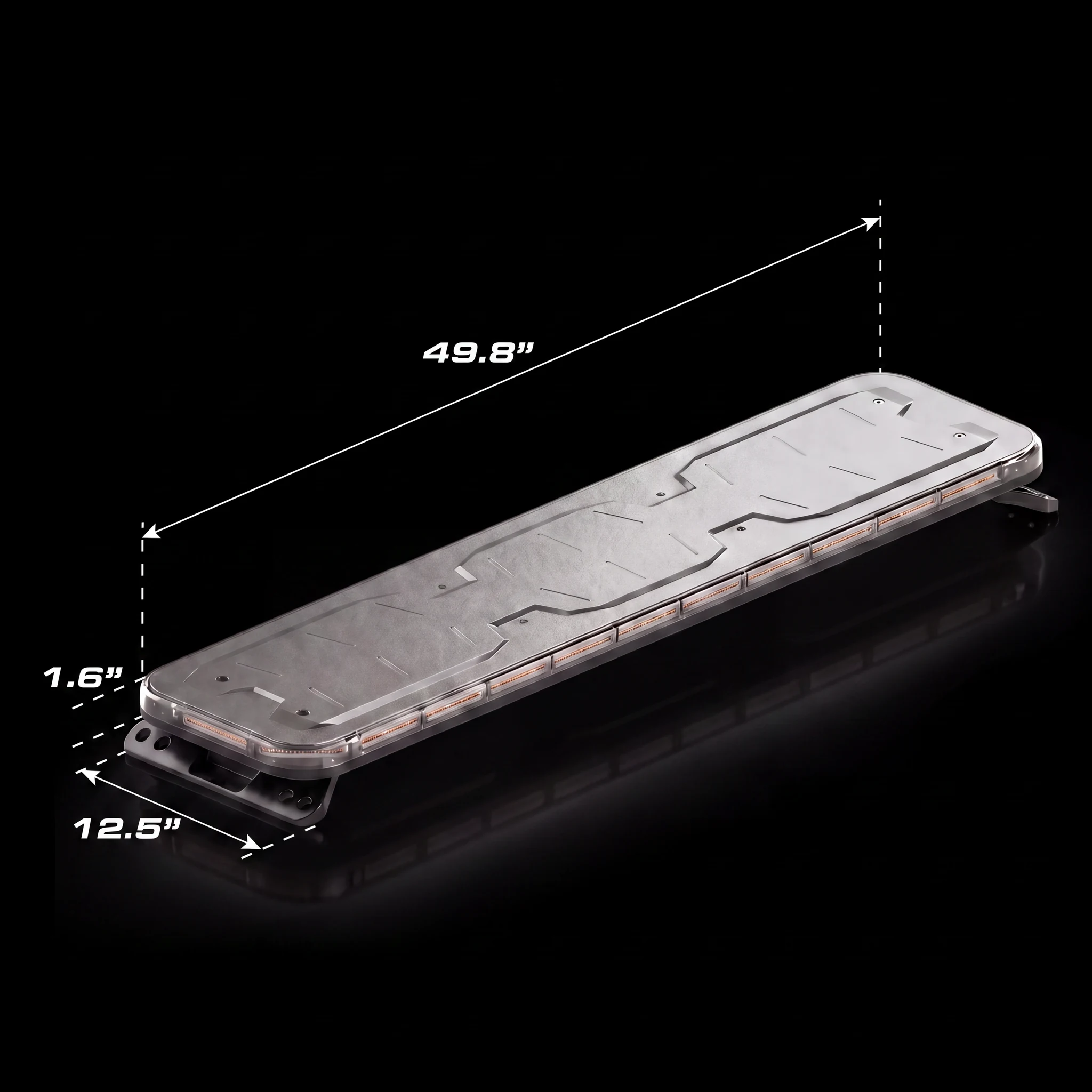

| Dimensions | 49.8″ L × 12.15″ W × 1.6″ H |
| Cable | 10 ft standard · 15-pin 20 AWG + 2-pin 16 AWG |
| Warranty | 5-year manufacturer — Dual & Tri Color 10-year manufacturer — Quantum Full Unlocked |
| Origin | Made in the USA |
SAE J595SAE J1113-11CA TITLE 13ECE R65NFPAIP67
About the series

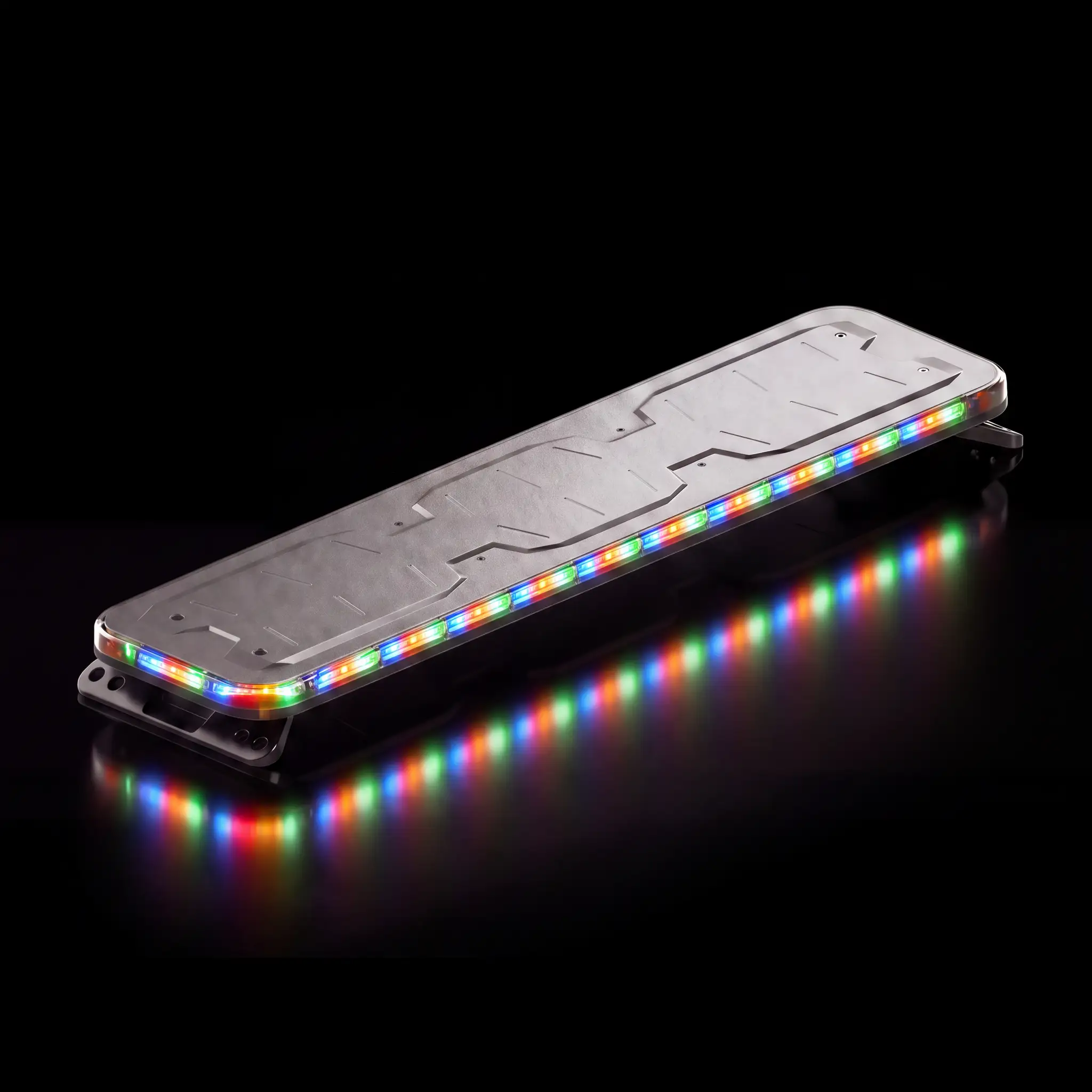

Feniex’s patented Quantum Series offers 5-color capable technology and is available in 3 progressive Unlock Levels: Dual, Tri, and Full. For a minimal unlock fee, all Feniex Quantum products can be unlocked to any desired Unlock Level — unrivaled customization to meet your exact needs without breaking the bank. The Quantum Series is capable of 5 vivid colors: Blue, Red, Amber, White, and Green.

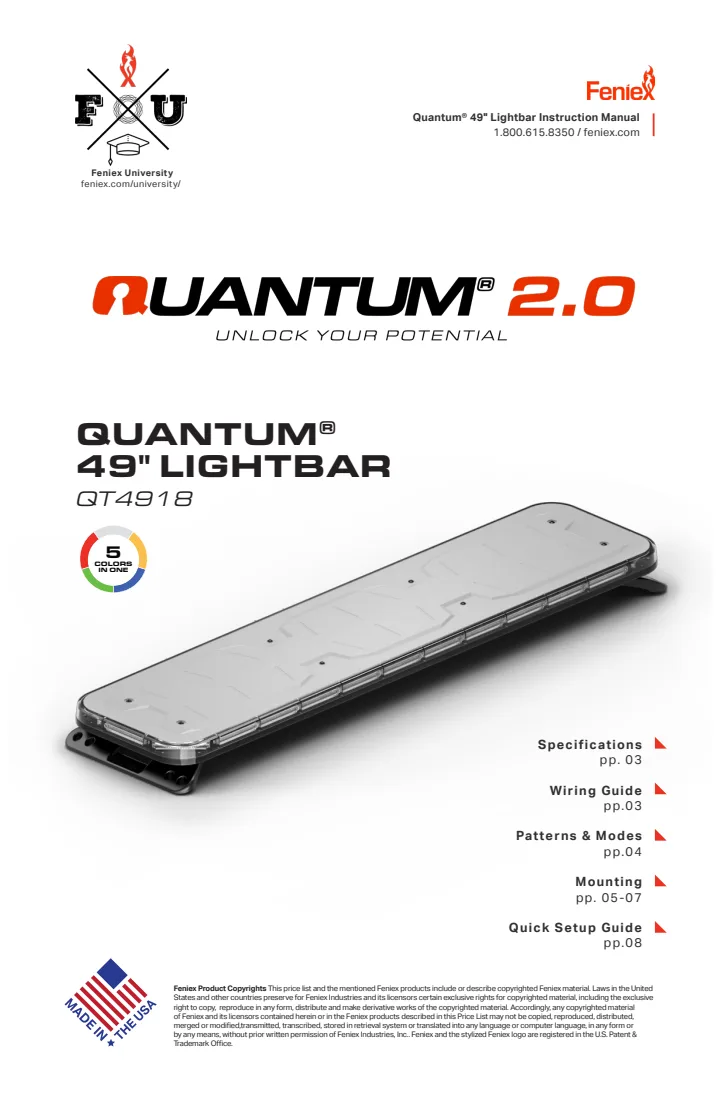

Documents & training
