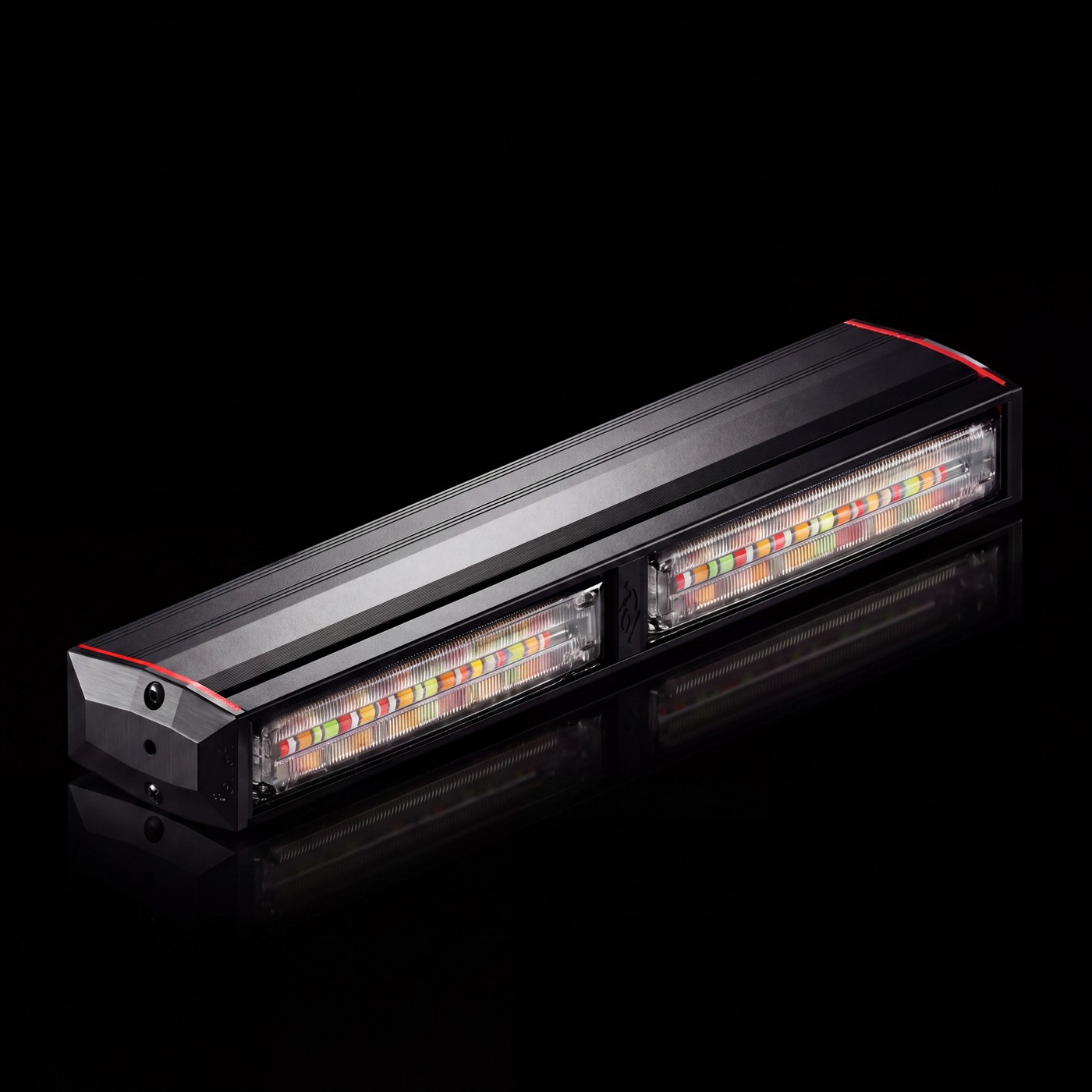

Feniex Q 200 Stick on the black stage
PERIMETER / Q SERIES

Q 200 STICK

Q SERIES · Compact stick light · five colors in every module · 60° optic

Color
All five colors in every module.
STEP 01Technology Type
STEP 03bracket
STEP 04Cable length1 ft included
1 ftIncluded11 ft+$1521 ft+$30
$239 1

Pattern Studio

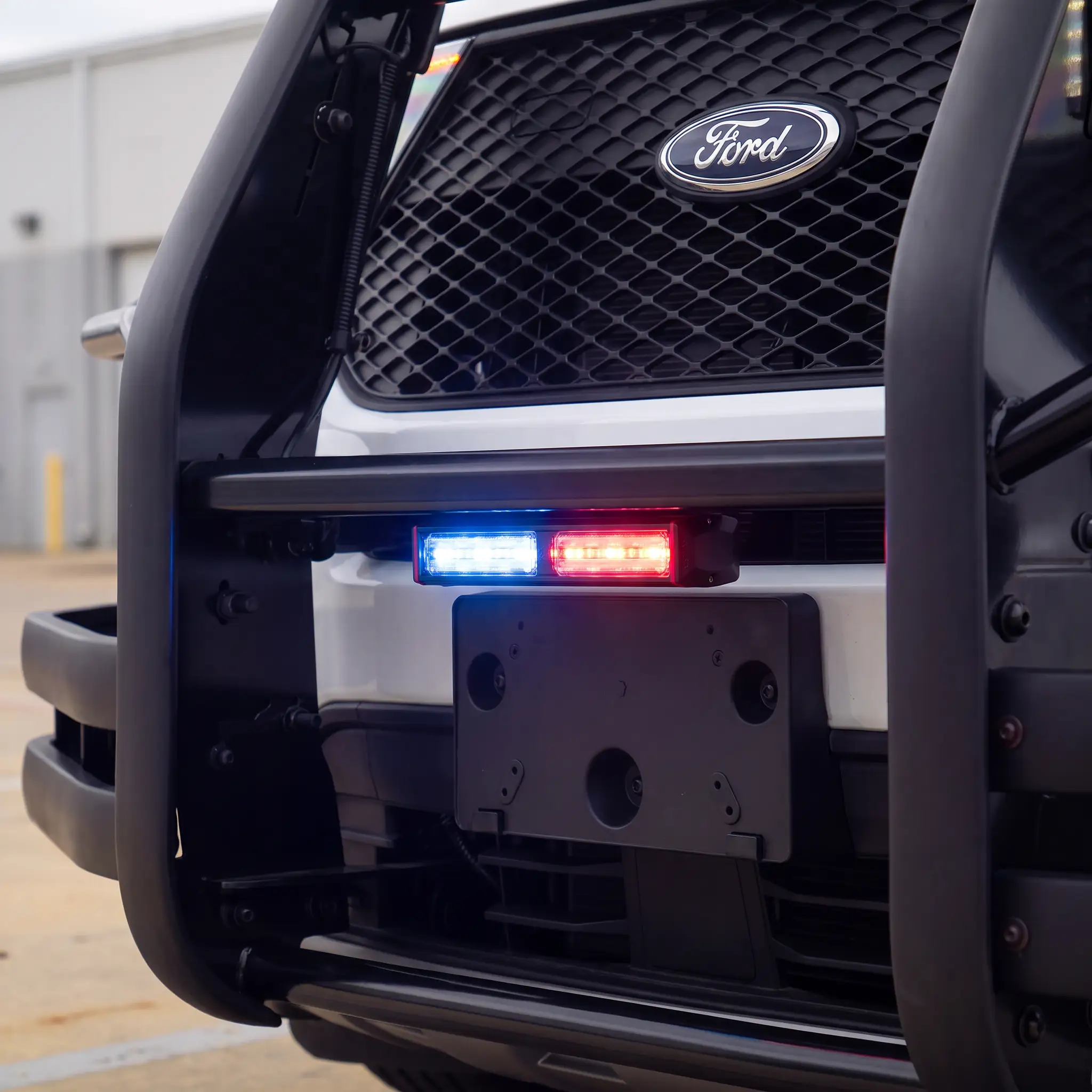

Q 200 STICK · PERIMETER INSTALL · FIVE COLORS IN ONE MODULE
Modules installed
Colors
5 colors in one module

Pick your control

3-Mode hardwire · or Serial with Q Link
1 · 3-Modeany 12V switch · 3 modes · 14 patternsHardwire it like any light: three user-programmable modes on three input wires, 14 flash patterns, color-lock during installation. Syncs with all Quad, Lux and Q Series products.
2 · Serial2 serial wires · 21 patterns · Q Link requiredTwo serial wires carry everything. The lighthead joins a Q Link network — 21 flash patterns, tail, cruise, turn and brake signals, takedown, work light, and three brightness levels.
3 · Q Link27 inputs · 16 zones · up to 48 lightheadsThe serial brain, sold separately: program function, pattern, brightness, color and zones per input with the free Q Link software — one device runs the whole perimeter.

Why Q Series

5 colors in every moduleBlue, red, amber, white and green — 31 color settings: single, dual, tri, quad and quint.
60° wide spreadBright wide-angle optics for off-axis visibility.
3-Mode or SerialHardwired with 3 modes and 14 patterns, or serial control with 21 patterns via Q Link.
Q Link programmable27 programmable inputs and 16 zones — one Q Link runs up to 48 lightheads.
Flood · cruise · stop-tail-turnIntegrated functions — takedown, work light, brake and turn signals on the serial platform.
IP67 · military-grade aluminumWaterproof, anti-yellowing clear-coated polycarbonate lens · 5-year warranty.

Specifications

LED count54 LEDs
Current draw2 A @ 13 V
Input voltage10–18 V DC
Optical spread60°

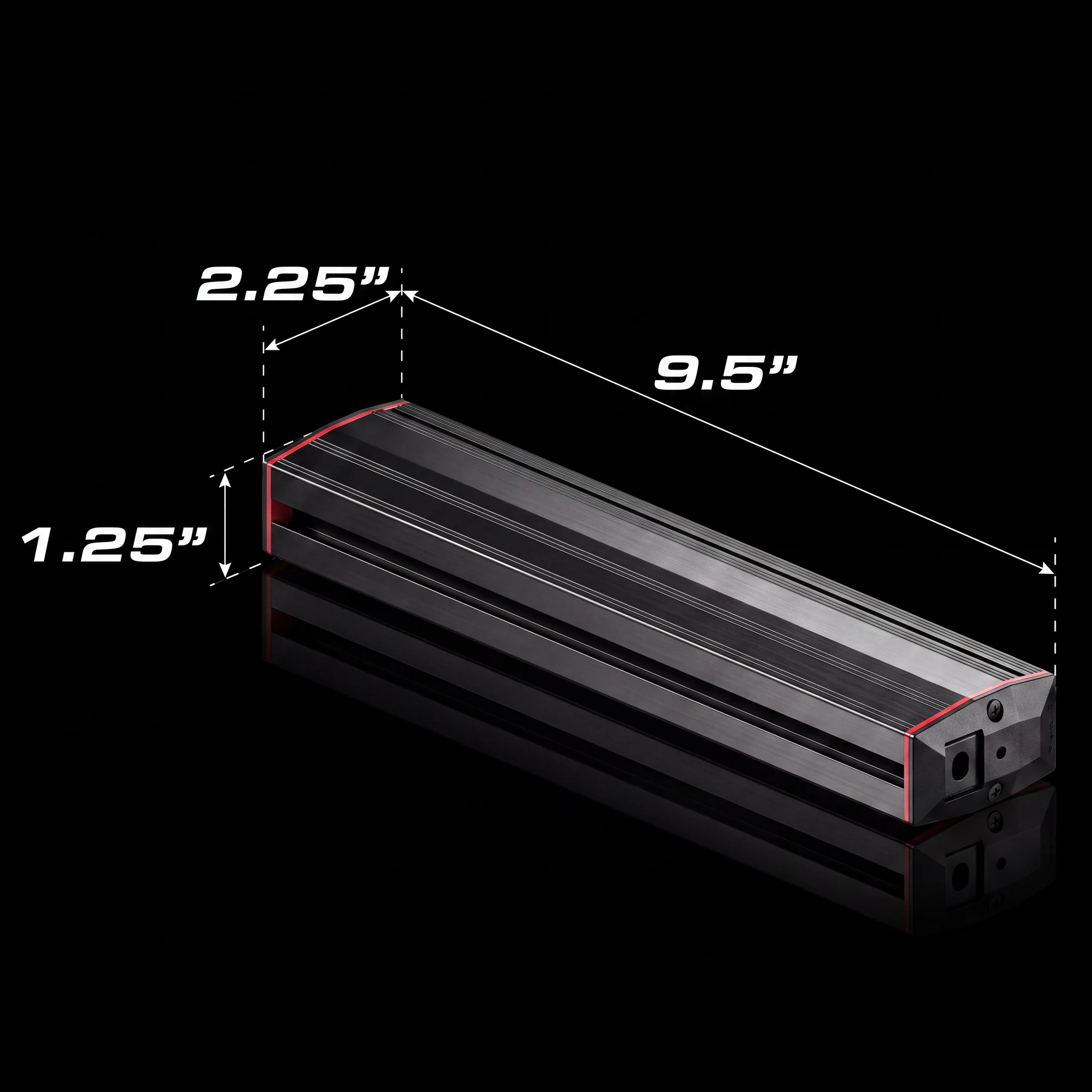

Dimensions9.5″ L × 2.25″ W × 1.25″ H
Cable1 ft standard · 6-pin · 20 AWG
In the boxQ Series module · mounting bezel · foam gasket · screws
Warranty5-year manufacturer
OriginMade in the USA
SAE J595ECE R65 CLASS 1CA TITLE 13IP67
Q 200 Stick

5 Star Reviews

1 review · from Ultra Bright Lightz
  • AMAZING

    A little hard to wireat first because the wires are small but if you know how to run wire and use a solder gun then these are the lights you need!

    Zach r. Verified buyer via Ultra Bright Lightz

Every Feniex review →

About the series

The Feniex Q Series is the first five-color perimeter lighting family — blue, red, amber, white and green in every module, 31 color settings from one part number. Its smart modules hardwire to any 12V switch or controller in 3-Mode, or join a Q Link serial network for computer-programmed functions, patterns, brightness, colors and zones. Covered by the Feniex 5-year warranty.

Documents & training

PDFManual · 3-Modewiring · patterns · programming PDFManual · Serialwiring · patterns · programming PDFCut Sheet · 3-Modedimensions · draw · certifications PDFCut Sheet · Serialdimensions · draw · certifications COURSEFeniex Universityinstall & programming video courses
