Feniex Fusion-A Tow 60" | Full Size Lightbars | Feniex Industries

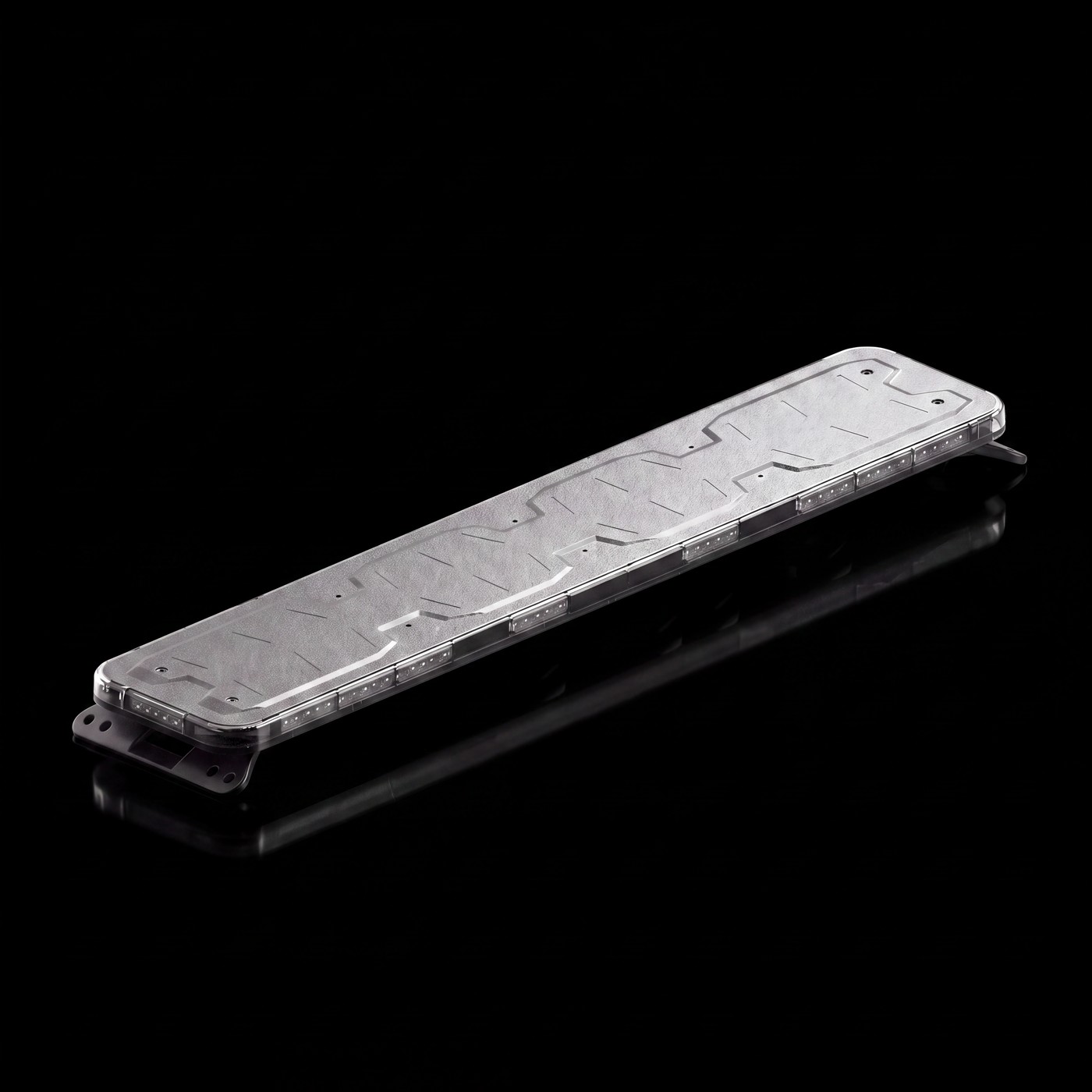

Feniex Fusion-A Tow 60 on the black stage
FULL SIZE LIGHTBARS / FUSION AMBER SERIES

FUSION-A TOW 60”

FS-0320 · All-amber tow lightbar · 40° optic · 21,600 lumens

Color

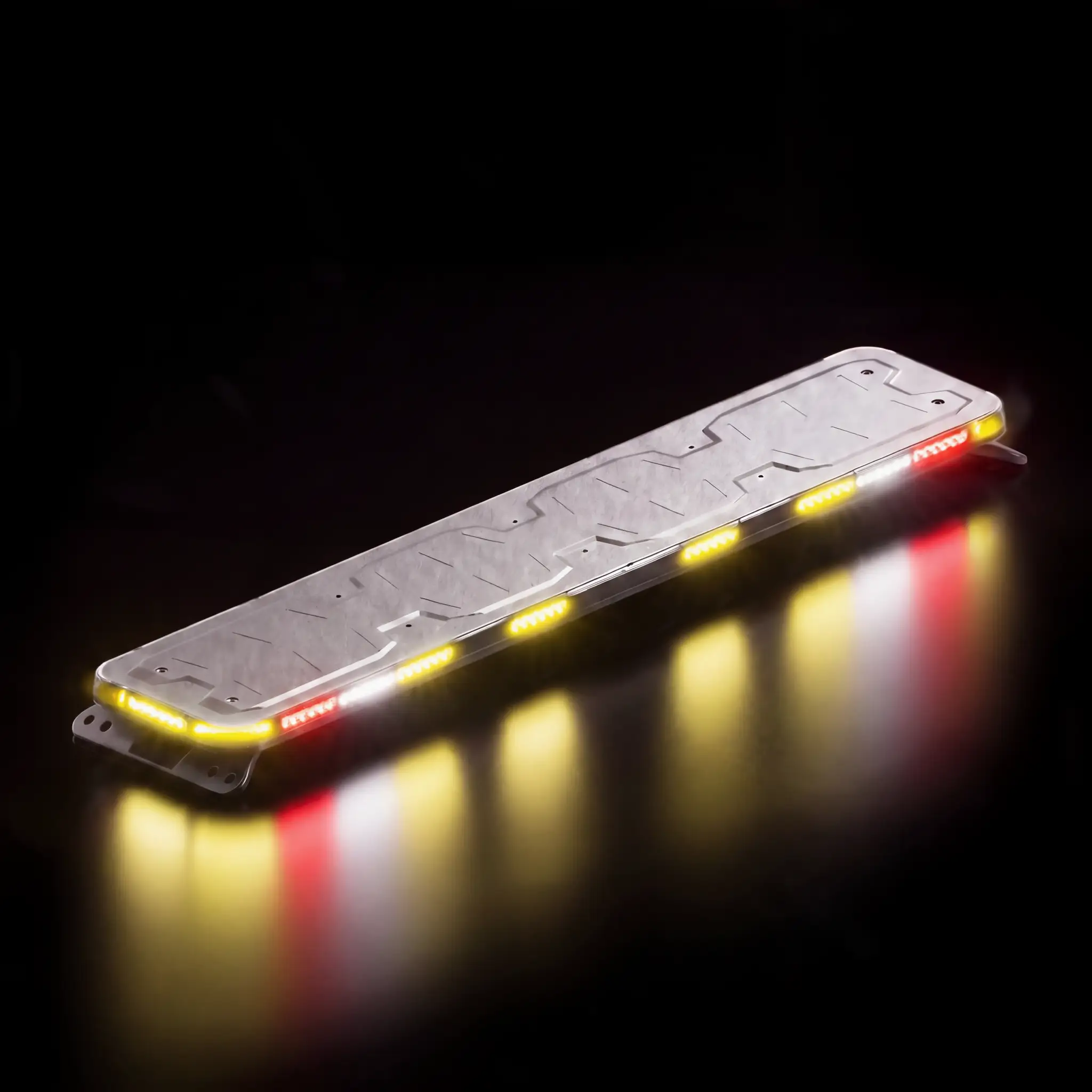

Amber warningDirectional and hazard flash toward traffic.
White work lightsFlood light for the operator at the hookup.
Red stop-turn-tailRuns with the truck’s brake and turn signals.
STEP 01Mounting
STEP 02Vehicle Type
STEP 03Cable length
$1,049 1
$39 Flat Rate Shipping
Per Lightbar

Pattern Studio

FUSION-A TOW 60 · FACTORY TOW CONFIGURATION
View

Why Fusion

40° optic · 21,600 lumensThe Fusion Amber line — long-range visibility, 20% less money than the single-color Fusion products.
108 LEDsAll-amber single-color modules.
21 flash patternsWarning, traffic advisor and takedown modes, programmable in the field.
Controller-drivenPairs with the 4200 Mini, 4200 DL, Typhoon and Feniex ONE — stop/turn/tail, takedown, dim.
Stop-turn-tail · work lightIntegrated DOT and work-light functions — switched in the field.
Military-grade aluminumAnti-yellowing, anti-cracking clear-coated polycarbonate lens · 5-year warranty.

Specifications

LED count108 LEDs
Current draw14 A
Input voltage10–18 V DC
Optical spread40°
Dimensions59.8″ L × 11.8″ W × 1.6″ H
Cable10 ft standard · 12-wire harness
External fuse15 A
Warranty5-year manufacturer
OriginMade in the USA
SAE J595SAE J1113ECE R65 CLASS 1CA TITLE 13NFPA KKKIP66
Fusion-A Tow 60

About the series

The Fusion Amber series offers affordable, quality, American-made lighting — 20% less money than the single-color Fusion products, in all-amber configurations. Stop, turn, tail and work-light functions are integrated, and the bar pairs with the 4200 Mini, 4200 DL, Typhoon and Feniex ONE controllers.

Documents & training

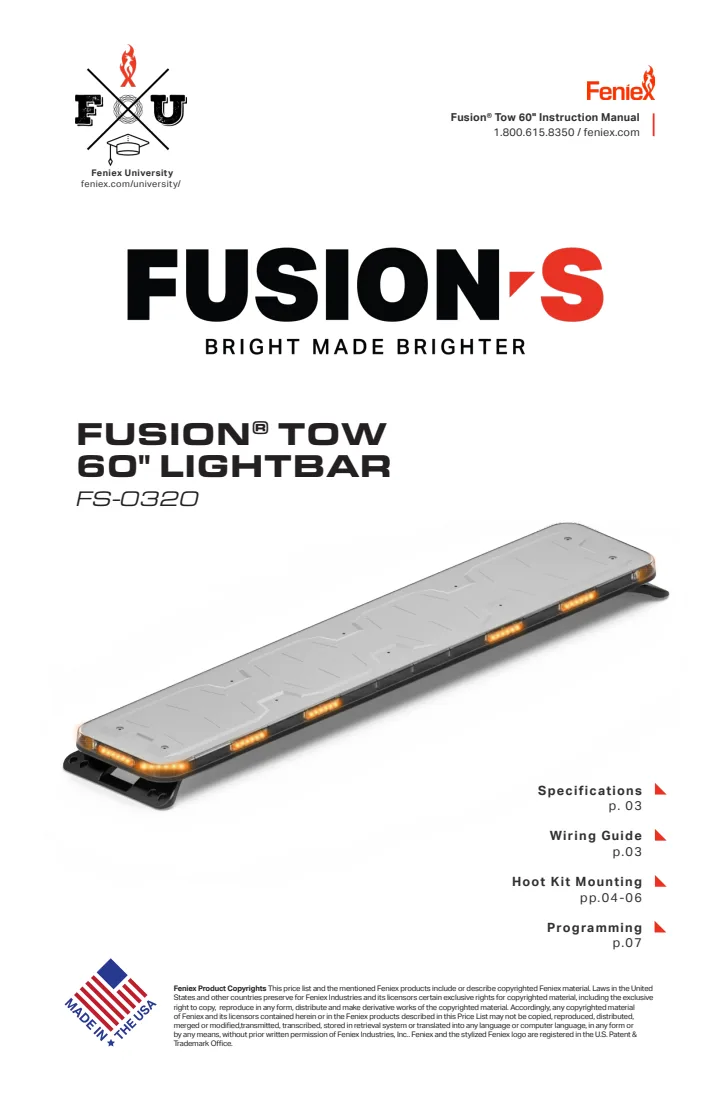

PDFInstruction Manualwiring · patterns · programming PDFCut Sheetdimensions · draw · certifications COURSEFeniex Universityinstall & programming video courses
