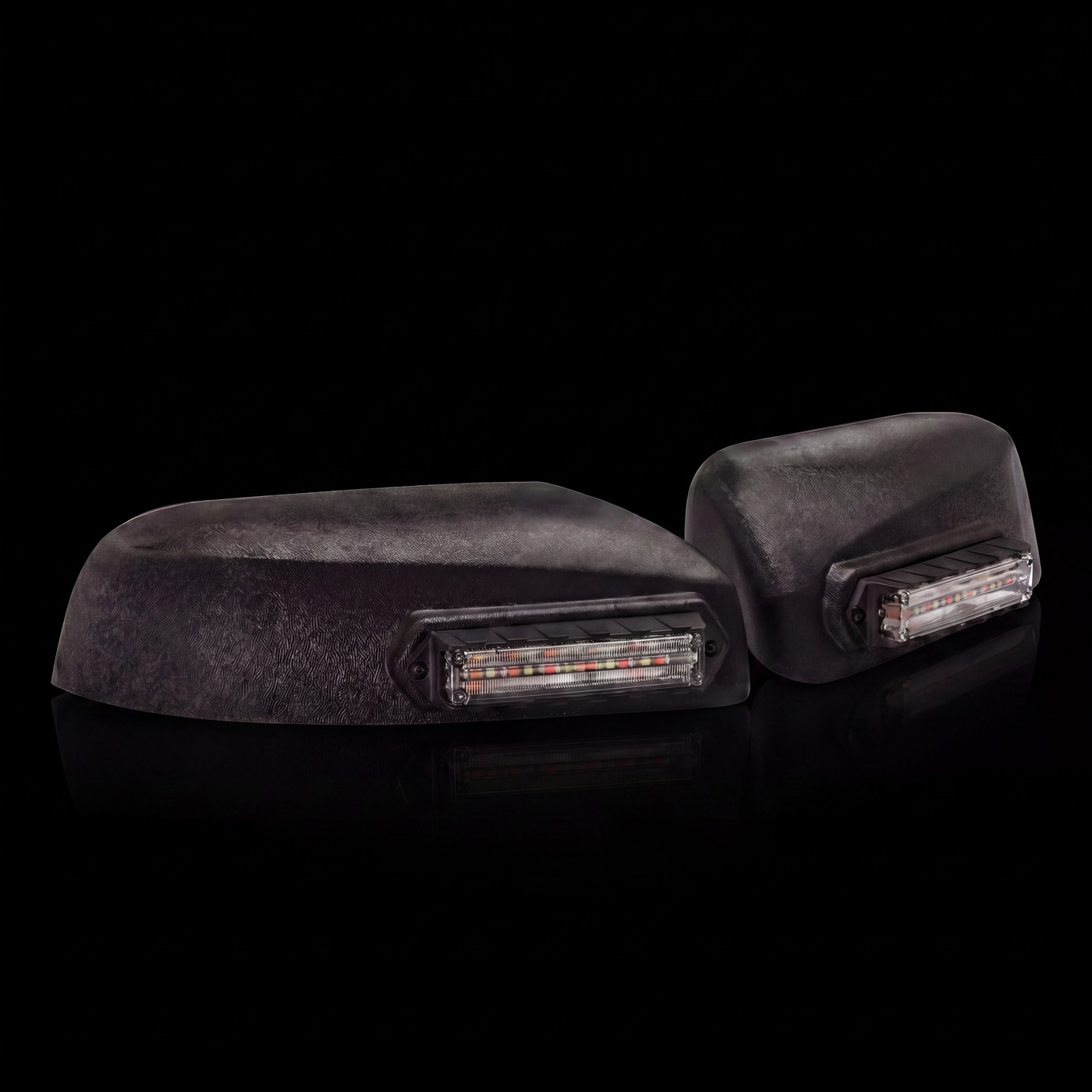

Feniex Q Mirror Mount on the black stage

PERIMETER / Q SERIES

Q MIRROR MOUNT

Name: Q Mirror Mount
Brand: Feniex
SKU: QQ-1420FE
Price: 399.00 USD
Availability: InStock

QQ-1420FE · Mirror-mount perimeter light · five colors in every module · 60° optic

Color

All five colors in every module.

STEP 01Technology Type

STEP 02Vehicle

Select Vehicle

STEP 03Cable length

$399 1

$19 Flat Rate
Shipping

Pattern Studio

Q MIRROR MOUNT · FIVE COLORS IN ONE MODULE

View

Colors

all five live in every module — they swap in time

Pick your control

3-Mode hardwire · or Serial with Q Link

1 · 3-Modeany 12V switch · 3 modes · 14 patternsHardwire it like any light: three user-programmable modes on three input wires, 14 flash patterns, color-lock during installation. Syncs with all Quad, Lux and Q Series products.

2 · Serial2 serial wires · 21 patterns · Q Link requiredTwo serial wires carry everything. The lighthead joins a Q Link network — 21 flash patterns, tail, cruise, turn and brake signals, takedown, work light, and three brightness levels.

3 · Q Link27 inputs · 16 zones · up to 16 lightheadsThe serial brain, sold separately: program function, pattern, brightness, color and zones per input with the free Q Link software — one device runs the whole perimeter.

Why Q Series

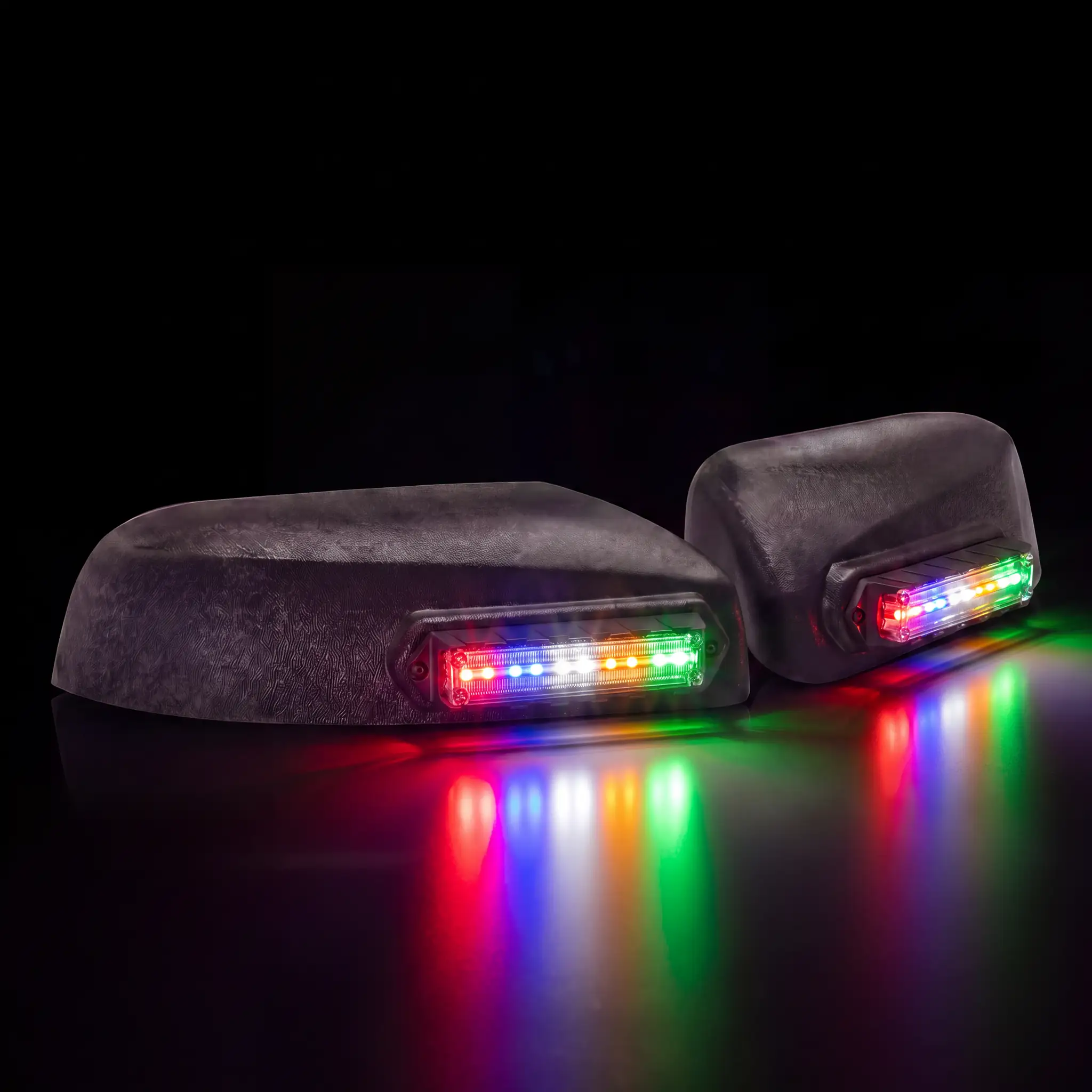

5 colors in every moduleBlue, red, amber, white and green — 31 color settings: single, dual, tri, quad and quint.

60° wide spreadBright wide-angle optics for off-axis visibility.

3-Mode or SerialHardwired with 3 modes and 14 patterns, or serial control with 21 patterns via Q Link.

Q Link programmable27 programmable inputs and 16 zones — one Q Link runs up to 16 lightheads.

Flood · cruise · stop-tail-turnIntegrated functions — takedown, work light, brake and turn signals on the serial platform.

IP67 · military-grade aluminumWaterproof, anti-yellowing clear-coated polycarbonate lens · 5-year warranty.

Specifications

LED count	54 LEDs
Current draw	2 A @ 13 V
Input voltage	10–18 V DC
Optical spread	60°

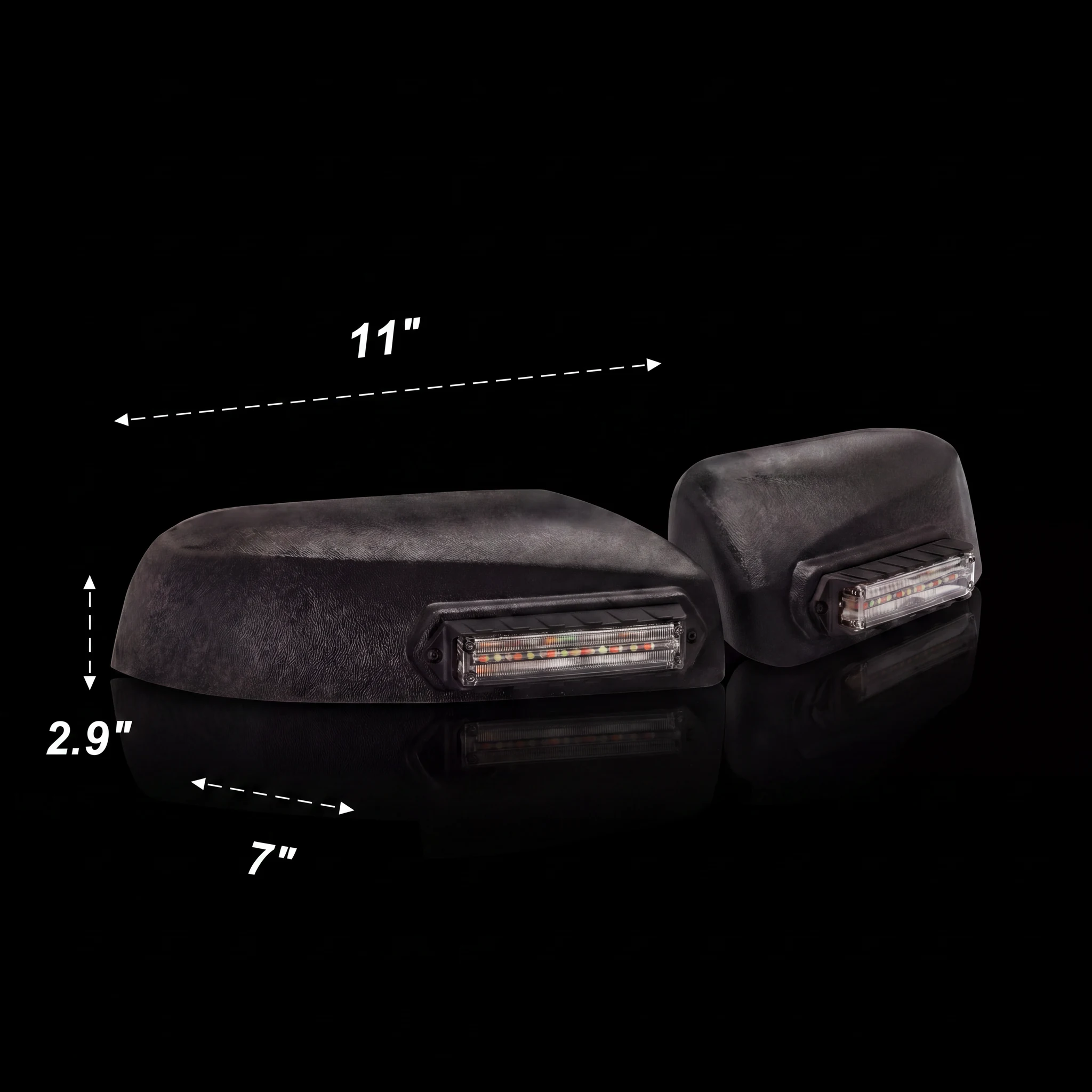

Dimensions	Vehicle-specific housing
Cable	1 ft (3-Mode) / 15 ft (Serial) standard · 6-pin · 20 AWG ×2 (3-Mode) · waterproof disconnect harness ×2 (Serial)
In the box	Left and right units (sold as a pair) · vehicle-specific housings · two 1 ft cables (3-Mode) or two 15 ft harnesses (Serial)
Warranty	5-year manufacturer
Origin	Made in the USA

SAE J595ECE R65 CLASS 1CA TITLE 13IP67

About the series

The Feniex Q Series is the first five-color perimeter lighting family — blue, red, amber, white and green in every module, 31 color settings from one part number. Its smart modules hardwire to any 12V switch or controller in 3-Mode, or join a Q Link serial network for computer-programmed functions, patterns, brightness, colors and zones. Covered by the Feniex 5-year warranty.

Documents & training

PDFManual · 3-Modewiring · patterns · programming PDFManual · Serialwiring · patterns · programming PDFCut Sheet · 3-Modedimensions · draw · certifications PDFCut Sheet · Serialdimensions · draw · certifications EXEQ Link Software · Windowsv0.0.33 · free download DMGQ Link Software · Macv0.0.33 · free download COURSEFeniex Universityinstall & programming video courses
