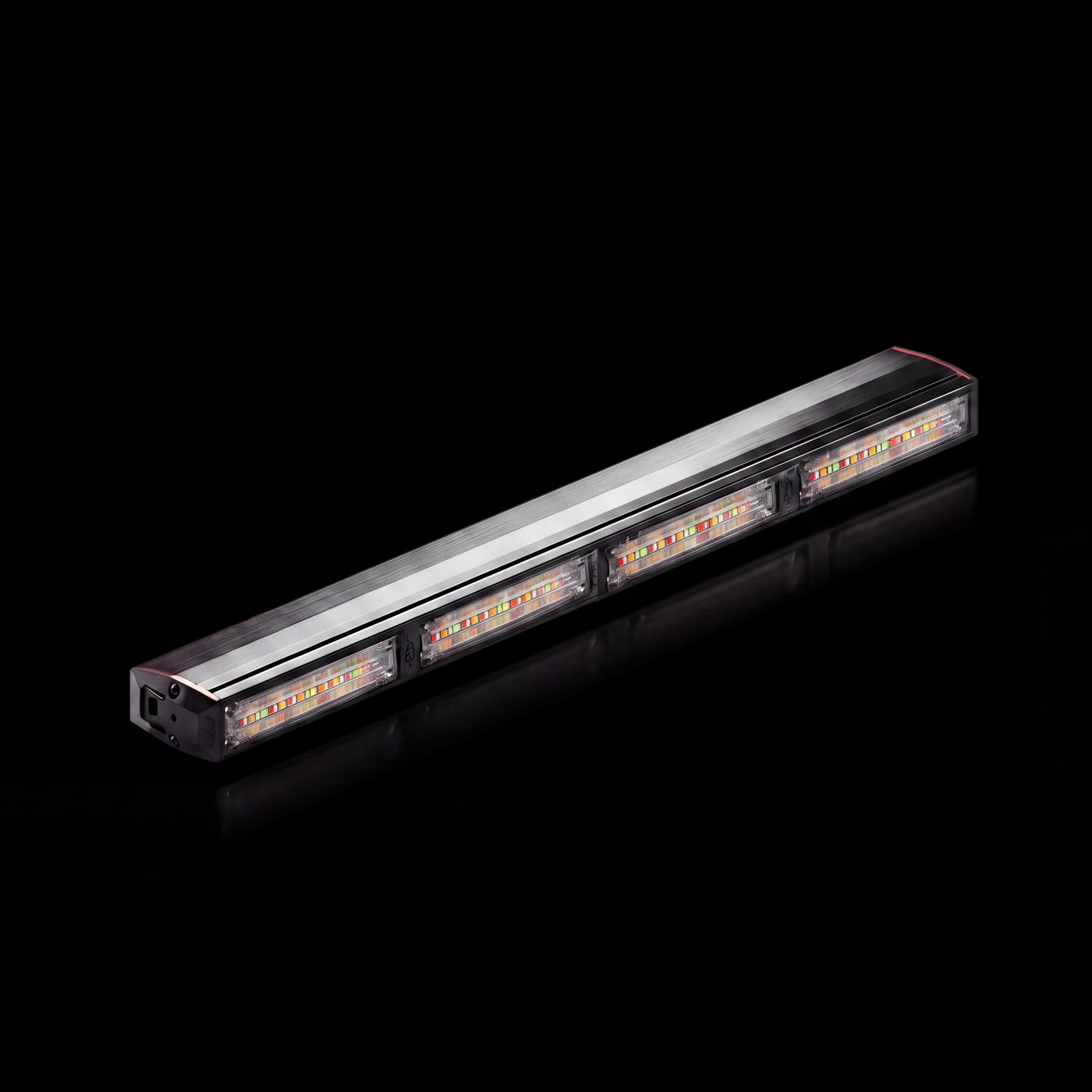

Feniex Quantum 400 lightbar on the black stage

STICK LIGHTS / QUANTUM SERIES

QUANTUM 400

Name: Quantum 400
Brand: Feniex
SKU: QT0420
Price: 389.00 USD
Availability: InStock

QT-0420-SD · Stick light · five colors in one bar · patented Unlock technology

STEP 01Color · Unlock Level

Your programming options10 combinations

Dual: five colors in every module — only two can be programmed per module.

Full unlock exclusive

10-YEAR WARRANTY

Every color in every module and 2× the warranty.

STEP 02Bracket

Bracket

STEP 03Cable length

$389 1

Ask Eve about this light Answers from the manual, the catalog and Feniex policy

Pattern Studio

QUANTUM 400

Unlock level

Colors

Select number of colors per level

Why Quantum

Computer programmableUnlock Quantum software — levels, patterns, module colors.

13 inputs standard28 programmable inputs with the optional converter.

20+ flash patternsFront, rear, arrow, DOT stop-turn-tail — all integrated.

60° optical spreadWide-angle light head geometry across all 108 LEDs.

Takedown · alley · floodWork lighting built into the bar — no add-on heads.

Aluminum top coverStructural reinforcement · 5-year warranty — 10-year with Full.

Specifications

LED count	108 LEDs
Light modules	4 modules
Current draw	3 A @ 13 V
Input voltage	10–18 V DC
Optical spread	60°

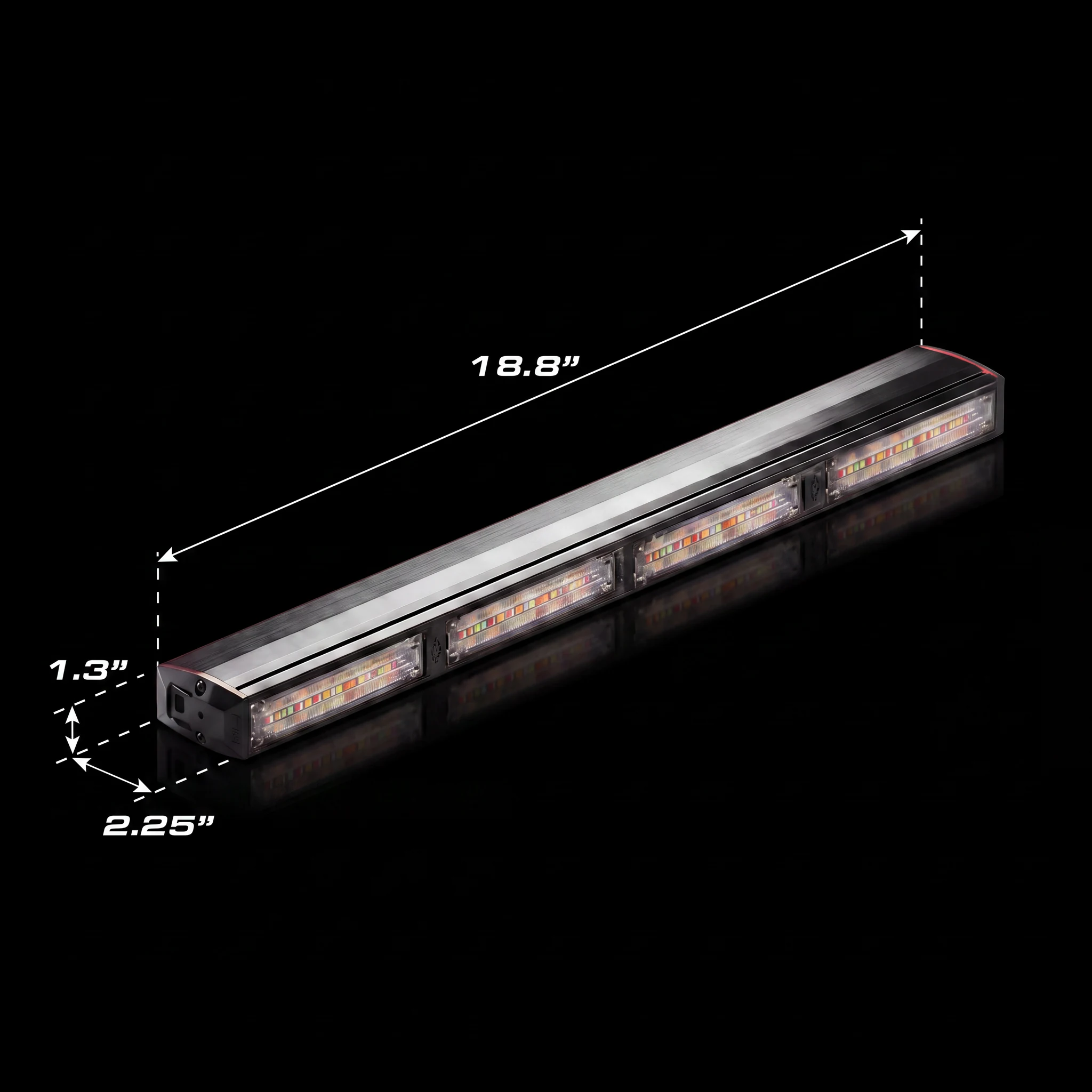

Dimensions	18.8″ L × 2.25″ W × 1.25″ H
Cable	10 ft · 14-pin 20 AWG
Warranty	5-year manufacturer — Dual & Tri Color 10-year manufacturer — Quantum Full Unlocked
Origin	Made in the USA

SAE J595SAE J1113-11CA TITLE 13ECE R65NFPAIP67

About the series

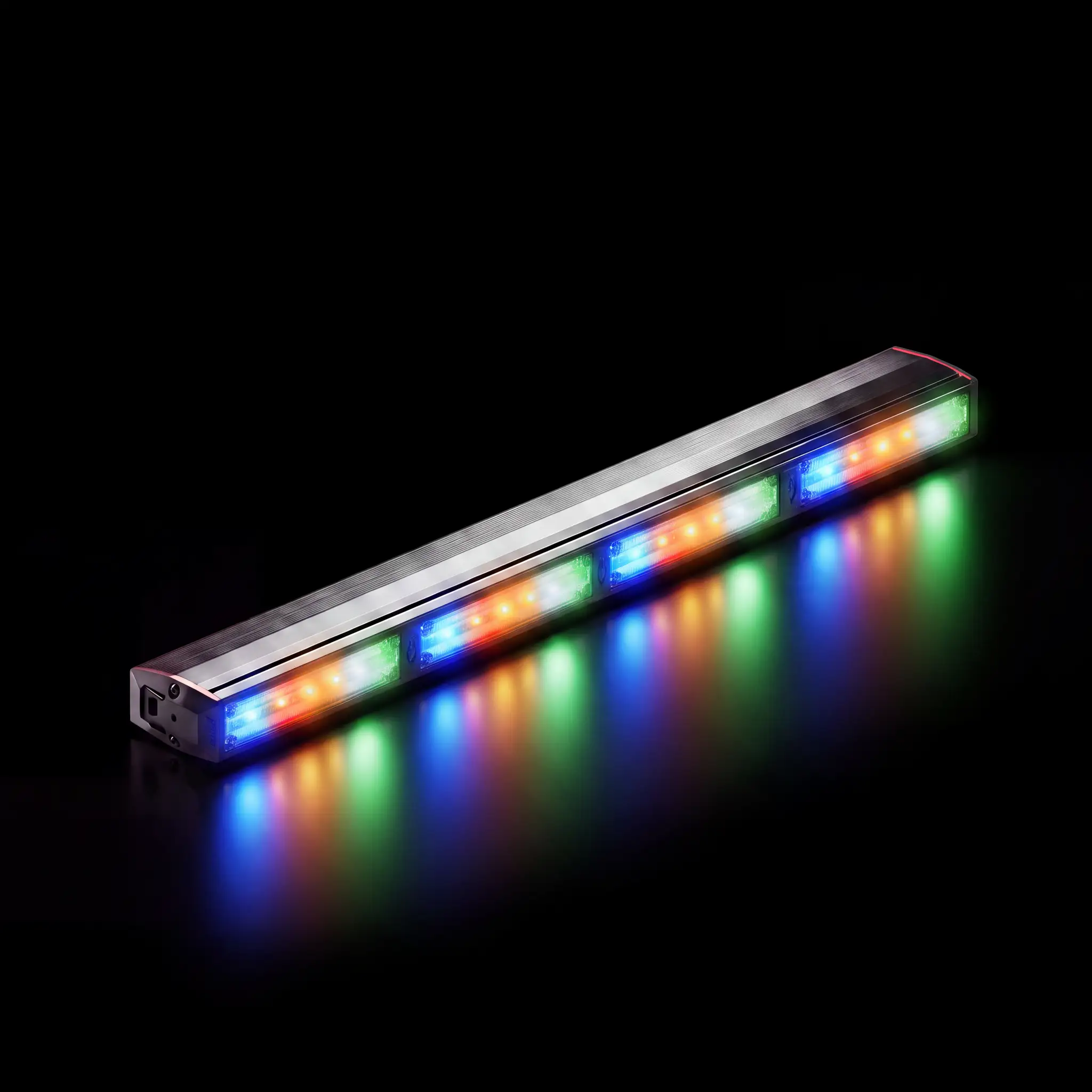

Feniex’s patented Quantum Series offers 5-color capable technology and is available in 3 progressive Unlock Levels: Dual, Tri, and Full. For a minimal unlock fee, all Feniex Quantum products can be unlocked to any desired Unlock Level — unrivaled customization to meet your exact needs without breaking the bank. The Quantum Series is capable of 5 vivid colors: Blue, Red, Amber, White, and Green.

Documents & training

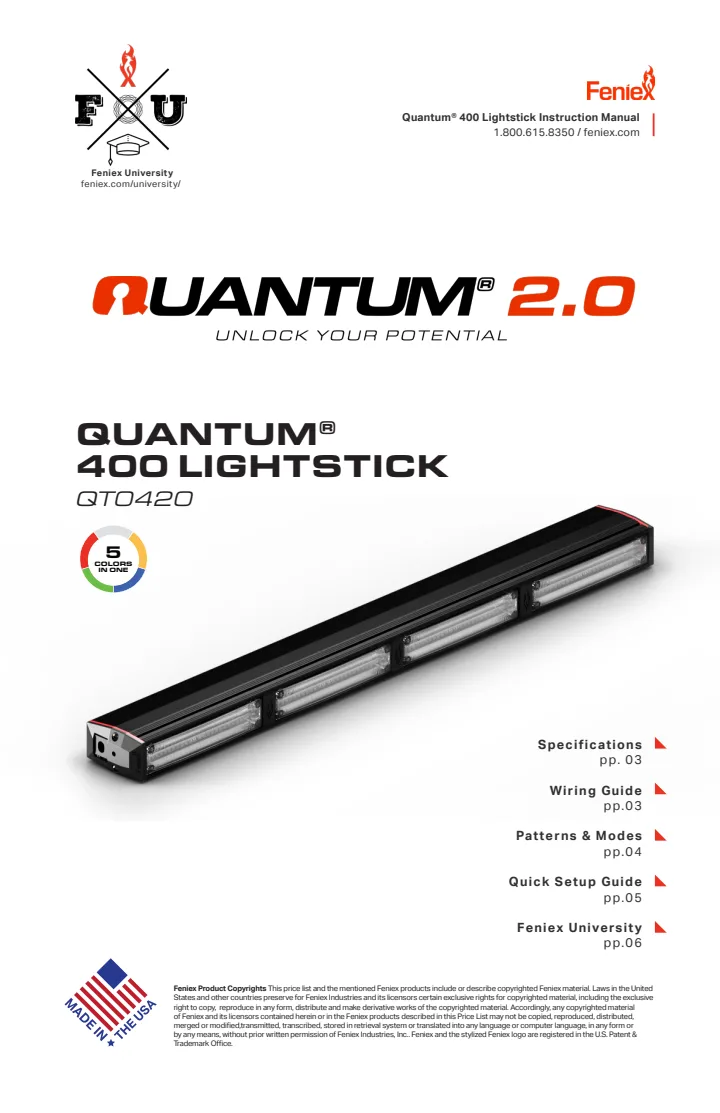

PDFInstruction Manualthe official manual, straight from the source PDFCut Sheetdimensions · draw · certifications 1. Choose your module(s): FRONT R B ALL ALL R R R R R TD TD B B B B B Click Lighthead To Deactivate STT R R R A WK WK A B B B STT 2. Function: Take Down Alley Stop Turn Tail Work Light 3. Assign Color: RED BLUE AMBER WHITE GREEN EXEUnlock Quantum Softwarelevel upgrades · patterns COURSEFeniex Universitythe Quantum 2.0 video course
