PERIMETER / FUSION SERIES
FUSION UNDER MIRROR

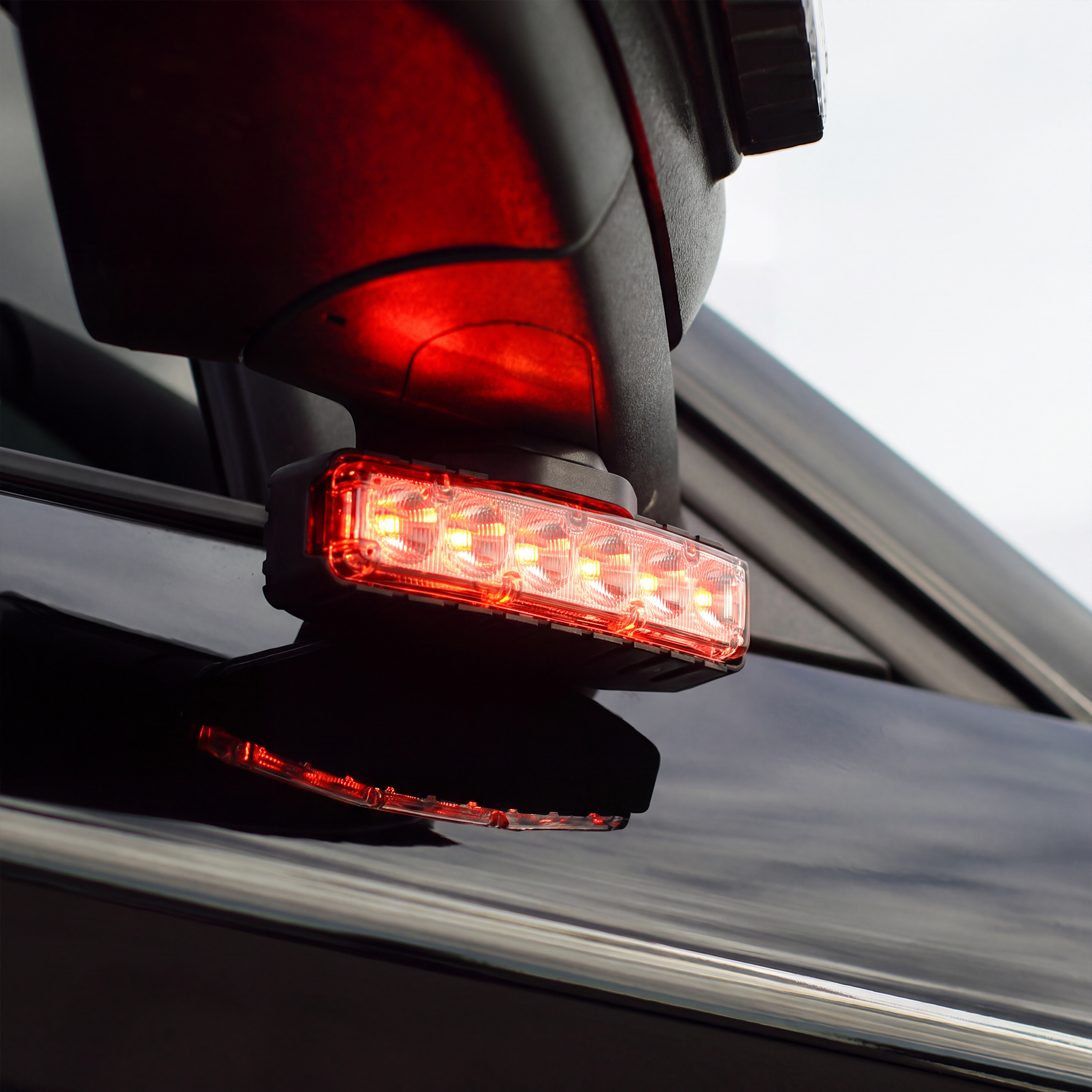

FUM-* · Under-mirror puddle light · 40° optic, 60% brighter
STEP 01Color
STEP 02Vehicle
STEP 03Cable length1 ft included
1 ftIncluded11 ft+$1521 ft+$30
Fusion Under Mirror
$89
1
Pattern Studio
FUSION UNDER MIRROR · PERIMETER INSTALL · IN THE COLORS YOU’D ORDER
Modules installed
Colors
one color per module
Mode
each module holds one color — mixed across the bar
Why Fusion
40° optic, 60% brighterThe Fusion-S optic — long-range visibility over the previous Fusion family.

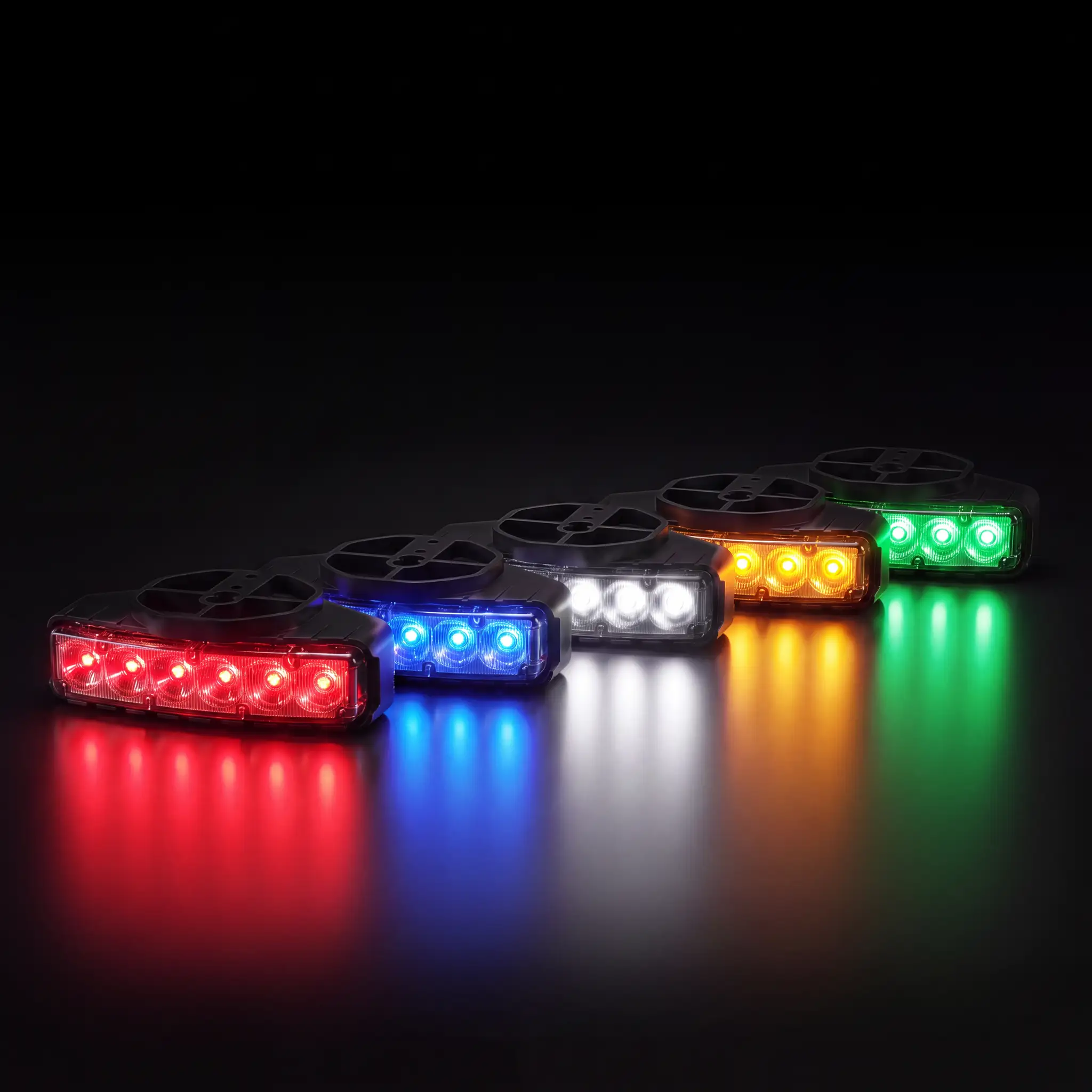

Five colors to pick fromBlue, red, amber, white or green — one color per unit, sold individually.
14 flash patternsPlus three programmable priority flashing modes.
Takedown · turn signalMode options beyond warning — field serviceable.
Syncs across the familyT3, Cannon, Mirror Puck and QSM run in step.
SAE Class 1 certifiedMade in the USA · 5-year warranty.
Specifications
| LED count | 6 LEDs |
| Current draw | 1 A |
| Input voltage | 10–18 V DC |
| Optical spread | 40° |

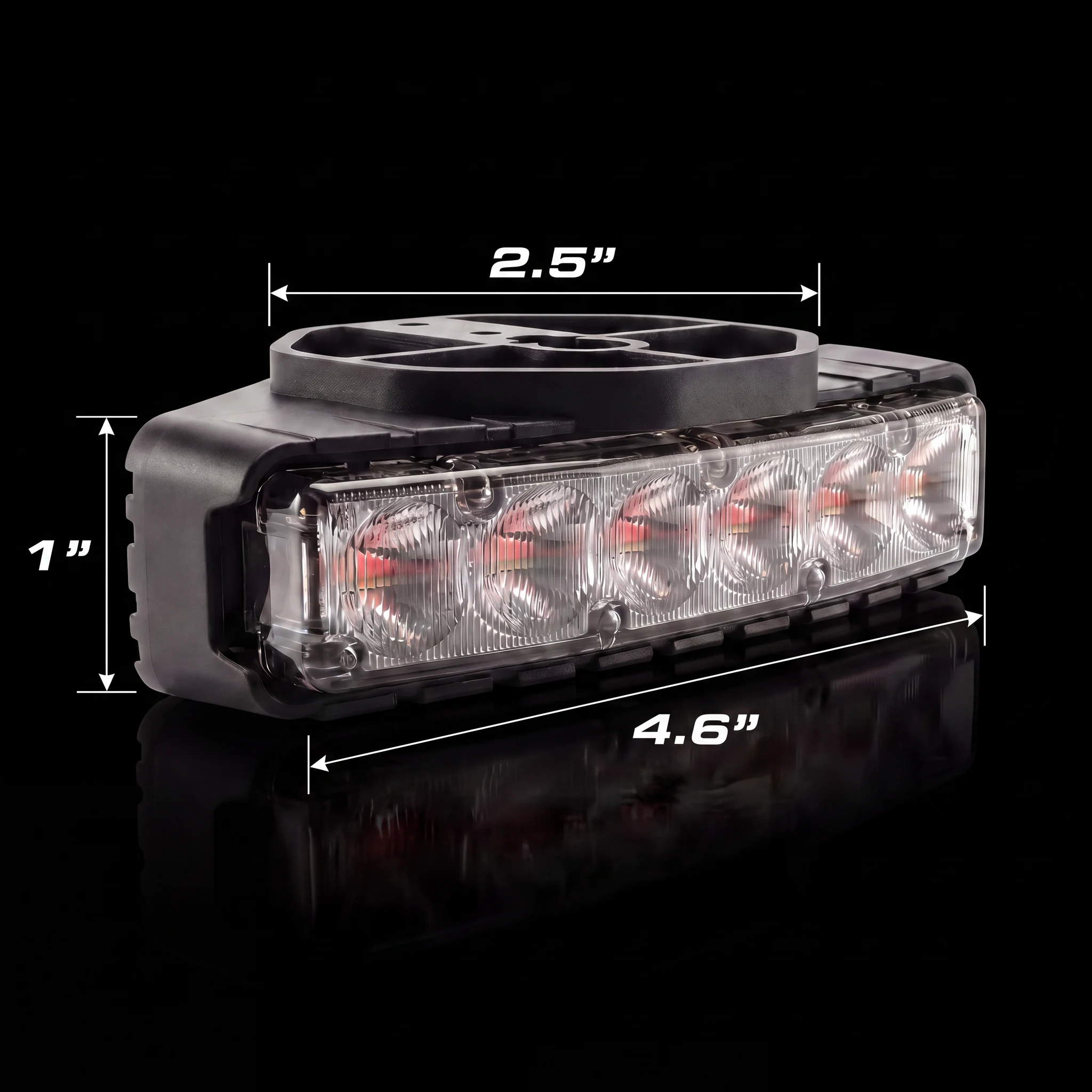

| Dimensions | 4.6″ L × 2.5″ W × 1″ H |
| Cable | 1 ft standard · 6-pin · 20 AWG |
| In the box | One under-mirror light (not sold as a pair) |
| External fuse | 125% of product load |
| Warranty | 5-year manufacturer |
| Origin | Made in the USA |
SAE J595 CLASS 1
About the series
The Feniex Fusion-S is the next evolution of the Fusion series — the world’s brightest and most competitively priced emergency warning line. User configurable in red, blue, amber, white and green, the Fusion-S offers a new and improved optic that is 60% brighter than the previous Fusion family. Single-color modules, programmed in the field.
