FULL SIZE LIGHTBARS / FUSION SERIES

FUSION 49”

FS-4918 · Full-size lightbar · single-color modules, laid out your way · 40° optic, 60% brighter

STEP 01Color · By Moduleone color per module · 26 modules
No build yet — every module is waiting for a color.
STEP 02Mounting
STEP 03Vehicle Type
STEP 04Cable length10 ft included
10 ftIncluded20 ft+$5030 ft+$100
$1,399 1

Pattern Studio

FUSION 49 · IN THE COLORS YOU BUILD
View
Your build
No build yet — nothing to play.
build your bar and its colors play here

Why Fusion

40° optic, 60% brighterThe Fusion-S optic — long-range visibility over the previous Fusion family.
156 LEDs · 26 modulesSingle-color modules in any layout — configured by you in Build-A-Bar.
15 flash patternsAttack, Cluster, Combo, Half-Half, One-One, Two-Two, All-On — front and rear.
28 programmable inputsFeniex Converter included — DOT stop/turn/tail, traffic advisor, cruise, cut-off, dim.
Takedown · alley · floodWork lighting built in — assigned per module in your build.
Military-grade aluminumAnti-yellowing, anti-cracking clear-coated polycarbonate lens · 5-year warranty.

Specifications

LED count156 LEDs
Light modules26 modules · single-color, user configured
Current draw15 A @ 13 V
Input voltage10–18 V DC
Optical spread40°
Dimensions49.2″ L × 11.8″ W × 1.6″ H
Cable10 ft standard · 12V+, ground, data A, data B
In the boxLightbar · standard foot mount · Feniex Converter
External fuse125% of product load
Warranty5-year manufacturer
OriginMade in the USA
SAE J595SAE J1113SAE J578SAE J575SAE J845ECE R65 CLASS 1CA TITLE 13NFPA KKKIP66
Fusion 49

5 Star Reviews

2 reviews · from Feniex.com

  • This is one of the most functional light bars I have seen yet. We mounted this bar on an 87 Suburban and it looks great. The slim design is a great upgrade to our vehicle and really shines day or night. So far, I feel like we have been receiving better results from motorists while responding to calls. Compared to our old rotator style bar, most drivers now pull over at least a half-mile before we reach them. The many functions work well with a slide switch so that we can change flash patterns on the fly. I would definitely recommend this bar to any department looking to upgrade there light set-up to 21st century technology. As a bonus it comes at a great price! We will be hopefully purchasing another one in the coming years!

    Michael Sizemore, Bullock, NC via Feniex.com

  • Awesome light bar, we build custom oversize load pilot cars and all my customers love the bar and all the options it provides them. From flood lights to multi color patterns and lights it by far is out most popular bar we install!

    Steve Kroon, Hanover, PA via Feniex.com

Every Feniex review →

About the series

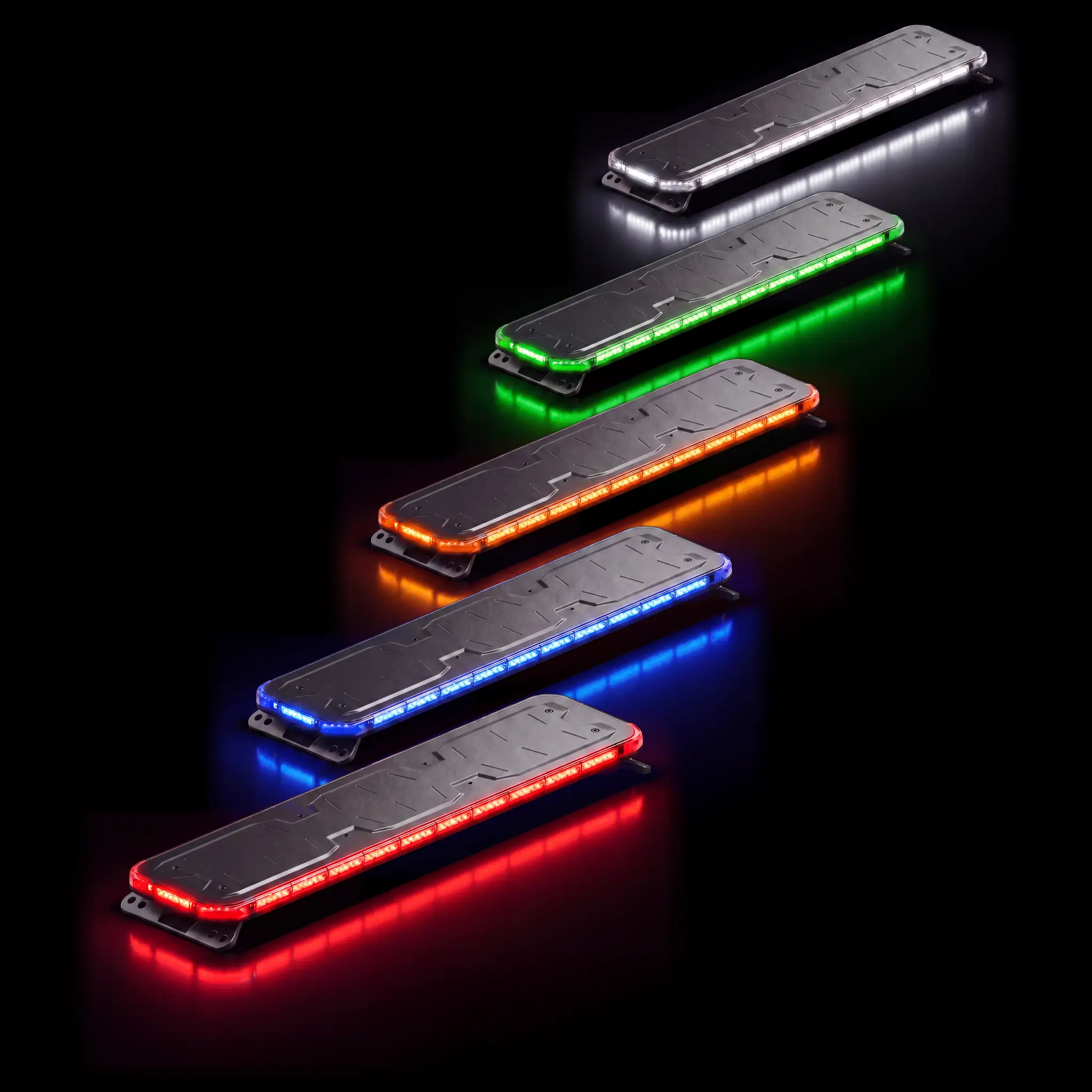

The Feniex Fusion-S is the next evolution of the Fusion series — the world’s brightest and most competitively priced emergency warning line. User configurable in red, blue, amber, white and green, the Fusion-S offers a new and improved optic that is 60% brighter than the previous Fusion family. Single-color modules, laid out module by module in Build-A-Bar, programmed in the field.

Documents & training

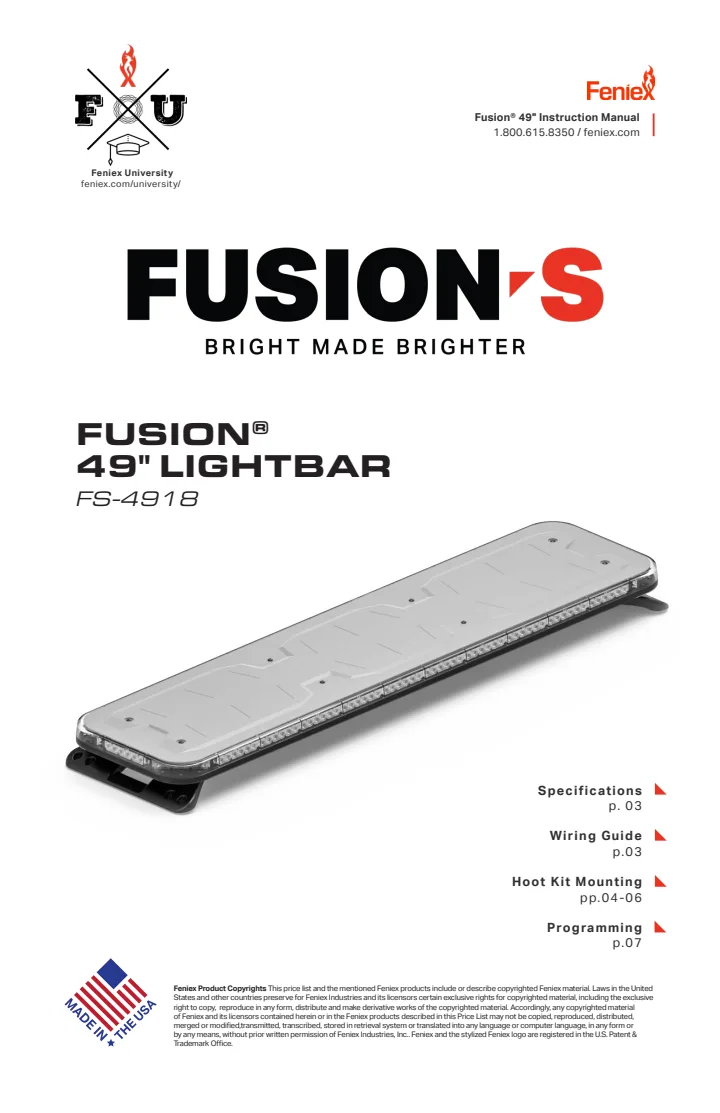

PDFInstruction Manualwiring · hook kit mounting · programming PDFCut Sheetdimensions · draw · certifications GUIDEConverter Input Guide28 inputs · 15 patterns · field programming COURSEFeniex Universityinstall & programming video courses
