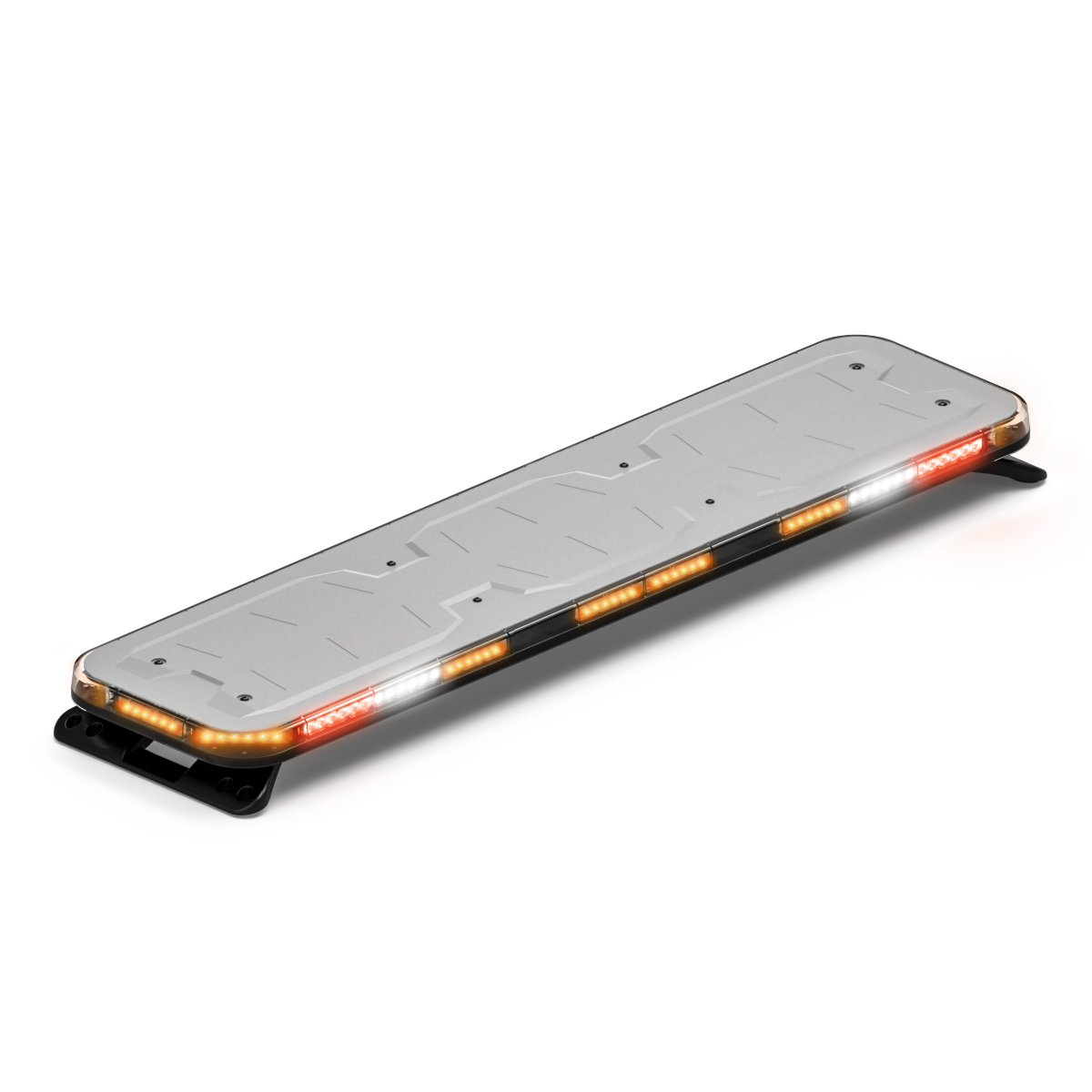

Fusion-A Tow 49" Amber Tow Truck Light Bar | Feniex
Feniex Fusion-A Tow 49 on the black stage
FULL SIZE LIGHTBARS / FUSION AMBER SERIES

FUSION-A TOW 49”

FS-0220 · Amber tow lightbar with red and white modules · 40° optic · 21,600 lumens

Color
Amber warningDirectional and hazard flash toward traffic.
White work lightsFlood light for the operator at the hookup.
Red stop-turn-tailRuns with the truck’s brake and turn signals.

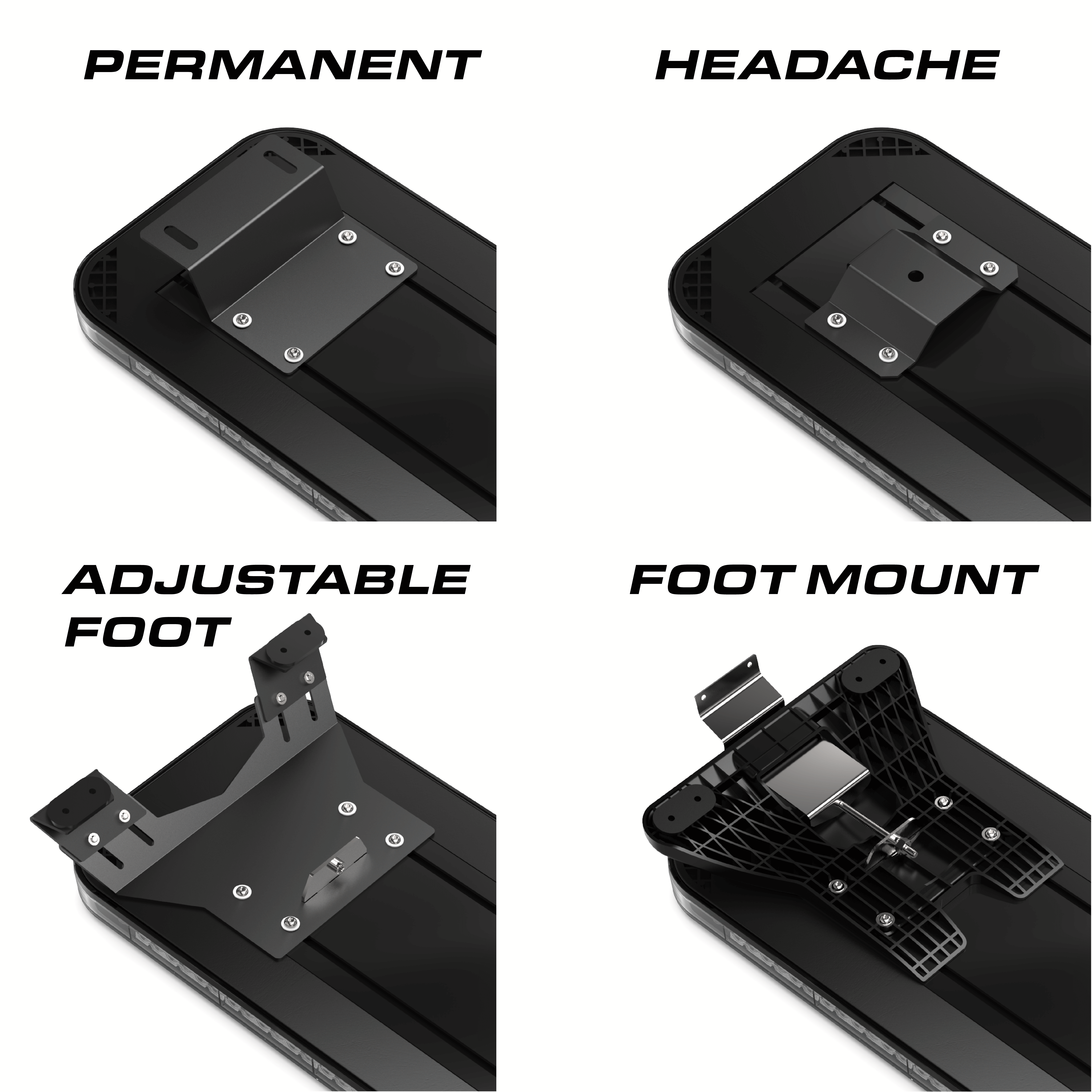

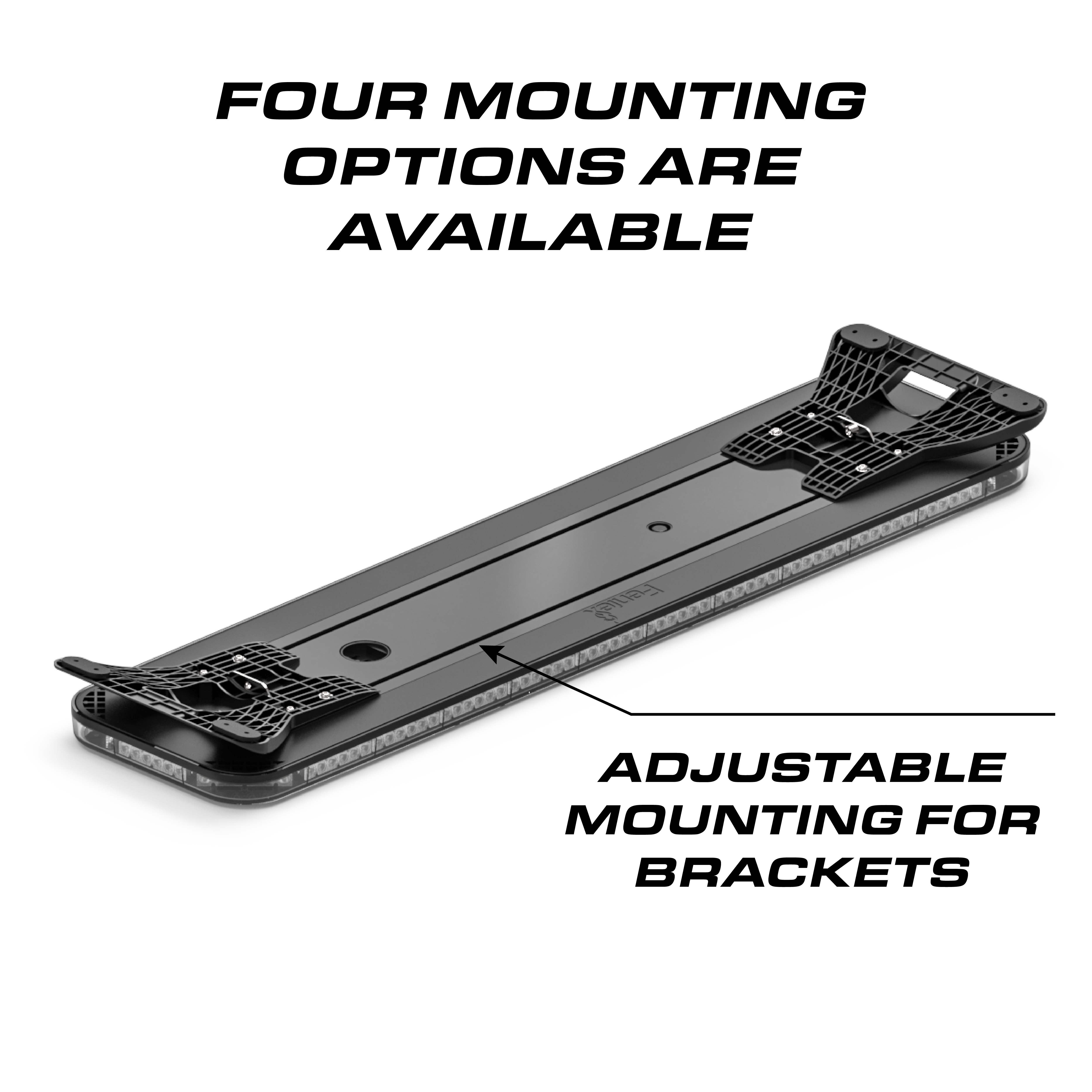

STEP 01Mounting
STEP 02Vehicle Type
STEP 03Cable length
$949 1
$39 Flat Rate Shipping
Per Lightbar

Pattern Studio

FUSION-A TOW 49 · FACTORY TOW CONFIGURATION
View

Why Fusion

40° optic · 21,600 lumensThe Fusion Amber line — long-range visibility.
108 LEDsAmber, red and white single-color modules.
21 flash patternsWarning, traffic advisor and takedown modes, programmable in the field.
Controller-drivenPairs with the 4200 Mini, 4200 DL, Typhoon and Feniex ONE — stop/turn/tail, takedown, dim.
Stop-turn-tail · work lightIntegrated DOT and work-light functions — switched in the field.
Military-grade aluminumAnti-yellowing, anti-cracking clear-coated polycarbonate lens · 5-year warranty.

Specifications

LED count108 LEDs
Current draw14 A
Input voltage10–18 V DC
Optical spread40°
Dimensions49.2″ L × 11.8″ W × 1.6″ H

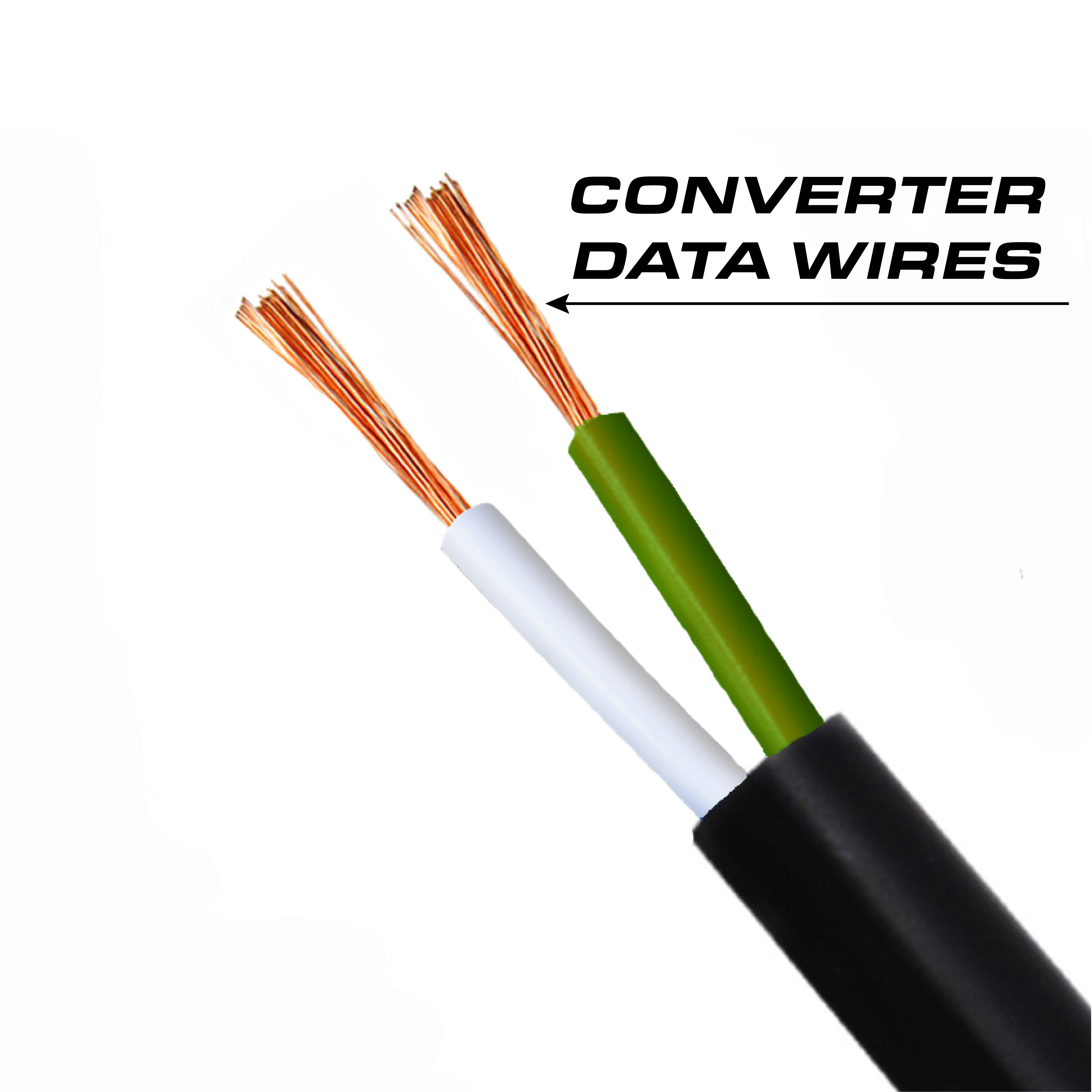

Cable10 ft standard · 12-wire harness
External fuse15 A
Warranty5-year manufacturer
OriginMade in the USA
SAE J595SAE J1113ECE R65 CLASS 1CA TITLE 13NFPA KKKIP66
Fusion-A Tow 49

About the series

The Fusion Amber series offers affordable, quality, American-made lighting: amber warning modules, with red stop-turn-tail and white work-light modules integrated. The bar pairs with the 4200 Mini, 4200 DL, Typhoon and Feniex ONE controllers.

Documents & training

PDFInstruction Manualwiring · patterns · programming PDFCut Sheetdimensions · draw · certifications COURSEFeniex Universityinstall & programming video courses
