Feniex Fusion Double Surface Mount | Perimeter | Feniex Industries
Feniex Fusion Double Surface Mount on the black stage
PERIMETER / FUSION SERIES

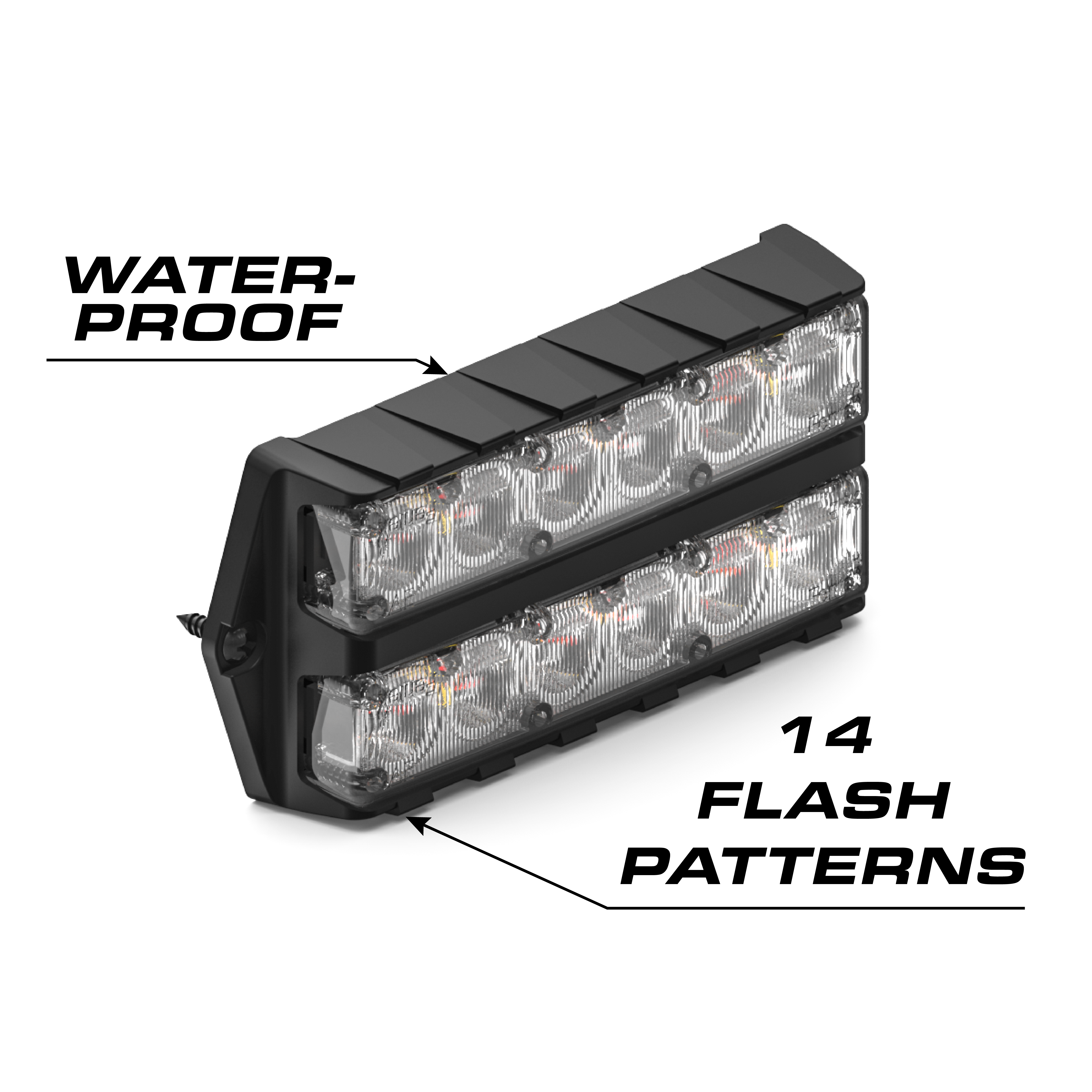

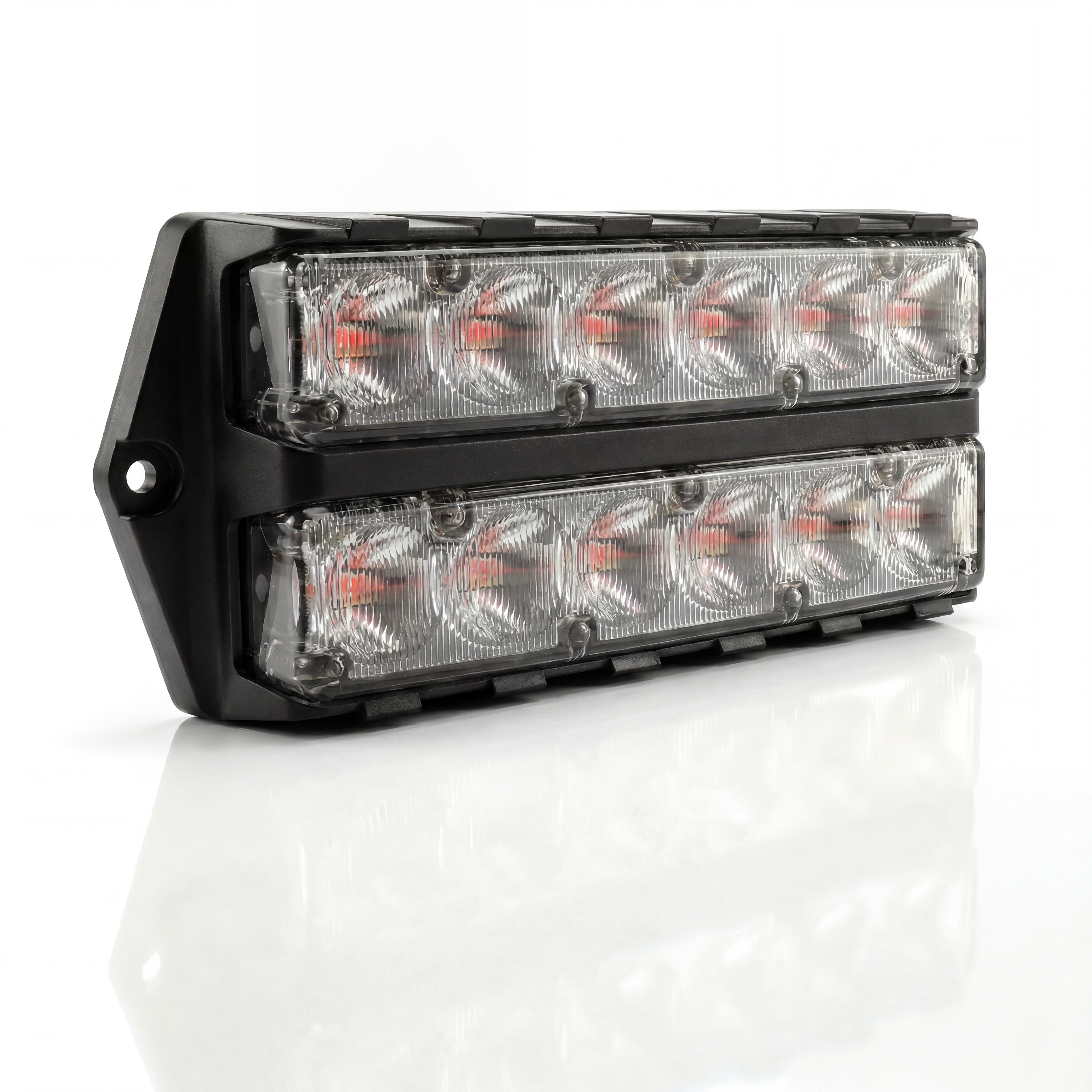

FUSION DOUBLE SURFACE MOUNT

SURFACE MOUNT · Double-stack surface mount · 40° optic, 60% brighter

STEP 01Color
STEP 02Cable length
$129 1
$19 Flat Rate
Shipping

Pattern Studio

FUSION DOUBLE SURFACE MOUNT · PERIMETER INSTALL · IN THE COLORS YOU’D ORDER
Modules installed
Colors
one color per module

Why Fusion

40° optic, 60% brighterThe Fusion-S optic — long-range visibility over the previous Fusion family.
Double stack · single colorTwo heads on one mount — red, blue, amber, white or green.
3 programmable modesFlood, cruise and stop/tail/turn pattern capabilities — cycled and synced on the wire.
Syncs across the familyT3, Cannon, Under Mirror Puck and QSM run in step on the same sync wire.
Leader / follower syncPair stacks and run alternating patterns on the blue sync wire.
Military-grade aluminumAnti-yellowing, anti-cracking clear-coated polycarbonate lens · 5-year warranty.

Specifications

Current draw2 A
Input voltage10–18 V DC
Optical spread40°

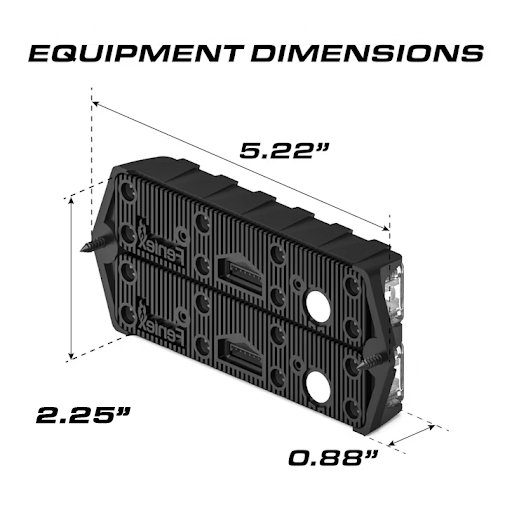

Dimensions5.22″ L × 0.88″ W × 2.25″ H
Cable1 ft standard · 6-pin · 20 AWG
External fuse125% of product load
Warranty5-year manufacturer
OriginMade in the USA
SAE J595 CLASS 1CA TITLE 13
Fusion Double Surface Mount

About the series

The Feniex Fusion-S is the next evolution of the Fusion series — the world’s brightest and most competitively priced emergency warning line. User configurable in red, blue, amber, white and green, the Fusion-S offers a new and improved optic that is 60% brighter than the previous Fusion family. Single-color modules, programmed in the field.

Documents & training

PDFInstruction Manualwiring · mounting · programming COURSEFeniex Universityinstall & programming video courses
