Feniex Fusion Surface Mount | Perimeter | Feniex Industries

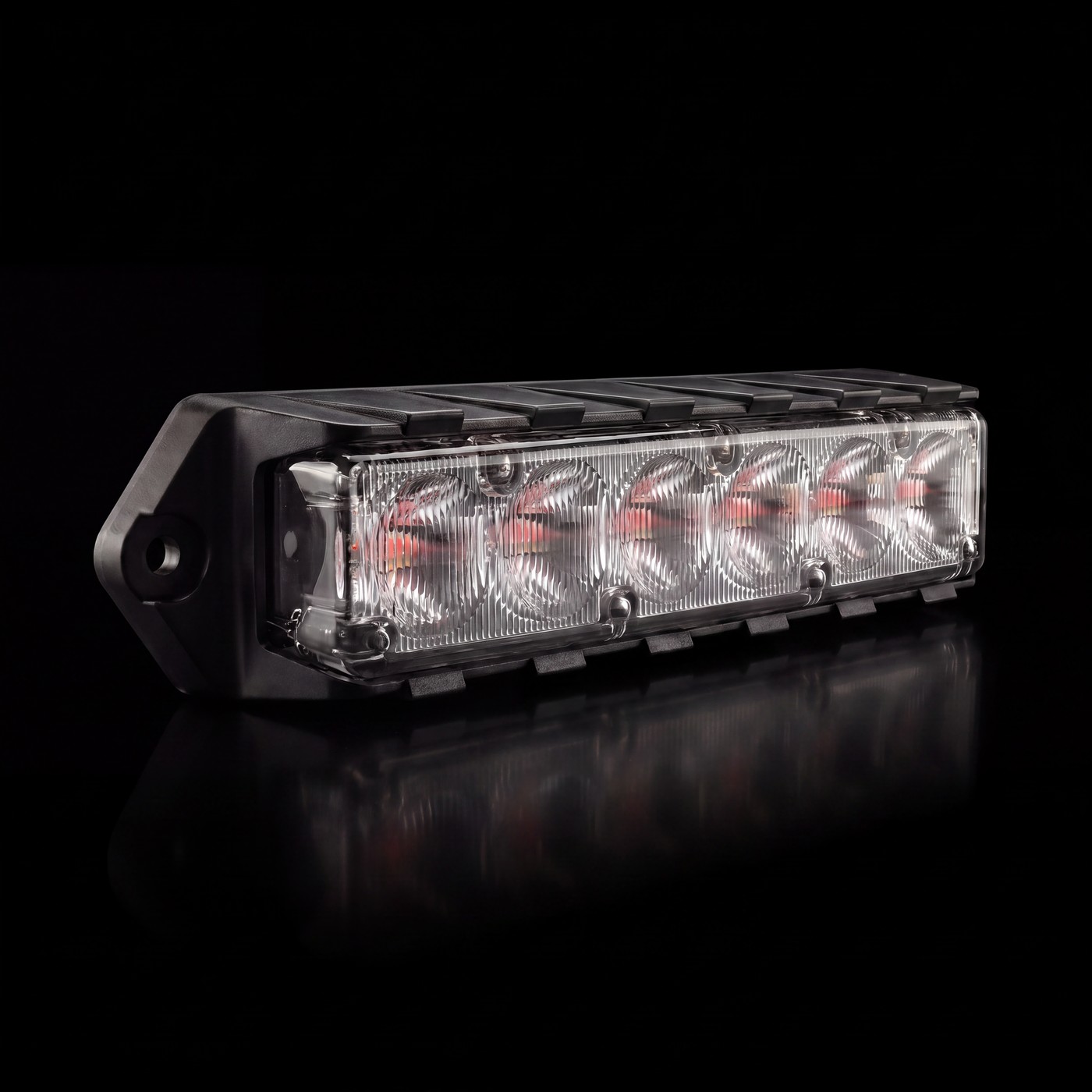

Feniex Fusion Surface Mount on the black stage
PERIMETER / FUSION SERIES

FUSION SURFACE MOUNT

SURFACE MOUNT · Surface-mount perimeter light · 40° optic, 60% brighter

STEP 01Color
Bracket
STEP 02Cable length1 ft included
1 ftIncluded11 ft+$1521 ft+$30
$79 1

Pattern Studio

FUSION SURFACE MOUNT · IN THE COLORS YOU’D ORDER
View
Colors
one color per unit — pick the pair you’d order

Why Fusion

40° optic, 60% brighterThe Fusion-S optic — long-range visibility over the previous Fusion family.

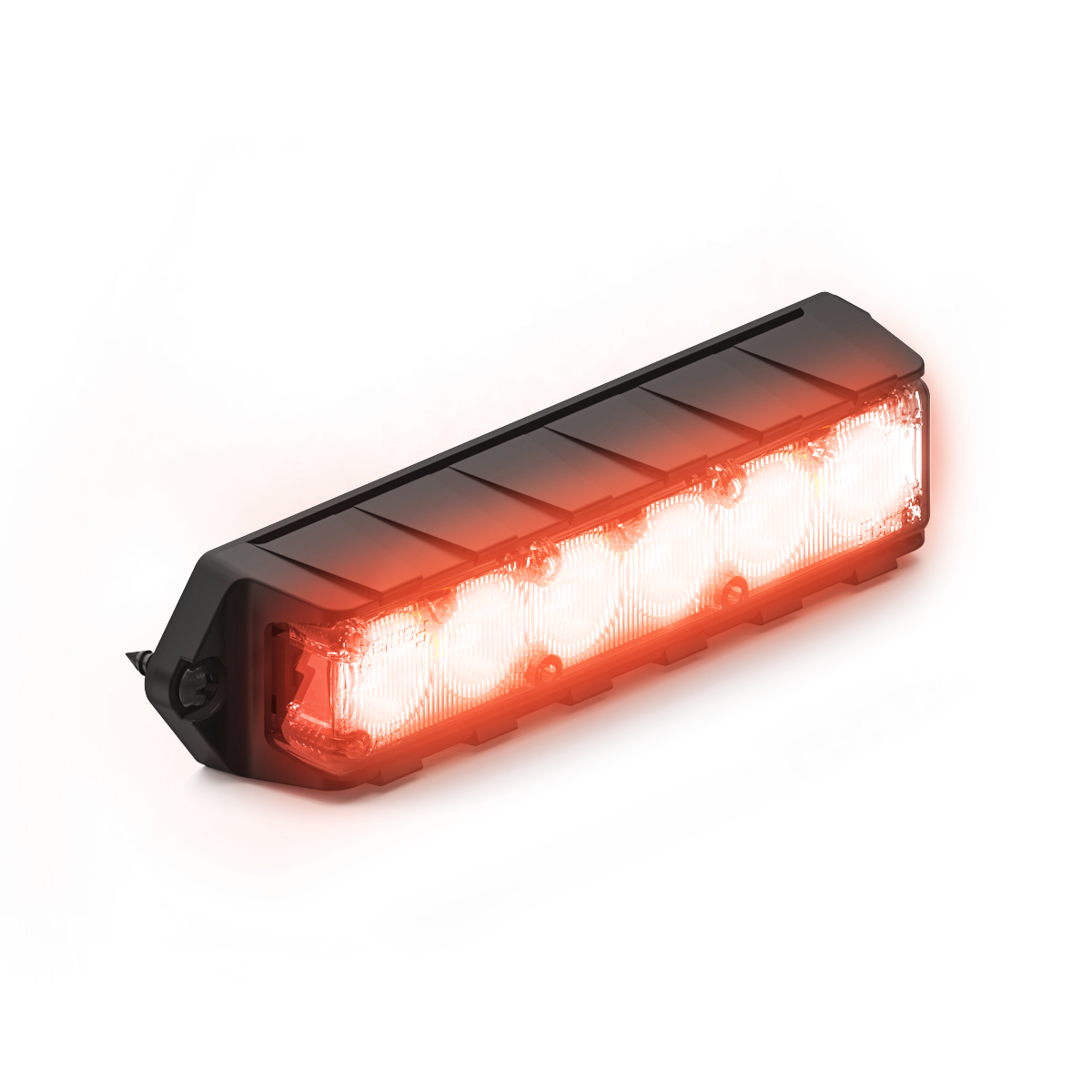

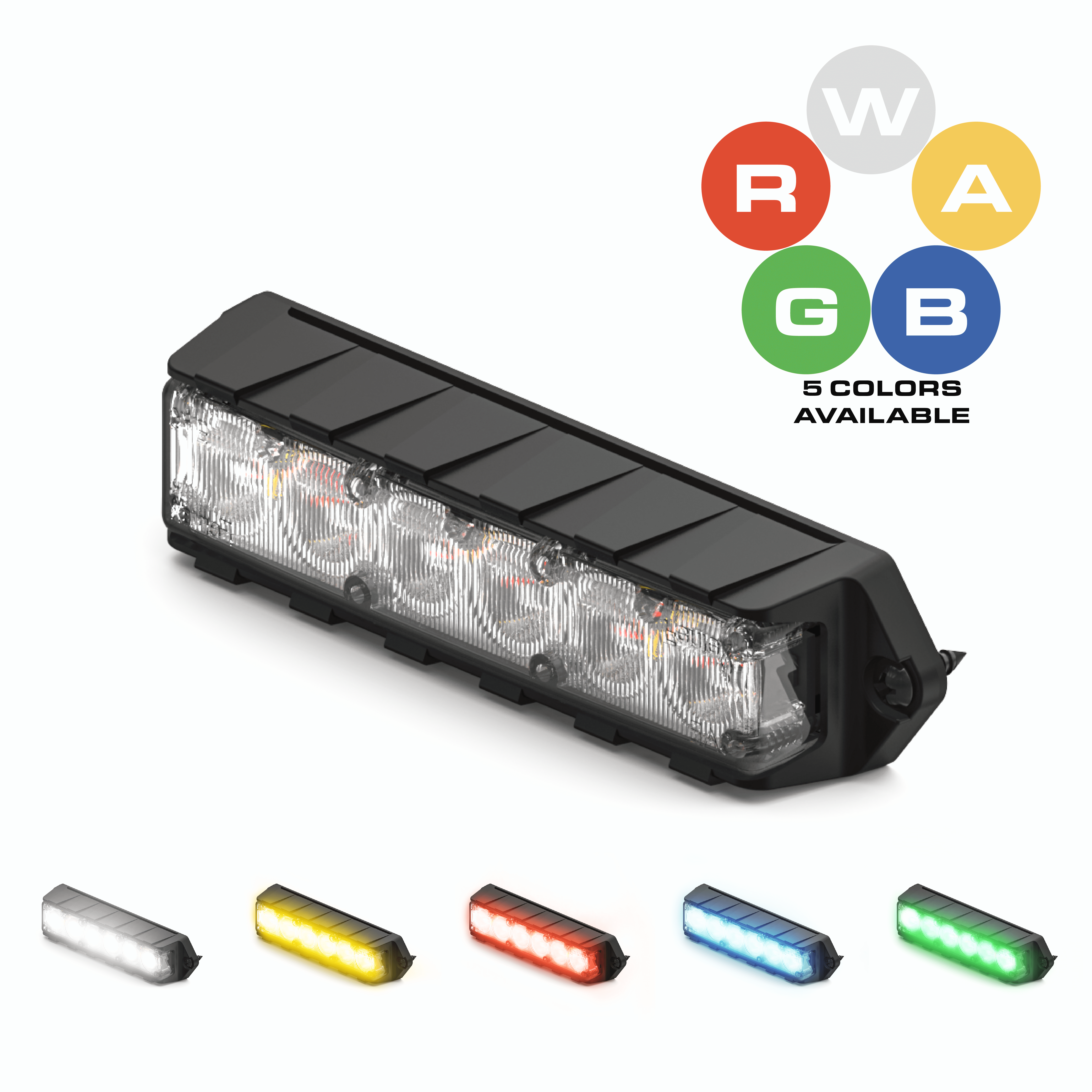

6 LEDs · single colorOne color per unit — red, blue, amber, white or green.

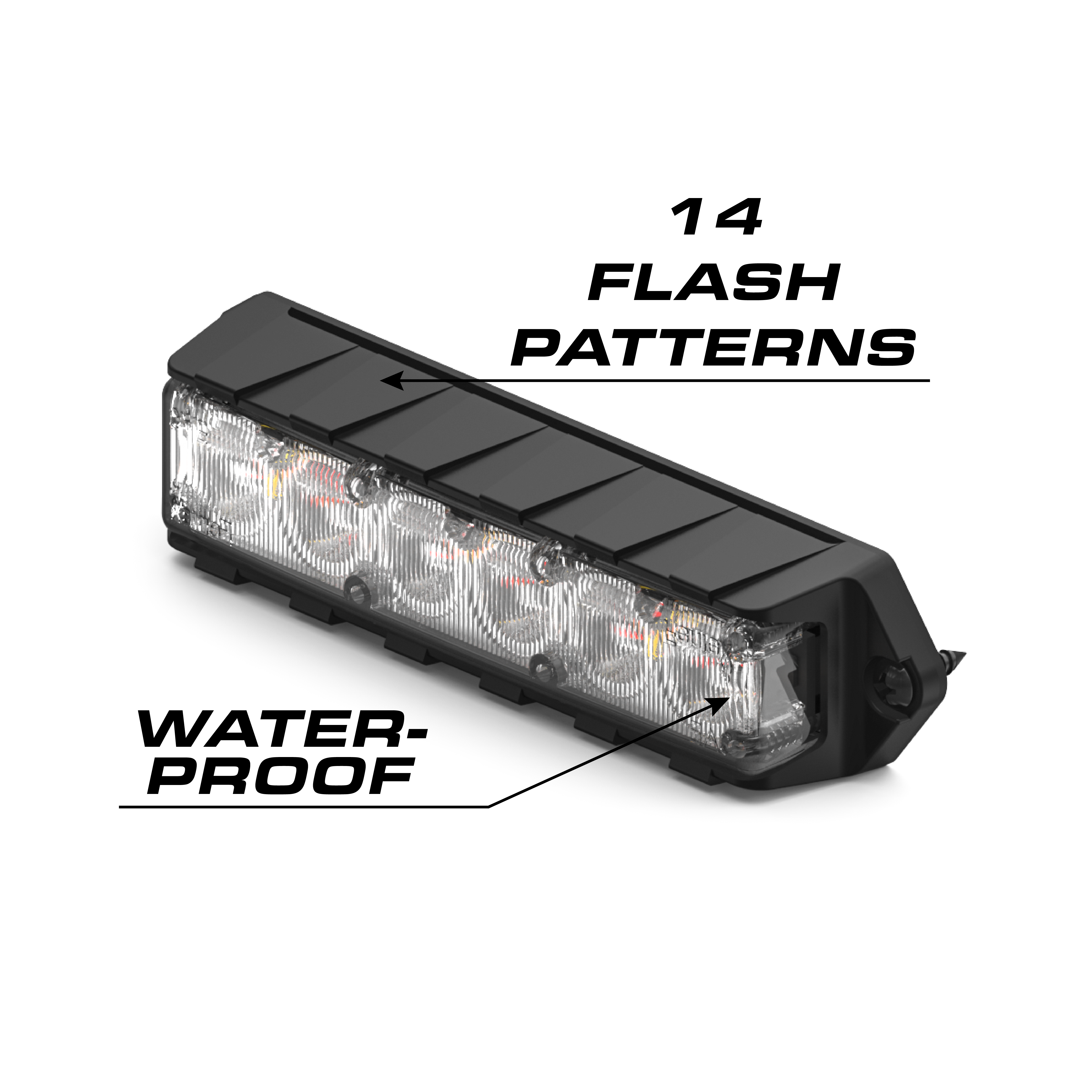

3 programmable modesFlood, cruise and stop/tail/turn pattern capabilities — cycled and synced on the wire.
Syncs across the familyT3, Cannon, Under Mirror Puck and QSM run in step on the same sync wire.

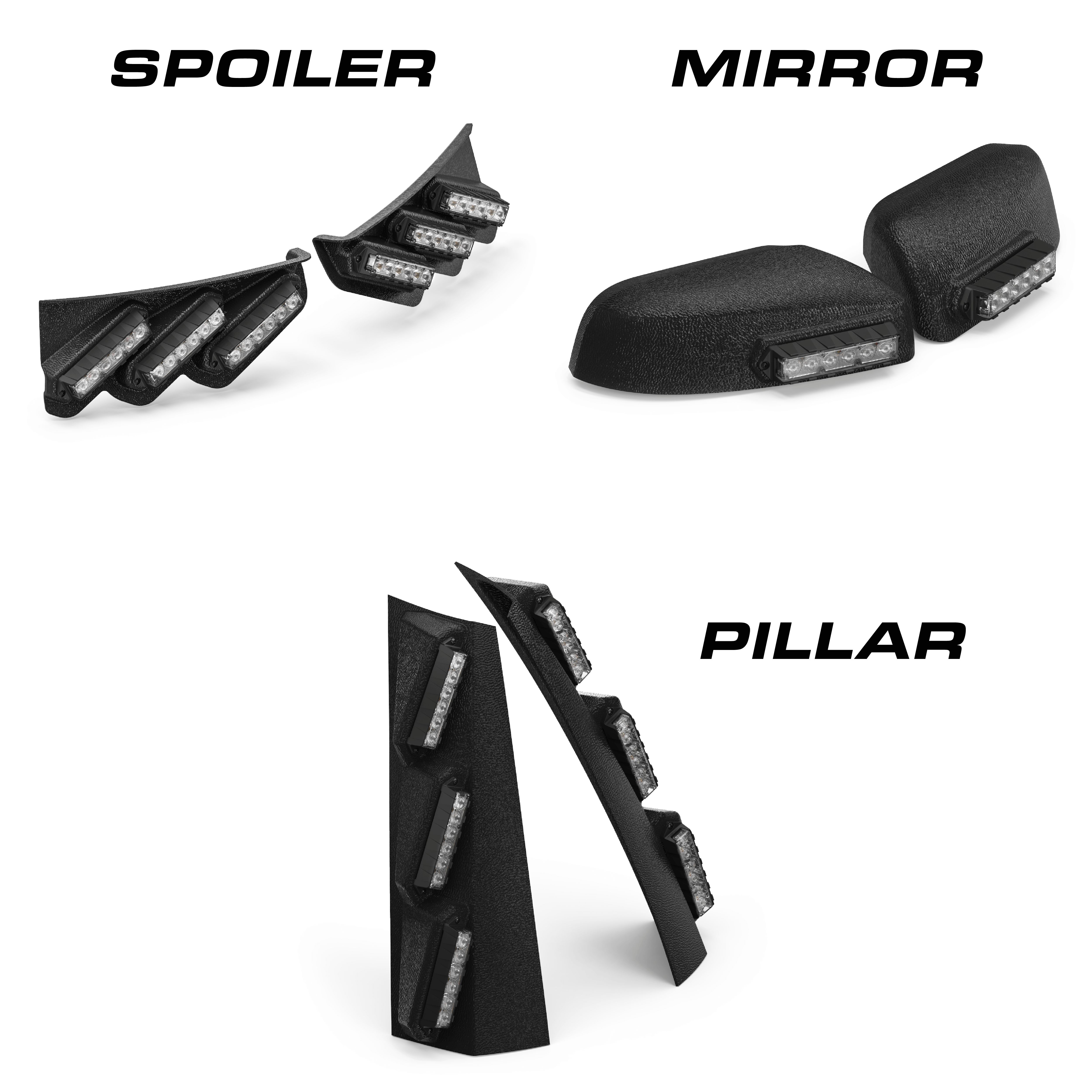

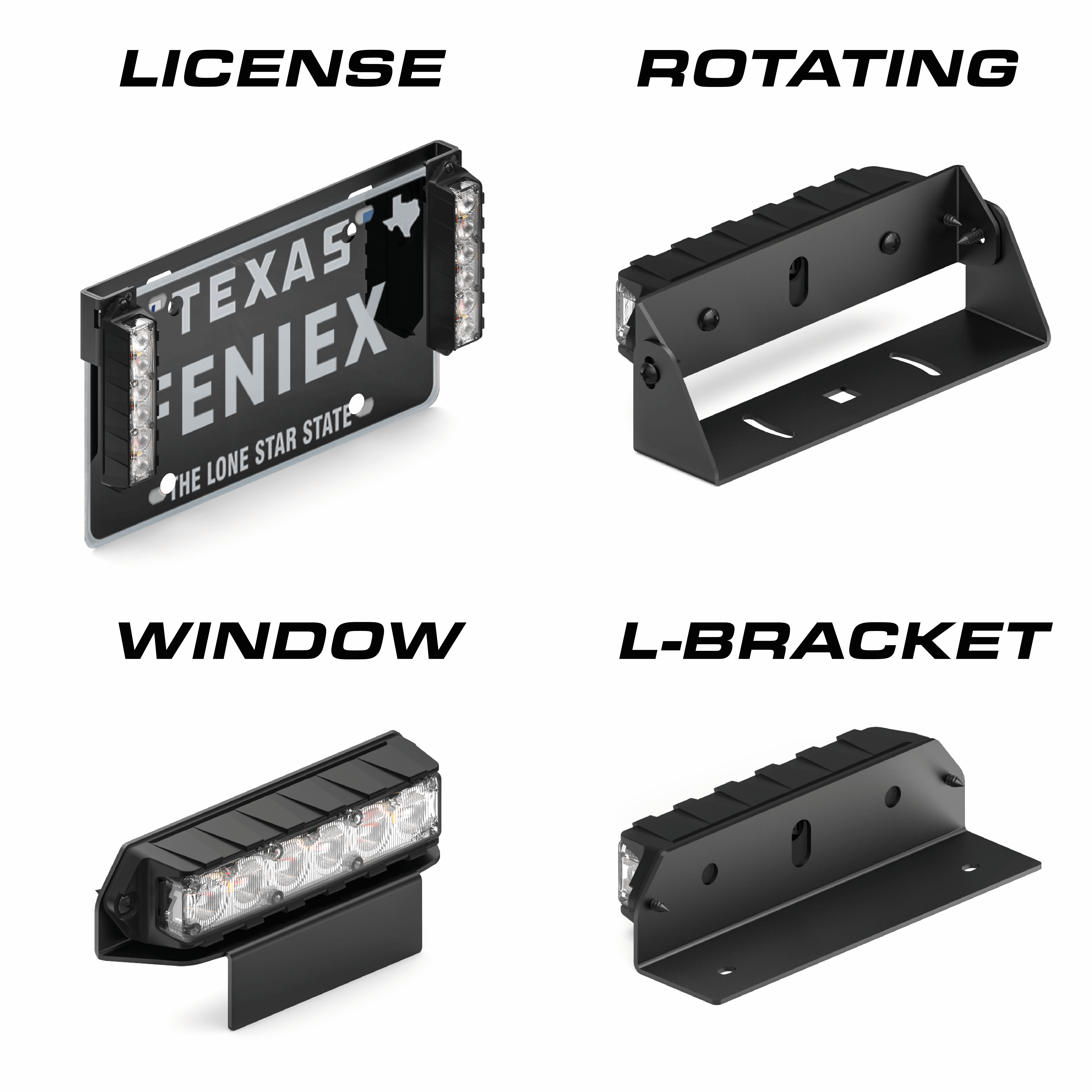

6 mounting optionsL-bracket, rotating, window, hood, recessed or license plate — surface mount out of the box.
Military-grade aluminumAnti-yellowing, anti-cracking clear-coated polycarbonate lens · 5-year warranty.

Specifications

LED count6 LEDs
Current draw1 A
Input voltage10–18 V DC
Optical spread40°

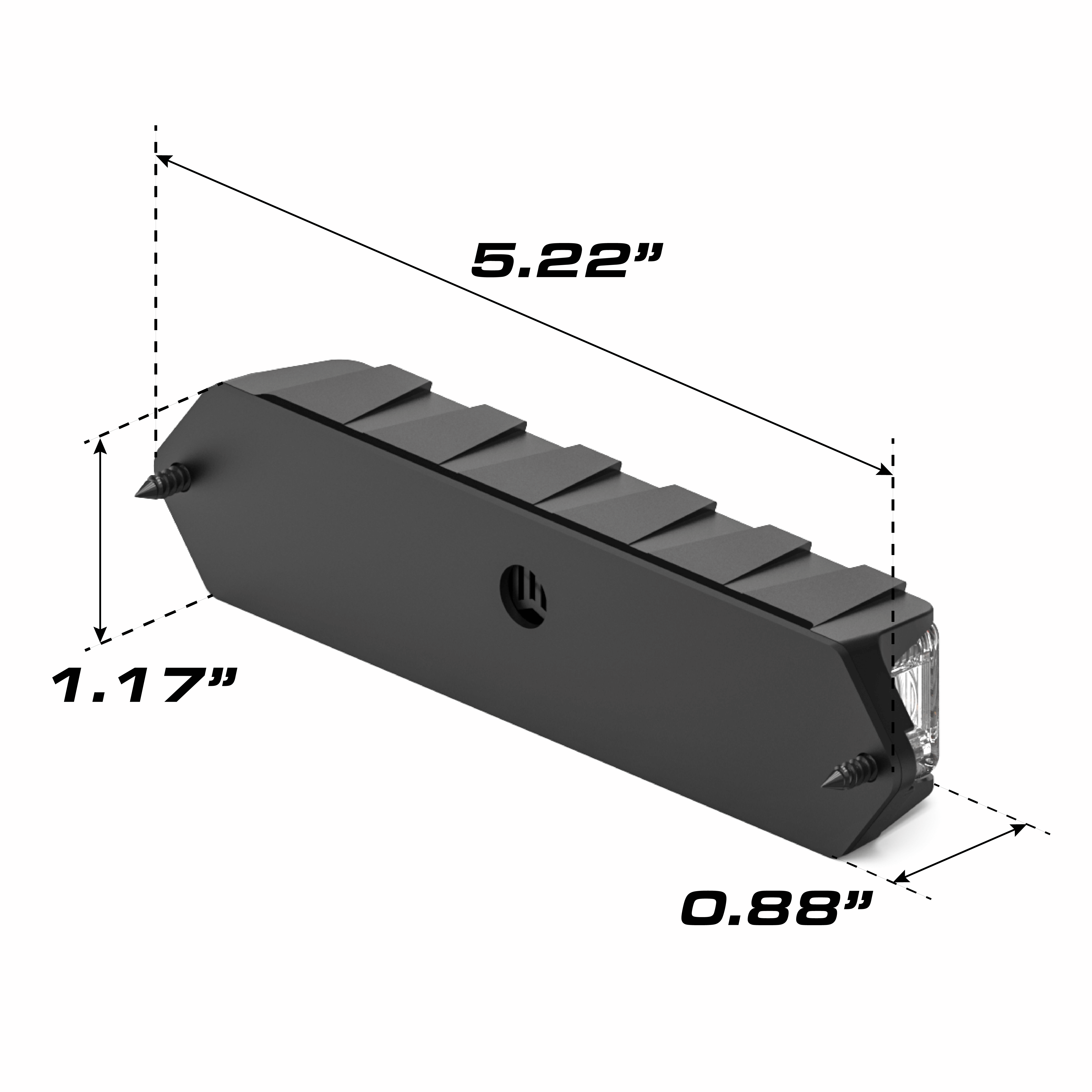

Dimensions5.22″ L × 0.88″ W × 1.17″ H

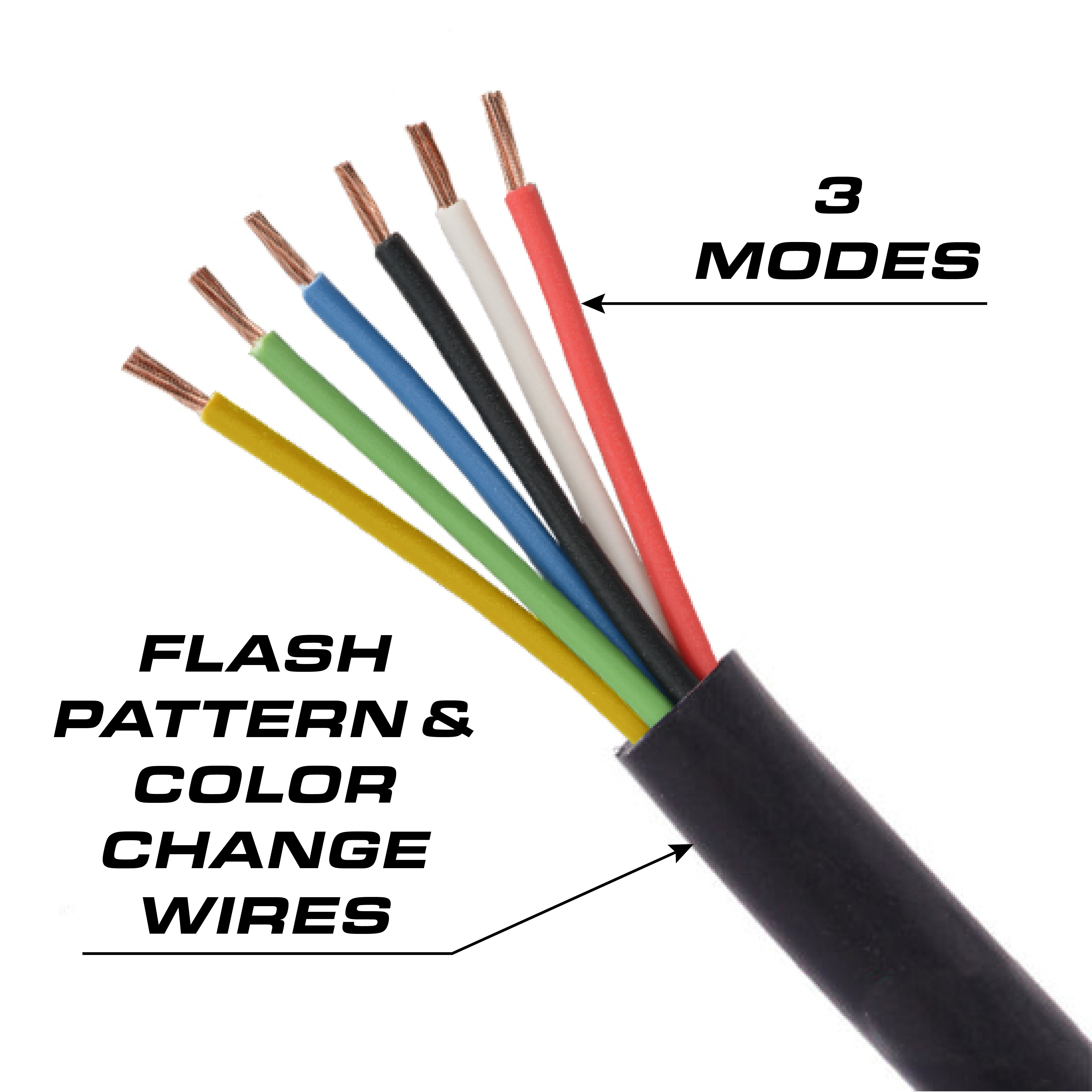

Cable1 ft standard · 6-pin · 20 AWG
External fuse125% of product load
Warranty5-year manufacturer
OriginMade in the USA
SAE J595 CLASS 1CA TITLE 13
Fusion Surface Mount

5 Star Reviews

5 reviews · from Amazon, Feniex.com and Ultra Bright Lightz
  • Value! Outstanding Quality and Performance!

    As good as Whelen, if not better. Outstanding brightness, pattern and range. The best BANG for your buck hands down. If there is better in the same price range I want to buy! No discoloration. No fading of the frame/ case or lense & no hint of moisture in the lense area whatsoever. I think I have had it for a year now. So far, I have been impressed. I want to see what another year or two brings.

    Robert Young Verified buyer via Amazon

  • Top notch lights

    Just as good as Whelans but with a much better price tag. Have not had a single problem using their lights yet. Just repurchased for a project to place them inside the grill of the truck so they are higher than on the bull bar. I've tried other brands and Feniex is the best and comparable to Whelan.

    Tim C Verified buyer via Amazon

  • I used the grill lights just as intended. Grill lights. Even hidden behind a grill they are bright enough to shine and warn people. Two modes so if you are on scene you can have white lights to see what you are doing. I recommend Fenix to everyone and it’s the preferred dealer!

    Timothy Feidler, Woolwhich, ME via Feniex.com

  • Great lights

    I recently added a total of fourfusion S lights to my truck to be beneath my tailgate into in the rear glass interior the lights synced up great, and the two inside punch through the tint nicely.

    Ryan F. Verified buyer via Ultra Bright Lightz

  • Great set of lights!

    The cost compared to other name brand companies don't even come close. I have experience installing lights so installation was a breeze.

    Brandon Lisabelle Verified buyer via Amazon

Every Feniex review →

About the series

The Feniex Fusion-S is the next evolution of the Fusion series — the world’s brightest and most competitively priced emergency warning line. User configurable in red, blue, amber, white and green, the Fusion-S offers a new and improved optic that is 60% brighter than the previous Fusion family. Single-color modules, programmed in the field.

Documents & training

PDFInstruction Manualwiring · mounting · programming PDFCut Sheetdimensions · draw · certifications COURSEFeniex Universityinstall & programming video courses
