PERIMETER / FUSION SERIES

FUSION MIRROR MOUNT

MIRROR MOUNT · Mirror-mount perimeter light · 40° optic, 60% brighter

STEP 01Colorone per module
LEFT MODULE
RIGHT MODULE
STEP 02Vehicle
STEP 03Cable length
$289 1

Pattern Studio

FUSION MIRROR MOUNT · IN THE COLORS YOU’D ORDER
View
Colors
one color per unit — pick the pair you’d order

Why Fusion

40° optic, 60% brighterThe Fusion-S optic — long-range visibility over the previous Fusion family.

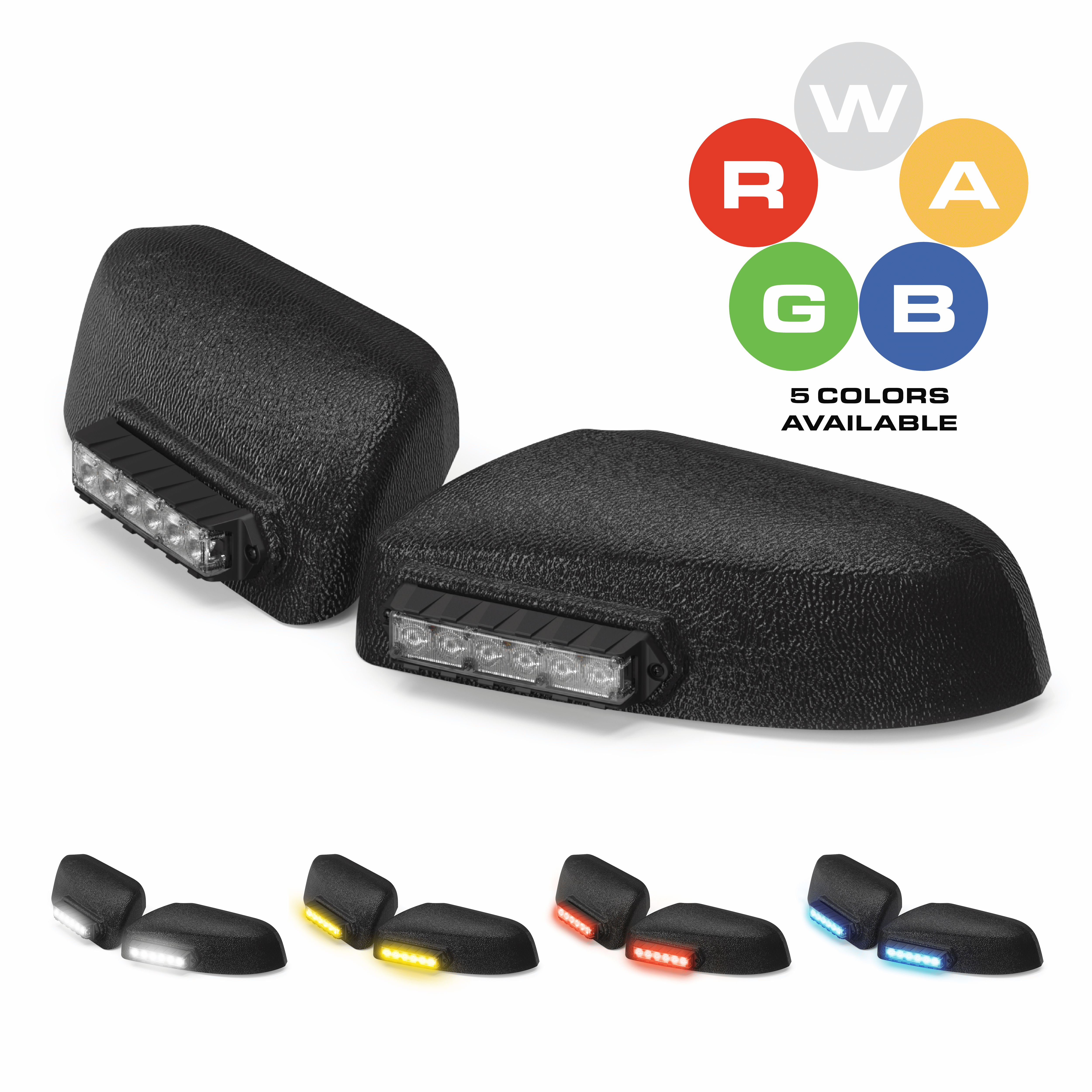

Sold as a pairOne left and one right unit — each takes any of the five colors.

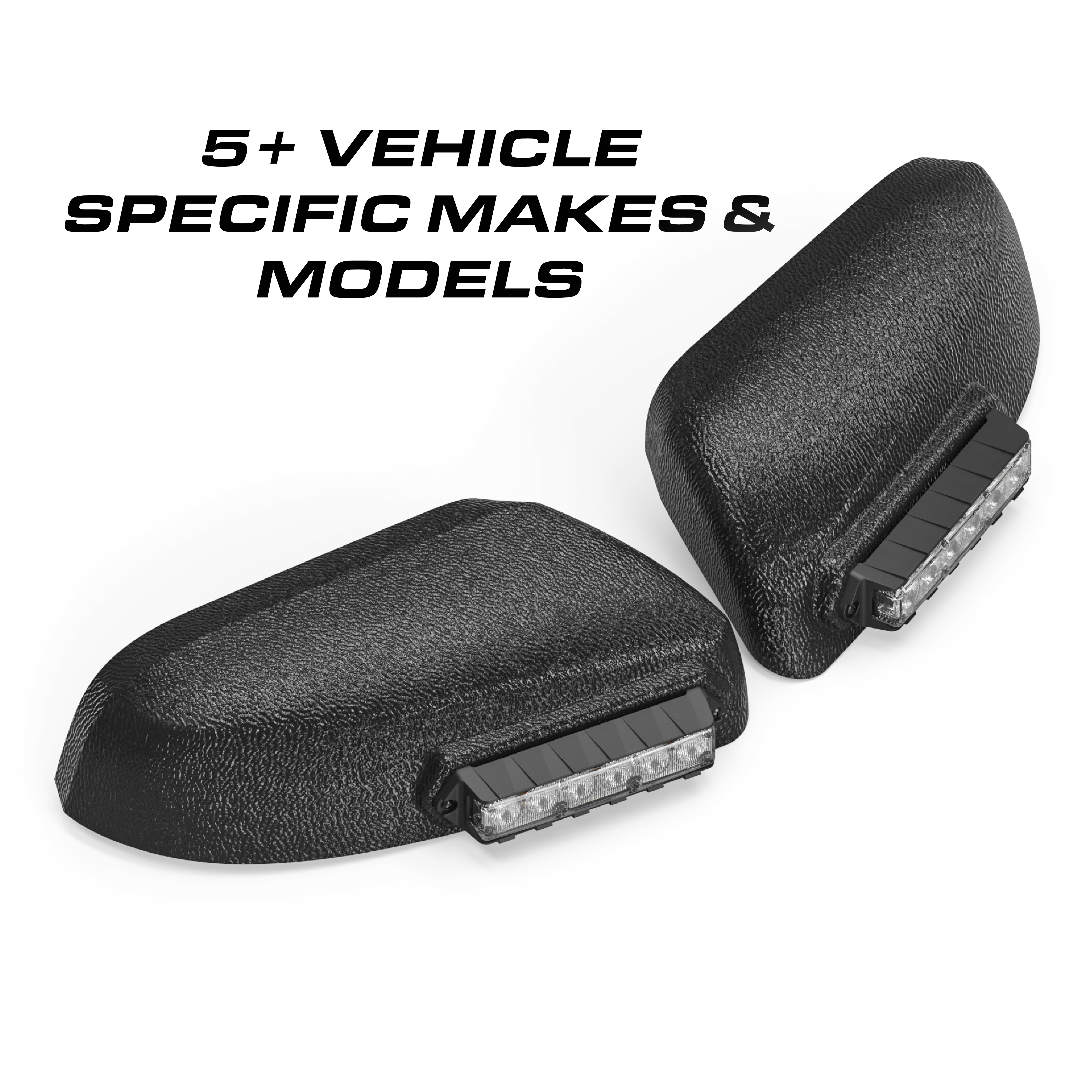

Vehicle-specific housingsVacuum-formed for the trucks and SUVs the catalog lists — a factory look.

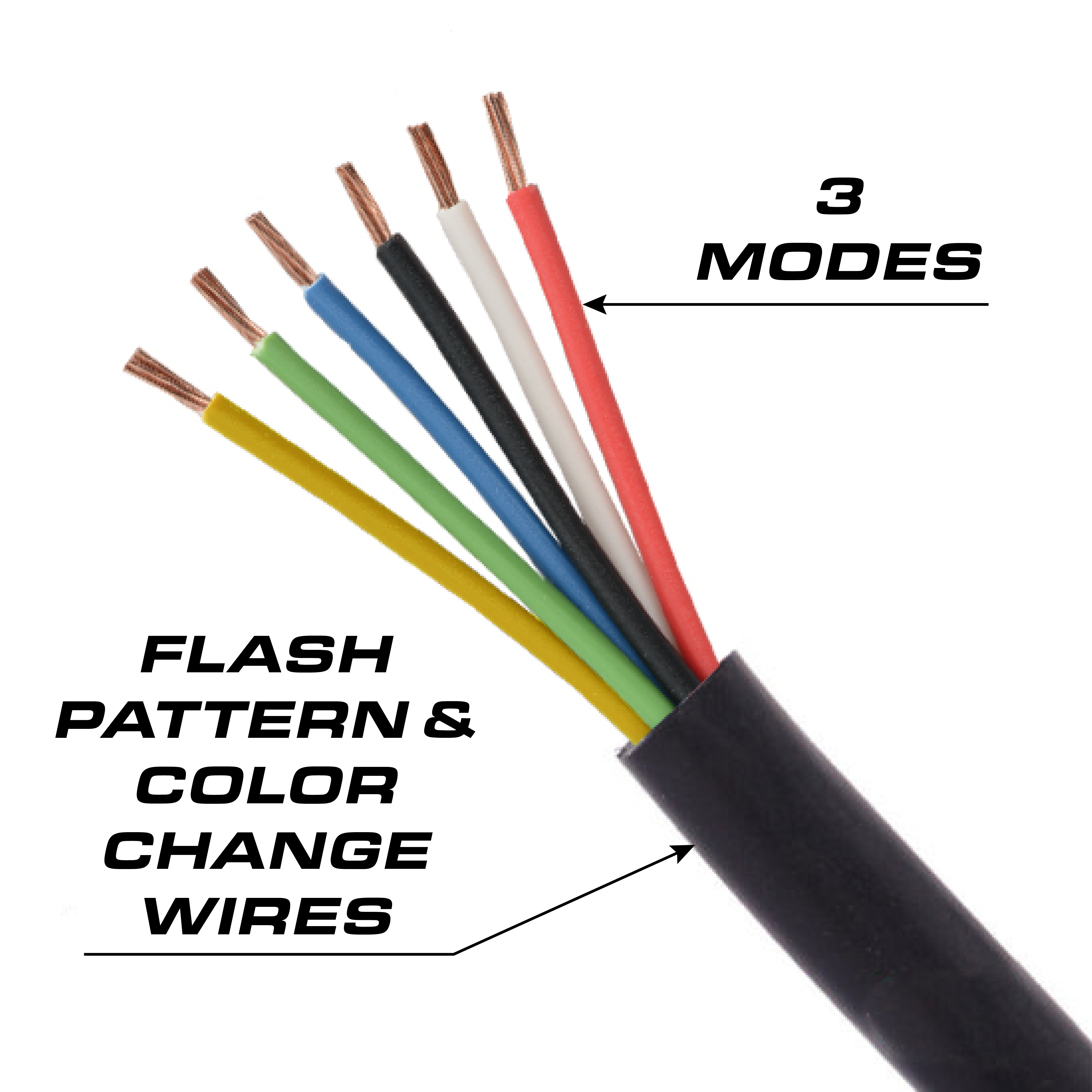

Flood · cruise · stop-tail-turnMultiple mode capabilities on the sync wire.
Syncs across the familyT3, Cannon, Mirror Puck and QSM run in step.
Military-grade aluminumSAE Class 1 certified · 5-year warranty.

Specifications

LED count12 LEDs
Current draw1.5 A
Input voltage10–18 V DC
Optical spread40°
DimensionsVehicle-specific housing
Cable1 ft standard · 6-pin · 20 AWG ×2
In the boxLeft and right units (sold as a pair) · vehicle-specific housings
External fuse125% of product load
Warranty5-year manufacturer
OriginMade in the USA
SAE J595 CLASS 1
Fusion Mirror Mount

About the series

The Feniex Fusion-S is the next evolution of the Fusion series — the world’s brightest and most competitively priced emergency warning line. User configurable in red, blue, amber, white and green, the Fusion-S offers a new and improved optic that is 60% brighter than the previous Fusion family. Single-color modules, programmed in the field.

Documents & training

PDFInstruction Manualwiring · mounting · programming COURSEFeniex Universityinstall & programming video courses
