Fusion Mini 12" Lightbar | Mini Lightbars | Feniex Industries

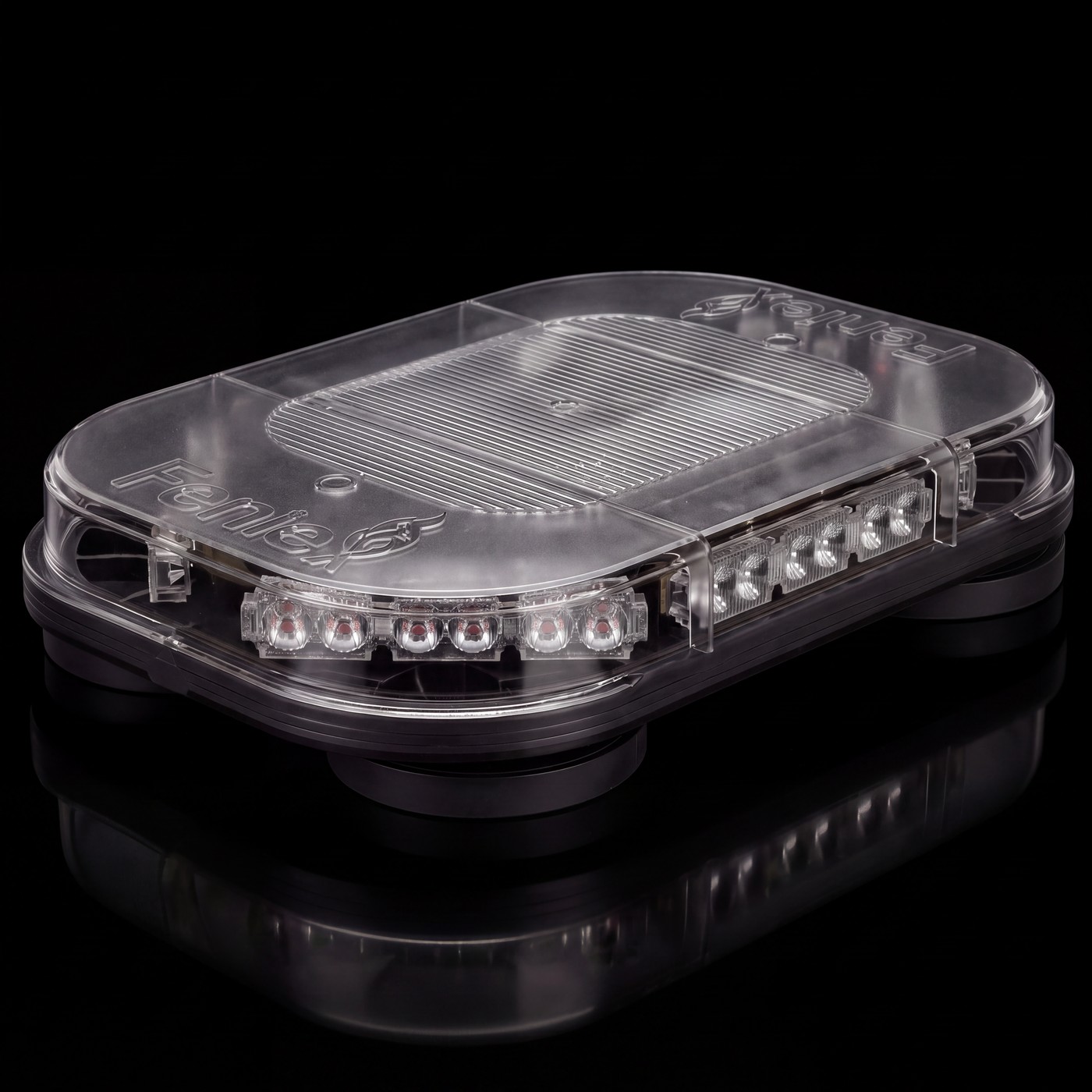

Feniex Fusion Mini 12 on the black stage
MINI LIGHTBARS / FUSION SERIES

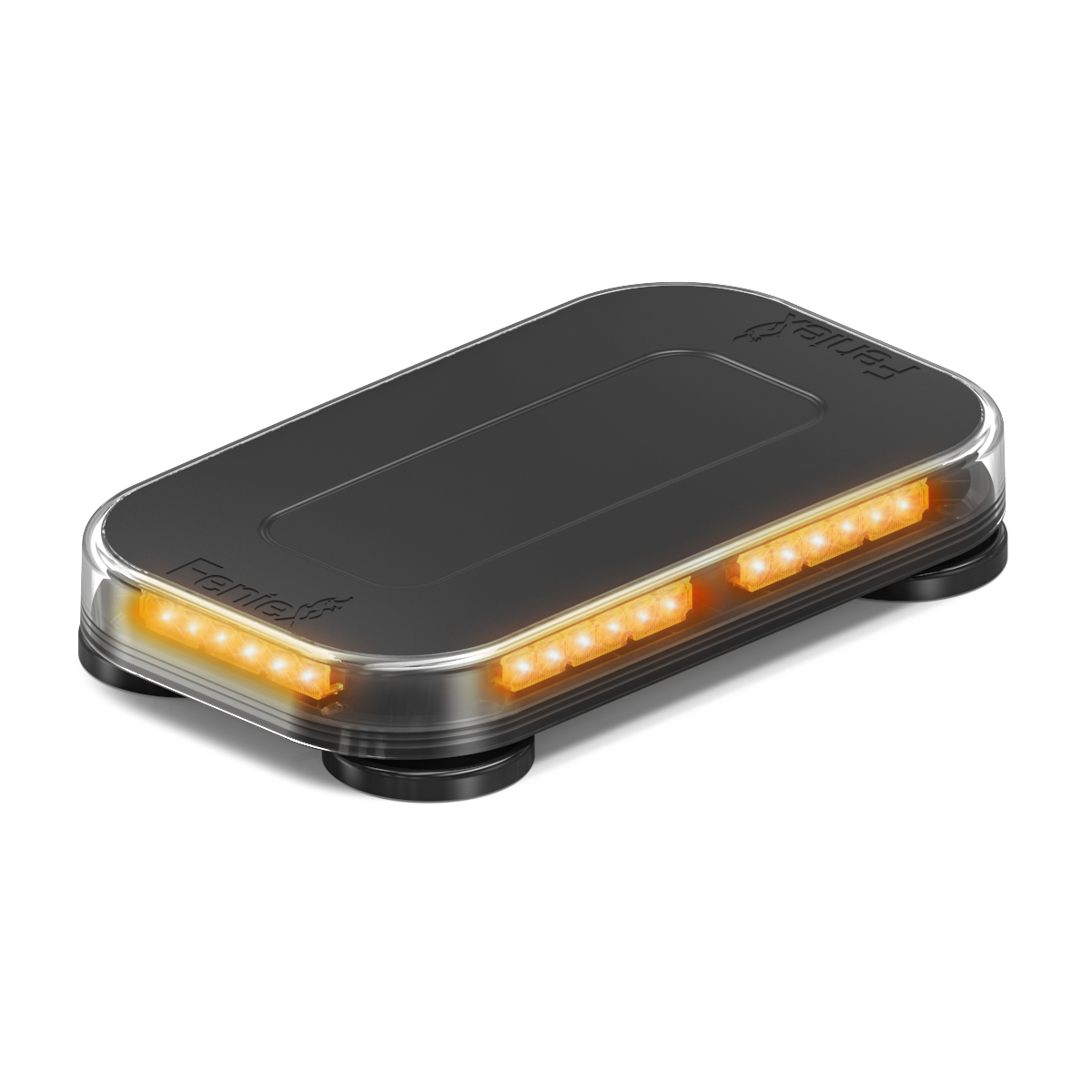

FUSION MINI 12”

FS-8125 · Mini lightbar · single-color modules, laid out your way · 40° optic, 60% brighter

STEP 01Color · By Moduleone color per module · 6 modules
No build yet — every module is waiting for a color.
STEP 02Mount
STEP 03Cable length
$319 1

Pattern Studio

FUSION MINI 12 · IN THE COLORS YOU BUILD
Your build
No build yet — nothing to play.
build your bar and its colors play here

Why Fusion

40° optic, 60% brighterThe Fusion-S optic — long-range visibility over the previous Fusion family.
36 LEDs · 6 modulesSingle-color modules in any layout — configured by you in Build-A-Bar.
15 flash patternsAttack, Cluster, Combo, Half-Half, One-One, Two-Two, All-On — front and rear.
28 programmable inputsFeniex Converter included — DOT stop/turn/tail, traffic advisor, cruise, cut-off, dim.
Takedown · alley · floodWork lighting built in — assigned per module in your build.

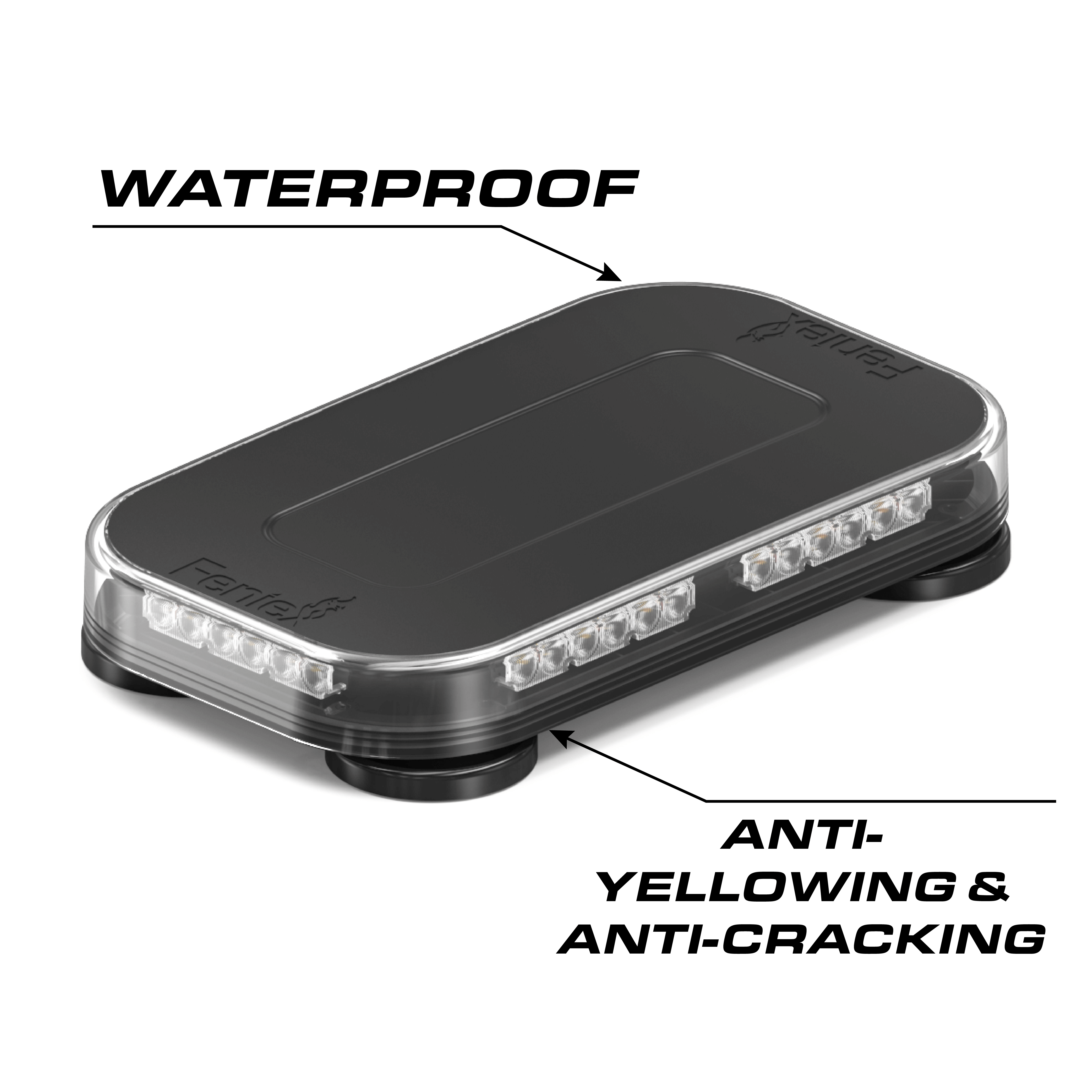

Military-grade aluminumAnti-yellowing, anti-cracking clear-coated polycarbonate lens · 5-year warranty.

Specifications

LED count36 LEDs
Light modules6 modules · single-color, user configured
Current draw5 A
Input voltage10–18 V DC
Optical spread40°
Dimensions12.1″ L × 8.1″ W × 2.4″ H

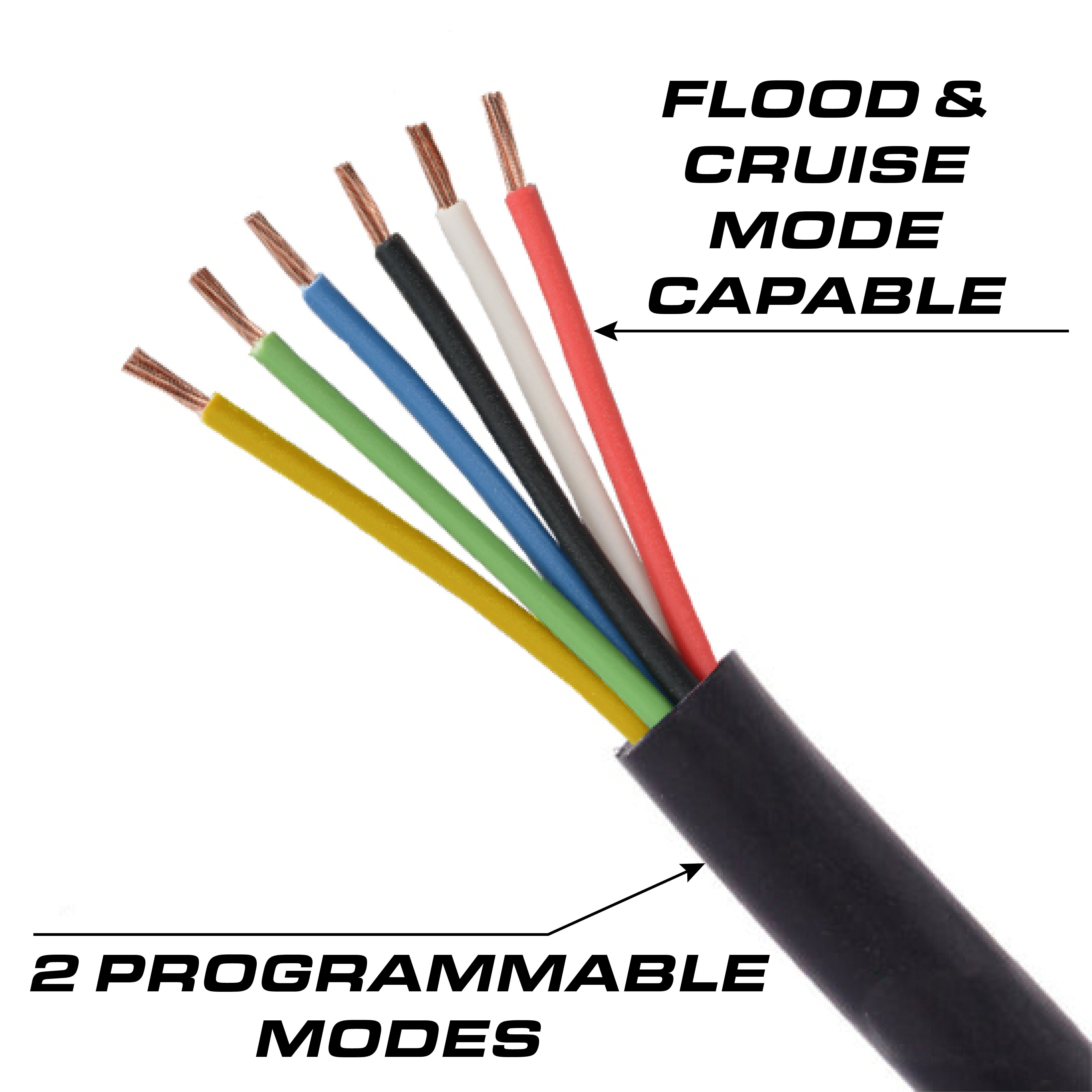

Cable10 ft standard · 14-pin · 20 AWG
External fuse125% of product load
Warranty5-year manufacturer
OriginMade in the USA
SAE J595SAE J1113SAE J578SAE J575SAE J845ECE R65 CLASS 1CA TITLE 13NFPA KKKIP66
Fusion Mini 12

About the series

The Feniex Fusion-S is the next evolution of the Fusion series — the world’s brightest and most competitively priced emergency warning line. User configurable in red, blue, amber, white and green, the Fusion-S offers a new and improved optic that is 60% brighter than the previous Fusion family. Single-color modules, laid out module by module in Build-A-Bar, programmed in the field.

Documents & training

PDFInstruction Manualwiring · mounting · programming PDFCut Sheetdimensions · draw · certifications GUIDEConverter Input Guide28 inputs · 15 patterns · field programming COURSEFeniex Universityinstall & programming video courses
