FUSION 20 WORK LIGHT
WL-2024 · Steady-on work light
Shipping
Why Fusion
Specifications
| LED count | 24 LEDs |
| Current draw | 3 A |
| Input voltage | 10–18 V DC |

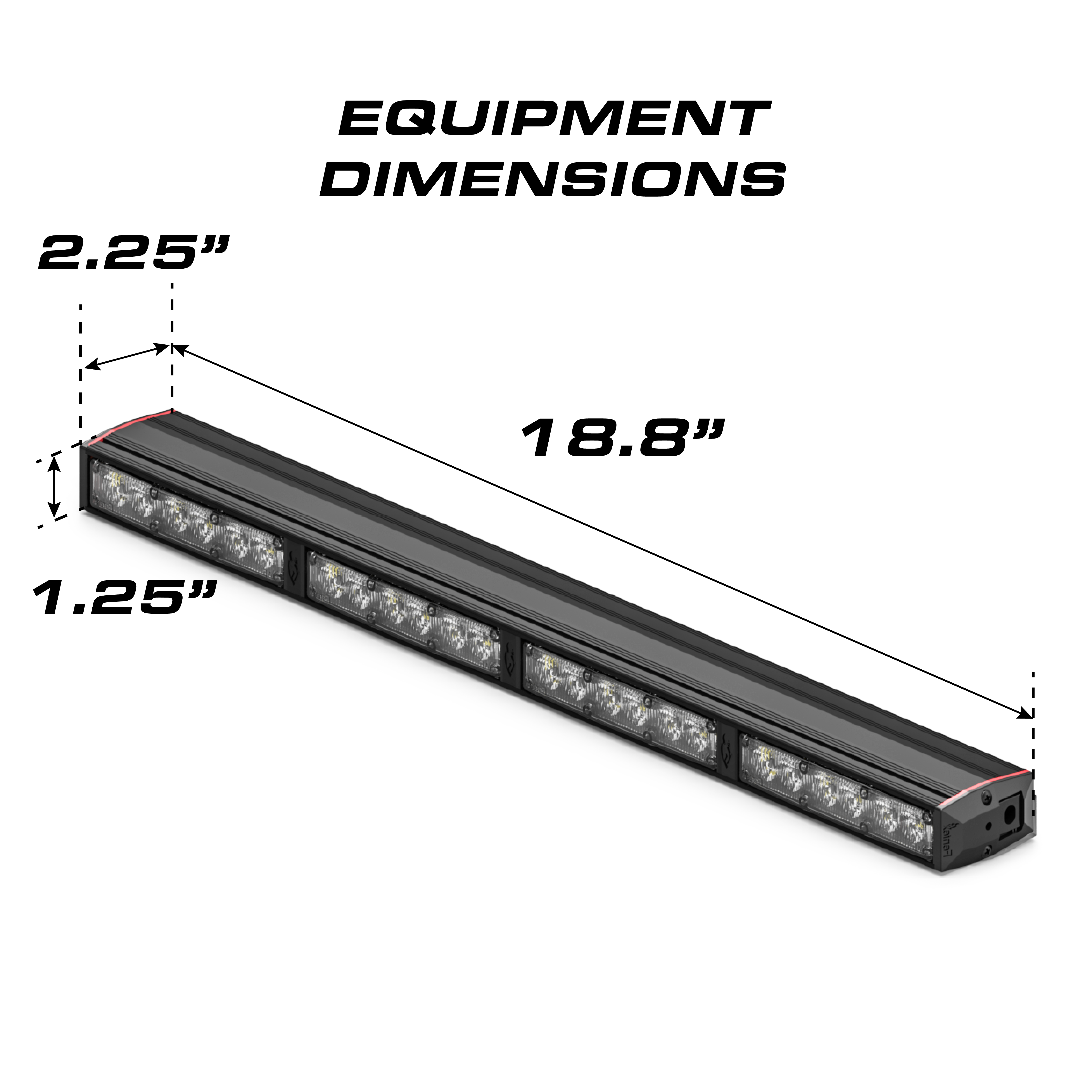

| Dimensions | 18.8″ L × 2.25″ W × 1.25″ H |

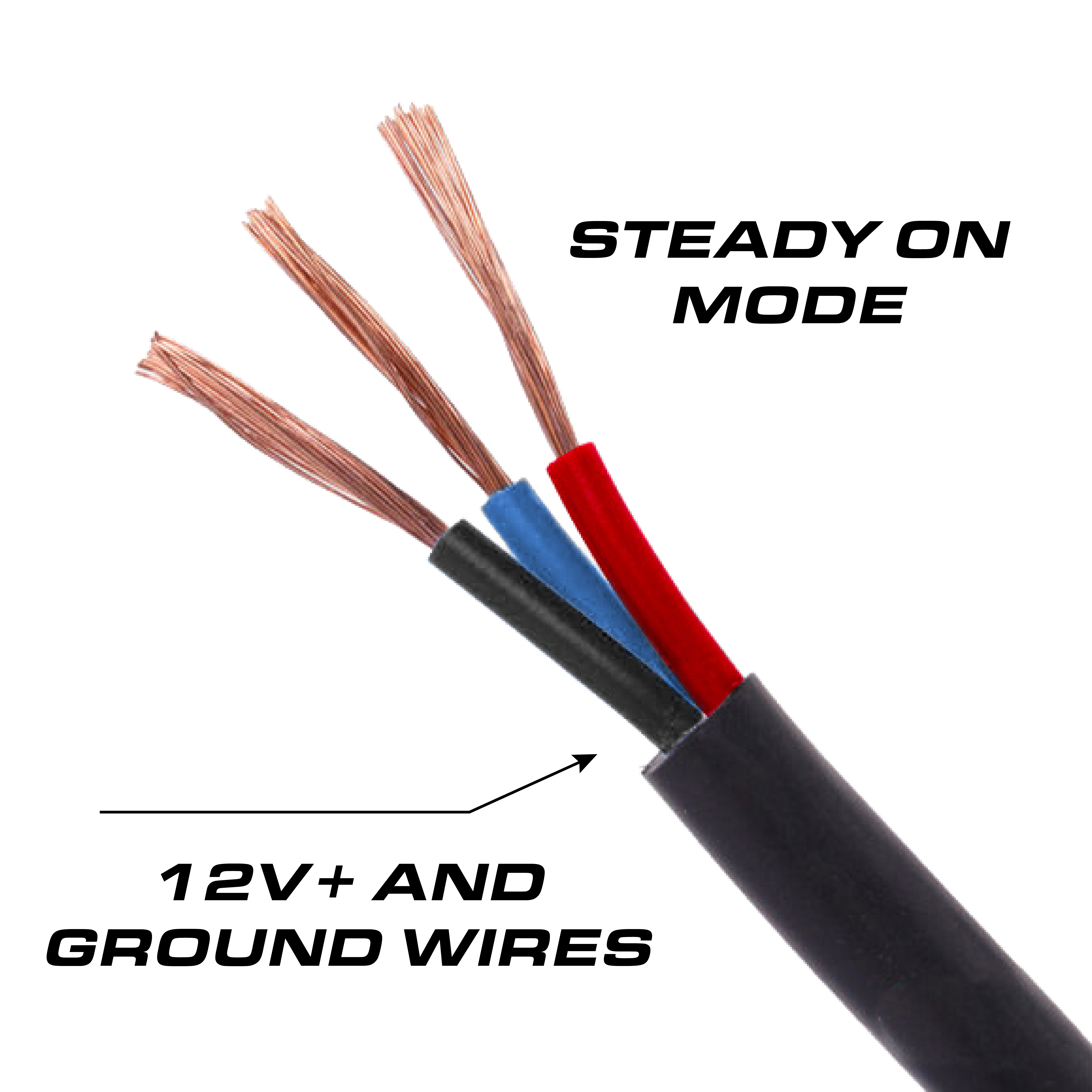

| Cable | 10 ft standard · 14-pin · 20 AWG |
| External fuse | 125% of product load |
| Warranty | 5-year manufacturer |
About the series

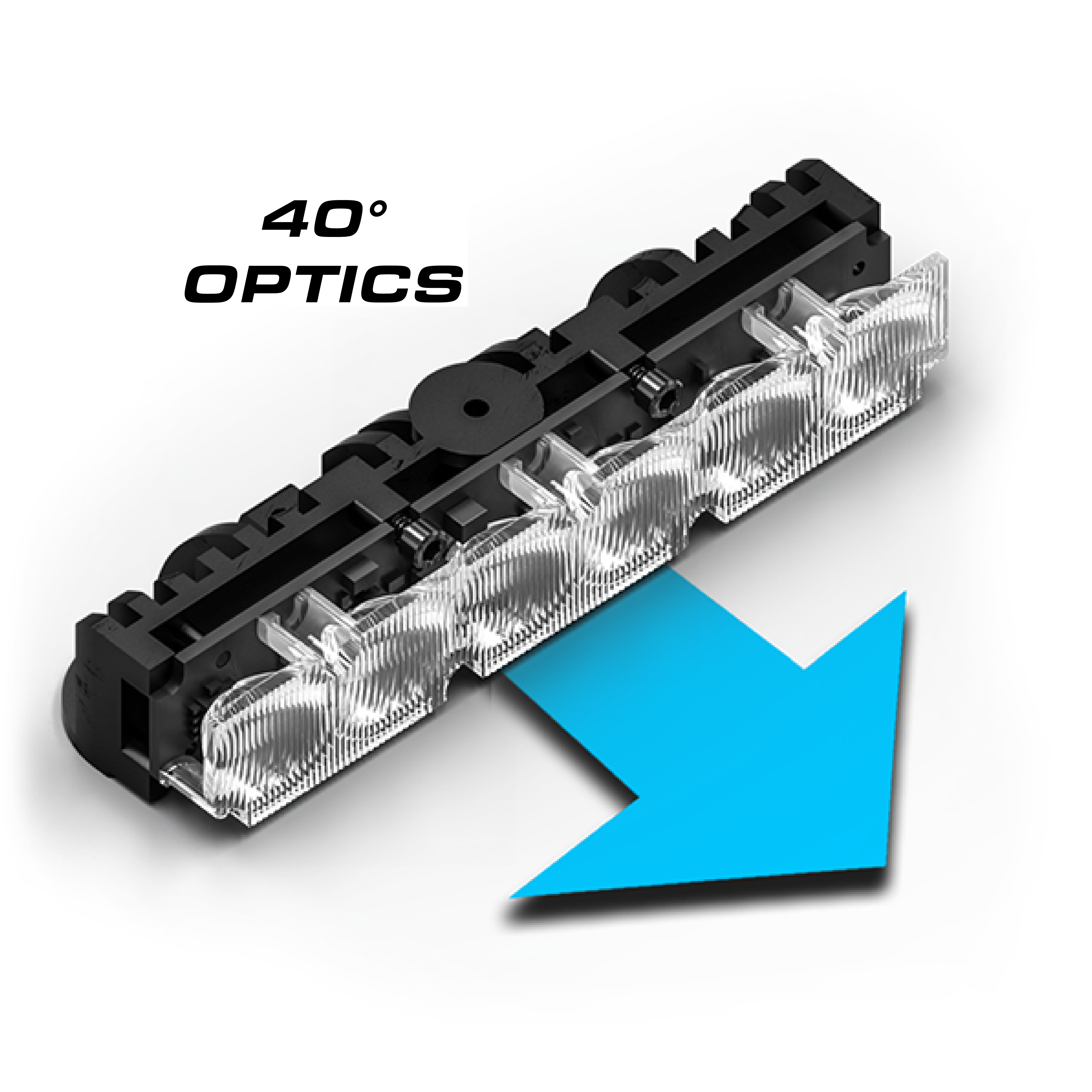

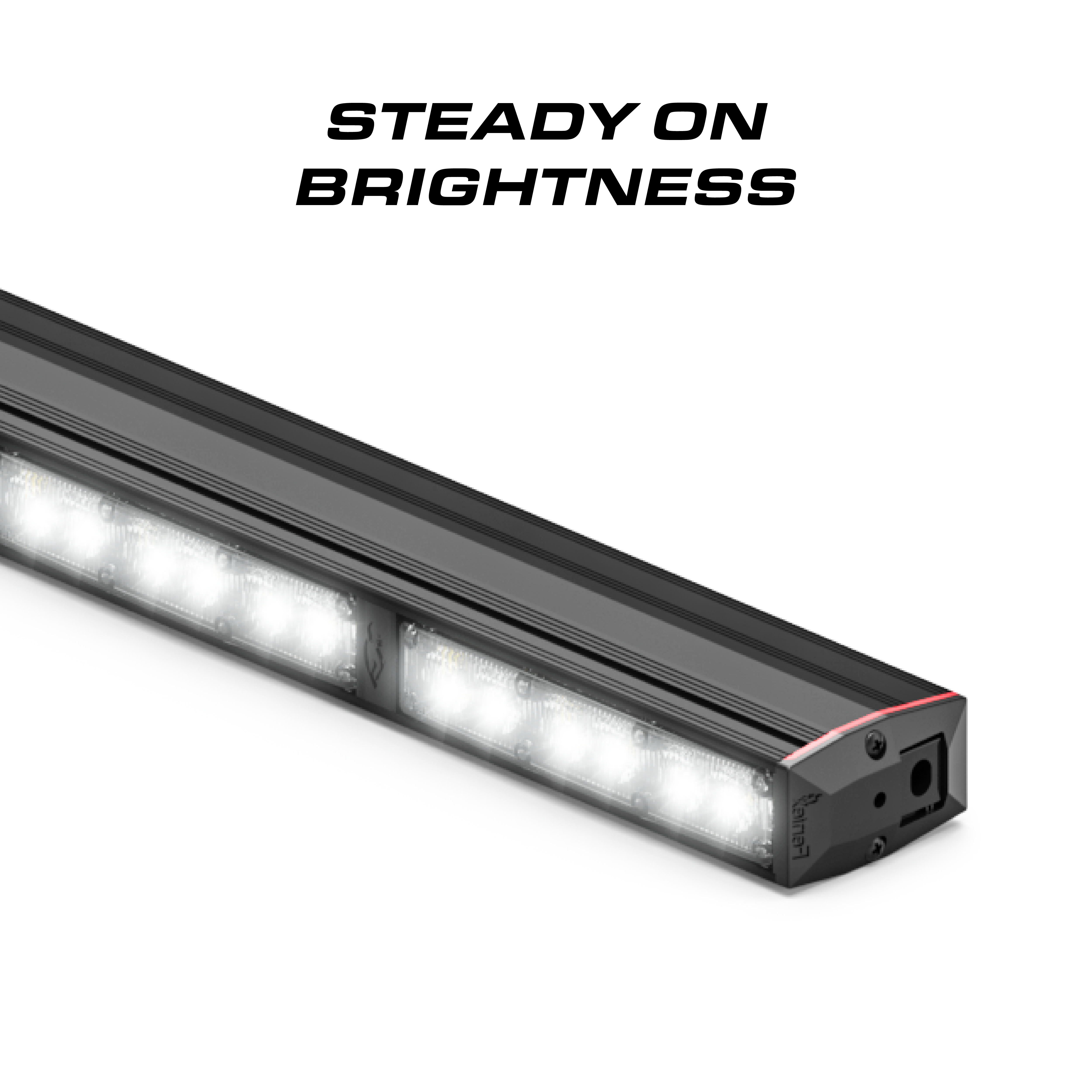

The Fusion work lights are pure scene lighting — a single steady-on white output across a rugged aluminum extrusion, wired straight to the vehicle with no patterns to program and no modes to select. Four lengths share one optic and one mount pattern, so the 20, 30, 40 and 50 differ only in how much of the scene they cover. IP67 sealed and built in Austin, TX.
