Feniex Quantum 44 lightbar on the black stage

FULL SIZE LIGHTBARS / QUANTUM SERIES

QUANTUM 44”

Name: Quantum 44” Lightbar
Brand: Feniex
SKU: QT4420S
Price: 1899.00 USD
Availability: InStock

QT-4420S-SD · Full-size lightbar · five colors in one bar · patented Unlock technology

STEP 01Color · Unlock Level

Your programming options10 combinations

Dual: five colors in every module — only two can be programmed per module.

Full unlock exclusive

10-YEAR WARRANTY

Every color in every module and 2× the warranty.

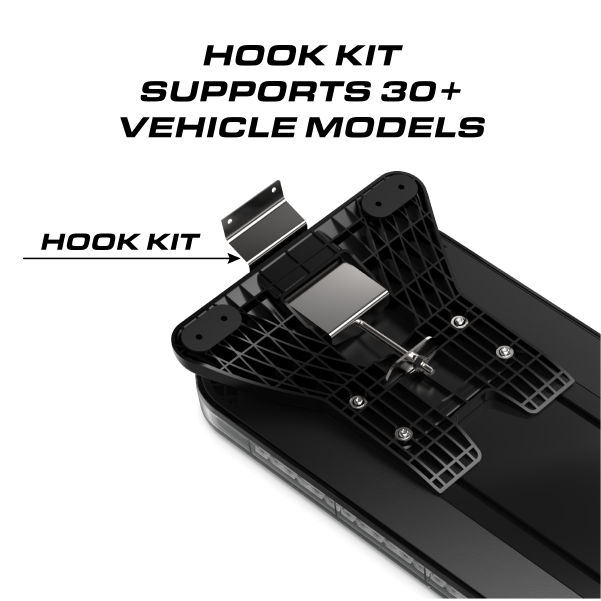

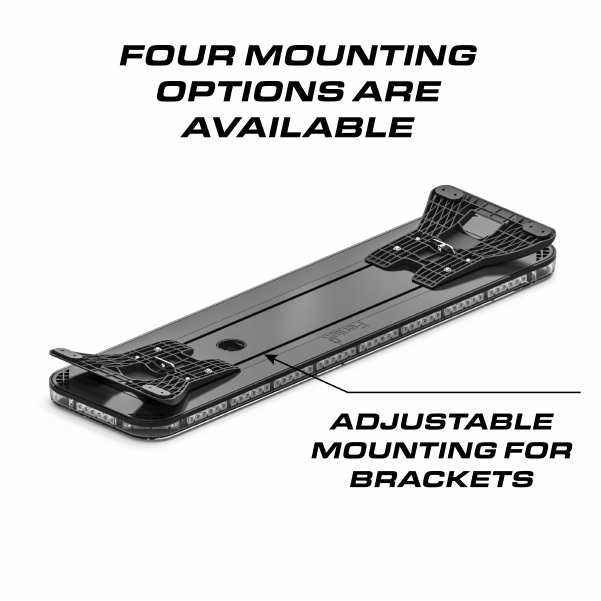

STEP 02Mounting

STEP 03Vehicle Type

STEP 04Cable length

$1,899 1

$39 Flat Rate Shipping
Per Lightbar

Pattern Studio

QUANTUM 44

View

Unlock level

Colors

Select number of colors per level

Why Quantum

Computer programmableUnlock Quantum software — levels, patterns, module colors.

13 inputs standard28 programmable inputs with the optional converter.

20+ flash patternsFront, rear, arrow, DOT stop-turn-tail — all integrated.

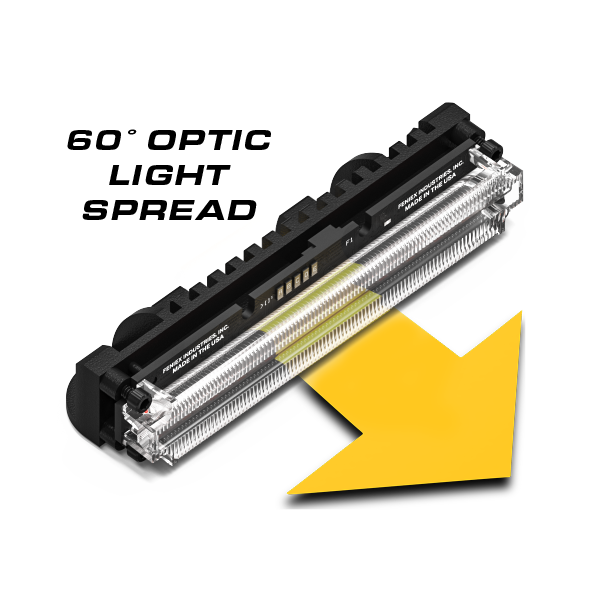

60° optical spreadWide-angle light head geometry across all 594 LEDs.

Takedown · alley · floodWork lighting built into the bar — no add-on heads.

Aluminum top coverStructural reinforcement · 5-year warranty — 10-year with Full.

Specifications

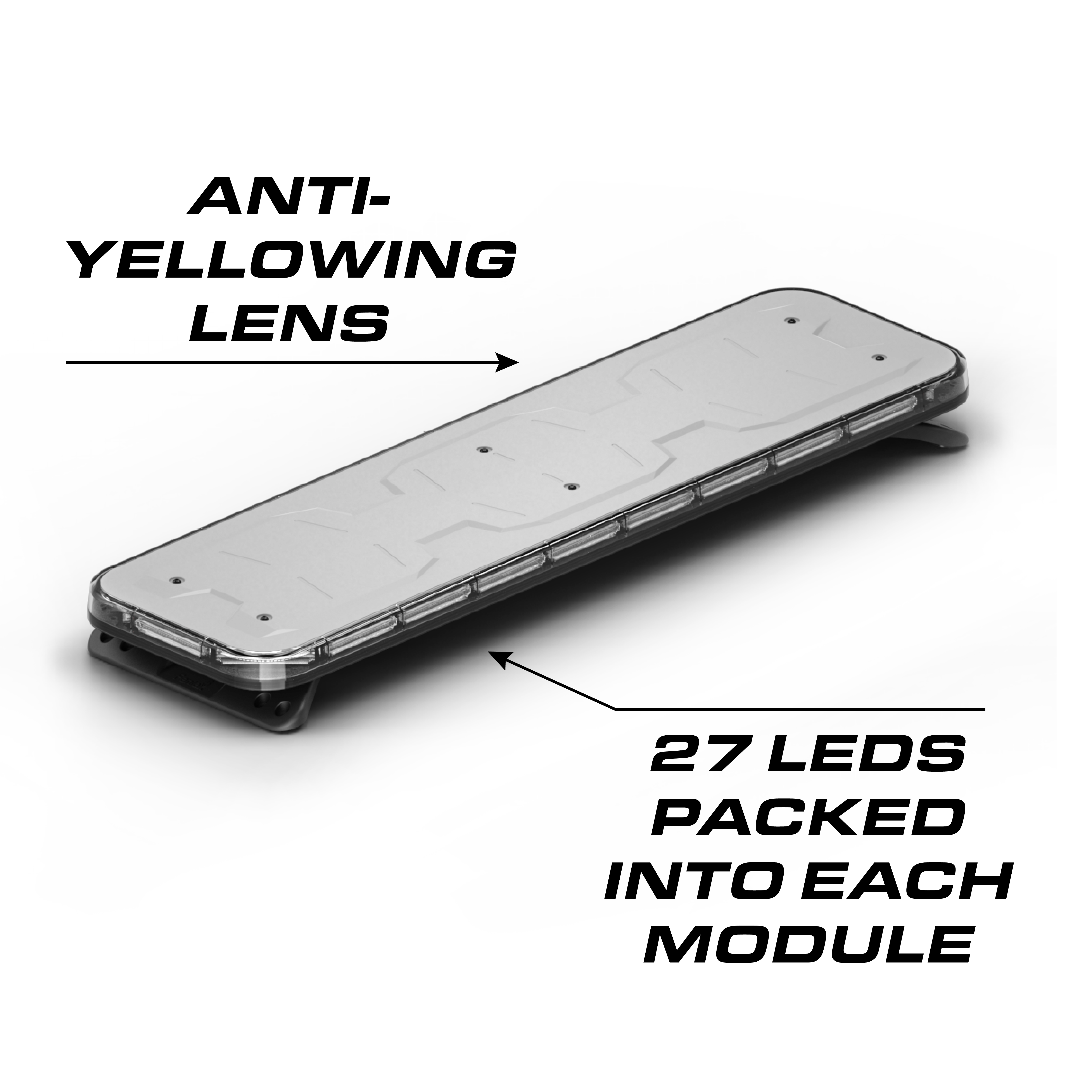

LED count	594 LEDs
Light modules	22 modules
Current draw	17 A @ 13 V
Input voltage	10–18 V DC
Optical spread	60°

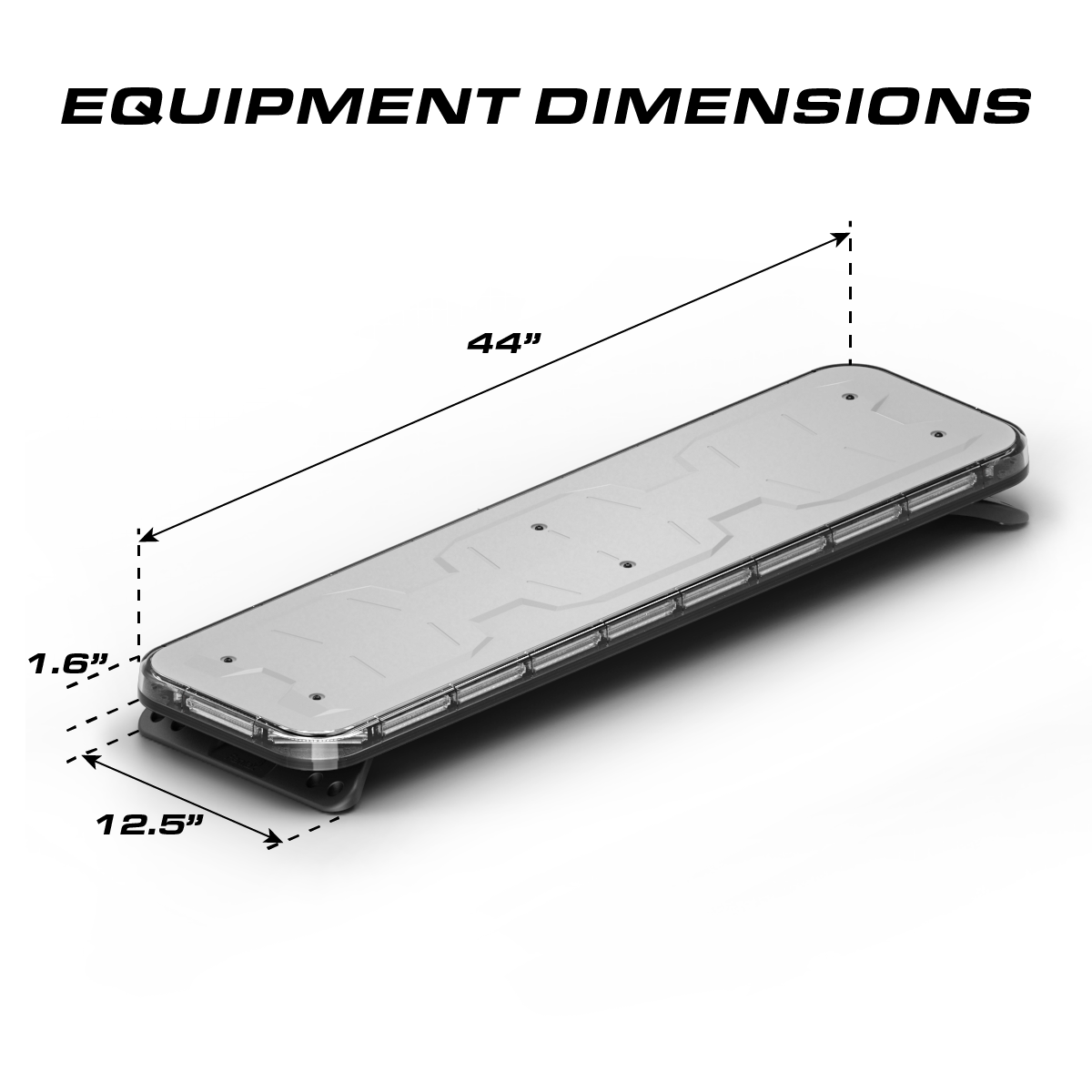

Dimensions	44″ L × 12.15″ W × 1.6″ H
Cable	10 ft standard · 15-pin 20 AWG + 2-pin 16 AWG
Warranty	5-year manufacturer — Dual & Tri Color 10-year manufacturer — Quantum Full Unlocked
Origin	Made in the USA

SAE J595SAE J1113-11CA TITLE 13ECE R65NFPAIP67

About the series

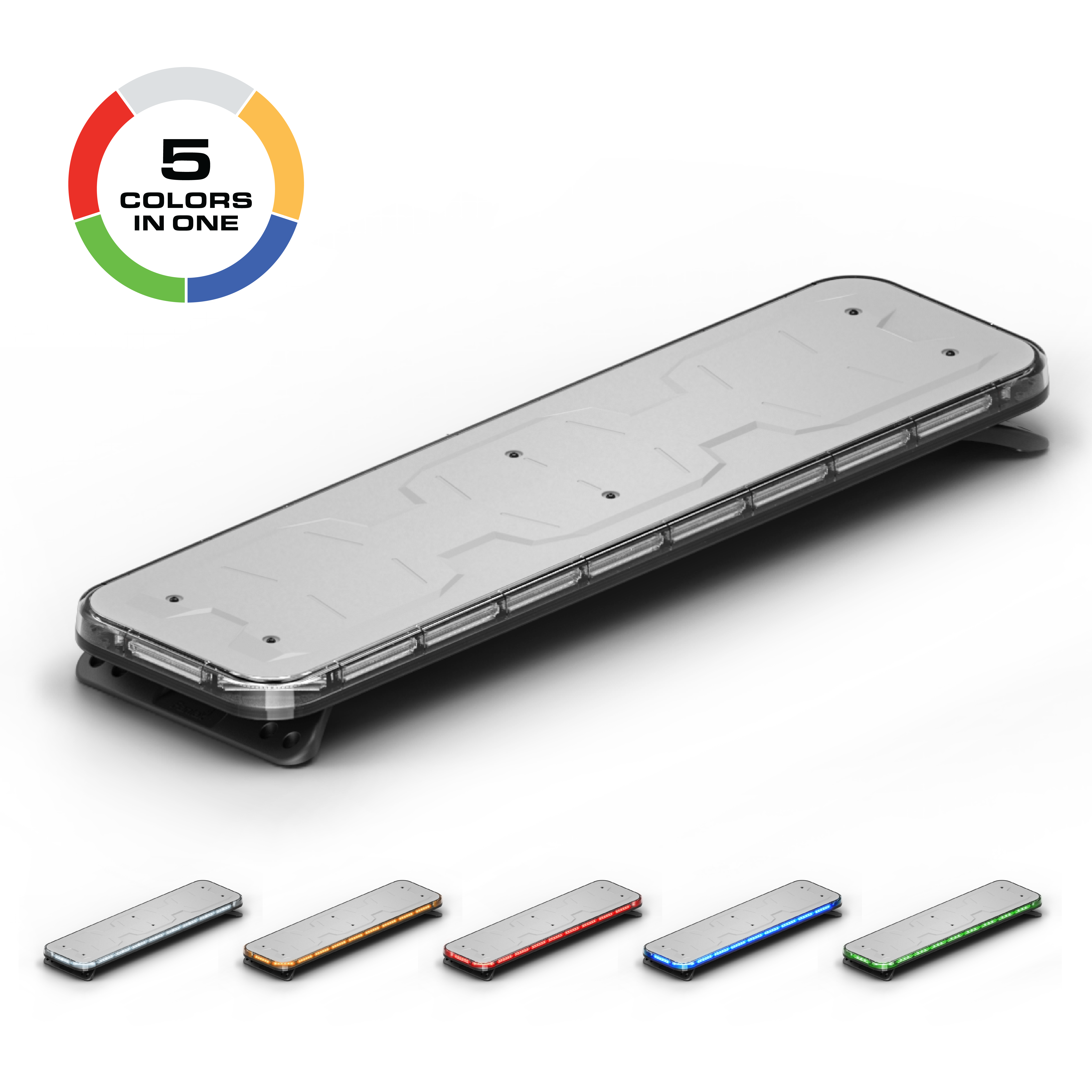

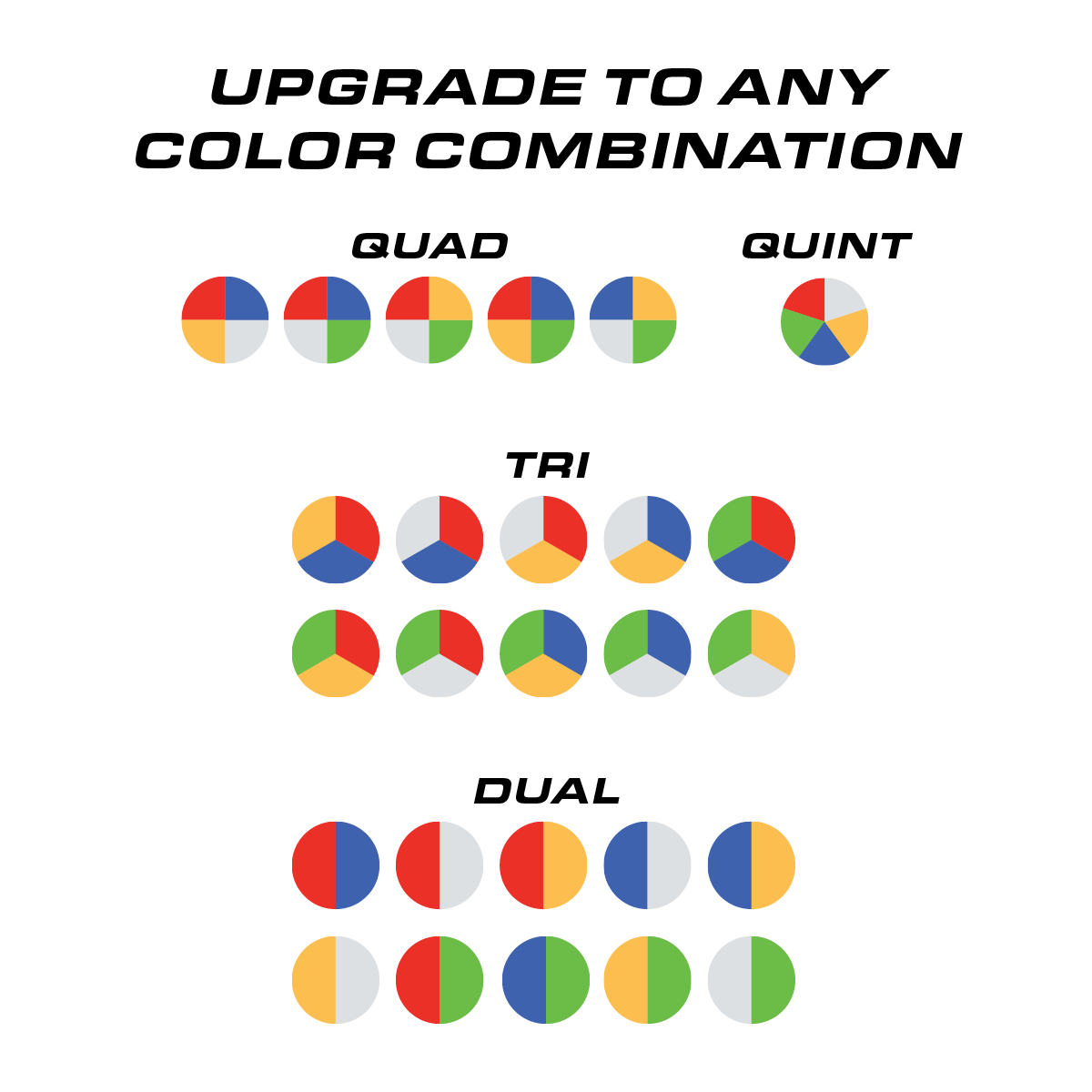

Feniex’s patented Quantum Series offers 5-color capable technology and is available in 3 progressive Unlock Levels: Dual, Tri, and Full. For a minimal unlock fee, all Feniex Quantum products can be unlocked to any desired Unlock Level — unrivaled customization to meet your exact needs without breaking the bank. The Quantum Series is capable of 5 vivid colors: Blue, Red, Amber, White, and Green.

Documents & training

PDFInstruction Manualthe official manual, straight from the source PDFCut Sheetdimensions · draw · certifications 1. Choose your module(s): FRONT R B ALL ALL R R R R R TD TD B B B B B Click Lighthead To Deactivate STT R R R A WK WK A B B B STT 2. Function: Take Down Alley Stop Turn Tail Work Light 3. Assign Color: RED BLUE AMBER WHITE GREEN EXEUnlock Quantum Softwarelevel upgrades · patterns COURSEFeniex Universitythe Quantum 2.0 video course

5 Star Reviews

thousands of 5-star reviews

Quality light!

Overall, great quality. The wiring, switches, housing, it is all solid and functions well. Very bright light and does not interfere with VHF radios in the vehicle.

Verified buyer
AMAZING

A little hard to wireat first because the wires are small but if you know how to run wire and use a solder gun then these are the lights you need!

Zach R. Verified buyer
Very bright for a compact light

The light is very bright for a compact light and you can set two different flash patterns by moving the switch off of center up or down.

Christopher F. Verified buyer
