DECK & DASH / FUSION SERIES

FUSION 2X

FS-2116 · Two-module dash light · 40° optic, 60% brighter

STEP 01Colorone per module
LEFT MODULE
RIGHT MODULE
STEP 02Cable length
$169 1
$19 Flat Rate
Shipping

Pattern Studio

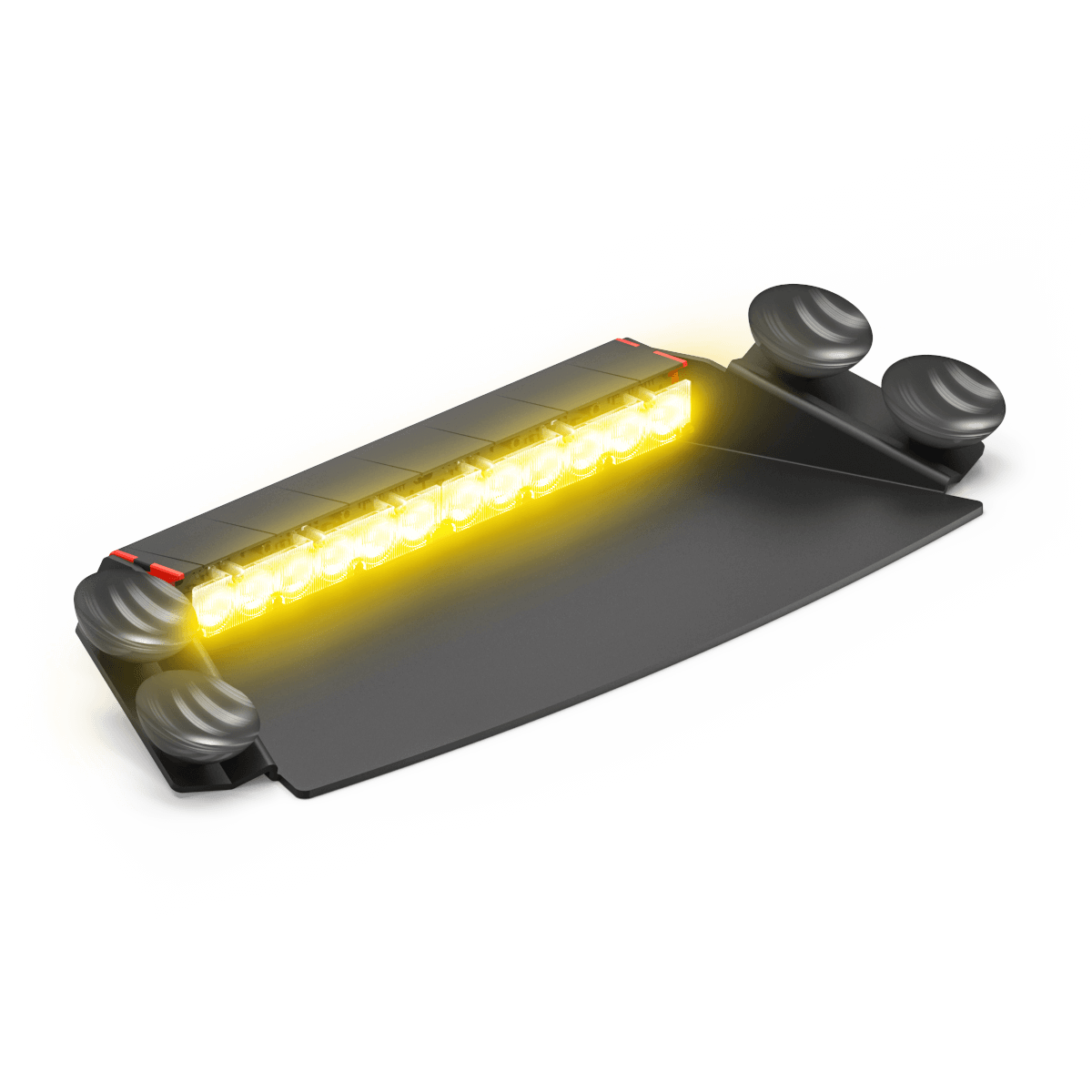

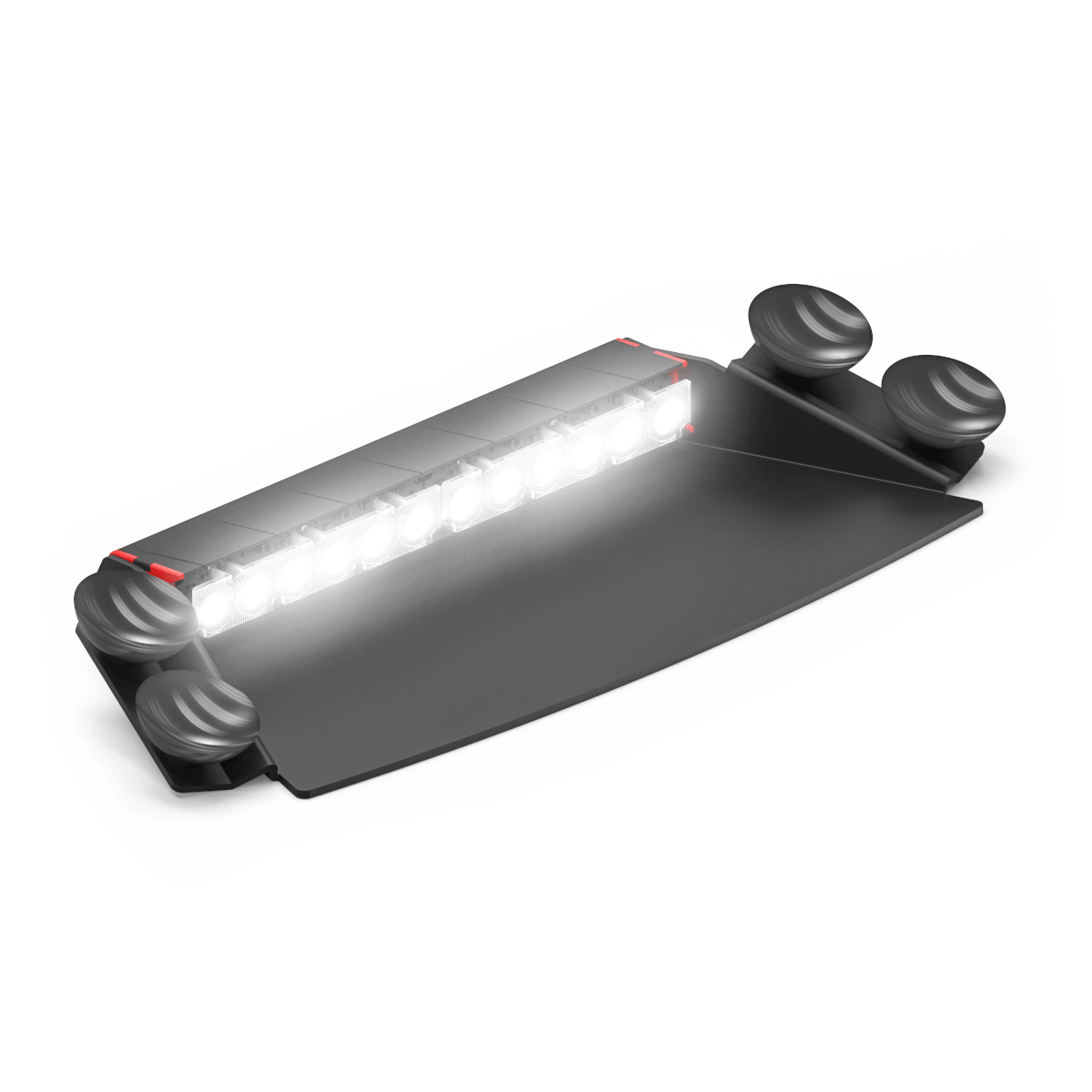

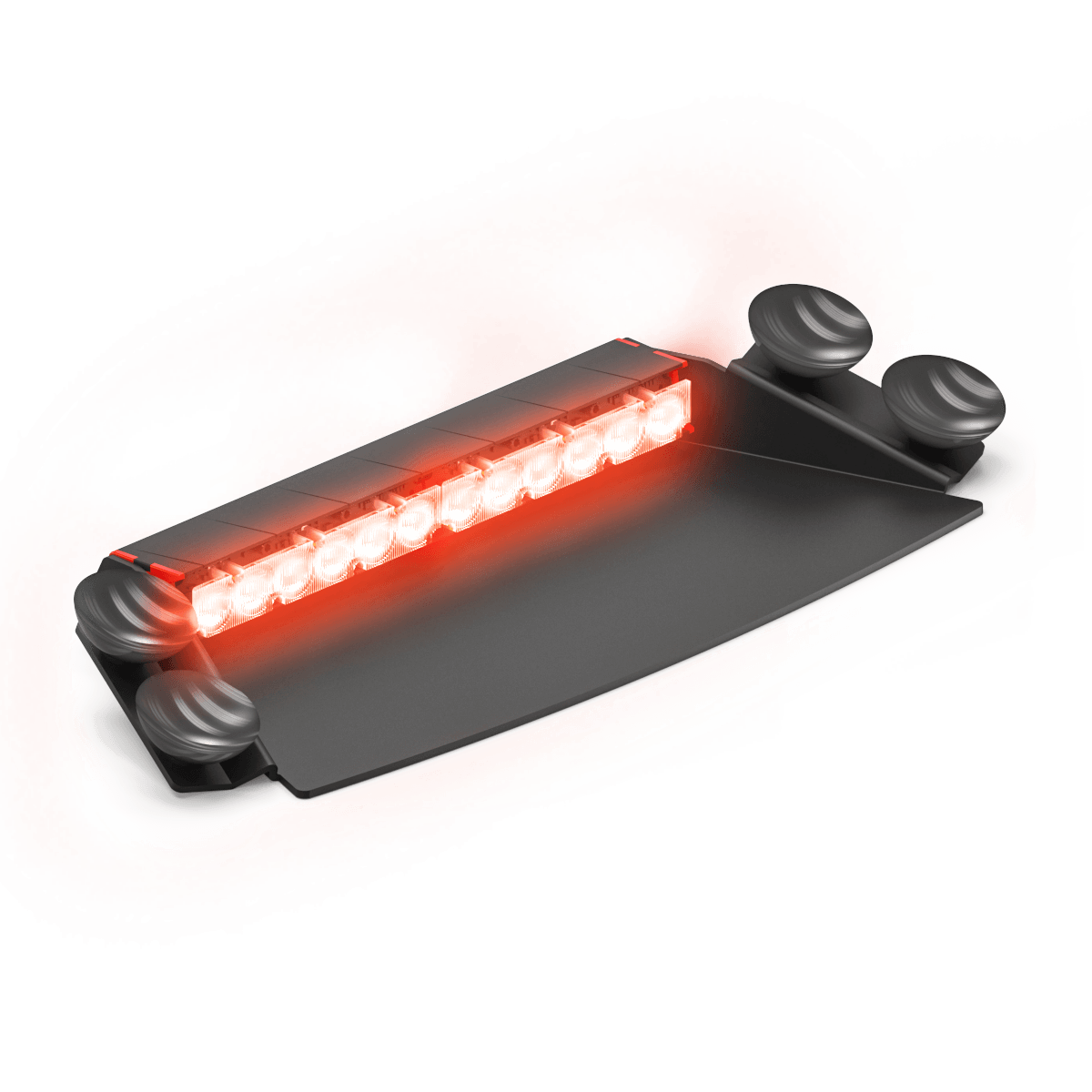

FUSION 2X · IN THE COLORS YOU’D ORDER
View
Colors
one color per unit — pick the pair you’d order

Why Fusion

40° optic, 60% brighterThe Fusion-S optic — long-range visibility over the previous Fusion family.

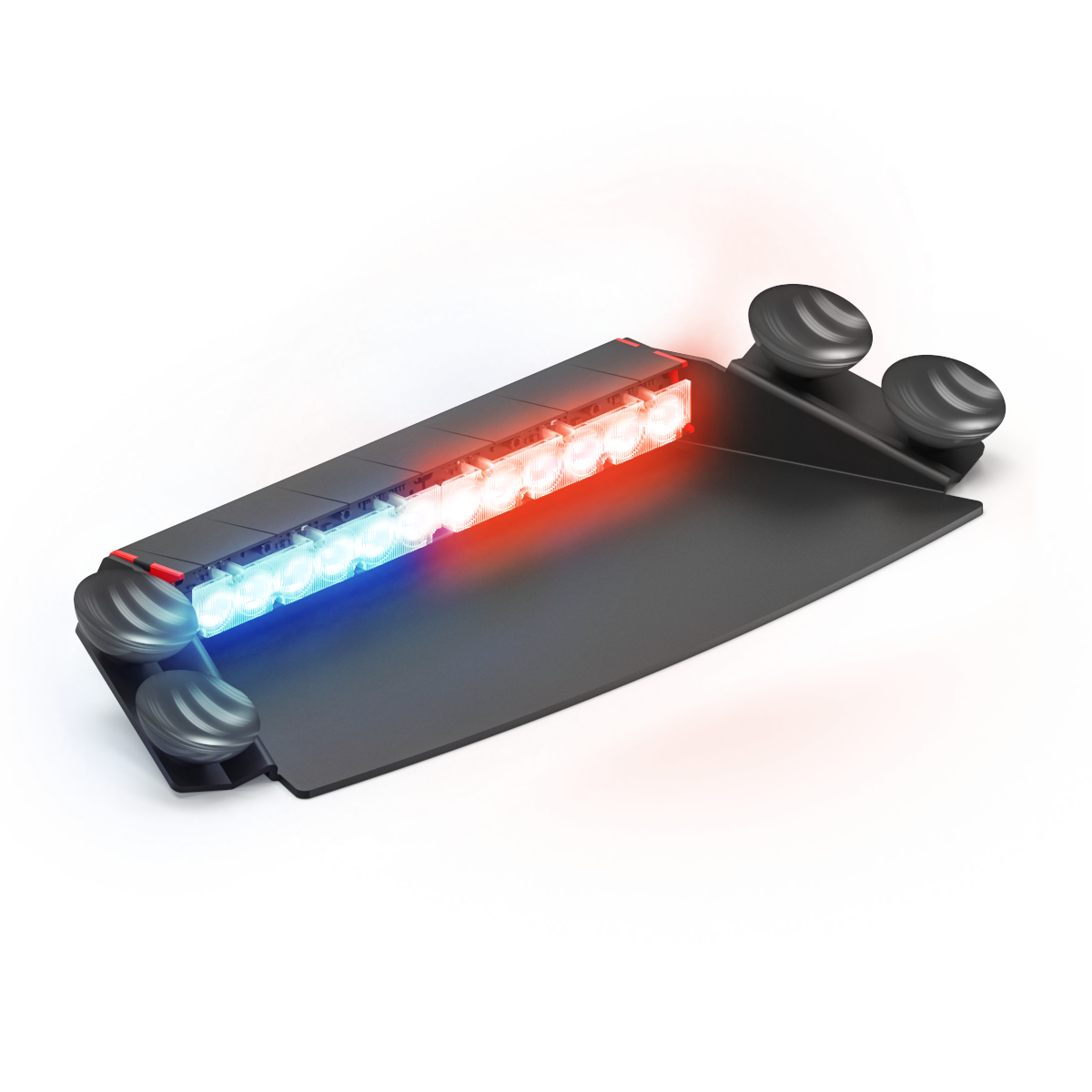

Two modules · your colorsLeft and right modules each take any of the five colors — split it or match it.

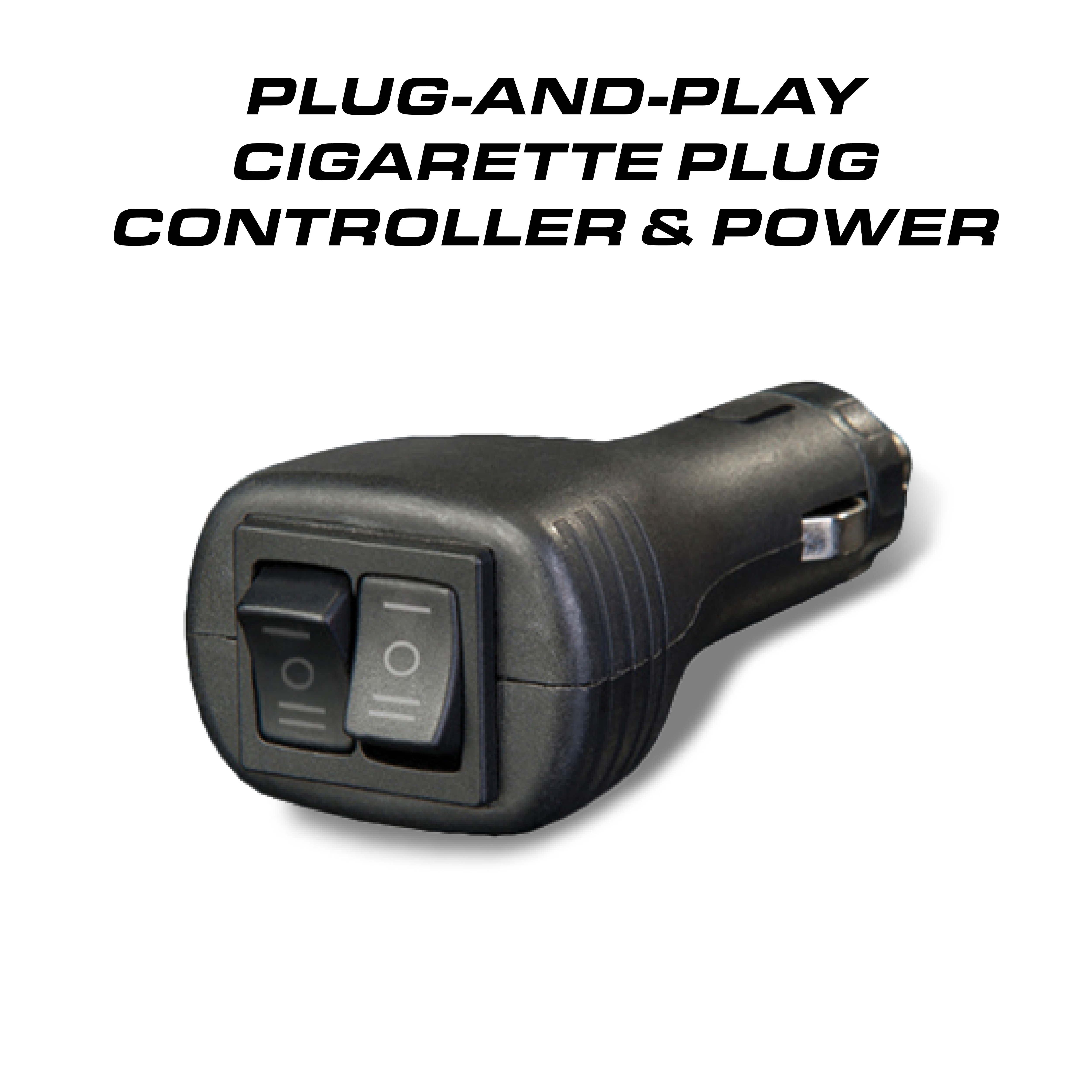

Plug in and goCigarette-plug adapter with switches for color, pattern and mode — no wiring needed.
2 programmable modesFlood, cruise and stop/tail/turn pattern capabilities.

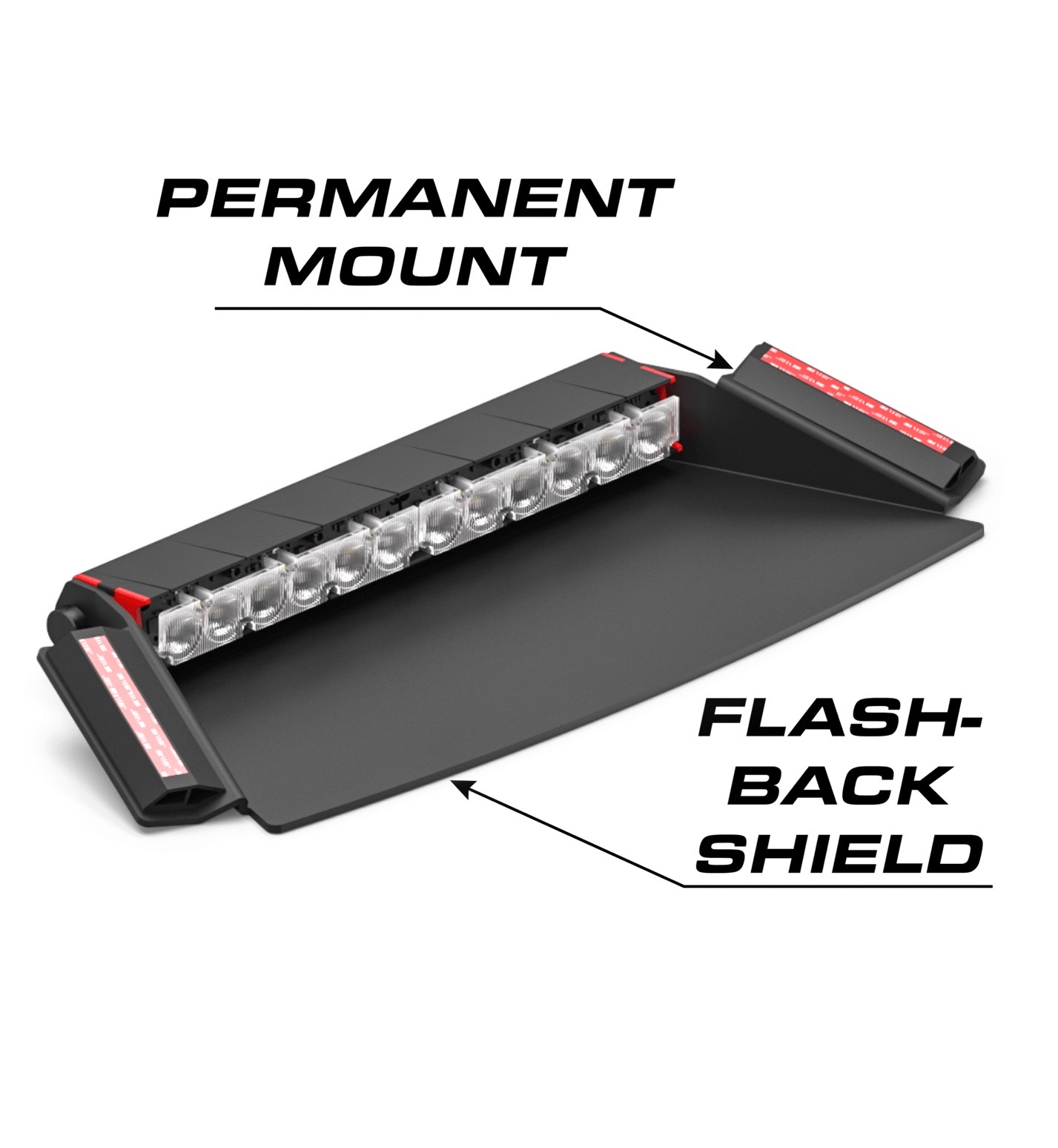

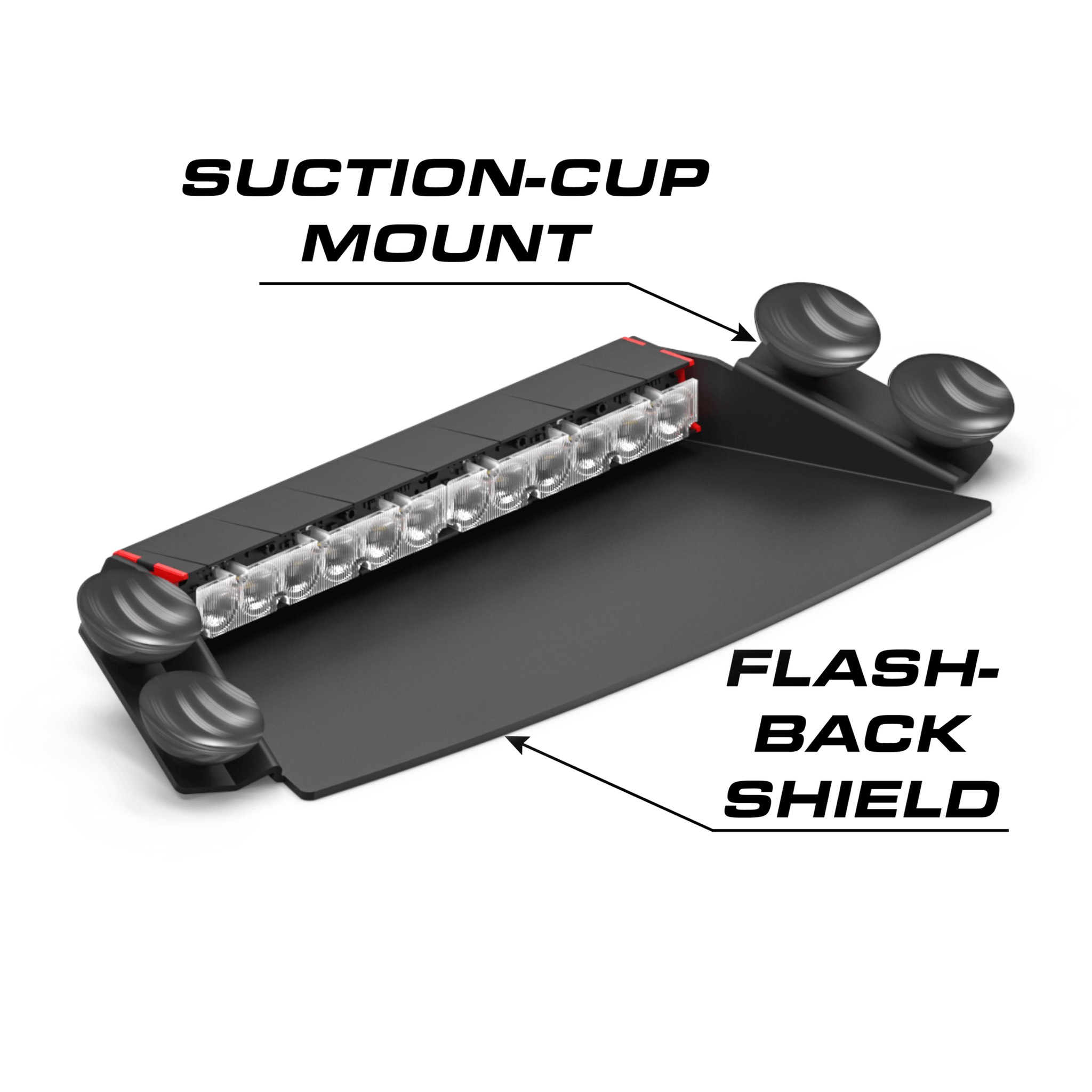

Two mounts includedSuction-cup and 3M permanent tape — with a built-in shield against back-flash.
Syncs across the familyT3, Cannon, Mirror Puck and QSM run in step · 5-year warranty.

Specifications

LED count12 LEDs
Current draw1.5 A
Input voltage10–18 V DC
Optical spread40°
Dimensions13.8″ L × 4.97″ W × 1.72″ H

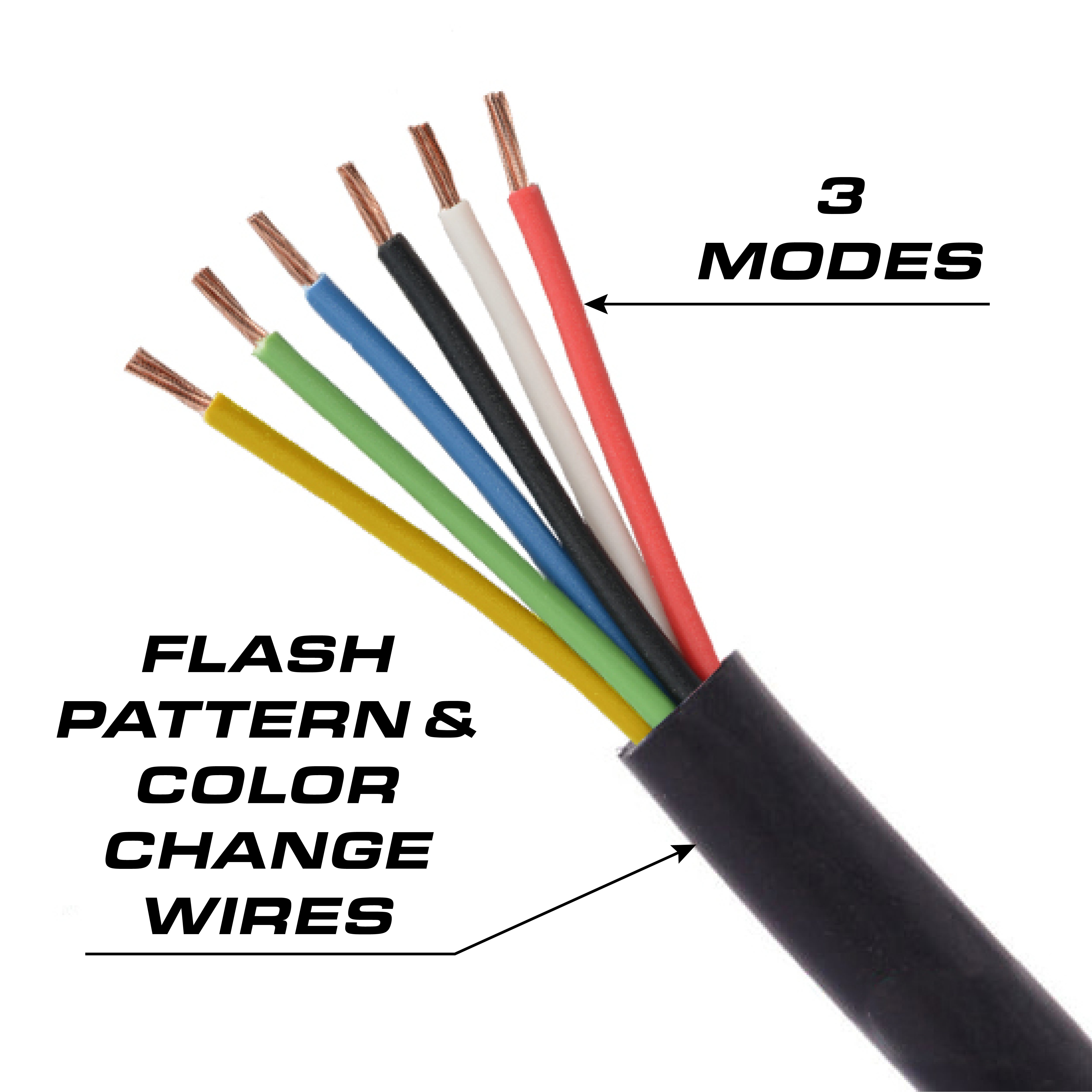

Cable10 ft standard · 6-pin · 20 AWG
In the boxSuction-cup and 3M tape mounts · cigarette plug adapter
External fuse125% of product load
Warranty5-year manufacturer
OriginMade in the USA
SAE J595 CLASS 1
Fusion 2X

About the series

The Feniex Fusion-S is the next evolution of the Fusion series — the world’s brightest and most competitively priced emergency warning line. User configurable in red, blue, amber, white and green, the Fusion-S offers a new and improved optic that is 60% brighter than the previous Fusion family. Single-color modules, programmed in the field.

Documents & training

PDFInstruction Manualwiring · mounting · programming PDFCut Sheetdimensions · draw · certifications COURSEFeniex Universityinstall & programming video courses

5 Star Reviews

thousands of 5-star reviews
  • Great patterns, clever design

    This is a great little light. The ability to rotate the led in relation to the shielding is great, especially when you have a windshield that is steeper than most. Bright lights ans great patterns

    Robert M. Verified buyer

  • Quality light!

    Overall, great quality. The wiring, switches, housing, it is all solid and functions well. Very bright light and does not interfere with VHF radios in the vehicle.

    Verified buyer

  • Very bright for a compact light

    The light is very bright for a compact light and you can set two different flash patterns by moving the switch off of center up or down.

    Christopher F. Verified buyer

Read more reviews →
