DECK & DASH / FUSION SERIES

FUSION INTERIOR

INTERIOR LIGHTBAR · Interior lightbar · single-color modules, laid out your way · 40° optic, 60% brighter

STEP 01Color · By Moduleone color per module · 8 modules
No build yet — every module is waiting for a color.
STEP 02Bar Type
STEP 05Cable length
$699 1
$19 Flat Rate
Shipping

Pattern Studio

FUSION INTERIOR · IN THE COLORS YOU BUILD
Your build
No build yet — nothing to play.
build your bar and its colors play here

Why Fusion

40° optic, 60% brighterThe Fusion-S optic — long-range visibility over the previous Fusion family.
8 modulesSingle-color modules in any layout — configured by you in Build-A-Bar.
15 flash patternsAttack, Cluster, Combo, Half-Half, One-One, Two-Two, All-On — front and rear.

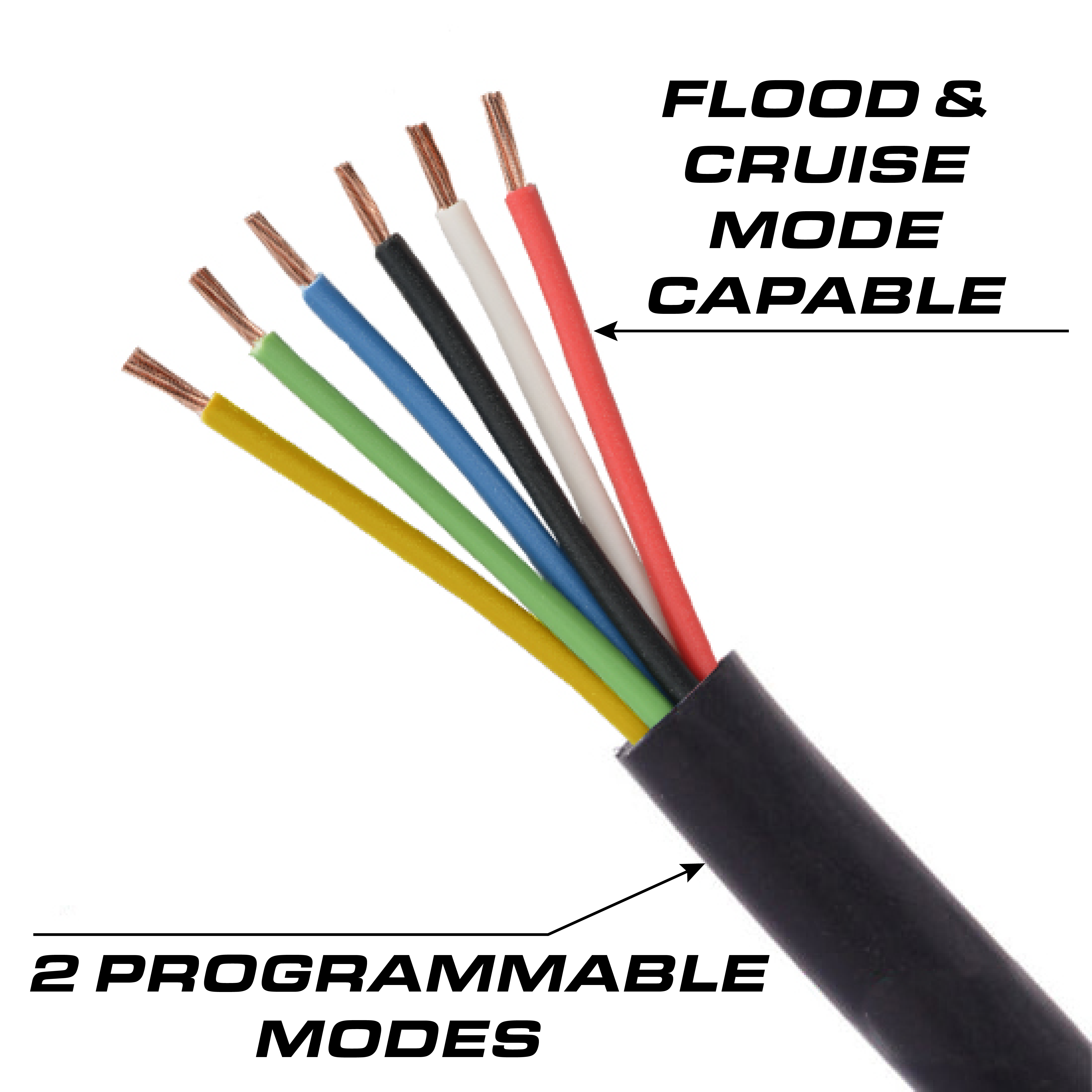

28 programmable inputsDOT stop/turn/tail, traffic advisor, cruise, cut-off, dim.
Takedown · alley · floodWork lighting built in — assigned per module in your build.
Military-grade aluminumAnti-yellowing, anti-cracking clear-coated polycarbonate lens · 5-year warranty.

Specifications

Light modules8 modules · single-color, user configured
Current draw6 A
Input voltage10–18 V DC
Optical spread40°

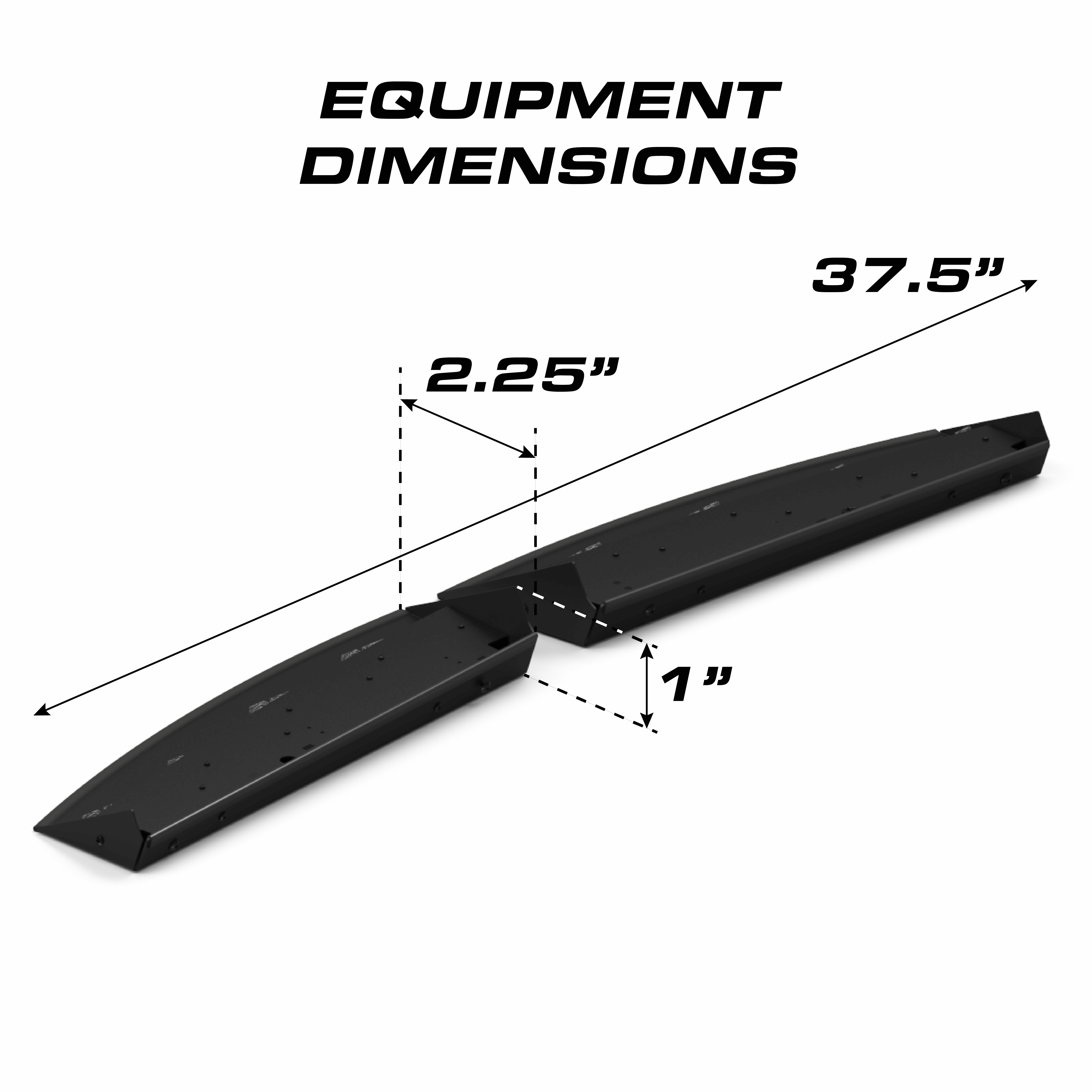

Dimensions37.46″ L × 2.25″ W × 1″ H
Cable10 ft standard · 14-pin · 20 AWG
External fuse125% of product load
Warranty5-year manufacturer
OriginMade in the USA
SAE J595SAE J1113SAE J578SAE J575SAE J845ECE R65 CLASS 1CA TITLE 13NFPA KKKIP66
Fusion Interior

About the series

The Feniex Fusion-S is the next evolution of the Fusion series — the world’s brightest and most competitively priced emergency warning line. User configurable in red, blue, amber, white and green, the Fusion-S offers a new and improved optic that is 60% brighter than the previous Fusion family. Single-color modules, laid out module by module in Build-A-Bar, programmed in the field.

Documents & training

PDFInstruction Manualwiring · mounting · programming PDFCut sheet Reardimensions · draw · certifications PDFCut Sheet Frontdimensions · draw · certifications COURSEFeniex Universityinstall & programming video courses
