SynQ-S

Price: $1099.00

About the Product/Series

*PRE-ORDER ONLY*

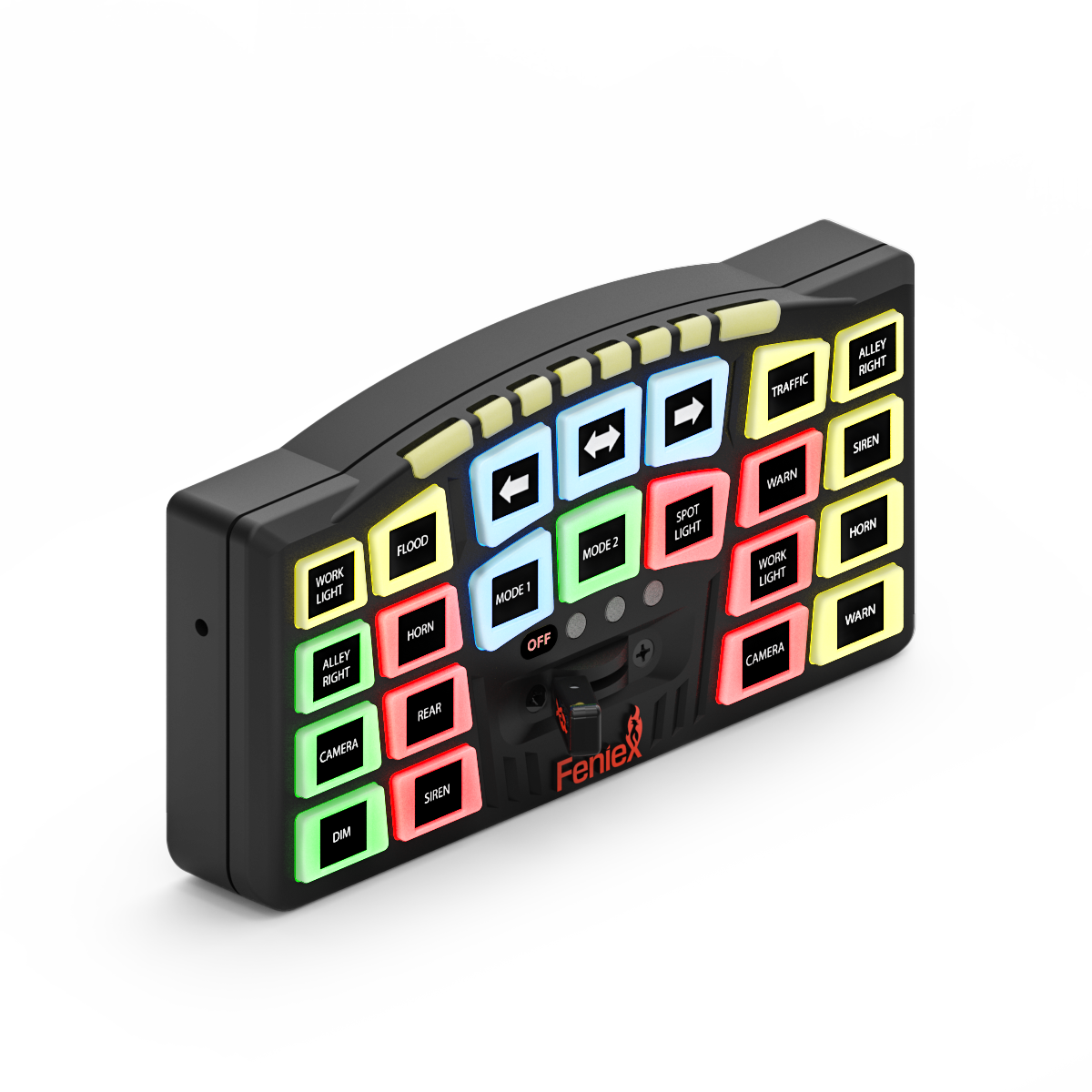

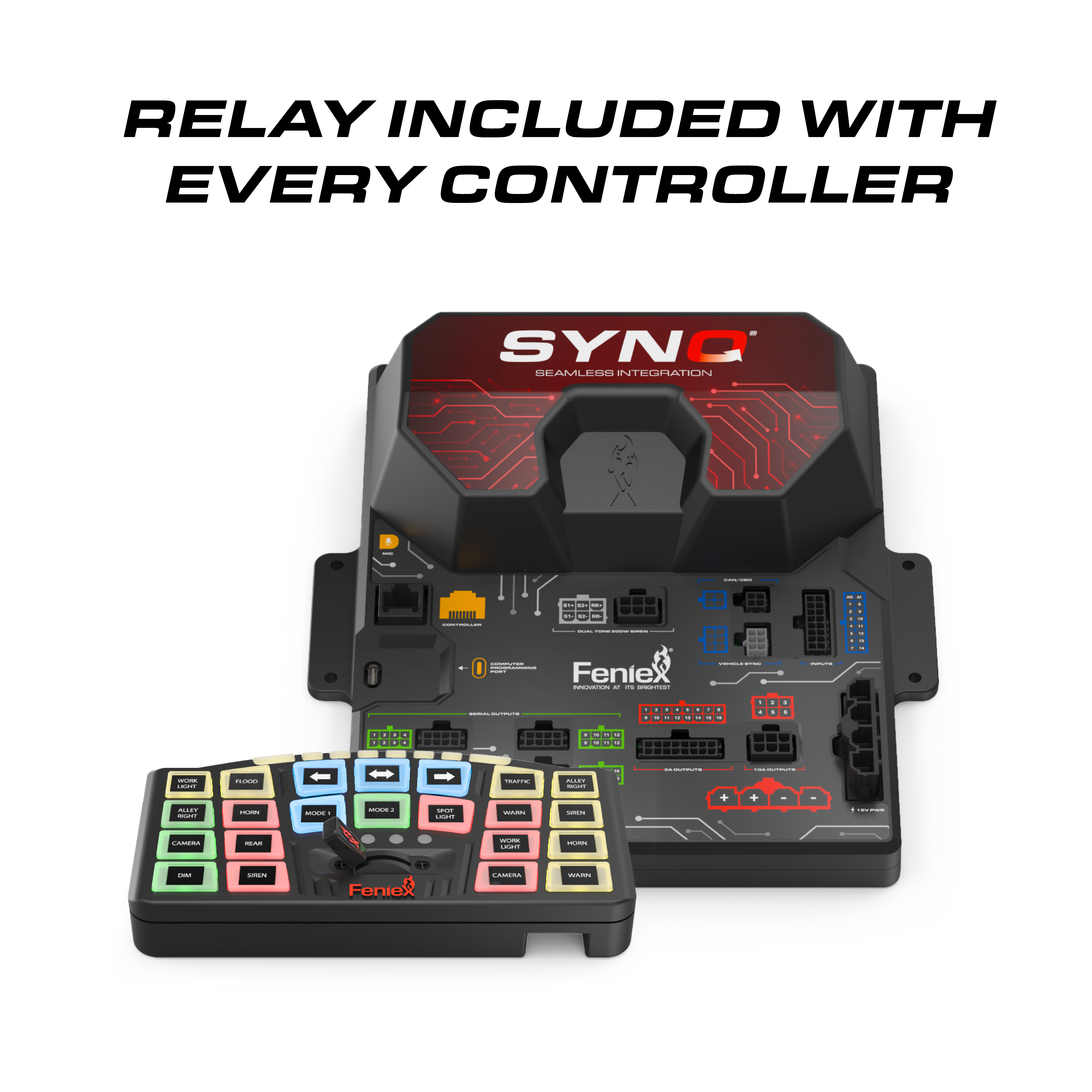

The SynQ-S is a full-size vehicle controller built for operators who need clear, direct access to their most important functions. Featuring 22 backlit buttons and an integrated slide switch, it provides fast, intuitive control with five selectable button colors for quick mode identification. The system powers on in just one second, giving users instant access to lighting, siren, and auxiliary functions the moment the vehicle is active. A 200W dual-tone siren, 15+ programmable siren tones, and over 20+ audio commands are included through the paired SynQ Relay.

Engineered for demanding fleets, the SynQ-S offers high-capacity current output control with 12 low-current outputs, 6 high-current outputs, and 4 ground outputs—all PC programmable for custom modes and configurations. With built-in support for up to 96 Q Serial lightheads or 16 Quantum 2.0 devices, the SynQ-S brings responsive performance, advanced configuration options, and seamless system syncing to any emergency or specialty vehicle.

Specfications

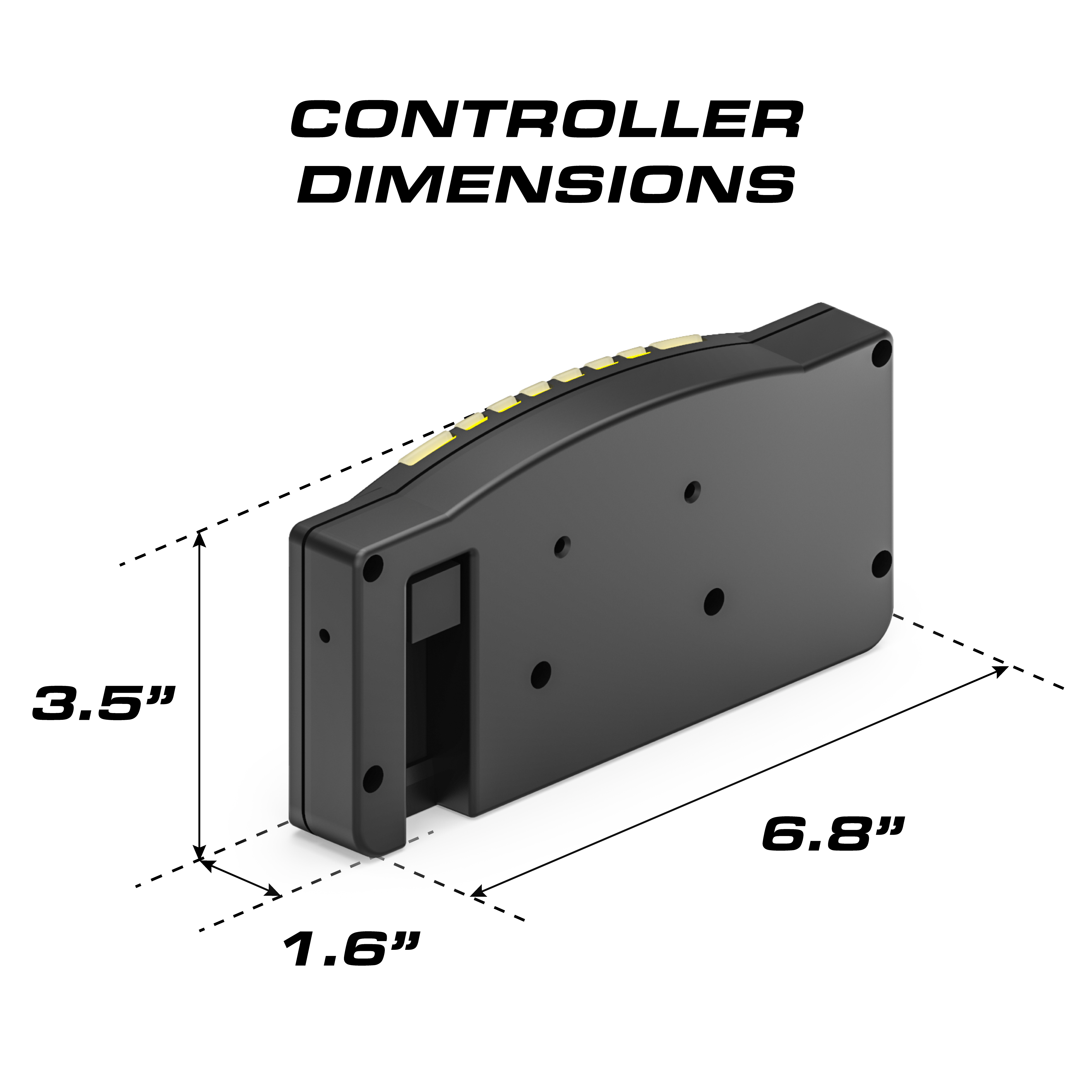

Dimensions (Controller): 6.8” x 1.6” x 3.5”

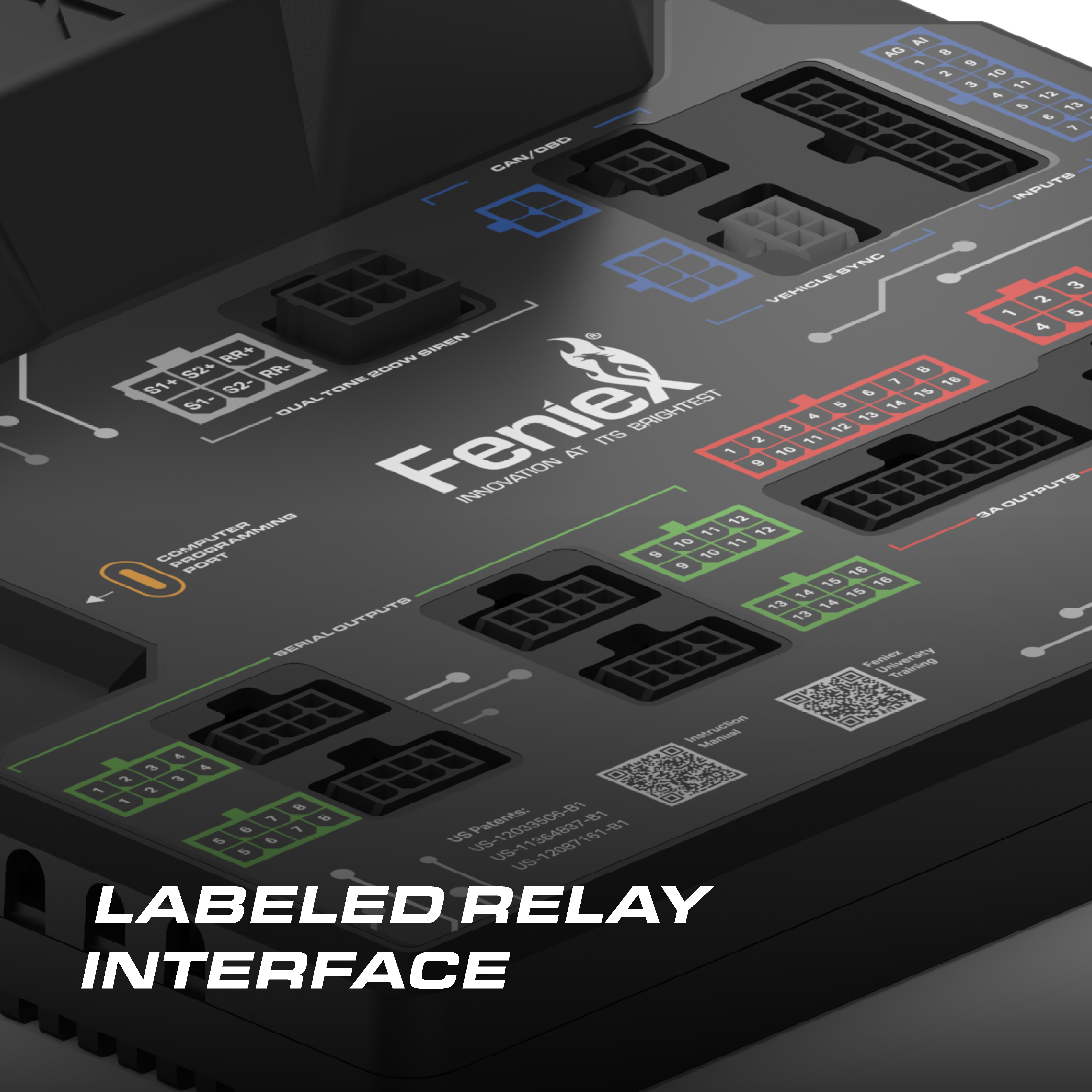

Dimensions (Relay): 7.25” x 8.75" x 2.44”
Input Voltage: 12-18VDC
Standby Current: 0.35 Amps
Total Max Current: 115 Amps
Low Current Output Current Rating: 3 Amps
High Current Output Current Rating: 10 Amps
2 Year Manufacturer Warranty

Product Details

22 Programmable Buttons
5 LED Button Color Options
Standardized Button Size
4 Button Style Configurations: Timer, Toggle, Multi-Press, and Momentary

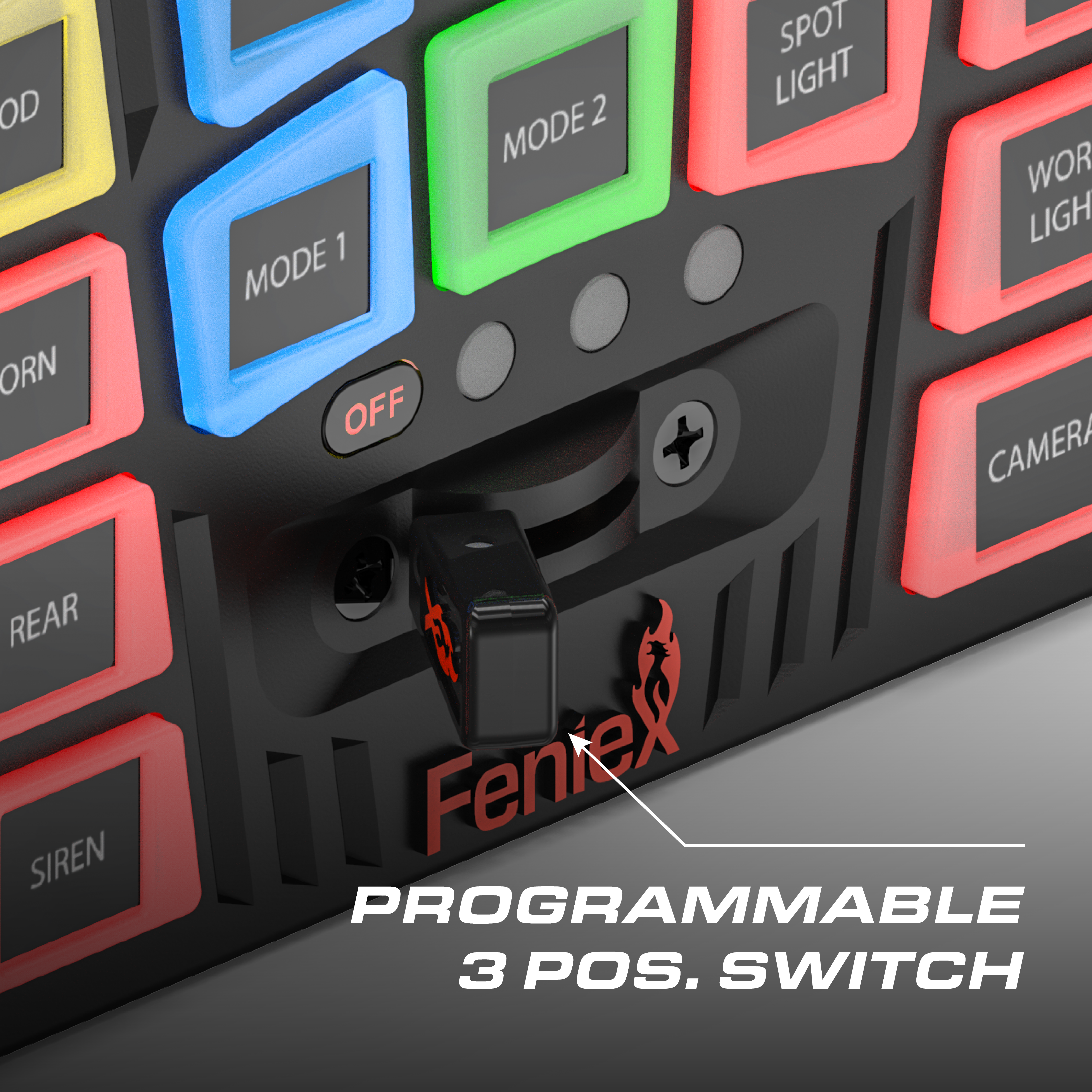

3 Position Slide Switch
Aluminum Slide Switch Cap

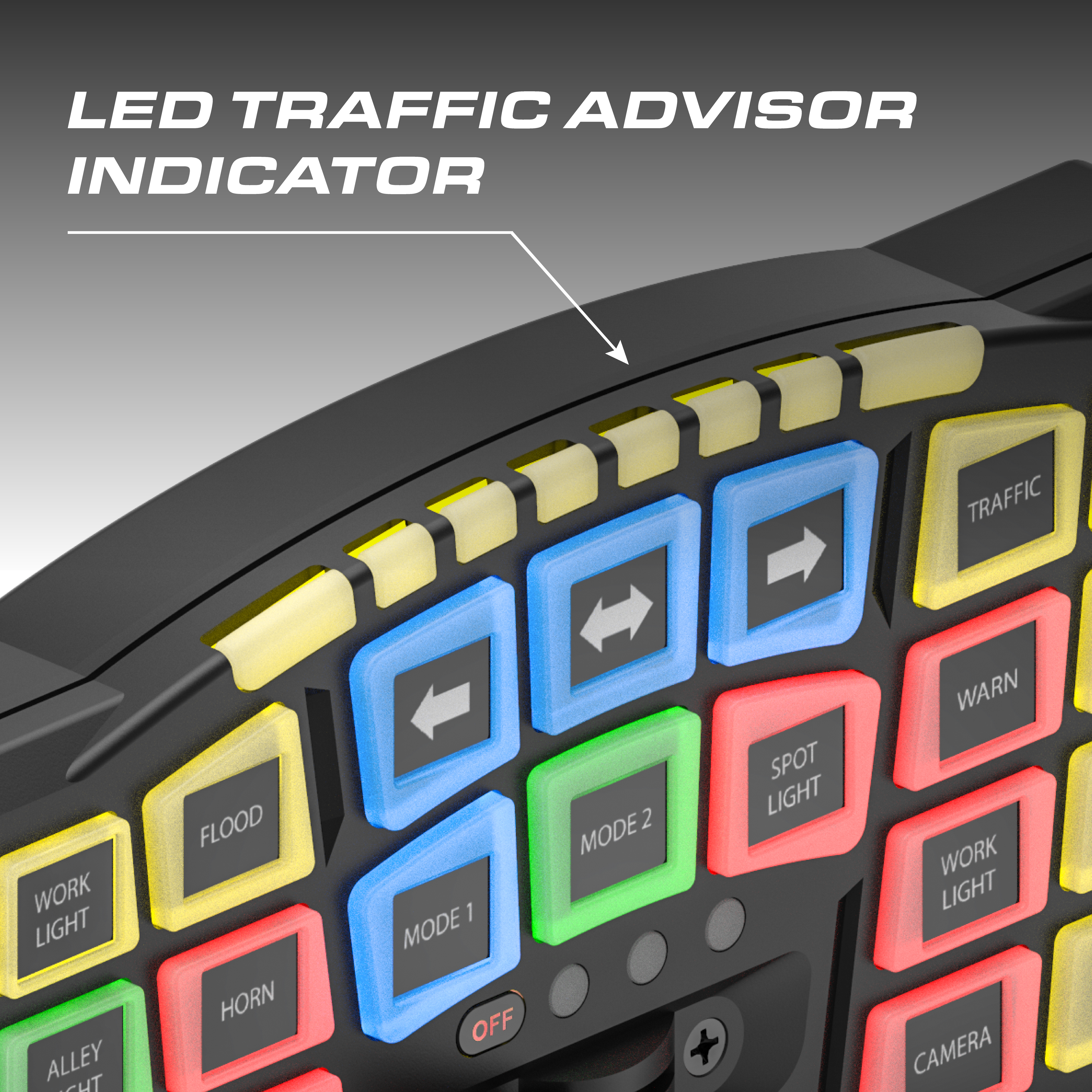

8 LED Programmable Traffic Advisor Indicators
15+ Programmable Siren Tones
20+ Audio Commands
200W Dual-Tone Siren
Horn Ring, Park-Kill, Hands-Free, & Radio Rebroadcast

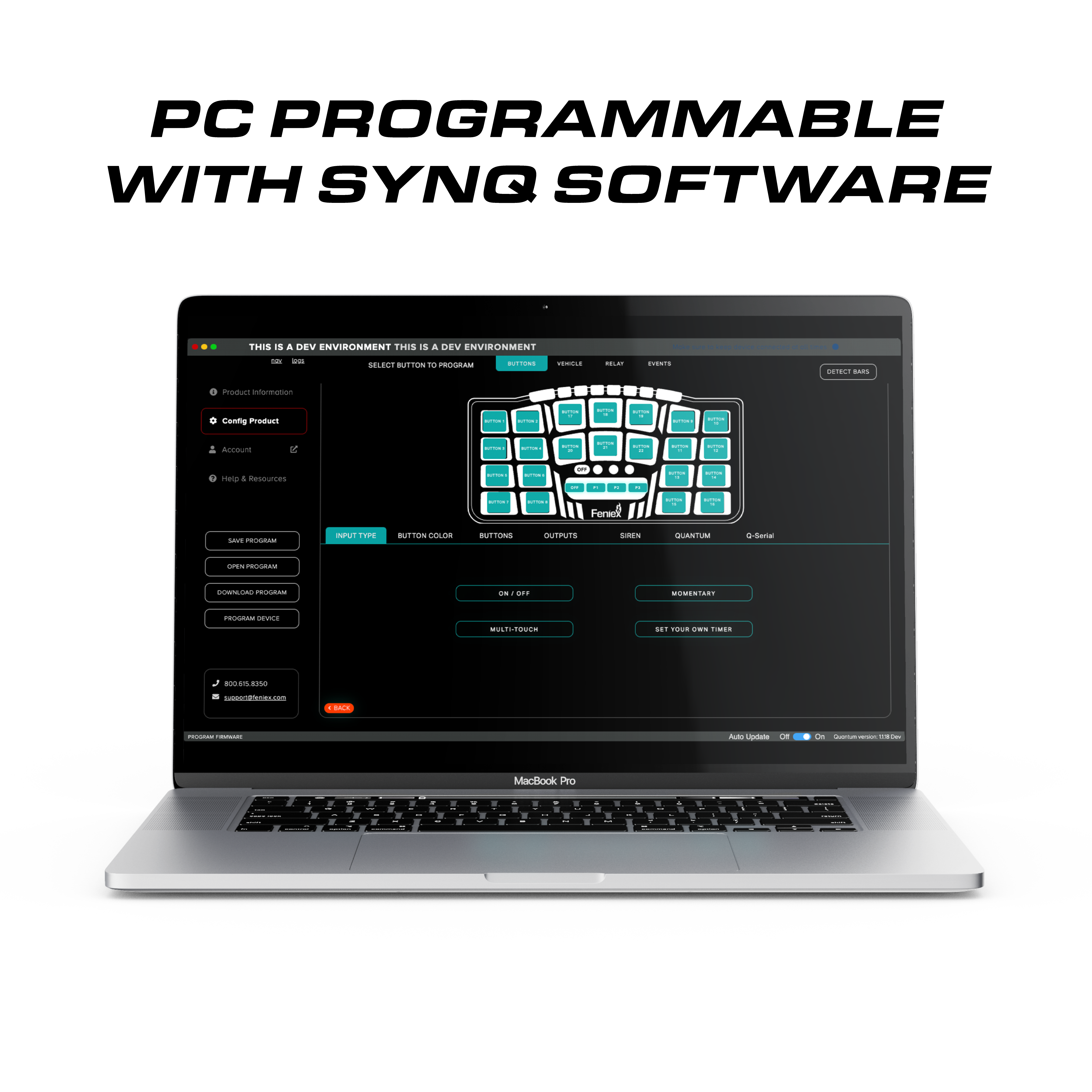

PC Programmable
Firmware Upgradable

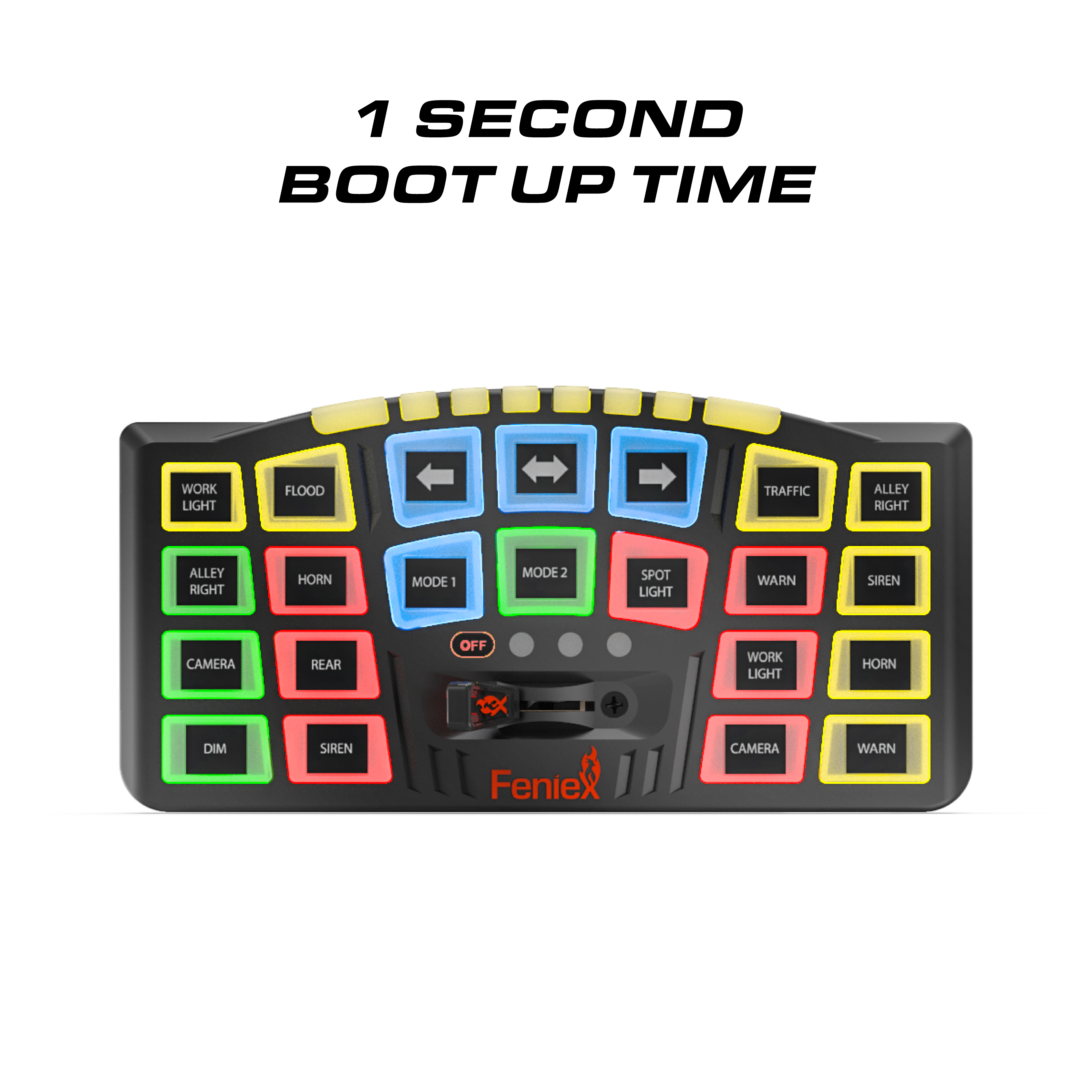

1 sec. Boot Up Time
12 Low Current Positive Outputs
6 High Current Positive Outputs
4 Low Current Ground Outputs
15ft Wire Harness From Controller to Relay

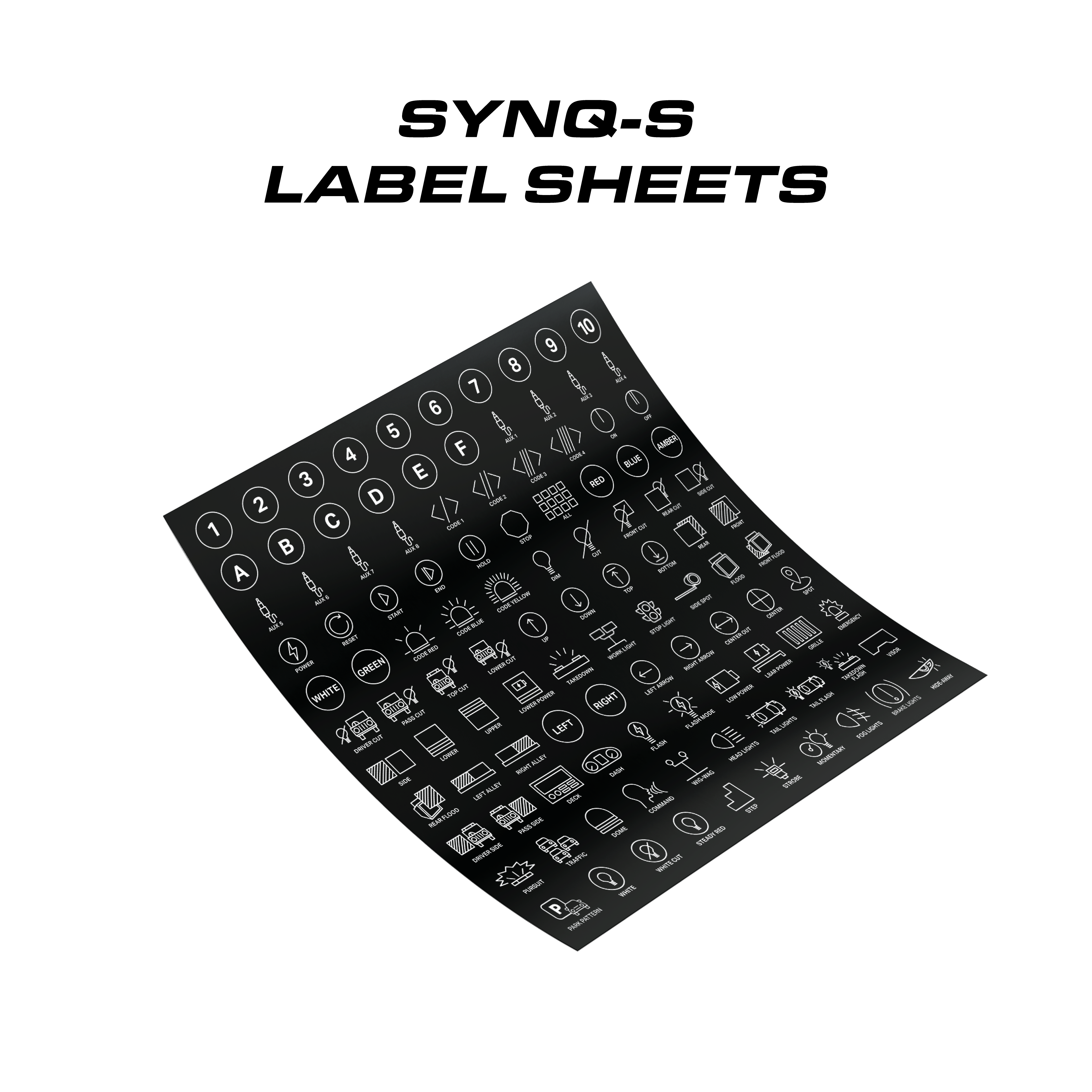

15ft PA Mic Cable Length Includes SynQ-S Controller, SynQ Relay, & 4x Label Sheets
Supports Up to 96 Q Serial Lights or 16 Quantum 2.0 Products
Syncs All Quantum and Q Serial Products
