SynQ-R

Price: $1099.00

About the Product/Series

*PRE-ORDER ONLY*

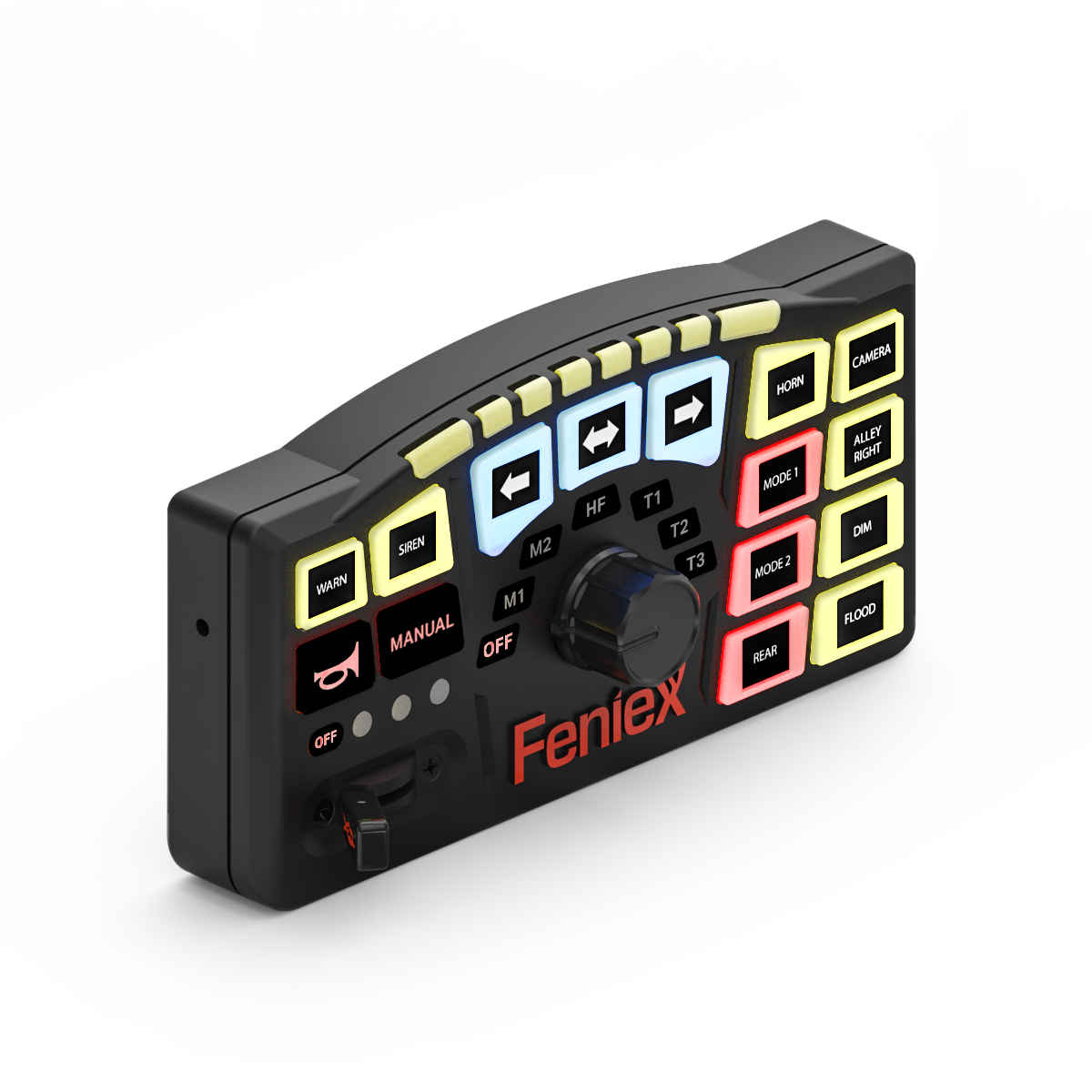

The SynQ-R enhances the SynQ platform with a 13-button layout, an integrated slide switch, and a precision rotary knob designed for fast adjustments in the field. Whether changing lighting intensity, scrolling audio functions, or operating custom modes, the rotary control gives operators finer, smoother input than traditional button-only systems. Five backlit color options allow each button to be quickly identified in low-visibility environments, and the system boots in one second for immediate readiness.

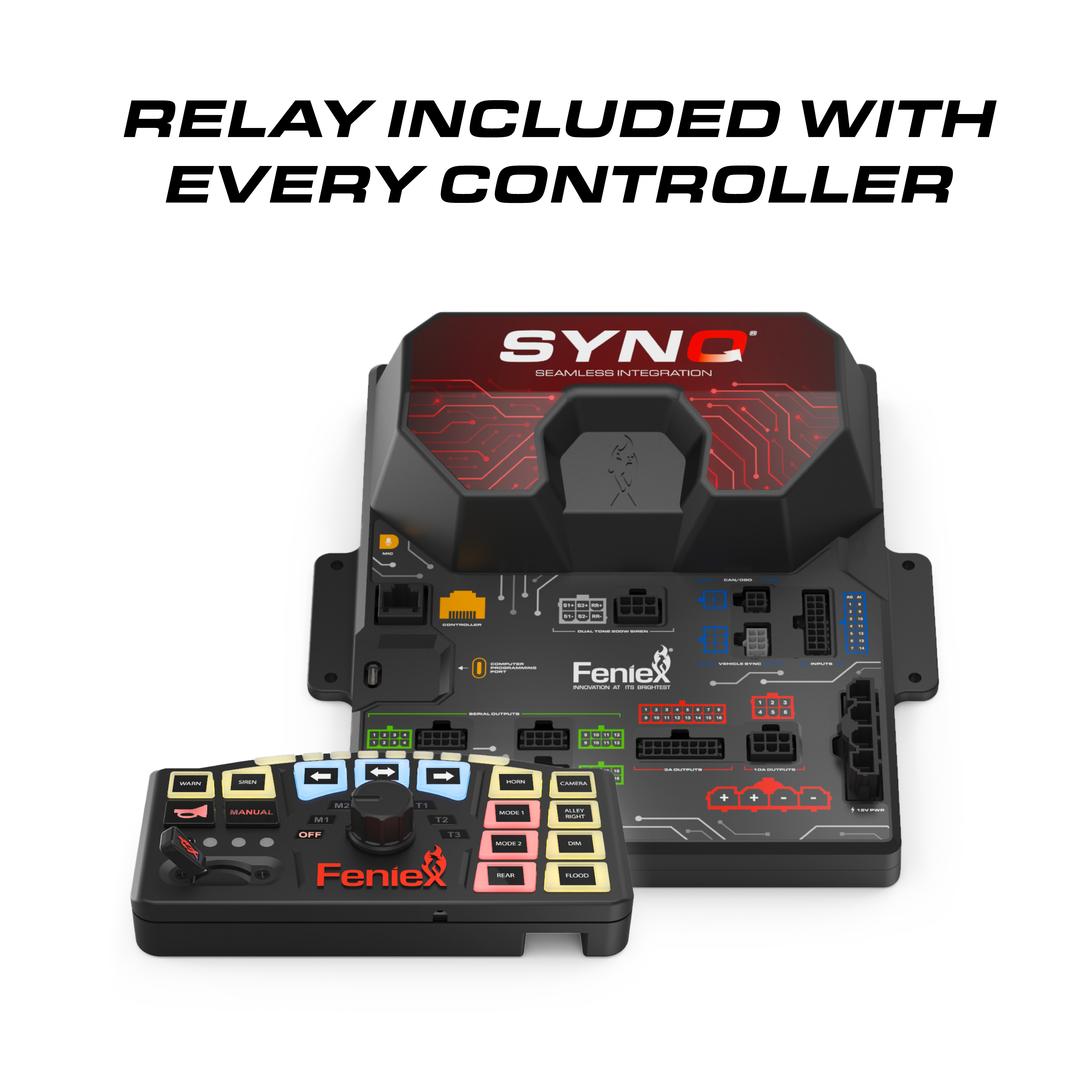

Paired with the SynQ Relay, the SynQ-R delivers powerful siren capability with a 200W dual-tone amplifier, 15+ siren tones, and 20+ audio commands. Its PC-programmable interface supports detailed customization of lighting, auxiliary equipment, and event-based behavior. With 22 total outputs, a 15 ft. mic cable, and compatibility with up to 96 Q Serial or 16 Quantum products, the SynQ-R offers unmatched flexibility for agencies that rely on precise, adaptive vehicle control.

Specfications

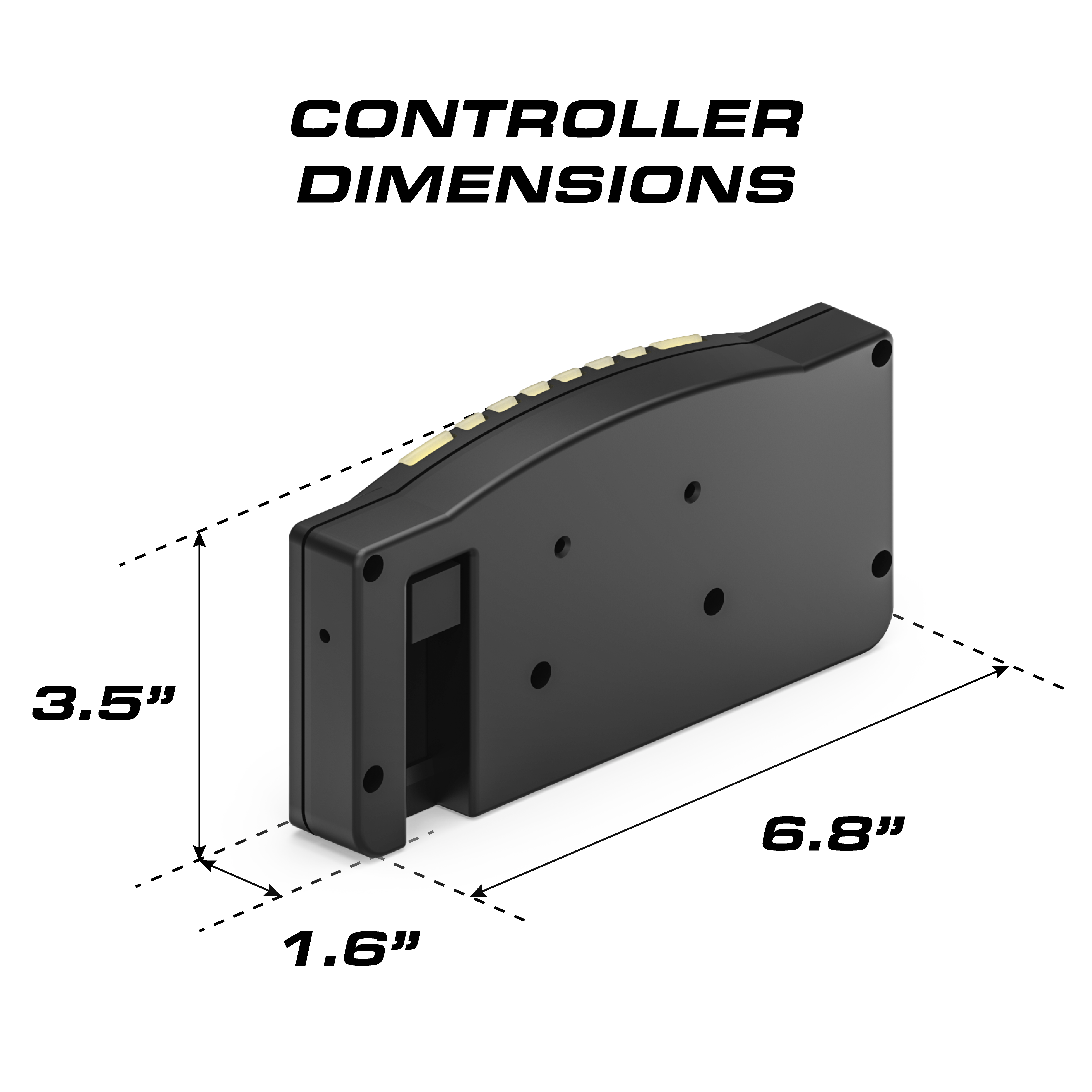

Dimensions (Controller): 6.8” x 1.6” x 3.5”

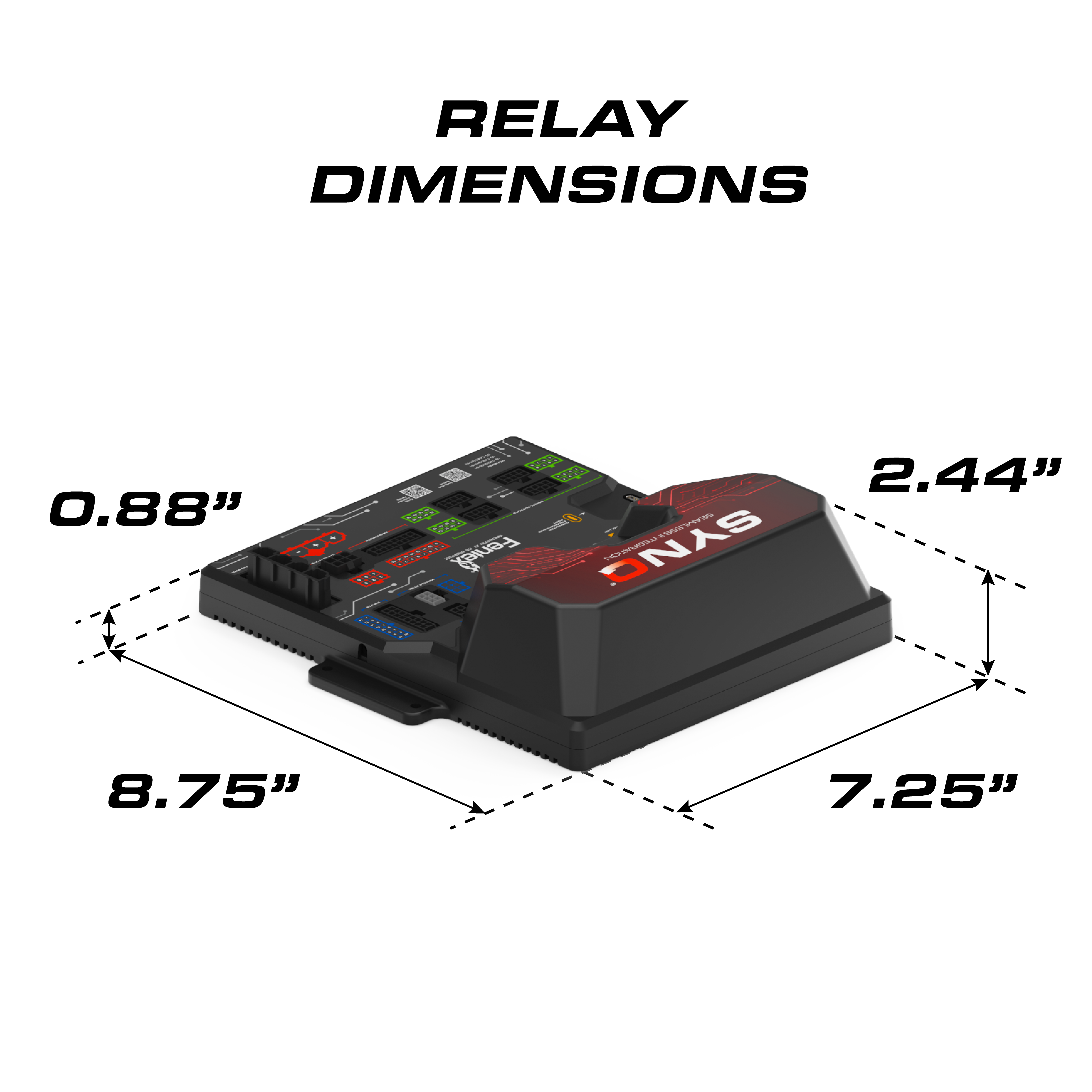

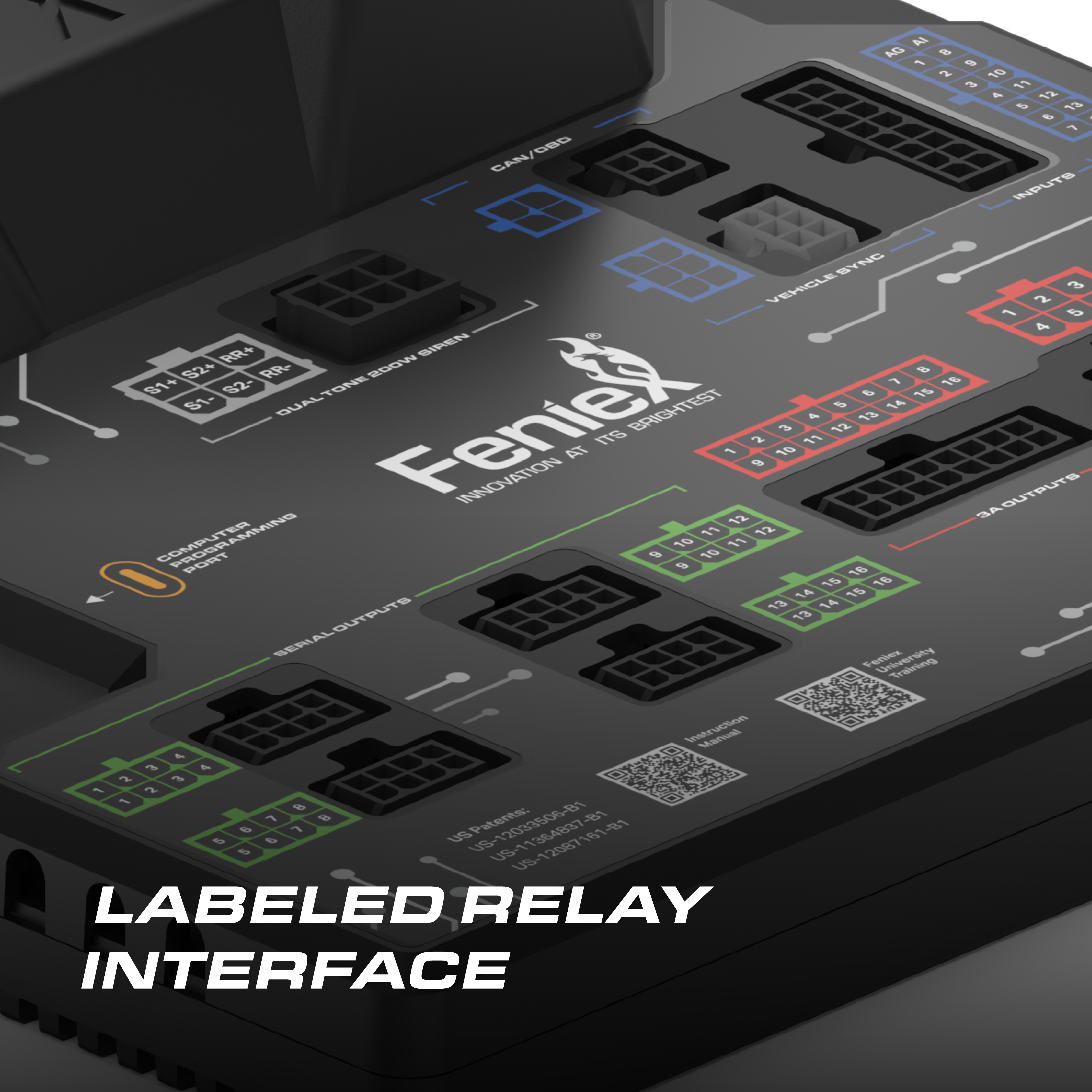

Dimensions (Relay): 7.25” x 8.75" x 2.44”
Input Voltage: 12-18VDC
Standby Current: 0.35 Amps Total
Max Current: 115 Amps
Low Current Output Current Rating: 3 Amps
High Current Output Current Rating: 10 Amps
2 Year Manufacturer Warranty

Product Details

13 Programmable Buttons
5 LED Button Color Options
Standardized Button Size
4 Button Style Configurations: Timer, Toggle, Multi-Press, and Momentary

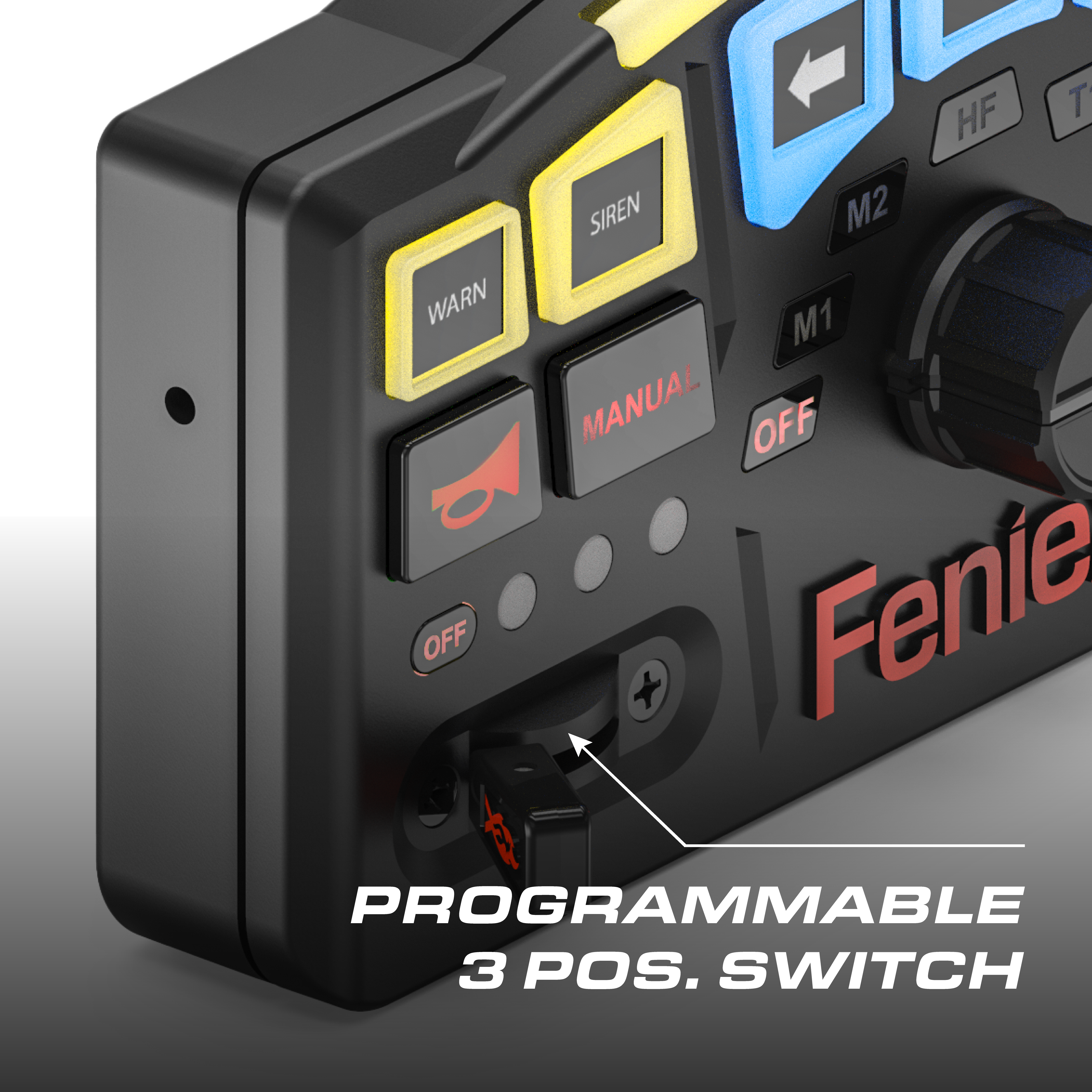

3 Position Slide Switch
Aluminum Slide Switch Cap

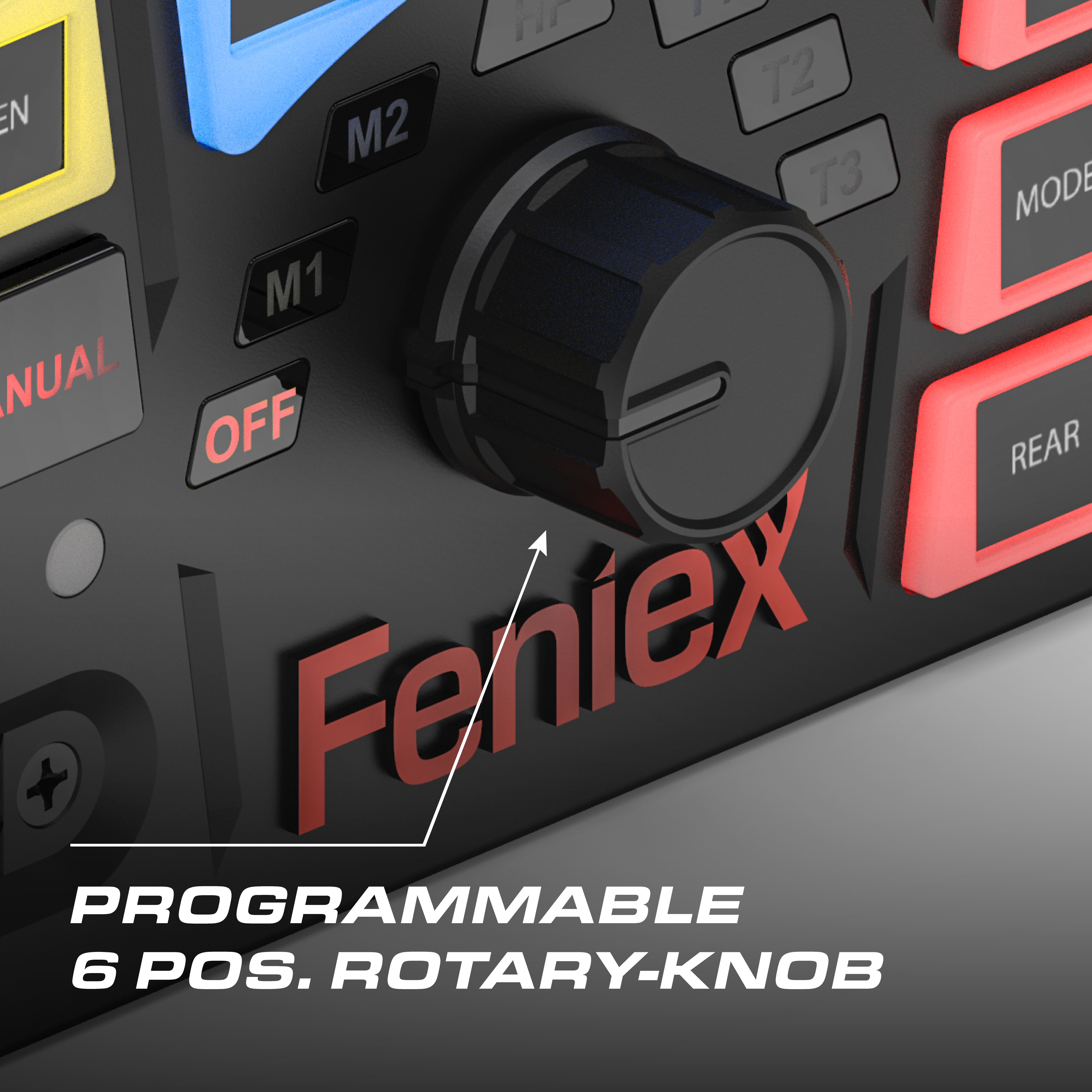

6 Position Rotary-Knob

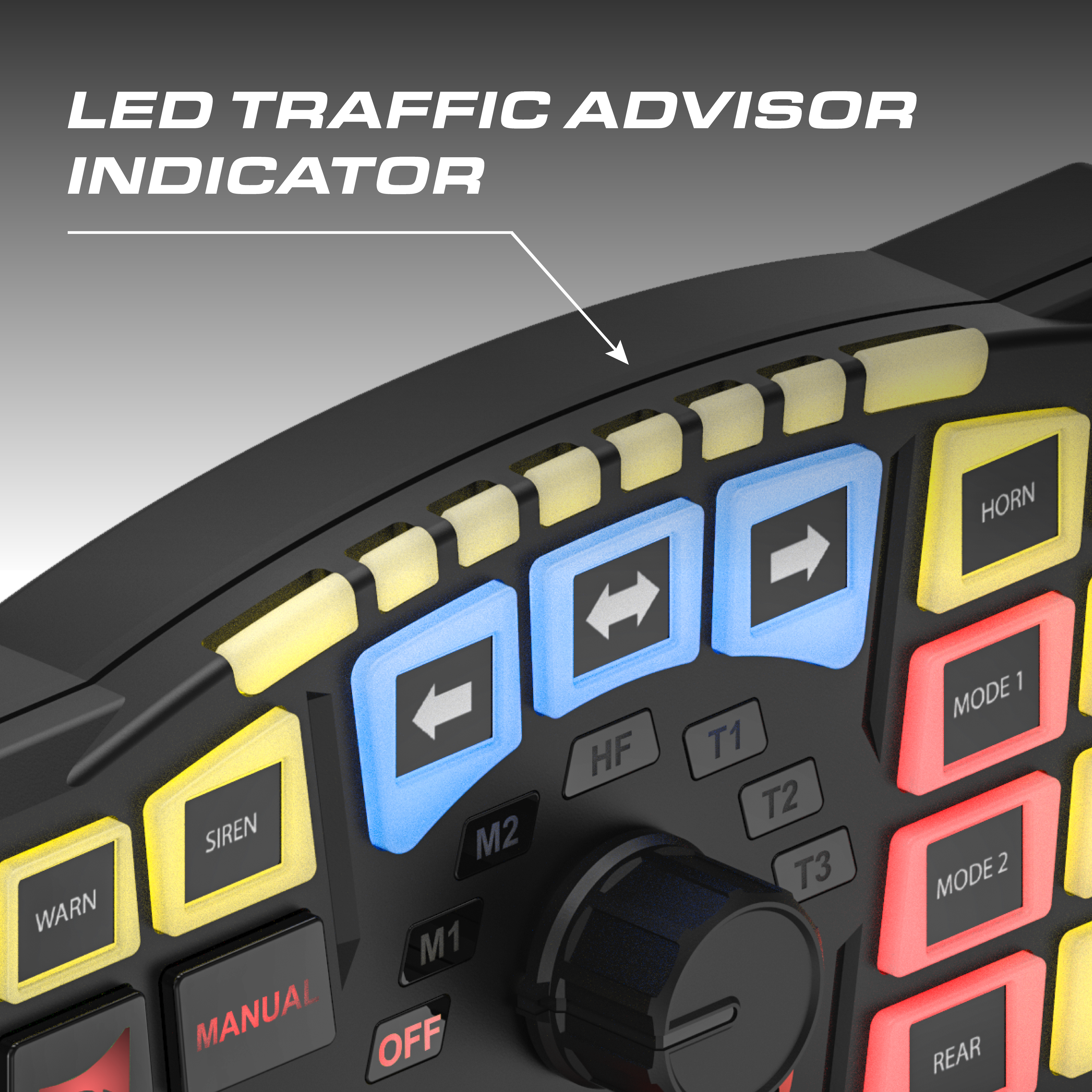

8 LED Programmable Traffic Advisor Indicators
15+ Programmable Siren Tones
20+ Audio Commands
200W Dual-Tone Siren
Horn Ring, Park-Kill, Hands-Free, & Radio Rebroadcast

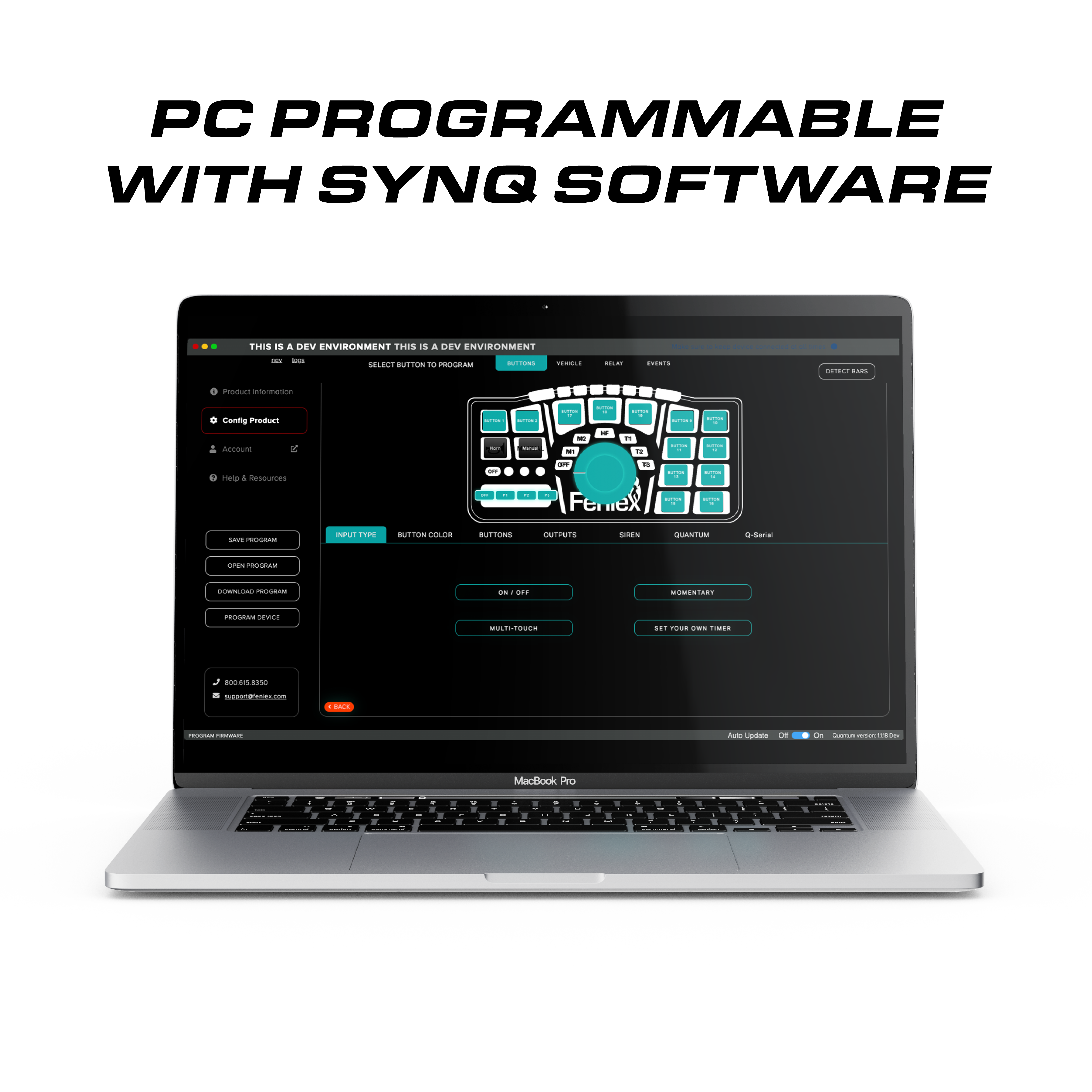

PC Programmable
Firmware Upgradable

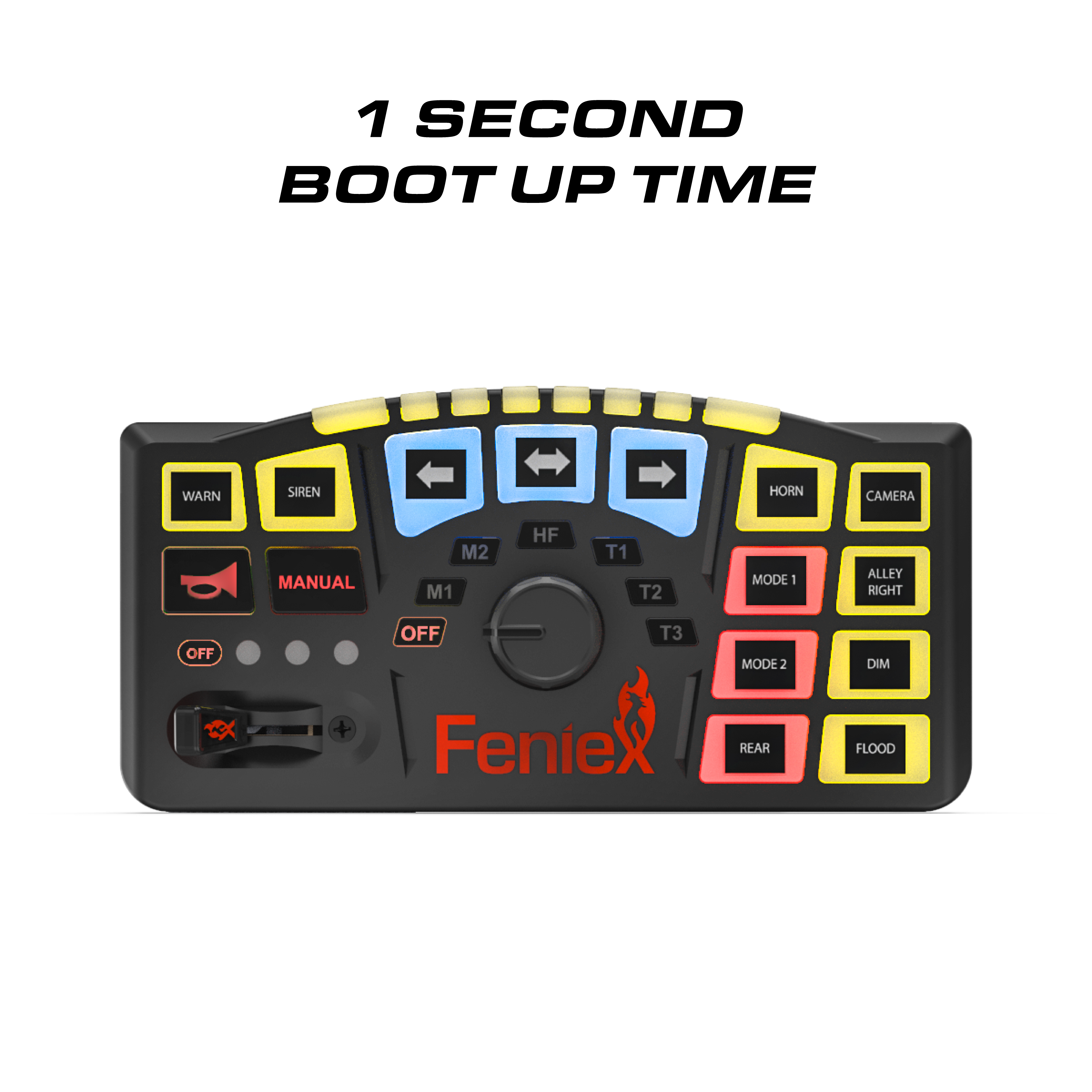

1 sec. Boot Up Time
12 Low Current Positive Outputs
6 High Current Positive Outputs
4 Low Current Ground Outputs
15ft Wire Harness From Controller to Relay

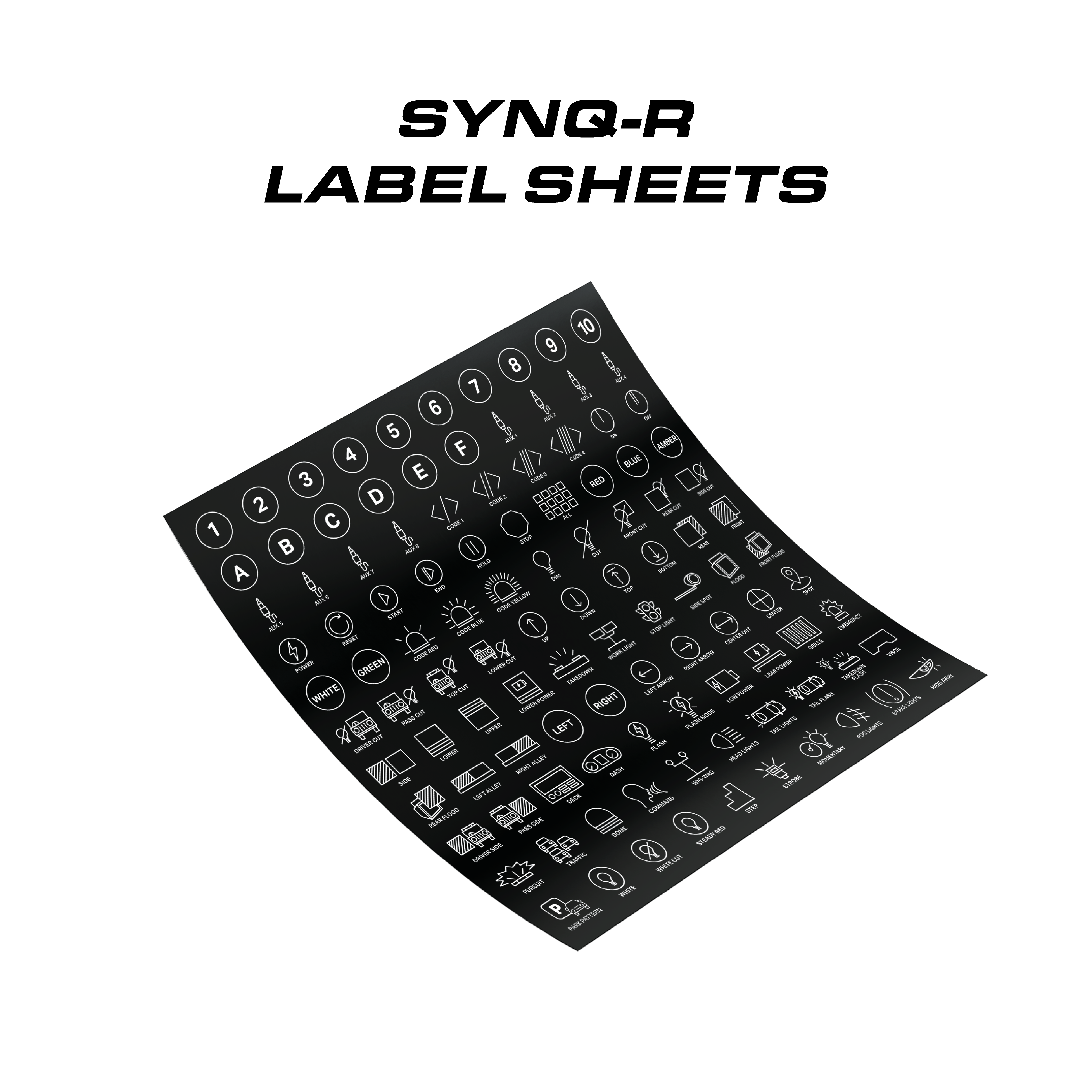

15ft PA Mic Cable Length Includes SynQ-R Controller, SynQ Relay, & 4 Label Sheets
Supports Up to 96 Q Serial Lights or 16 Quantum 2.0 Products
Syncs All Quantum and Q Serial Products
