4200 Mini High Current
Price: $219.00
About the Product/Series

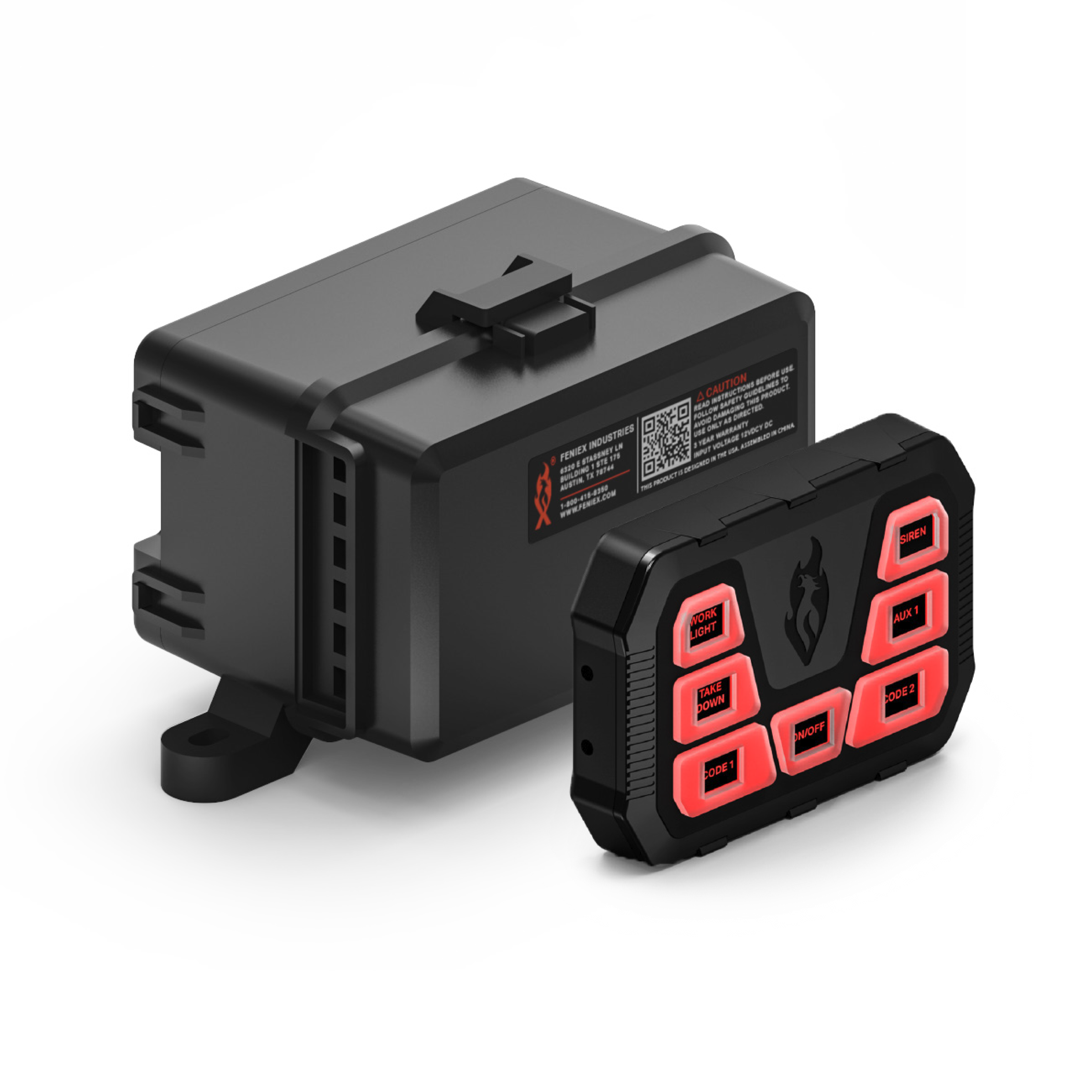

The Feniex 4200 Mini High Current is a streamlined control solution designed for managing complex lighting systems with ease. Featuring 6 high current outputs and convenient 4200 Mini connection methods that amplify output capabilities to a 10-amp capacity for reliable power management in demanding applications.

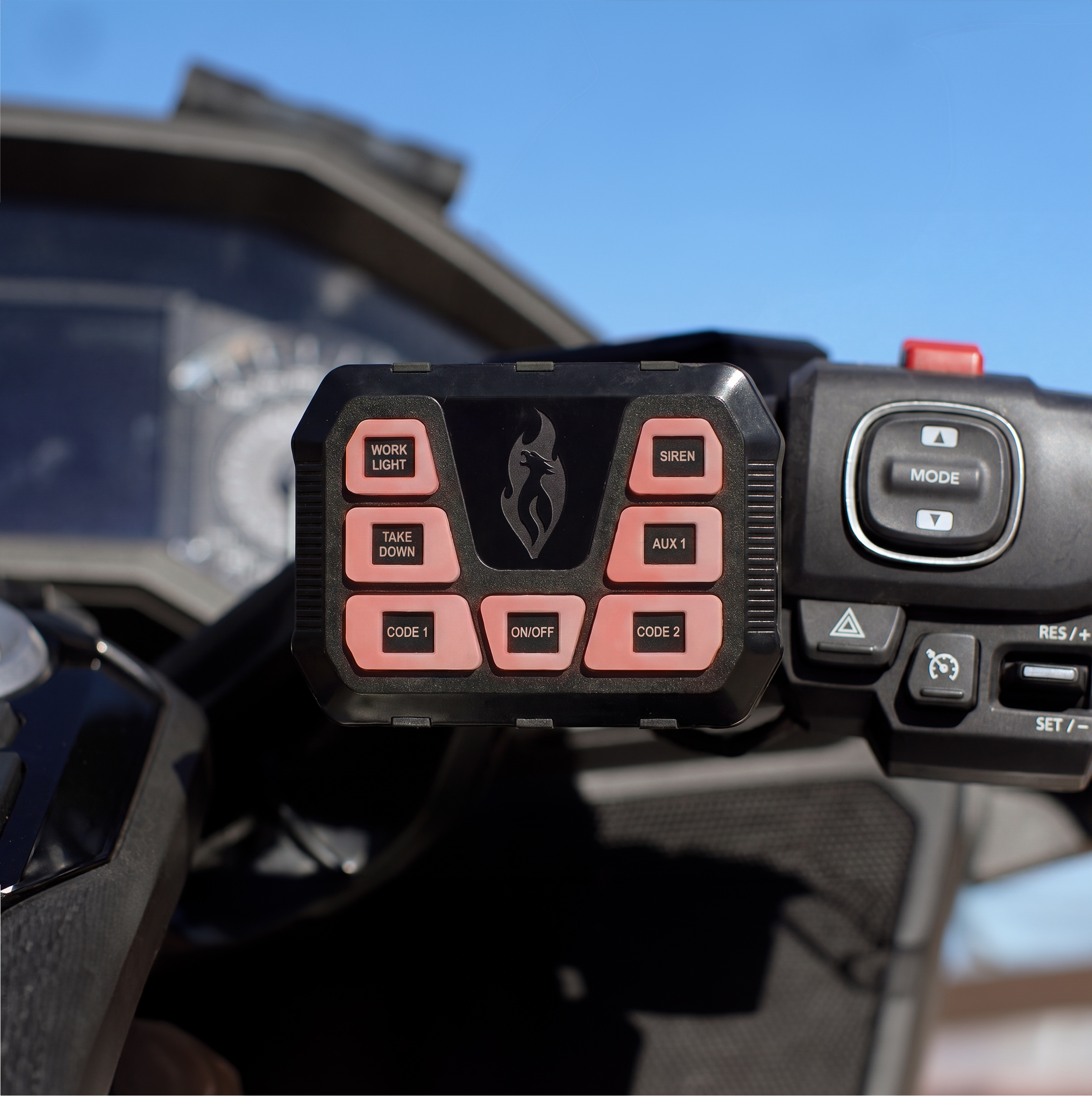

Designed with the same streamlined interface and intuitive functionality as the standard 4200 Mini, the 4200 Mini High Current offers seamless integration, flexible installation, and dependable control in any environment. Whether outfitting a single response vehicle or building out a larger fleet, it provides enhanced power capability while maintaining the familiar, compact form factor users expect from the 4200 Mini.
Specfications
- Dimensions (Controller): 3” x 1.25” x 5.25”

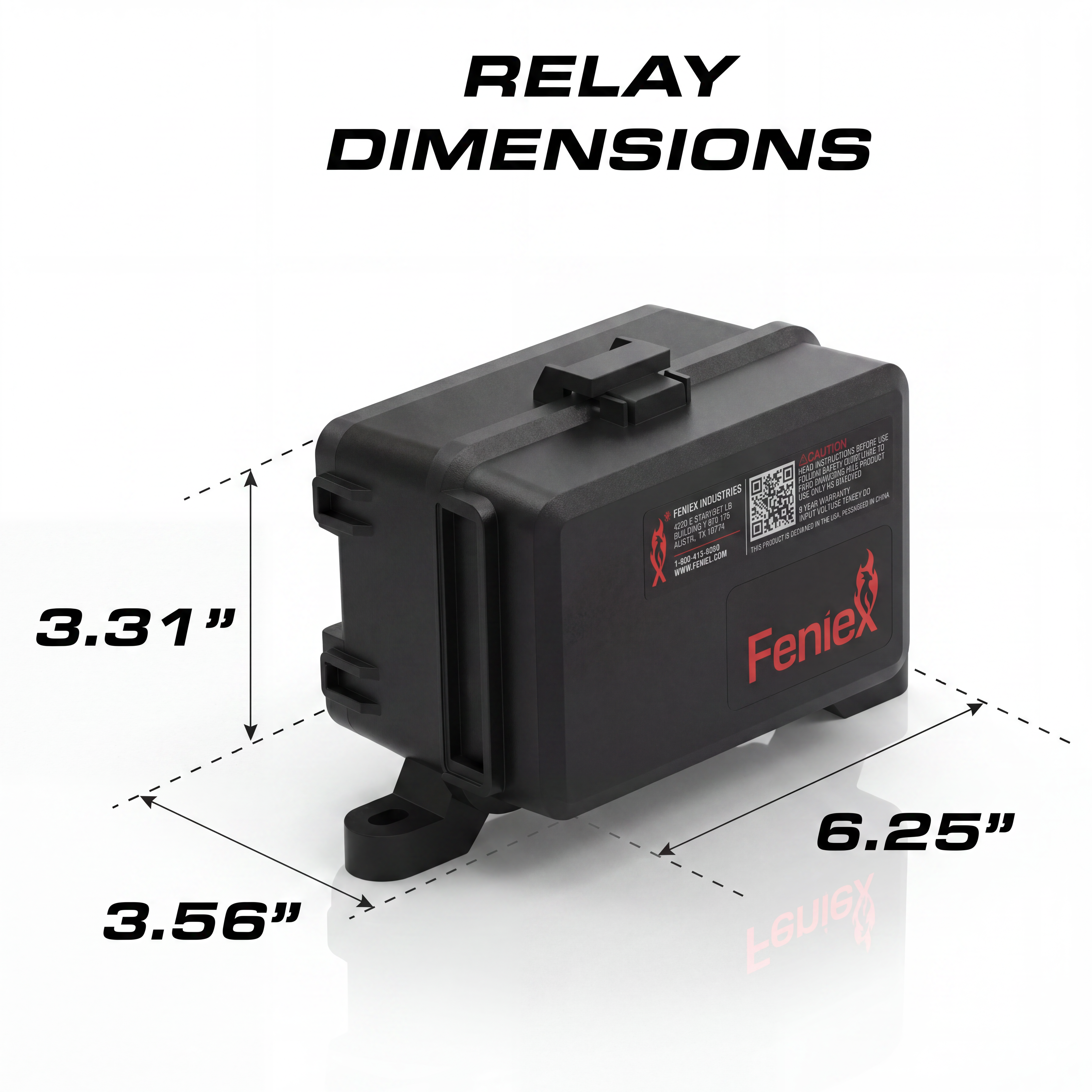

- Dimensions (Relay): 6.25” x 3.56” x 3.31”
- Input Voltage: 10-18VDC

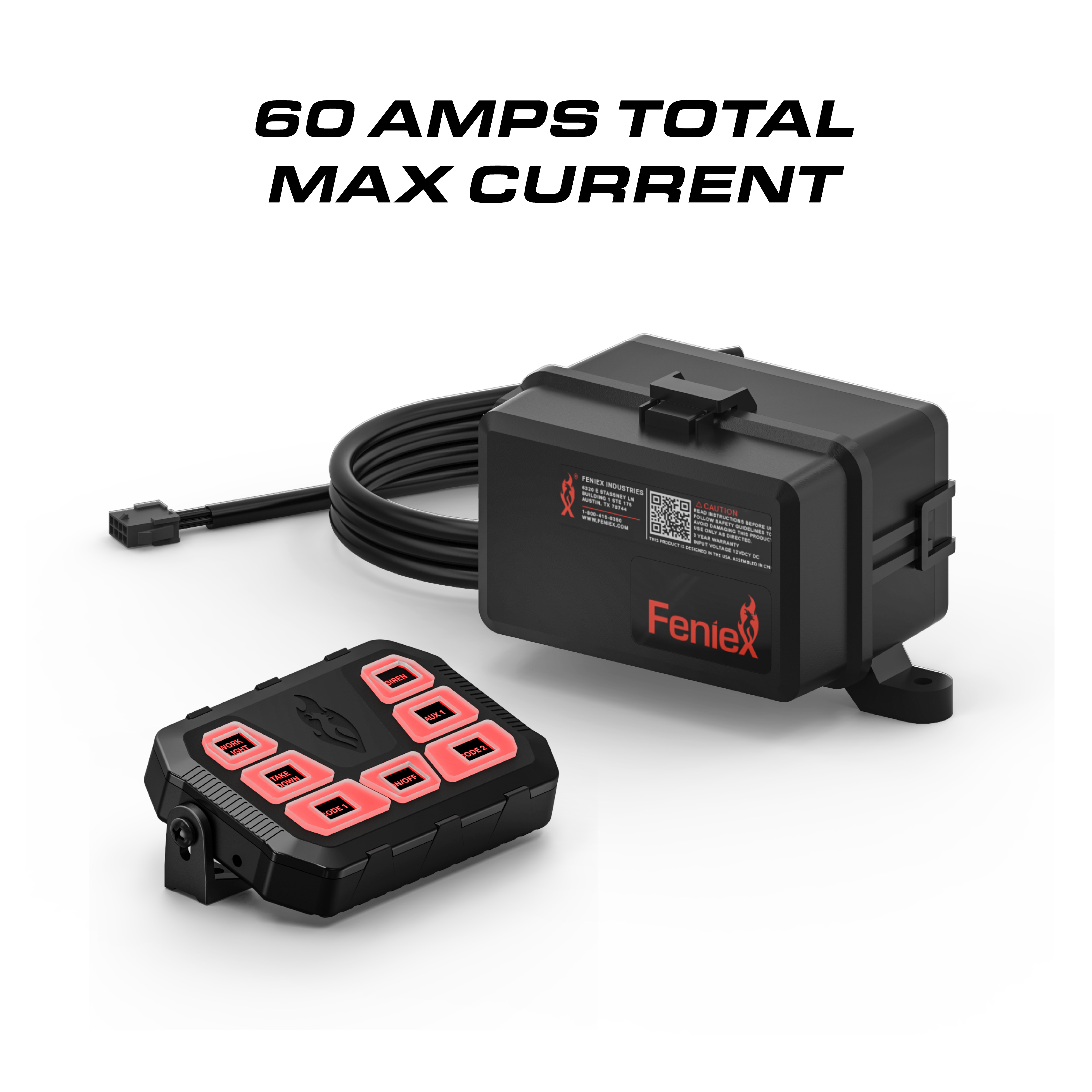

- Total Max Current: 60 Amps
- Amps per Output: 10 Amps
- Cable Length: 14.5ft
- 2 Year Manufacturer Warranty
Product Details
- All-In-One Controller with High Current Relay
- 6 Programmable Momentary or On/Off Buttons
- Integrated 2-Output Wig-Wag Function
- LED Backlit Buttons
- Universal Compatibility

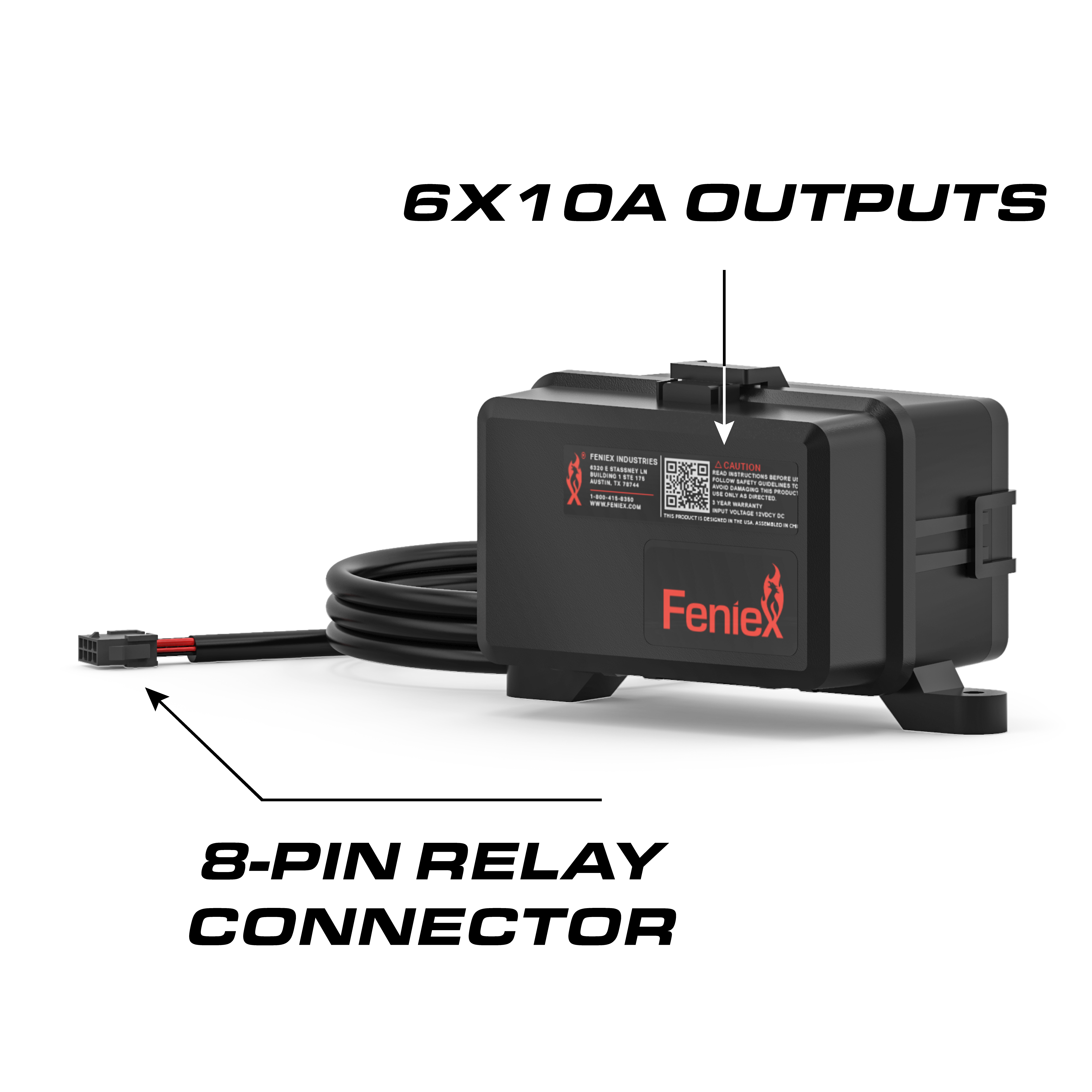

- 6 10A High Current Outputs

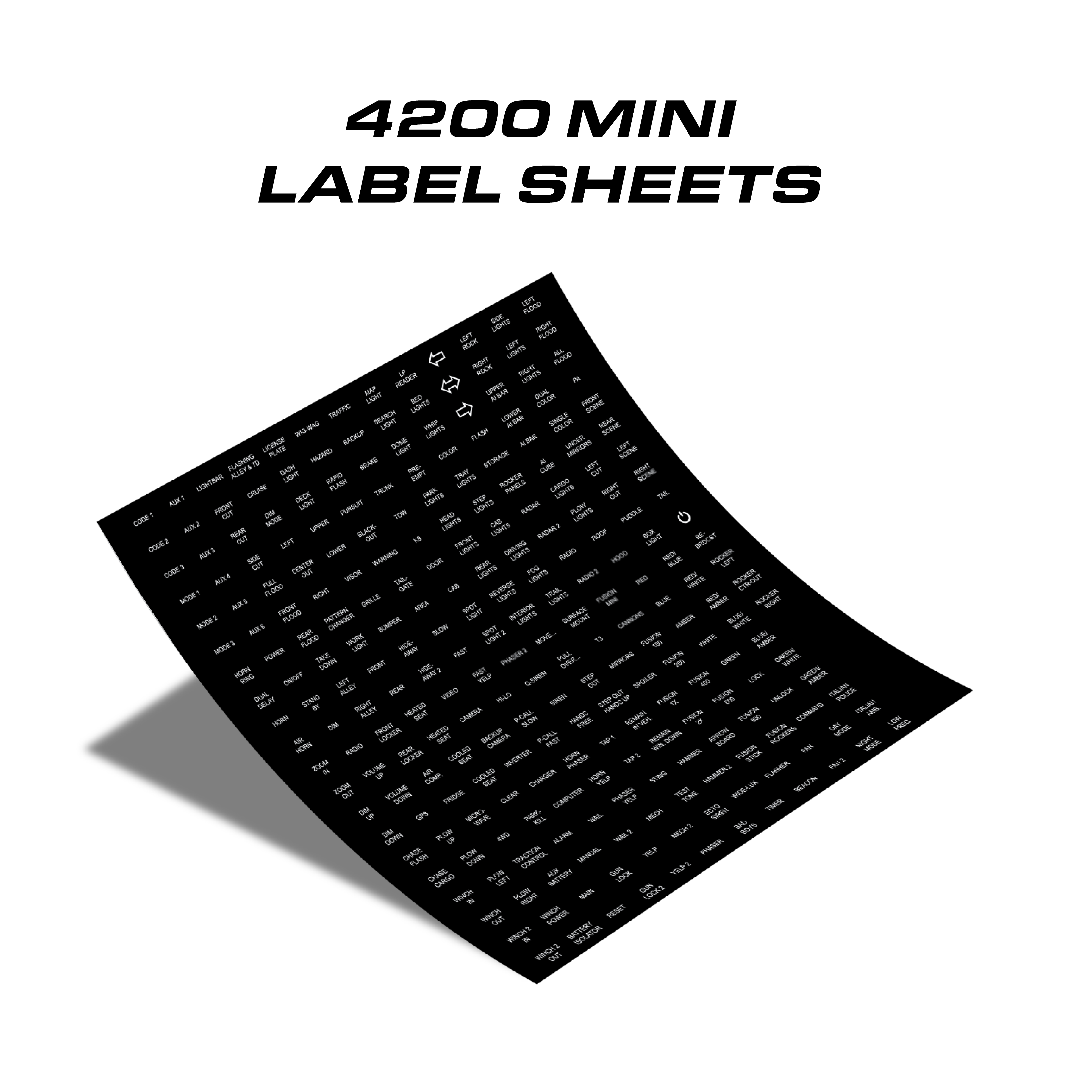

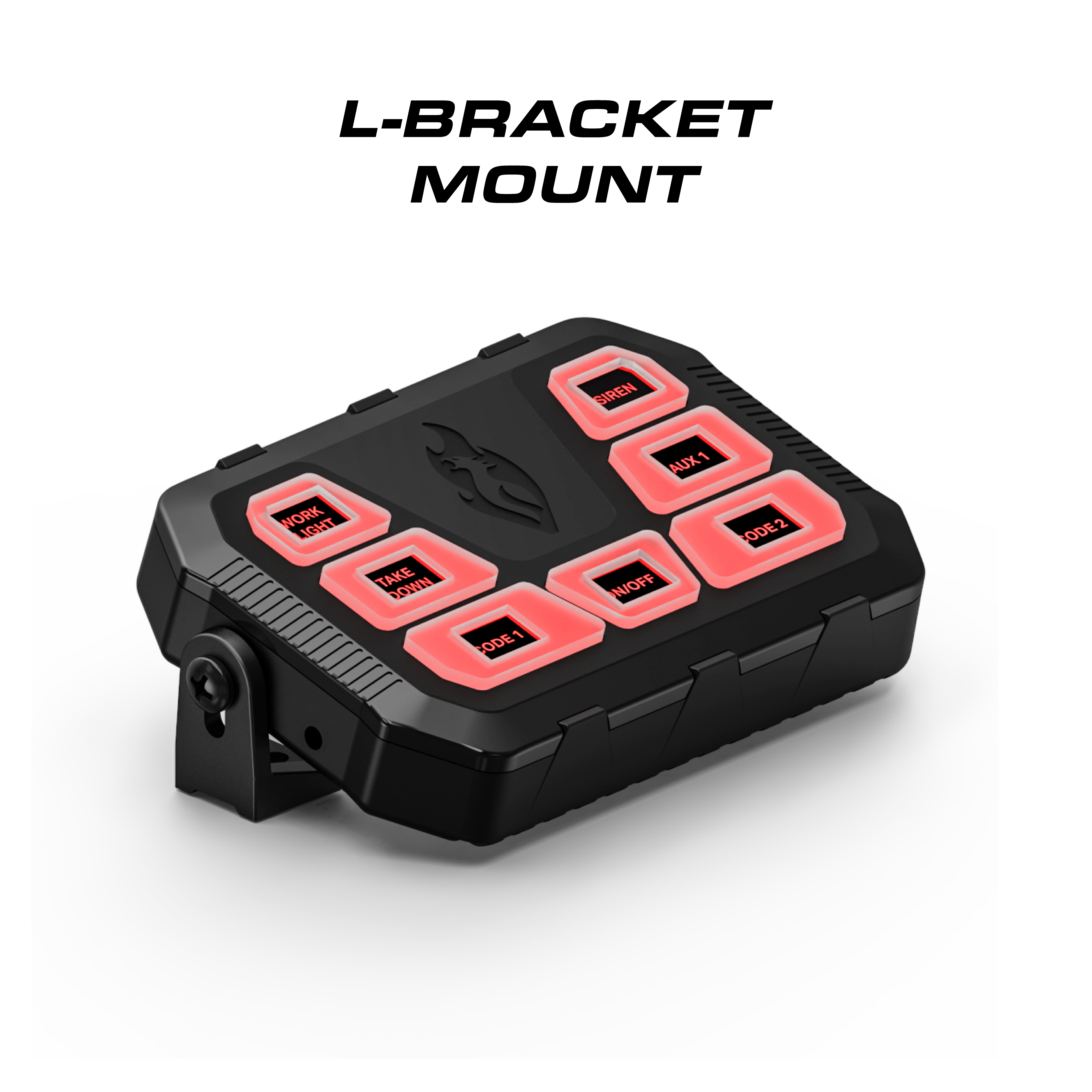

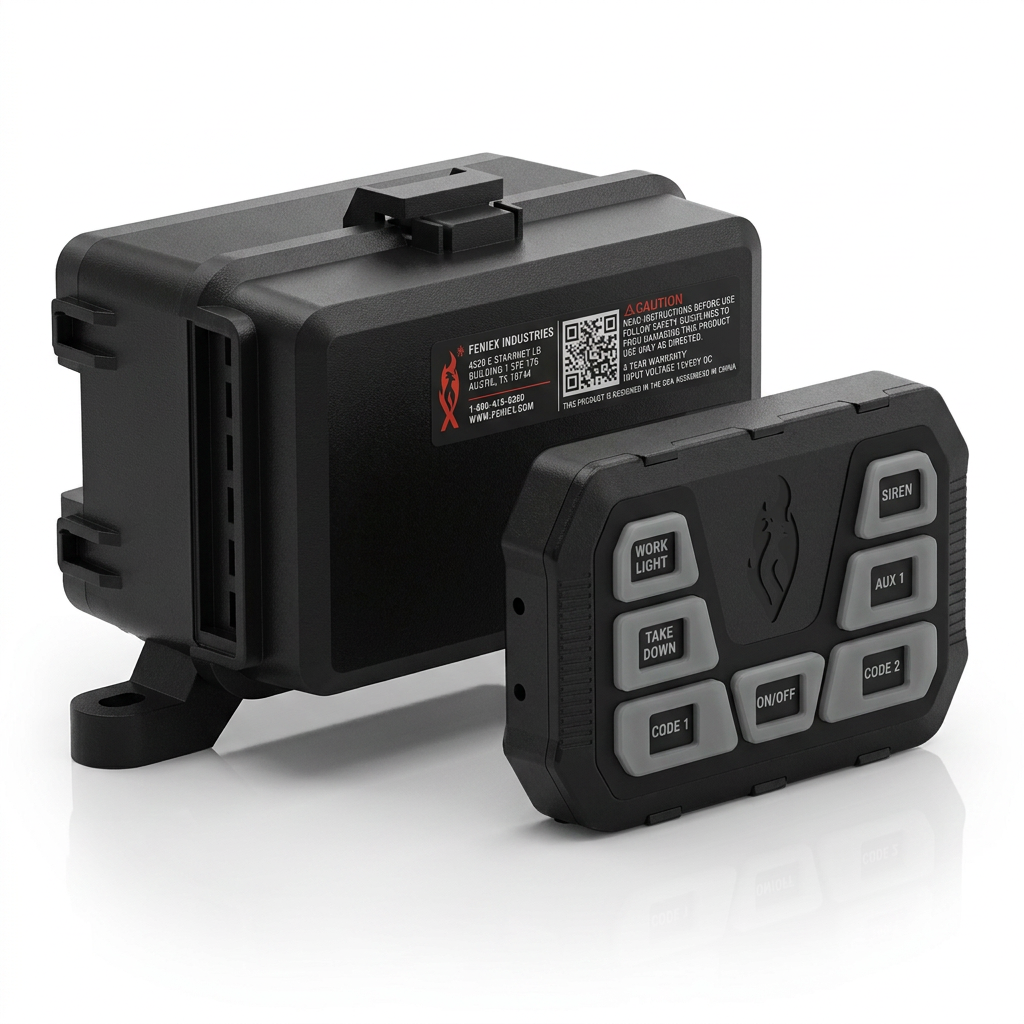

- Purchase Includes 4200 Mini Controller, 6 Port High Current Relay, Button Legend Sheets, and 2x L-Brackets
- Includes 14.5’ Extension Cable
